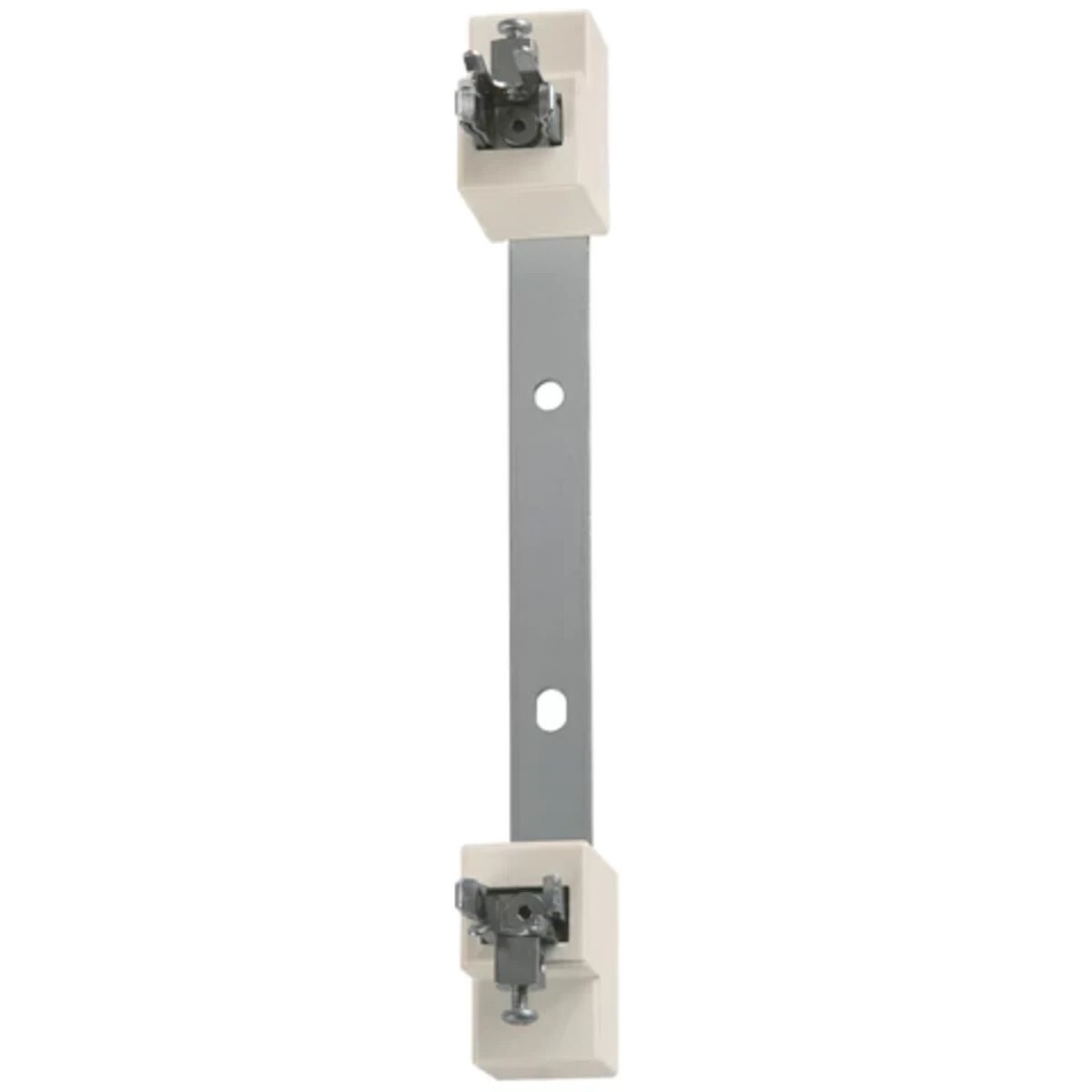

Osram 69004 - Lamp Socket - 1200W 1000V 250°C - No leads
Details
SFc10-4 with Pre-Focus Socket. May be used with SharXS HTI lamps.
Features & Benefits
- Ceramic housings designed specifically for high temperature halogen and metal halide applications
- High quality contact materials for optimal mechanical and electrical properties
- UL recognized and CE certified
Lamp Specifications - Listed Alphabetically | |
| Base: | Double Ended SFc10-4 with Keylock for Pre-Focus |
| Body Material: | Ceramic Steatite |
| Contact Material: | Nickel Plated Steel |
| Height (in): | 1.71 |
| Height (mm): | 43.3 |
| Hot Restart Time to 90%: | Yes |
| Length I (in): | 5.85 |
| Length I (mm): | 148.6 |
| Manufacturer Purchase Description: | SFC10-4 115MM NO LEADS |
| Max Ignition Voltage (kV): | 25 |
| Max Rated Temp (°C): | 250 |
| Max Rated Voltage (V): | 1000 |
Osram 69004 Data Sheet
