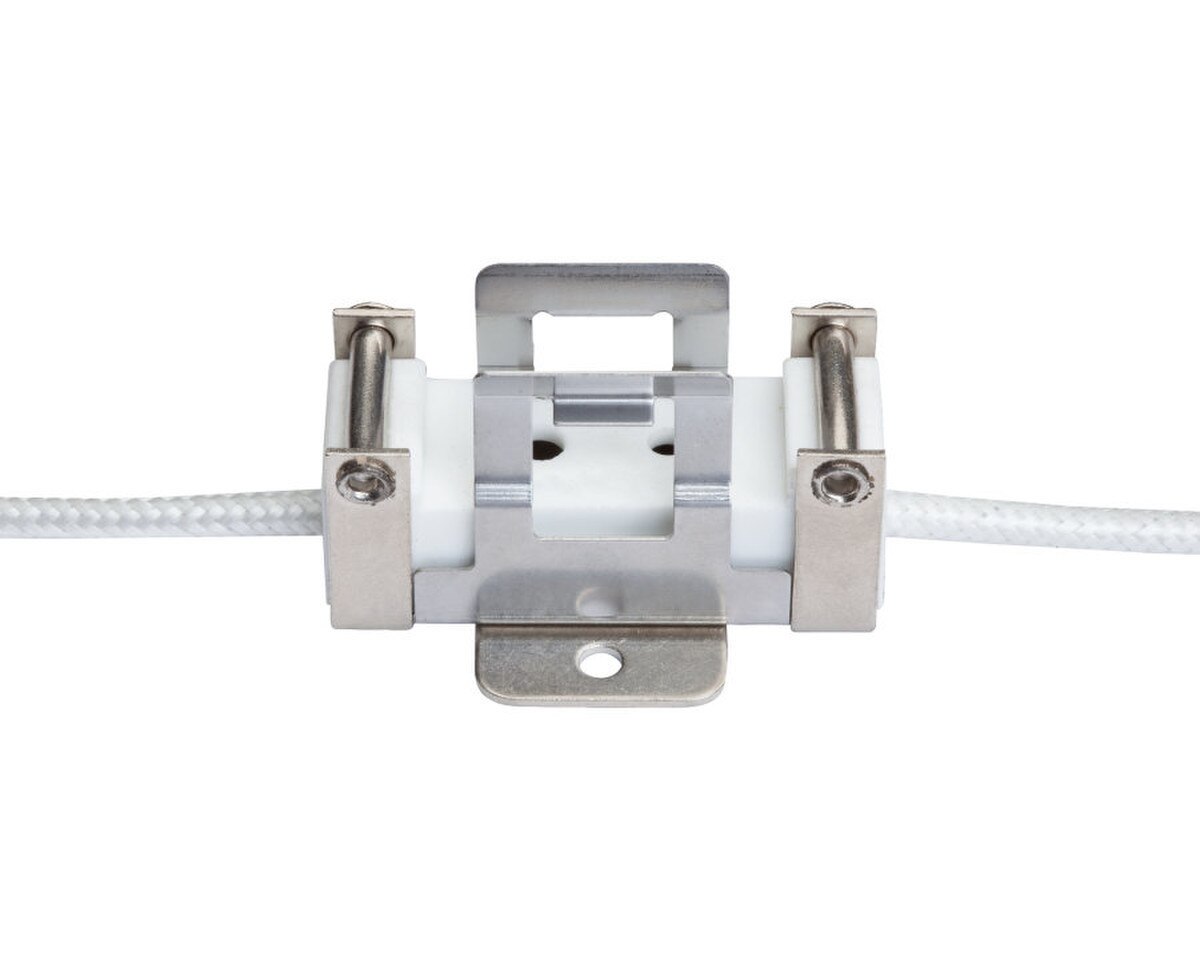

Osram 69020 - Lamp Socket - 1200W 250V 200°C - 12in Lead
Details
- Ceramic housings designed specifically for high temperature halogen and metal halide applications
- High quality contact materials for optimal mechanical and electrical properties
- UL recognized and CE certified
Lamp Specifications - Listed Alphabetically | |
| Base: | GY9.5, GZ9.5 (2-Pin Polarized) |
| Body Material: | Steatite/Plated Steel |
| Contact Material: | Nickel Alloy |
| Height (in): | 1.06 |
| Height (mm): | 29.6 |
| Hot Restart Time to 90%: | No |
| Lead Length (in): | 12 |
| Lead Length (mm): | 305 |
| Lead Strip Length (in): | 0.25 |
| Lead Strip Length (mm): | 6.35 |
| Length I (in): | 1.69 |
| Length I (mm): | 42.9 |
| Manufacturer Purchase Description: | TP23H 12IN/16GA/UL5359 |
| Max Rated Temp (°C): | 200 |
