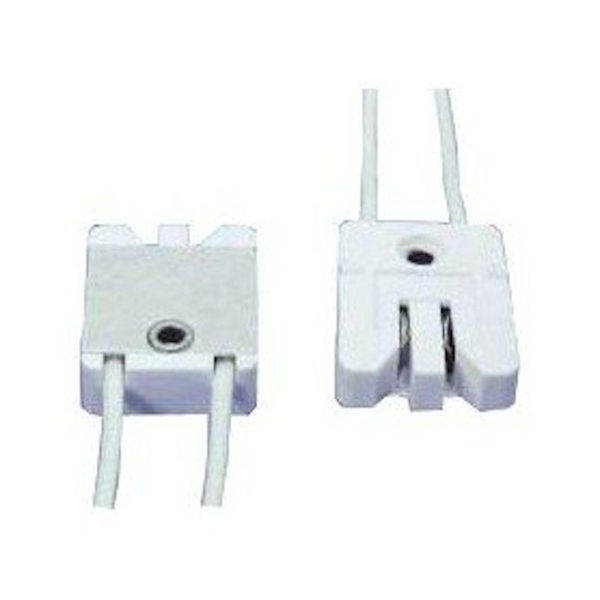

Osram 69022 - Lamp Socket - 500W 300V 200°C - 12in Lead
Details
Lamp Specifications - Listed Alphabetically | |
| Base: | GY5.3 |
| Body Material: | Steatite |
| Contact Material: | Silver Plated Brass (with high temperature back-up string) |
| Height (in): | 0.35 |
| Height (mm): | 89 |
| Lead Length (in): | 12 |
| Lead Length (mm): | 305 |
| Lead Strip Length (in): | 0.25 |
| Lead Strip Length (mm): | 6.35 |
| Length I (in): | 1.19 |
| Length I (mm): | 30.2 |
| Manufacturer Purchase Description: | TP30 12IN/18GA/ULSFF1 |
| Max Rated Temp (°C): | 200 |
| Max Rated Voltage (V): | 300 |
