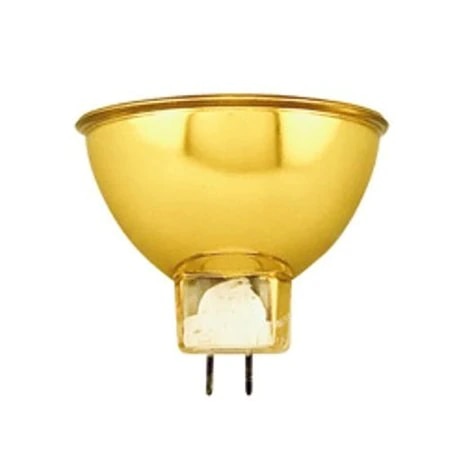

Osram 54233 - MR16 - 150W 15V 50HR - Projection/Fiber Optic
Details
Overseas Product Code: 54162. Alternate UPC Code: 4050300238807.
OSRAM offers an extensive line of low voltage halogen lamps. The state-of-the-art processes provide precision filament alignment within the reflector making these lamps ideal for applications that require accurate positioning, as in the medical and scientific markets.
Lamps designed as HLX utilize Xenon gas in place of Krypton and provide up to 10% greater output over the life of the lamps.
A selection of eXtra long life lamp options are also available and are designated with an "/ X".
Product features and benefits
- Precise filament alignment with patented quartz pinch technology
- OSRAM HLX lamps provide 10% higher luminous efficacy over standard halogen
- Instant on and nearly constant luminous flux over the life of the lamp
- Dimmable
Areas of application
- Microscopy
- Laboratory & Analysis
- UV Curing
- Fiber Illumination
- Surgical & Dental Overhead
- Club & Disco
Lamp Specifications - Listed Alphabetically: | |
| Average Rated Life (HR): | 50 |

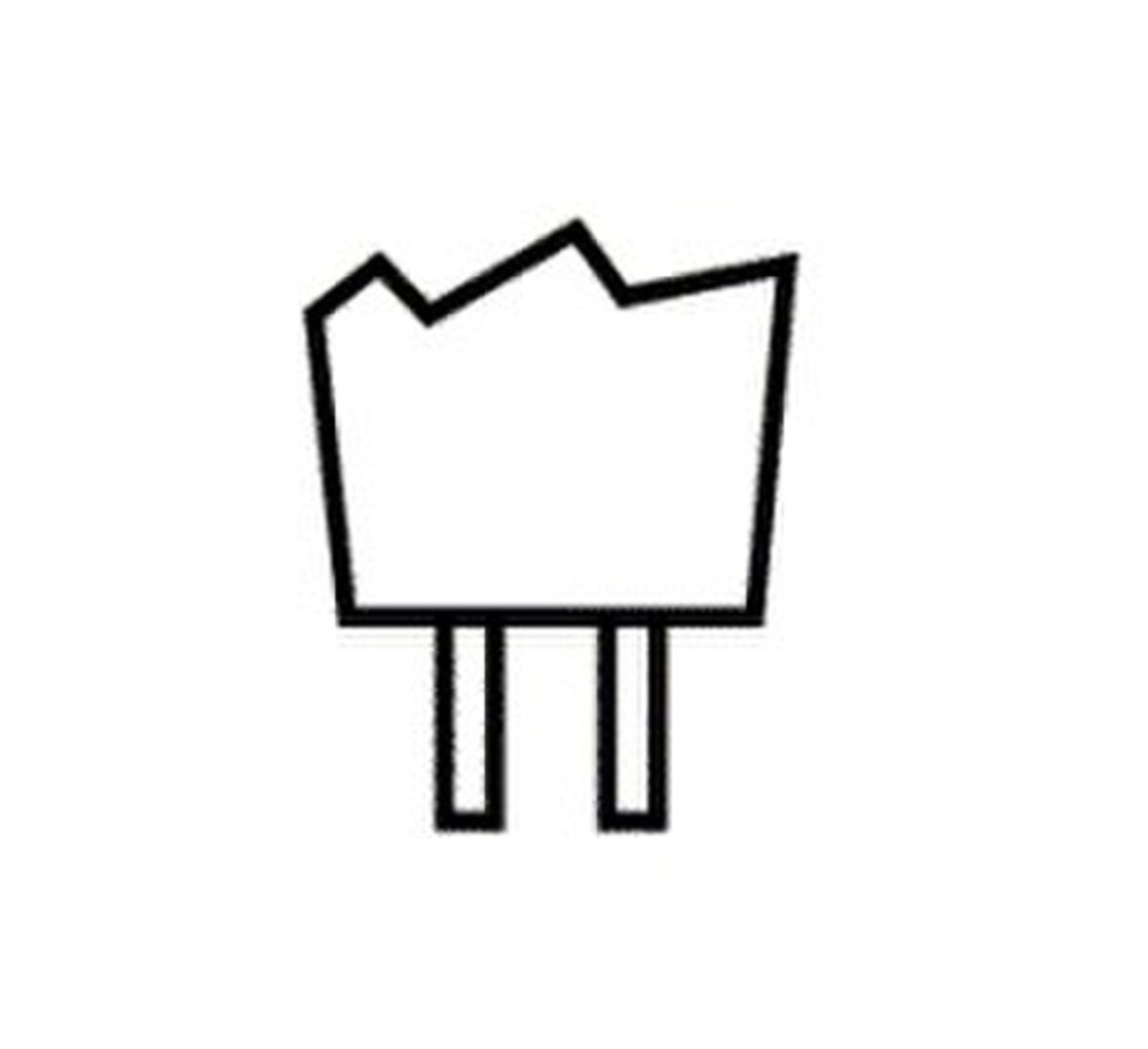

| Base: | GZ6.35 Bipin |
| Bulb: | MR16 |
| Class: | C (gas) |
| Color Rendering Index (CRI): | 100 |

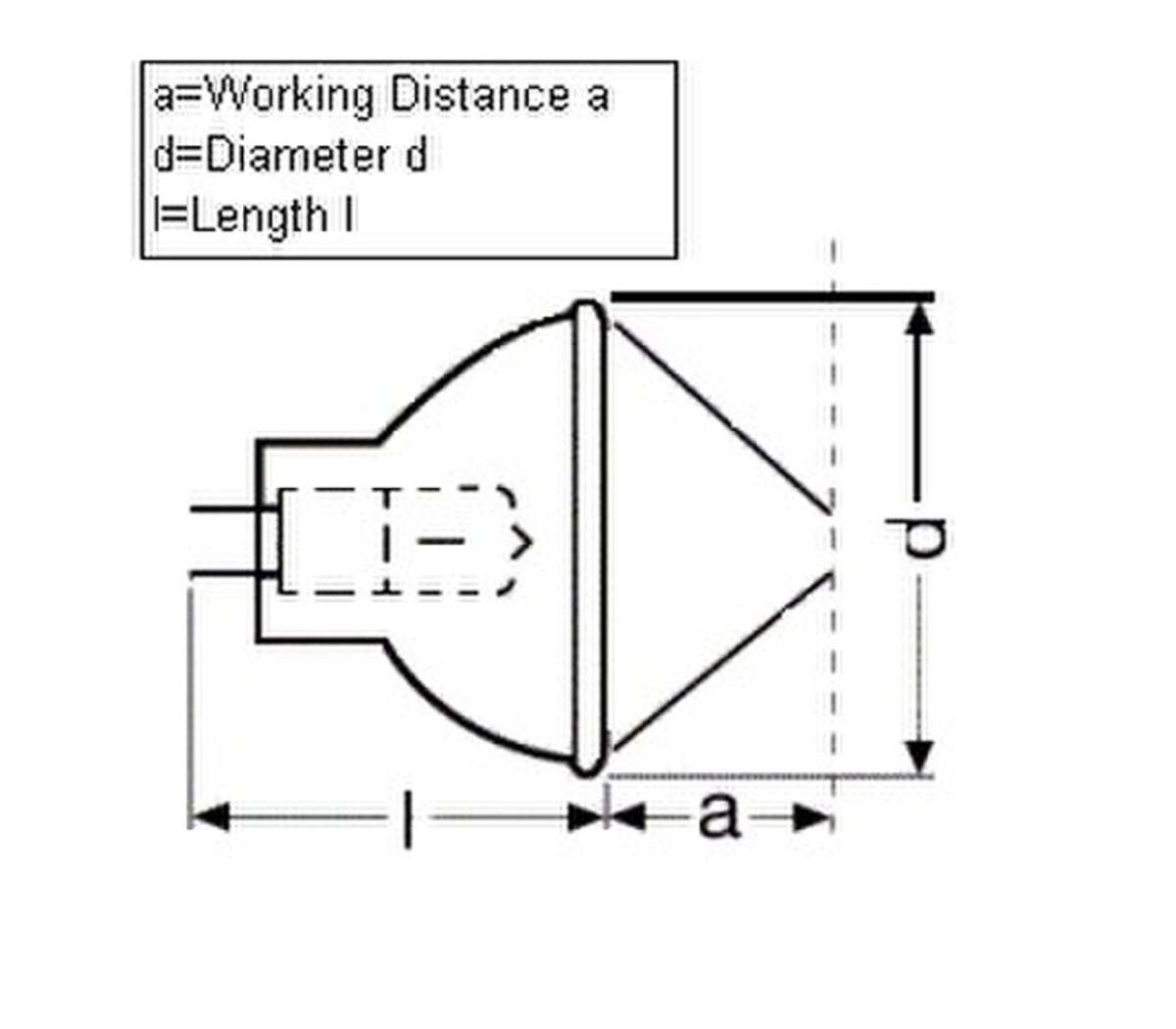

| Diameter d (in): | 2.008 |
| Diameter d (mm): | 51 |
| Lamp Finish: | Clear |
| Length I (in): | 1.76 |
| Length I (mm): | 44.577 |
| Length I Max.(in): | 1.755 |
| Length I Max.(mm): | 44.577 |
Osram 54233 Data Sheet
