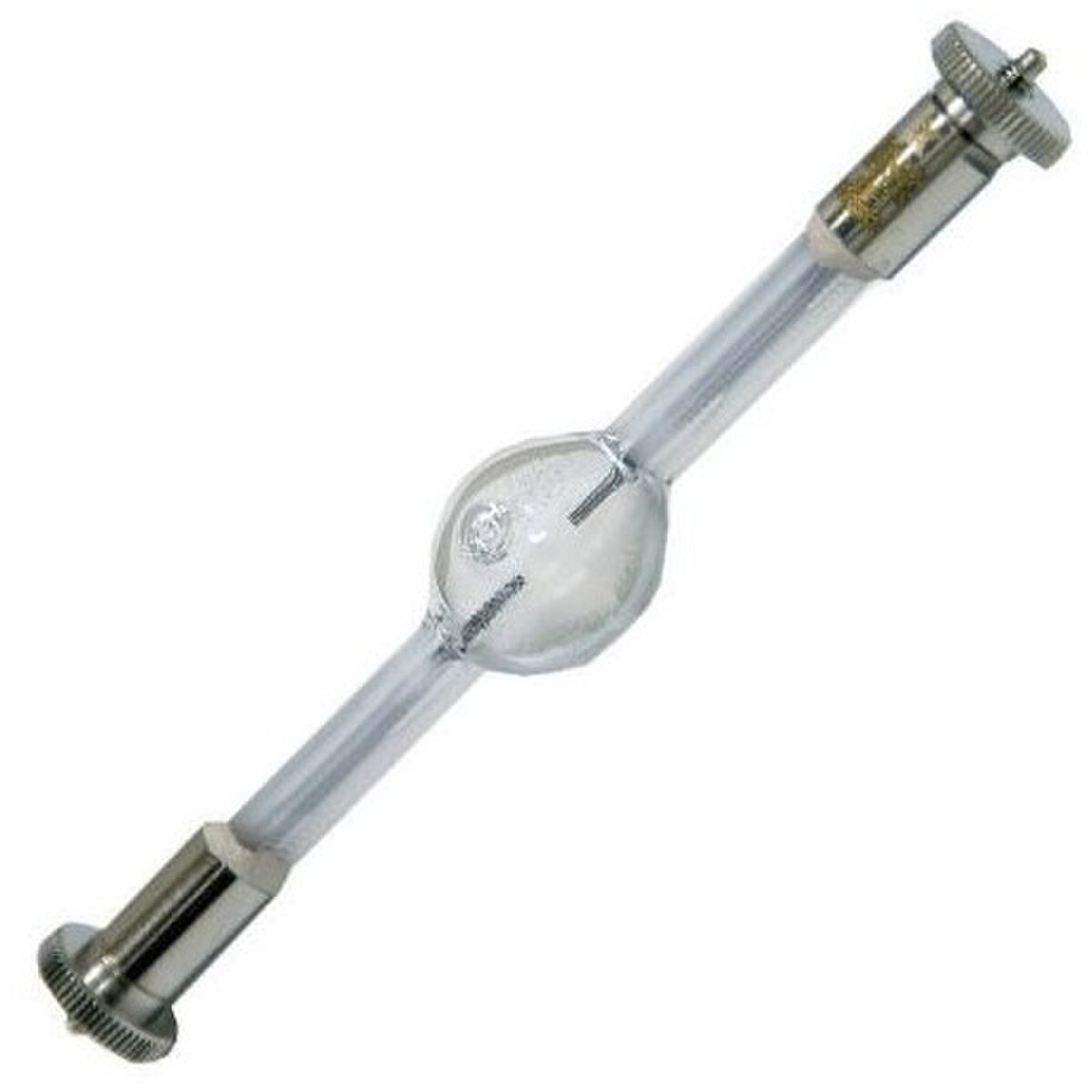

Osram 54268 - HTI/T21-12 - 1200W 95V 750HR 6000K - Entertainment/Effect/Architectural
Details
OSRAM 54268 - HTI1200W/D7/60 SHARXS short arc Metal Halide lamps are ready to meet the demands of any stage, architectural or event lighting application.
For entertainment and stage lighting applications such as those involving automated fixtures, "HTI lamps" offer an excellent balance of color performance, lumen output and service life.
Cross Reference:
- OSRAM 54268 HTI 1200W/D7/60 SHARXS
- HTI1200W/D7/60 SHARXS
- PHILIPS MSR Gold 1200W SA/DE
- GE CSR1200/S/DE/60
- Koto KSR1200S/6000K/DE
- SLI BA 1200 DE/S
Lamp Specifications - Listed Alphabetically: | |
| Average Rated Life (HR): | 750 |
| Base: | SFc10-4 |
| Bulb: | T21-12 |
| Class: | C (gas) |
| Color Rendering Index (CRI): | 90 |
| Color Temperature (CCT) (K): | 6000 |
| Cooling: | Forced |
| Current (A): | 12.7/13.8 |
| Diameter d (in): | 0.866 |
| Diameter d (mm): | 22 |
| Distance a (in): | 2.26 |
| Distance a (mm): | 57.5 |
| Electrode Gap (cold) (mm): | 7 |
