Osram 54229 - HTI/T24 - 700W 100V 7500K - Stage/Studio
Details

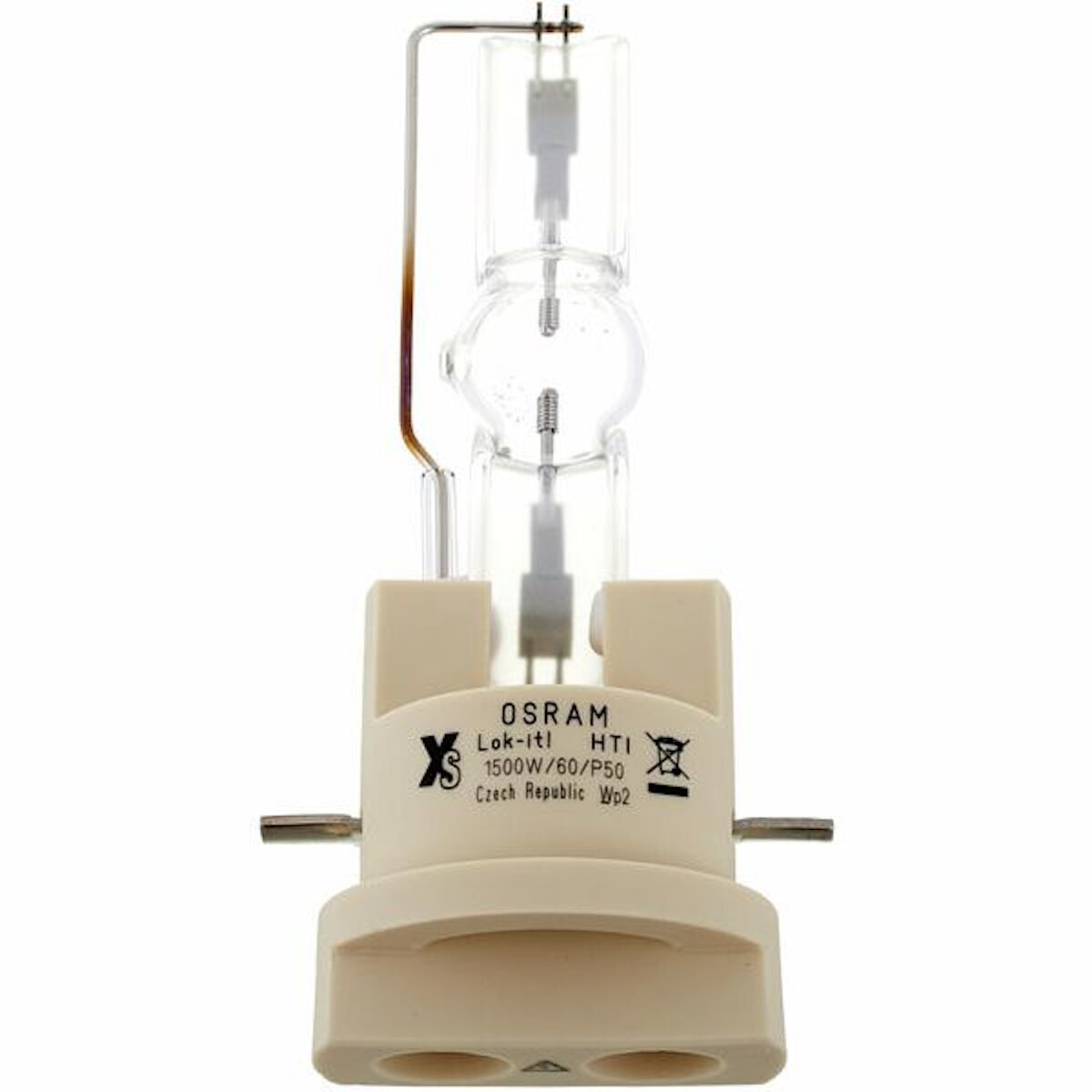

Single-end, metal halide, 1500 watts, HTI, Lok-it base, 6000K
OSRAM Lok-It! Lamps have been meeting the toughest demands of the event industry.
Specified in fixtures throughout the world, OSRAM Lok-It! lamps are known for their excellent brightness, reliability, and color quality.
Designed for ease of use and safety, these lamps allow for handling only by the base, and insertion into the fixture from the back of the reflector, so there is less risk to the quartz capsule during installation or removal.
Product features and benefits
- Compact design and short arc gap allows for smaller and brighter fixtures
- Fast lamp replacement with one-touch rotate and lock base and socket design
- Robust design with eXtreme Seal (XS) technology, allowing up to 450°C at the pinch seal
- Consistent lumen output over the life of the lamp
- Improved ceramic base allows high voltage up to 35kV
- Higher luminous efficacy than conventional HID lamps provides higher fixture efficiency
| Base: | PGJX50d Lok-it |
| Bulb: | T24 |
| Color Rendering Index (CRI): | 85 |
| Color Temperature (CCT) (K): | 7500 |
| Cooling: | Fan |
| Diameter d (in): | 0.709 |
| Diameter d (mm): | 18 |
| Distance a (in): | 2.6 |
| Distance a (mm): | 65 |
| Electrode Gap (cold) (mm): | 4 |
| Hot Restart Time to 90%: | No |
| Lamp Finish: | Clear |
