Osram 54177 - HMI/T40 - 1800W - Stage/Studio
Details

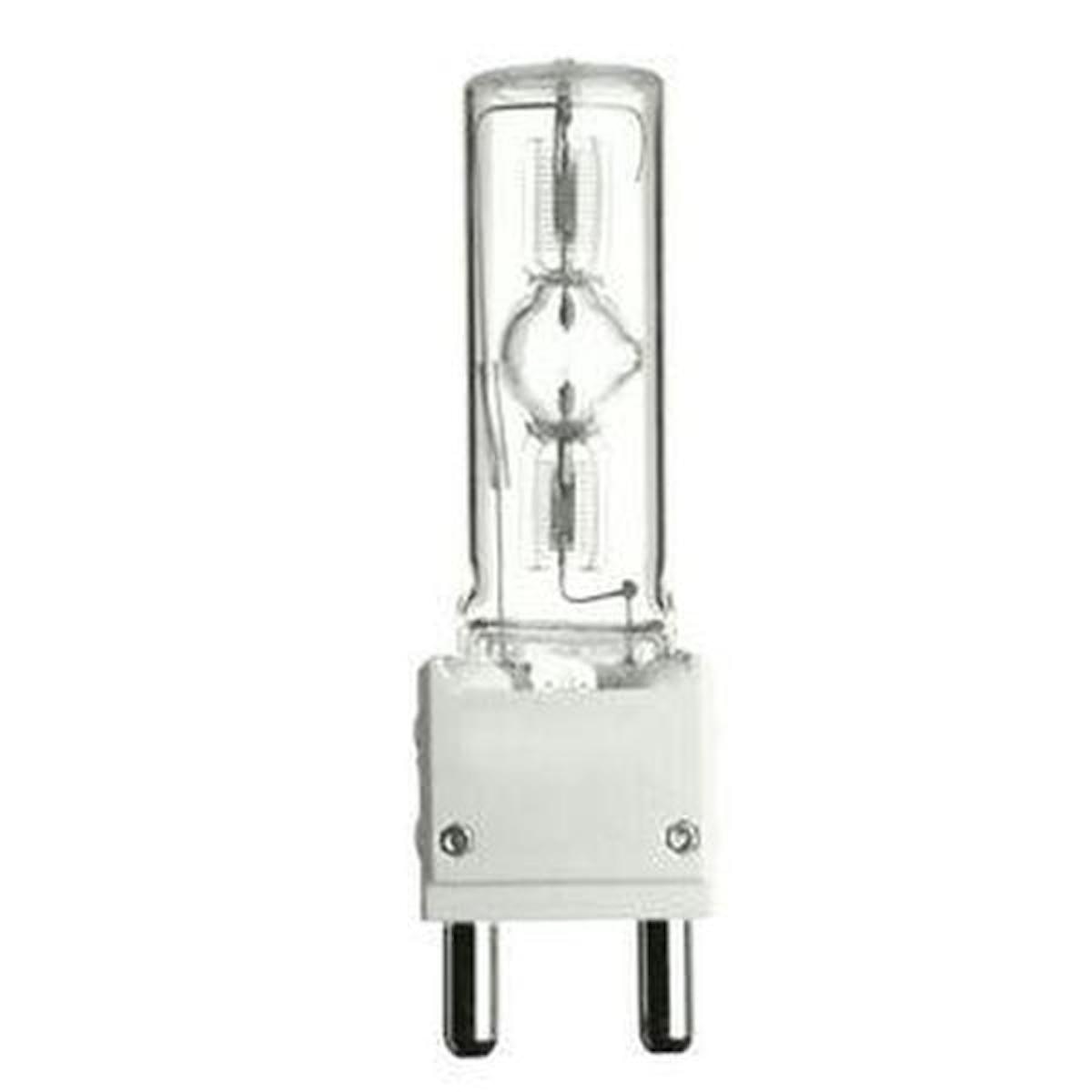

OSRAM 54177 - HMI 1800W/SE XS - 1800W - G38 Mogul base - 6000K - Metal Halide HID Lamp
The new "HMI 1800 W/SE XS" is the most powerful exterior jacketed single-ended metal halide lamps with outer bulbs in the OSRAM range. These compact light sources offer extremely high luminous flux and exceptionally long life.
The new extremely robust G38 base has been developed to meet the particularly high demands of modern film and TV lighting, especially when needed in outdoor applications.
Osram 54177 Data Sheet
The new "HMI 1800 W/SE XS" is the most powerful exterior jacketed single-ended metal halide lamps with outer bulbs in the OSRAM range. These compact light sources offer extremely high luminous flux and exceptionally long life.
The new extremely robust G38 base has been developed to meet the particularly high demands of modern film and TV lighting, especially when needed in outdoor applications.
| Base: | G38 Mogul Bipost |
| Bulb: | T40 |
| Class: | C (gas) |
| Cooling: | Convection |
| Current (A): | 14.6 |
| Diameter d (in): | 1.654 |
| Diameter d (mm): | 42 |
| Distance a (in): | 4.21 |
| Distance a (mm): | 107 |
| Electrode Gap (cold) (mm): | 10 |
| Hot Restart Time to 90%: | Yes |
| Lamp Finish: | Clear |
| Length I Max.(in): | 8.268 |
| Length I Max.(mm): | 210 |
| Light Center Length (LCL) (in): | 4.2 |
