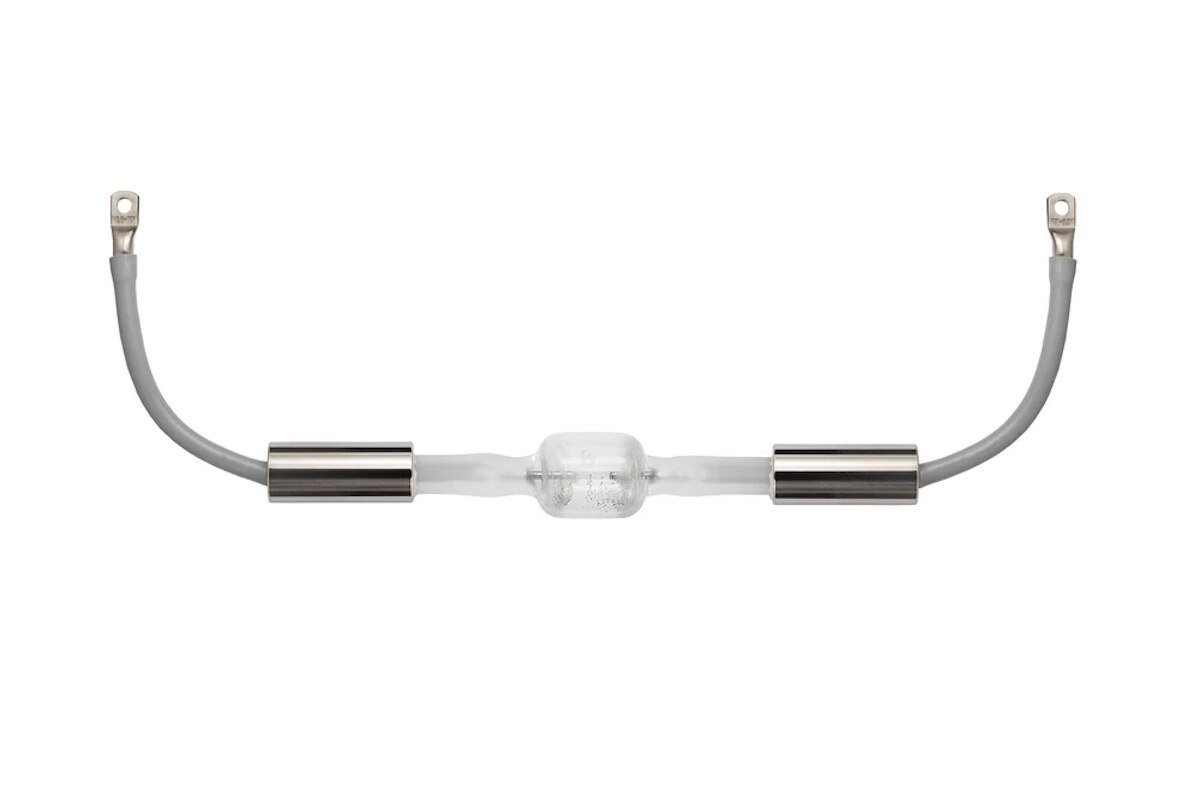

Osram 54133 - HTI/T40 - 4000W 115V 500HR 6300K - Entertainment/Effect/Architectural
Details
Features & Benefits
- SHARXS lamp family provides consistent lengths and bases for simplified fixture designs
- Robust design with eXtreme Seal (XS) technology on some types, allowing up to 450°C at the pinch seal
- Consistent lumen output over the life of the lamp
- Higher luminous efficacy than conventional HID lamps provides higher fixture efficiency
Lamp Specifications - Listed Alphabetically: | |
| Average Rated Life (HR): | 500 |
| Base: | S25.5 |
| Bulb: | T40 |
| Class: | C (gas) |
| Color Rendering Index (CRI): | 90 |
| Color Temperature (CCT) (K): | 6300 |
| Cooling: | Forced |
| Current (A): | 39 |

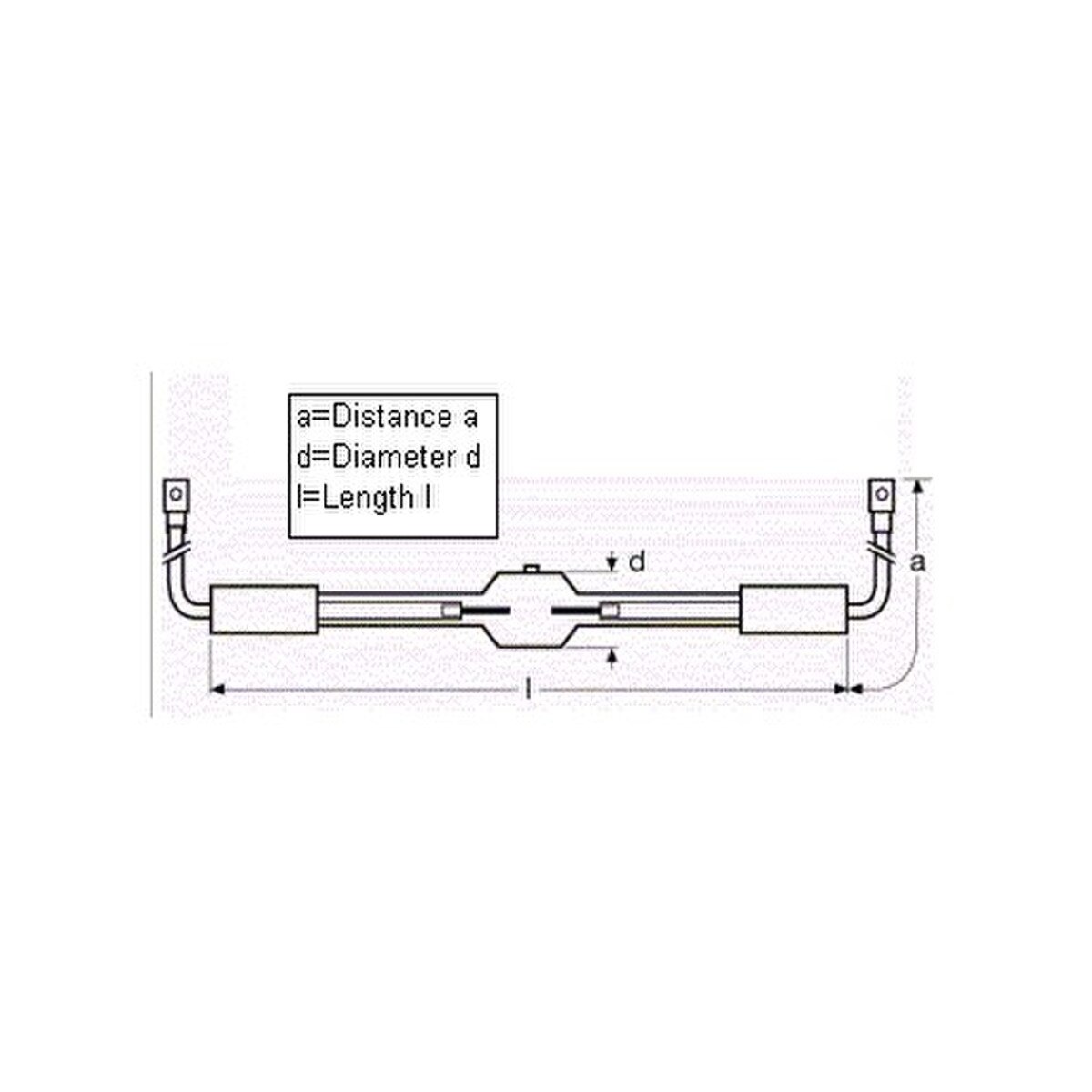

| Diameter d (in): | 1.575 |
| Diameter d (mm): | 40 |
| Distance a (in): | 5.51 |
| Distance a (mm): | 140 |
| Electrode Gap (cold) (mm): | 15 |
Osram 54133 Data Sheet
