  • Paint Can COB Pendant | 200W RGBW LED Wash Black Finish

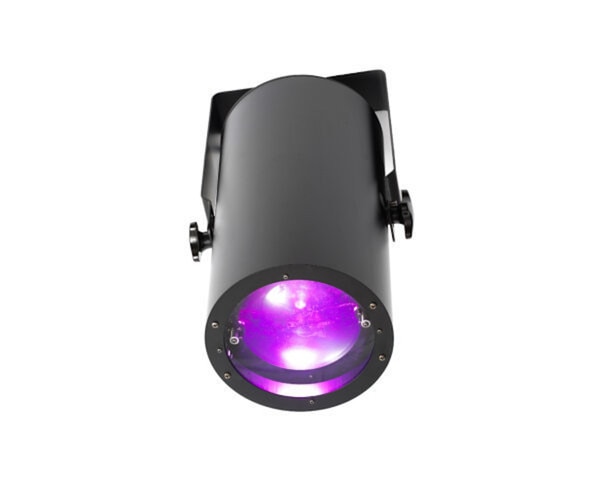

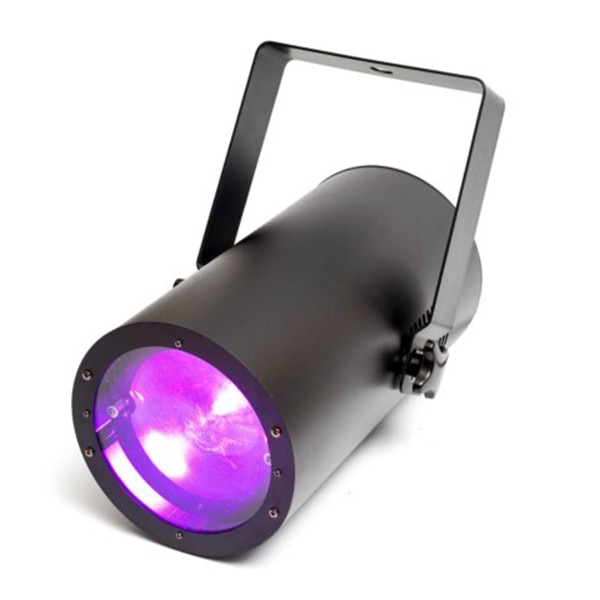

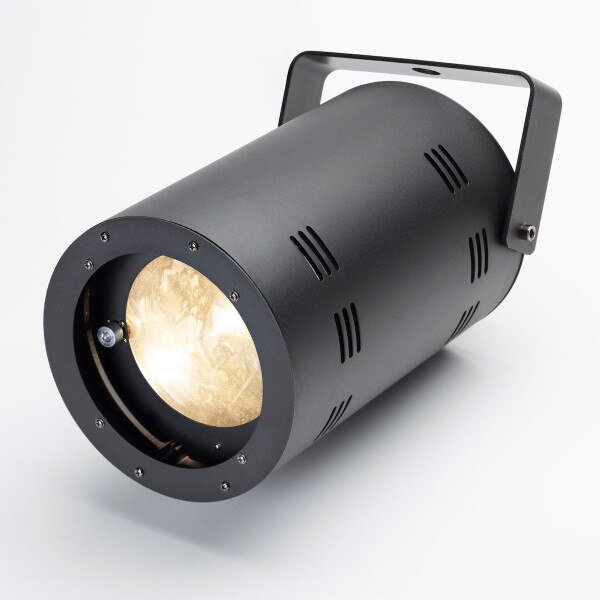

Paint Can COB Pendant | 200W RGBW LED Wash Black Finish

(0)No Reviews yet
$934.99
SKU: Elektralite PC COB RGBW PND

Details

The elektraLite Paint Can COB Pendant brings clean, warm white light or RGBW in an incomparable level of intensity for its range.

At the heart of the Paint Can COB Pendant is a newly designed 200 watt COB LED. With a balanced 3,200K, 5,600K, Variable 3,000K-6,000K color temperature or RGBW led, and a CRI of >90, the fixture provides the same clean, rich, beautiful light audiences have grown accustomed to, making the Paint Can COB Pendant  perfect for any show or event. The built‐in accessory clip allows for diffusion and color media to be used and/or barn doors.

The Paint Can’s sophisticated, proprietary diffraction lensing system provides a packed punch of light with an electronic zoom giving a beam spread range from 19 to 60 degrees. The precise flat field is maintained throughout the entire range. In the case of the RGBW, color mixing is perfect during transitions throughout the entire zoom range. The efficiency of the output from a COB led is over three times that of a fixture using the conventional small wattage multiple leds at its light source.

A powerful, well‐rounded LED lighting fixture with a rugged design, the Paint Can COB Pendant is a workhorse, ready to bring rich, bright light to a wide variety of public spaces including stages, classrooms, galleries, worship spaces, studios, event spaces, live event, and production environments.

A very simple to use onboard control interface allows for easy control by either DMX or console‐free static operation.

Variable refresh rate for the PWM is also user selectable.

Features:

  • Single COB 200 watt LED giving rich consistent Warm White at a balanced 3,200K color temperature, Cool White at 5,600K, Variable White at 3,000K-6,000K for any white light you may need or a single 200 watt RGBW is used. All with no hot spot.
  • The RGBW chosen colors provide both primary colors and also vibrant pastels while also allowing perfect rendering of various white settings including 3200k and 5600k.
  • 100% no step dimming and no pop or bump at beginning or end of dimming curve.
  • Electronic zoom from 19° to 60° with no chromatic aberration and perfect flat field.
  • Easy to use display menus for DMX or static control
  • On/off switch and powercon in and out connectors, 3 and 5‐pin XLR connectors in and out

Specifications:

Power Consumption          ‐ 240 watts (2.0A) @ 120v R.M.S. Maximum five fixtures per 20A circuit

Electrical                              ‐ multi‐voltage; AC 100‐250V – 50/60Hz

Housing                               ‐ aluminum monocoque design

Materials                             ‐ corrosion resistant hardware

Yoke                                     ‐ rigid flat steel

Light Engine                        ‐ single 200W COB LED emitter

Refresh Rate                        ‐ variable. User selectable.

CRI                                        ‐ >90

Optics / Lensing(s)              ‐ Variable lensing.

Control                                ‐ DMX‐512 (in and thru) via 3 or 5‐pin XLR connectors.

Certifications                       – ETL listed

Accessories:

  • Single yoke.
  • 24” Edison male to Powercon female power cable.
  • Powercon male power connector
Elektralite-Paint-Can-RGBW-Menus-Profiles-and-Channel-Assignments.pdf
Paint-Can-WW-menus-Channel-Assignments (1).pdf
elektraLite-Paint-Can-COB-Pendant-cutsheet-V2.pdf
