Pathway 12-Way eDIN DMX Installation Repeater
Details

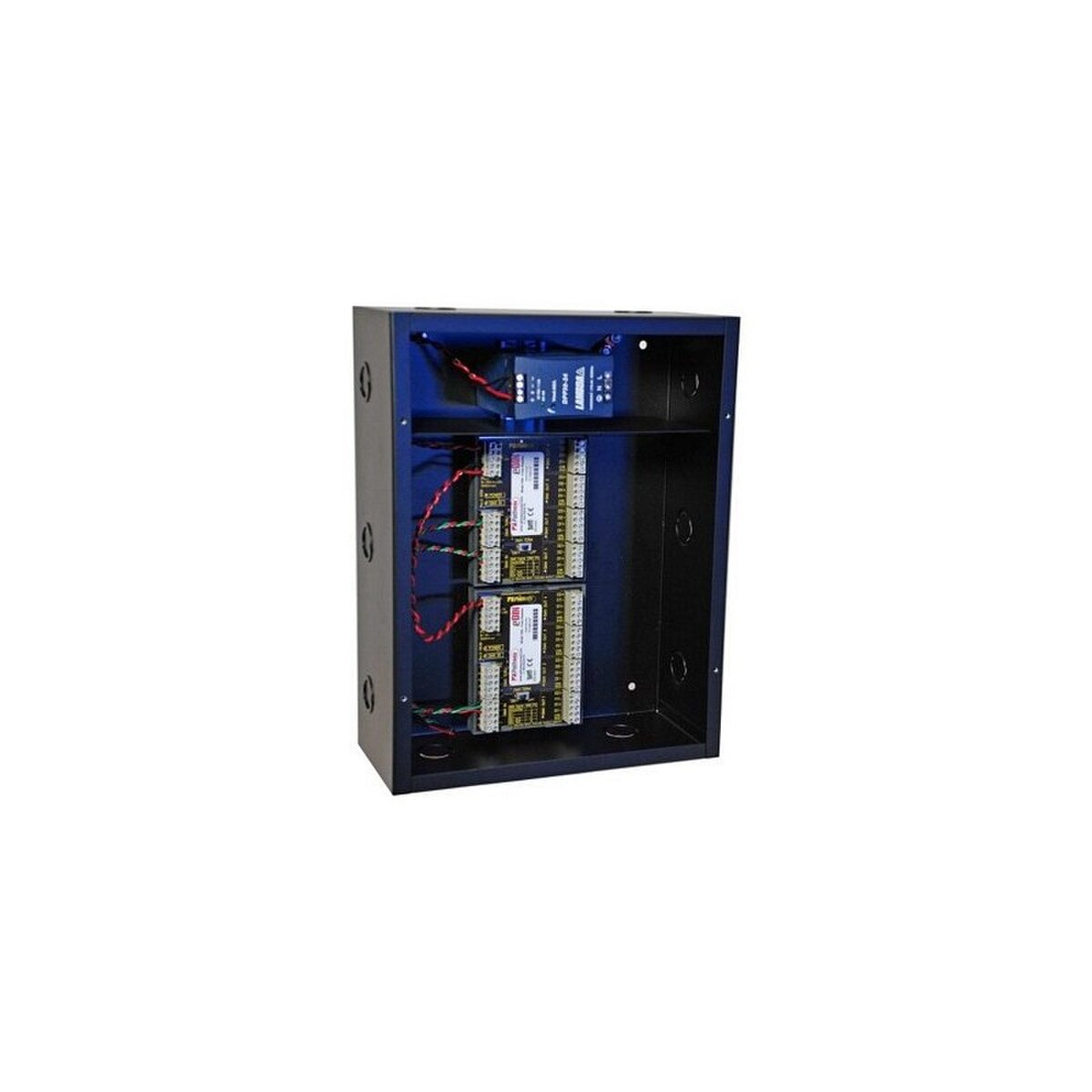

12 way opto-splitters for permanent installations, provided in NEMA-1 enclosures, complete with conduit knockouts and terminal strip connections for fast, easy installation. Ships with ETL certification compliance sticker on the front.
Features:
- Modules are mounted and pre-wired, shipped ready to install
- Up to 4 eDIN 1002 opto-splitters (up to 16 outputs total)
- Up to 4 inputs
- Direct pass-thru connectors
- No fuses, self resetting data links
- Termination switch
- 2500V opto-isolation input to output
- 250V fault protection on all DMX ports
- Wide input range power supply (100-240VAC, 50/60Hz)
- Power, DMX present and transmit indicators
- Fully RoHS compliant
- ETL certified
Specifications:
- Power Supply: UL listed, universal input 100-240 VAC, 50/60 Hz
- Isolation: 2500V opto-isolation input to output, 250V fault protection
- Size: 10.25 x 13.25 x 4.5 in. (260 x 335 x 120mm)
