Pathway 4 Way eDIn DMX/RDM Installation Repeater

(0)No Reviews yet

Details

Details

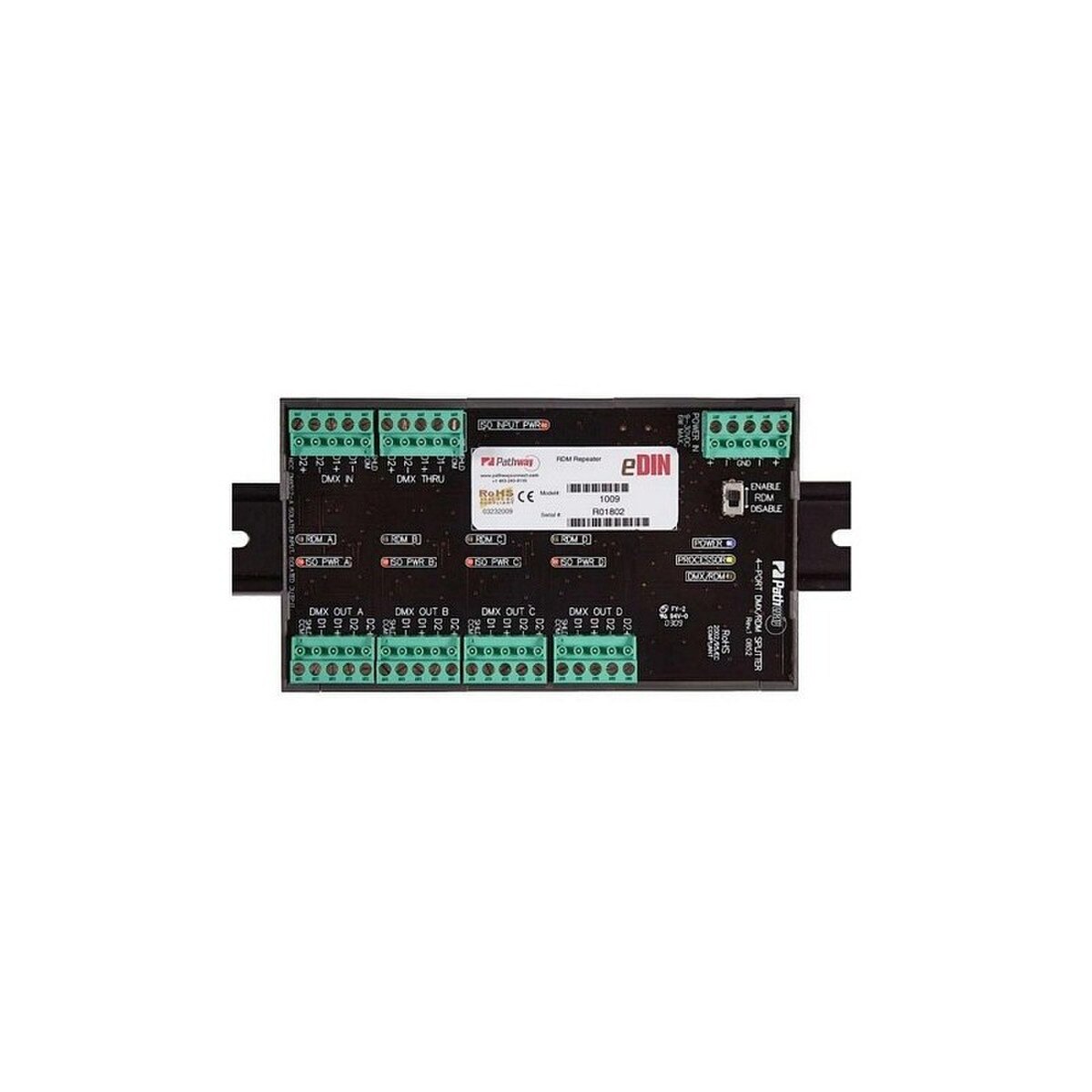

This model is a pre-built installation repeater in a 4-output enclosure. More than a mere opto-splitter, the eDIN DMX/RDM Repeater fully supports the bi-directional communications necessary for E1.20 RDM - Remote Device Management, in installations requiring star-wiring layouts.

Features:

DMX512-A and E1.20 RDM compliant
All ports opto-isolated from each other to protect against ground loops and common voltage faults
Self-resetting poly-switch fuses RDM can be disabled, to accommodate legacy equipment
eDIN DMX/RDM Splitter discoverable with RDM
DMX Thru connector fully supports RDM
Data can be 'daisy-chained' through up to 7 cards
Indicator LEDs for power and data
Available as a module alone, or as pre-built installation repeaters in 4-, 8- or 12-output enclosures
When factory-installed in a Pathway enclosure, the assembly is ETL-listed
