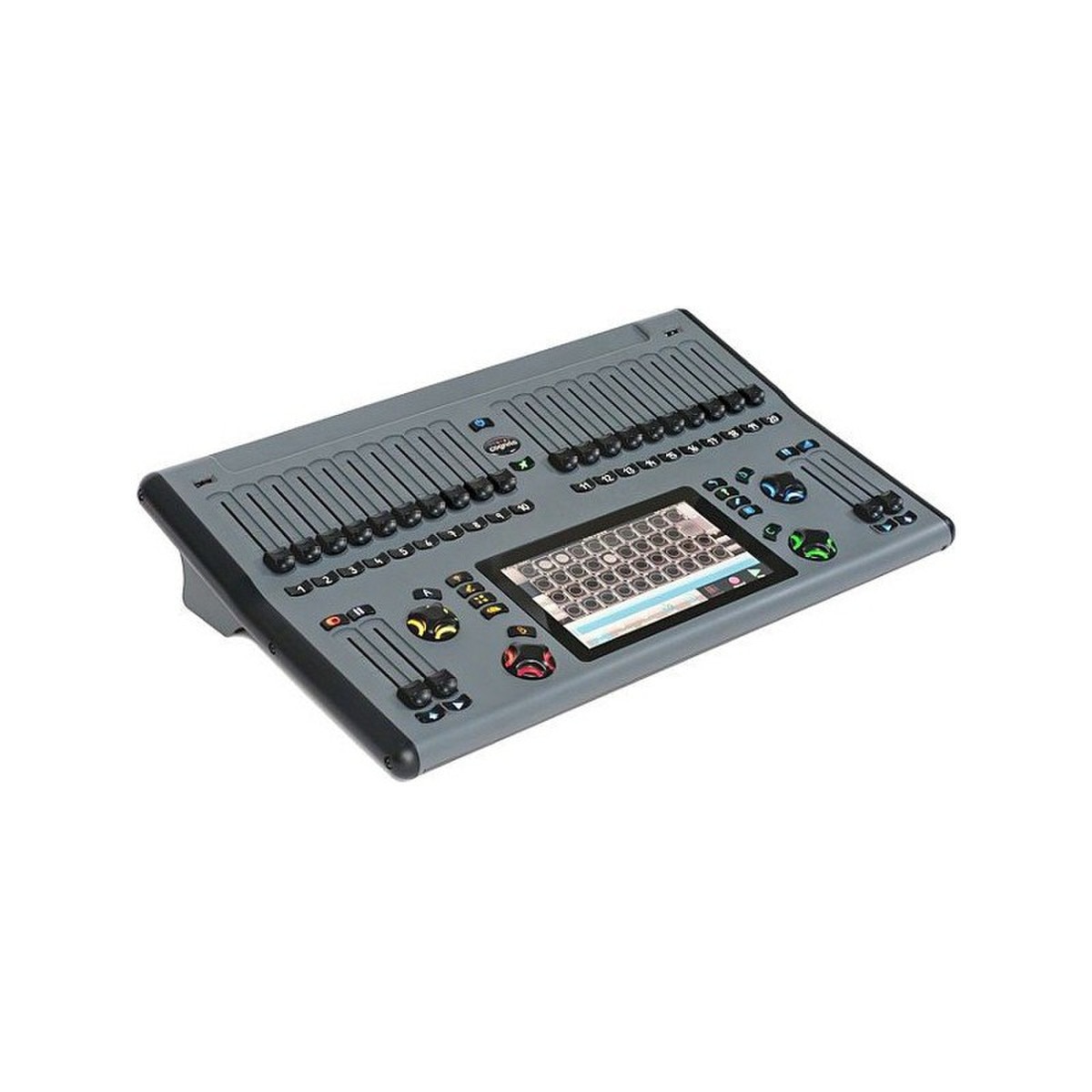

Pathway Cognito2 Pro512 Console

The Cognito 2 ™ solves the complex task of programming shows that include incandescent dimmers, moving lights, and color changing LED fixtures. Cognito 2 features a streamlined, natural language interface to guide you through selecting lights, adjusting their attributes, and recording reference libraries, memories and cues. Once programmed, the show is played back manually or by using show control, time code or scripting inputs.

Features:

• Up to 2048 outputs—1024 directly from console
• Pathport Protocol, ANSI E1.31 sACN, Art-Net, KiNET
• Fanless, convection cooling means silent operation
• Context-sensitive Help Overlays provide assistance without interrupting
• work flow
• More than 20 simultaneous virtual playlists or chases

Specifications:

• Rated for regulated 12-24VDC input
• 30 watts maximum power consumption (reduced USB power capacity when operating on PoE)
• Operating Conditions: 32°F-105°F (0°C to 40°C ); 10-90% relative humidity, non-condensing
• Dimensions: 18.3”W x 11.2”D x 3.1”H (46.5cm x 28.5cm x 7.9cm)
• Weight: 8.0 lbs (3.63 kg)
