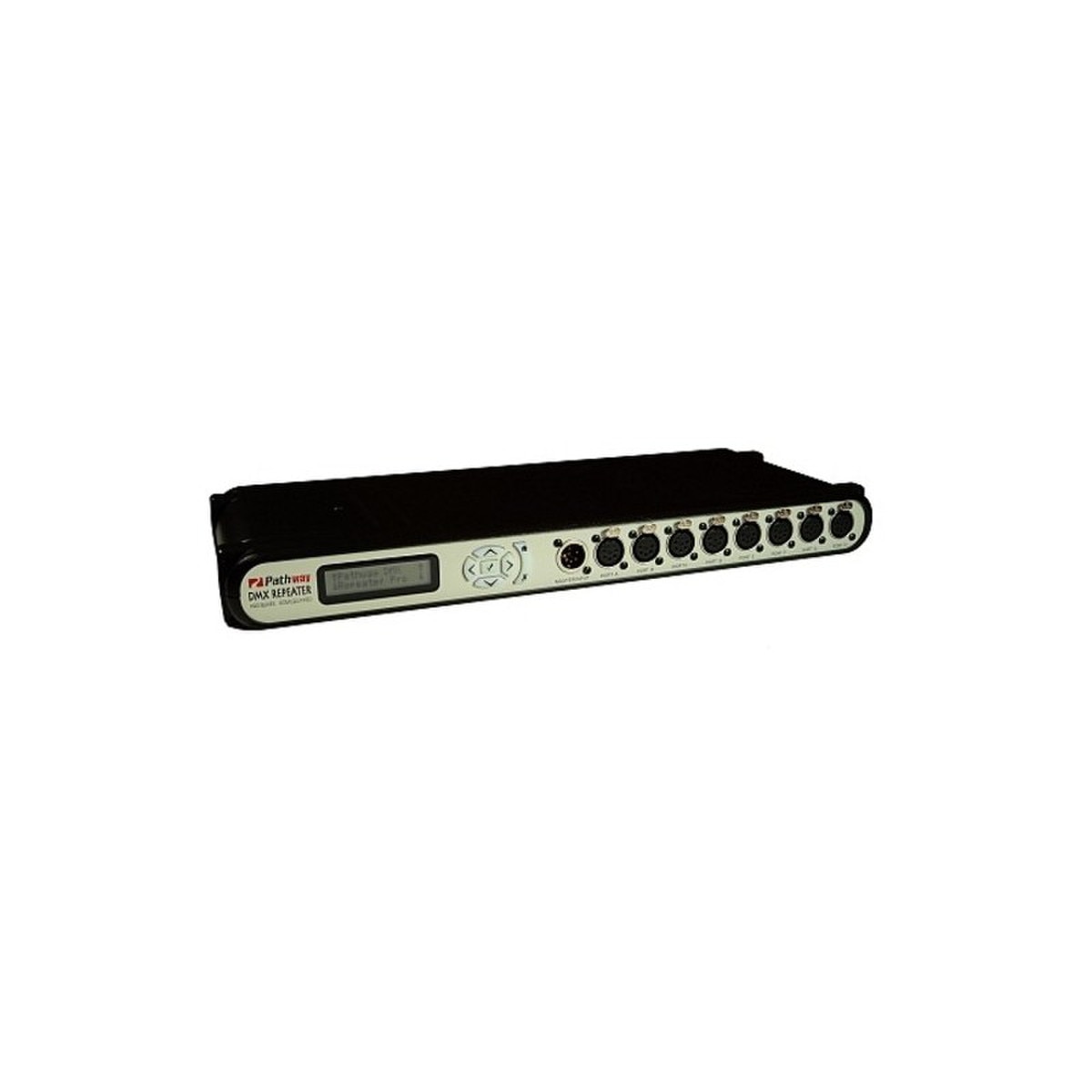

Pathway DMX Repeater Pro 8-Port with Front 5-pin XLR - Fully Isolated
Details
An intelligent opto-splitter that brings Ethernet-type features to plain DMX networks. Remote Device Management support allows it to act as an RDM controller or as a proxy. In venues where a console is moved frequently, the Repeater Pro can sense which port is receiving DMX, then automatically route signal to the remaining ports - eliminating the need for patch bays. Easily prioritize between two consoles, or HTP-merge them together with one controller roaming - ideal for incorporating remote focus units.
Features:
- Eight outputs
- ESTA-RDM and DMX512A compliant
- Bridges the gap between legacy DMX control and new RDM-enabled devices
- Self-healing input-output protection circuitry
- Back-lit LCD for set-up and monitoring
- Built in DMX and RDM troubleshooting tools
- RDM can be enabled or disabled on a port by port basis
- Full 2500V input to output isolation standard
- 2500V isolation between all ports, exceeding DMX512A
- 250V fault protection on input and outputs
- Can auto configure any port as an input or output to operate as a DMX distribution hub
- Can merge two DMX streams, and will auto reconfigure if the second stream moves to a different port
- Wide range AC power supply
- Rack mount ears included
- ETL listed
Specifications:
- Power Supply: Universal input 100-240 VAC, 50/60 Hz
- Isolation: 2500V opto-isolation between all ports and 250V fault protection
- Size: 17 x 6 x 1.75" (432 x 152 x 44 mm)
