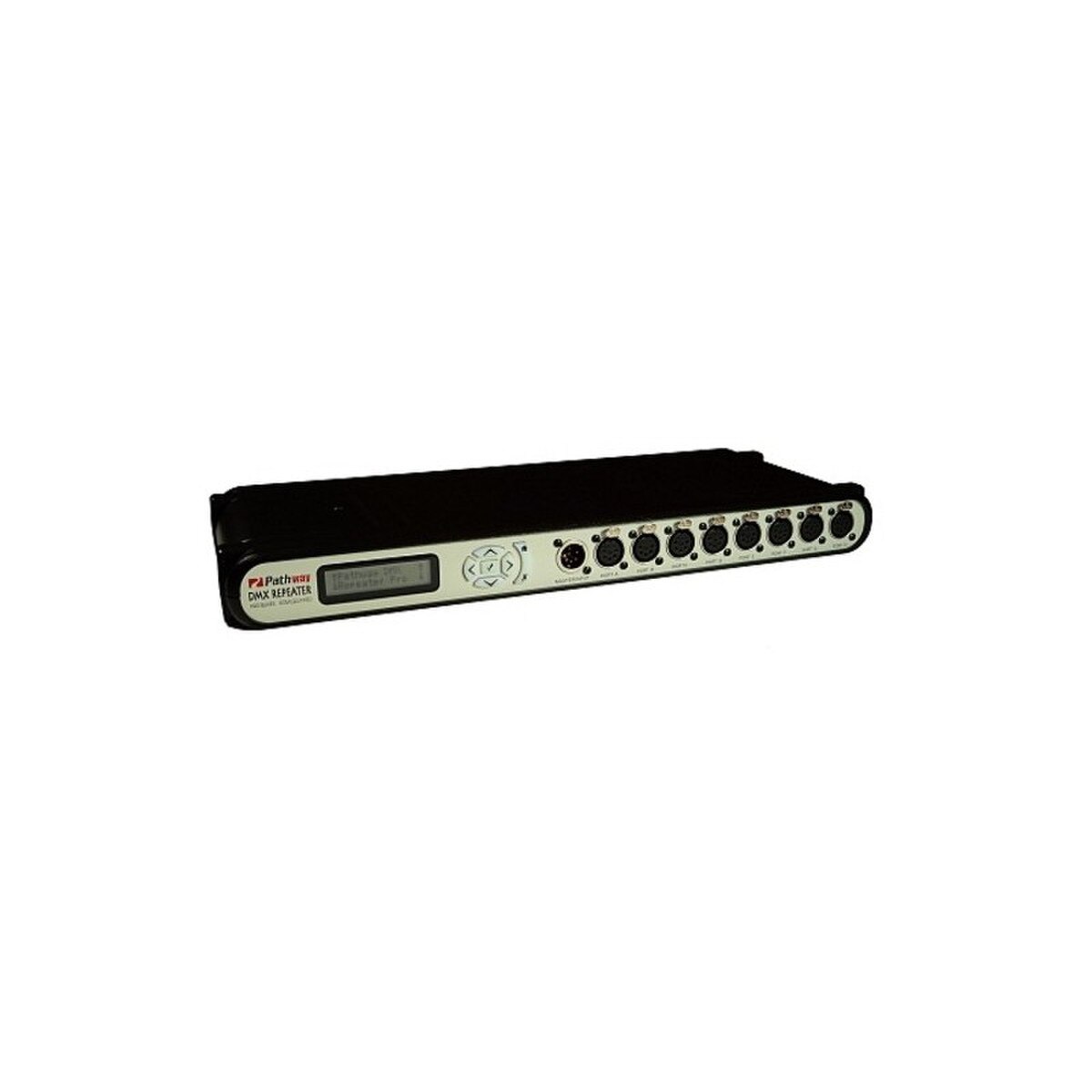

Pathway DMX Repeater Pro 8-Port with Rear 5-pin XLR - Fully Isolated

An intelligent opto-splitter that brings Ethernet-type features to plain DMX networks. Remote Device Management support allows it to act as an RDM controller or as a proxy. In venues where a console is moved frequently, the Repeater Pro can sense which port is receiving DMX, then automatically route signal to the remaining ports - eliminating the need for patch bays. Easily prioritize between two consoles, or HTP-merge them together with one controller roaming - ideal for incorporating remote focus units.

Features:

• Eight outputs
• ESTA-RDM and DMX512A compliant
• Bridges the gap between legacy DMX control and new RDM-enabled devices
• Self-healing input-output protection circuitry
• Back-lit LCD for set-up and monitoring
• Built in DMX and RDM troubleshooting tools
• RDM can be enabled or disabled on a port by port basis
• Full 2500V input to output isolation standard
• 2500V isolation between all ports, exceeding DMX512A
• 250V fault protection on input and outputs
• Can auto configure any port as an input or output to operate as a DMX distribution hub
• Can merge two DMX streams, and will auto reconfigure if the second stream moves to a different port
• Wide range AC power supply
• Rack mount ears included
• ETL listed

Specifications:

• Power Supply: Universal input 100-240 VAC, 50/60 Hz
• Isolation: 2500V opto-isolation between all ports and 250V fault protection
• Size: 17 x 6 x 1.75" (432 x 152 x 44 mm)
