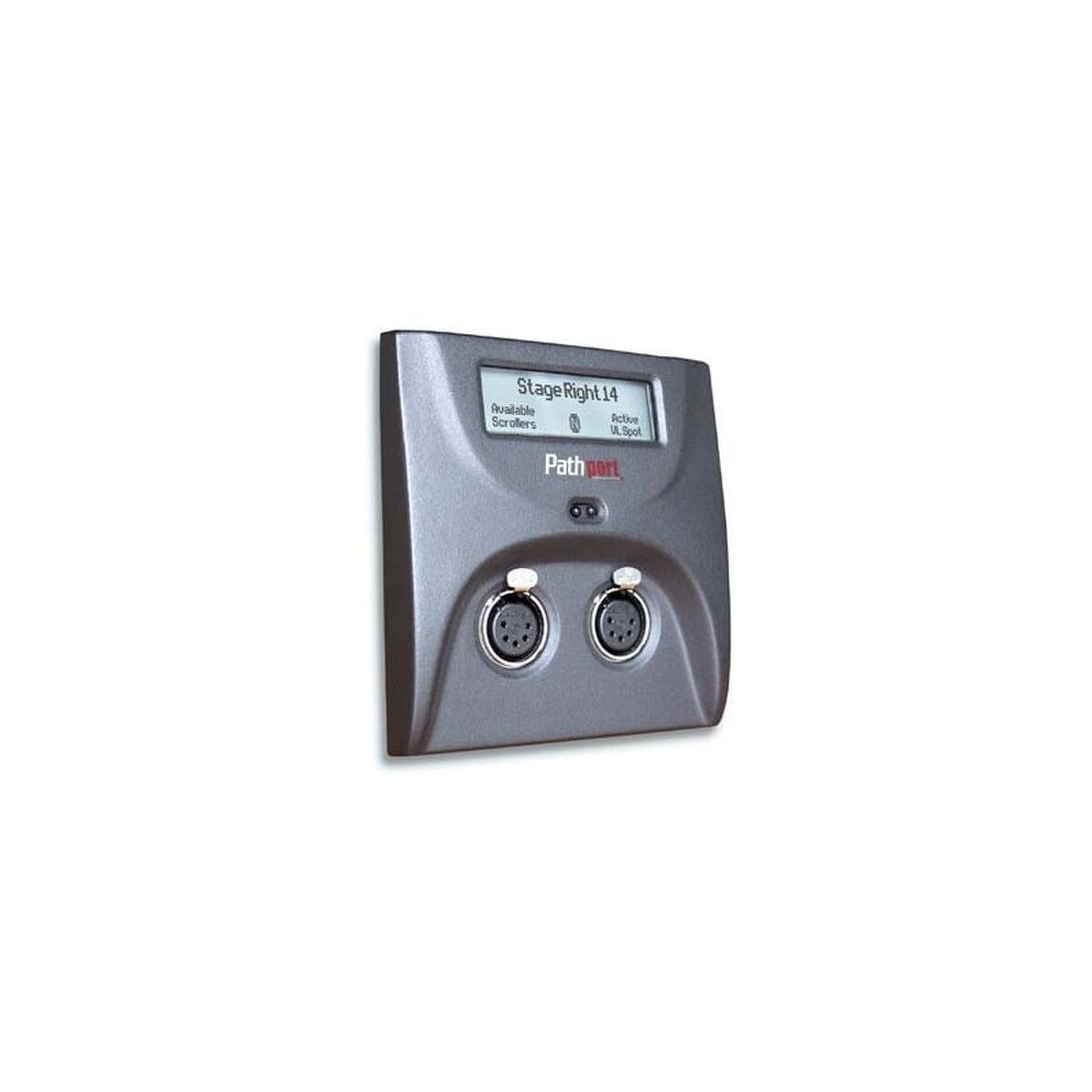

Pathway Pathport C Series Input Node with 2-DMX Inputs

Pathport C-Series Node with 2 DMX inputs. Pathport C-series nodes are suitable for permanent wall installation or portable use.

Features:

• Crossfade between inputs on loss or gain of signal
• E1.31 streaming ACN input priority and magic channel input selection
• Works with both final draft and ANSI standard streaming ACN
• Two DMX512 ports
• Distribute up to 128 DMX universes
  • Powerful DMX routing capabilities
  • Patch on a universe or channel-by-channel basis
• Fully compliant with E1.20 Remote Device Management standard
• Discover up to 128 RDM-enabled devices per node
• Many DMX network products in one:
  • Channel patch
  • Backup switch
  • Priority switch
  • Merger
  • Manager
• LCD screen provides status feedback and soft-labelling capabilities
• Powered directly over Ethernet Cat 5 cable (POE)
• Easy system configuration
• Low installed cost
• Fits in a standard recessed 2 gang electrical backbox
• ETL listed

Supports the following Ethernet protocols:

• Strand ShowNet
• Pathport
• ArtNet
• E1.31 streaming ACN (sACN/Net3)
