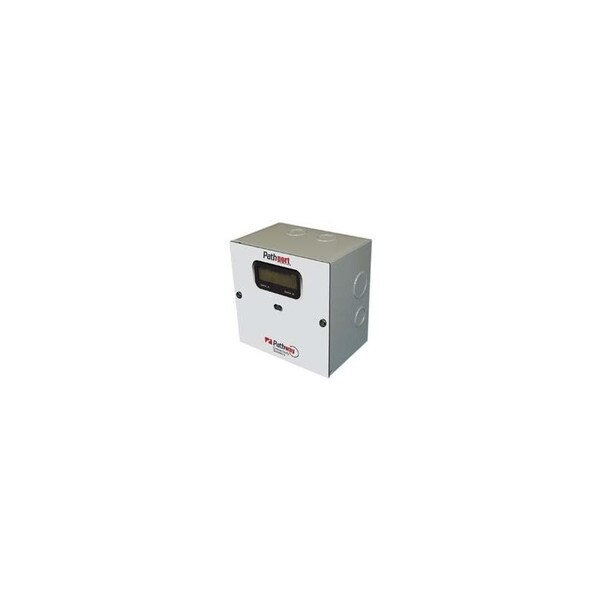

Pathway Pathport D Input/Output Node Terminal Box

This full-function wall mount version of the popular Pathport DMX node is specifically designed for connection to permanent equipment such as dimmer racks and relay panels. Backbox provided with conduit knockouts.

Features:

• Now supports ETC Net2 as a DMX ouput node
• Crossfade between inputs upon loss or gain of signal
• E1.31 streaming ACN input priority and magic channel input selection
• Supports both final draft and ANSI standard streaming ACN
• Two DMX512 ports, each user-configurable as input or output
• Distribute up to 128 DMX universes
• Powerful DMX routing capabilities
• Fully compliant with E1.20 Remote Device Management standard
• Discover up to 128 RDM-enabled devices per node
• Graphical LCD
• IEEE 802.3af compliant — powered directly over the Ethernet Cat 5 cable
• Easy system configuration
• Low installed cost
• Backbox with knockouts included
• Internal terminal strips for DMX connections
• Supports the following Ethernet protocols:
  • Strand ShowNet
  • Pathport
  • ArtNet
  • E1.31 streaming ACN (sACN/Net3)
  • ETC Net2 (output only)

Specifications:

• Size: 6.25 x 6.25 x 4 in. (159 x 159 x 102 mm)
• Connections:
  • DMX: Screw terminal blocks
  • Ethernet: RJ45 jack and punchdown kit
