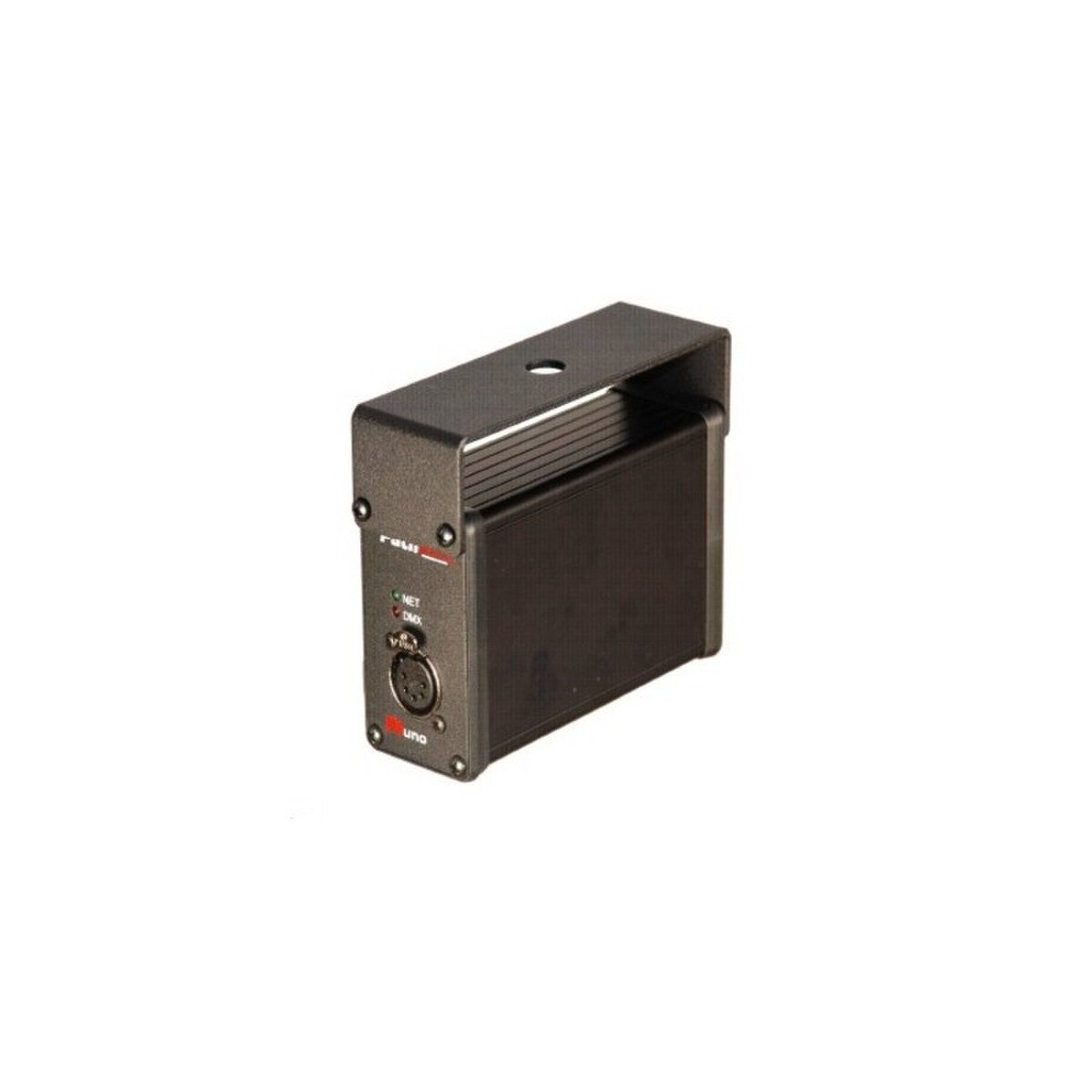

Pathway Pathport Single DMX Output Portable Enclosure

Pathport® Uno is a single port DMX node providing access to Pathport DMX management and distribution. Compared to other Pathport models, Pathport Uno is ideal for venues and applications where simple, single DMX ports are appropriate.

Features:

• Crossfade between inputs on loss or gain of signal
• E1.31 streaming ACN input priority and magic channel input selection
• Supports both final draft and ANSI standard streaming ACN
• One DMX512 port
• Manage and distribute up to 128 DMX universes
• Built in powerful DMX softpatch
• Built in DMX merger on a universe or channel-by-channel basis
• Built in prioritizer on a universe or channel-by-channel basis
• LEDs for Net and DMX status
• Fully compliant with E1.20 Remote Device Management standard
• Discover up to 128 RDM-enabled devices
• Powered over Ethernet (POE)
• Easy system configuration
• Fits in a standard deep 1-gang electrical backbox
• Black or stainless steel finish
• Single gang Decora-style cover plate is included

Supports the following Ethernet protocols:

• ETC Net2 (output only)
• Strand ShowNet
• Pathport
• E1.31 streaming ACN (sACN/Net3)
• ArtNet
