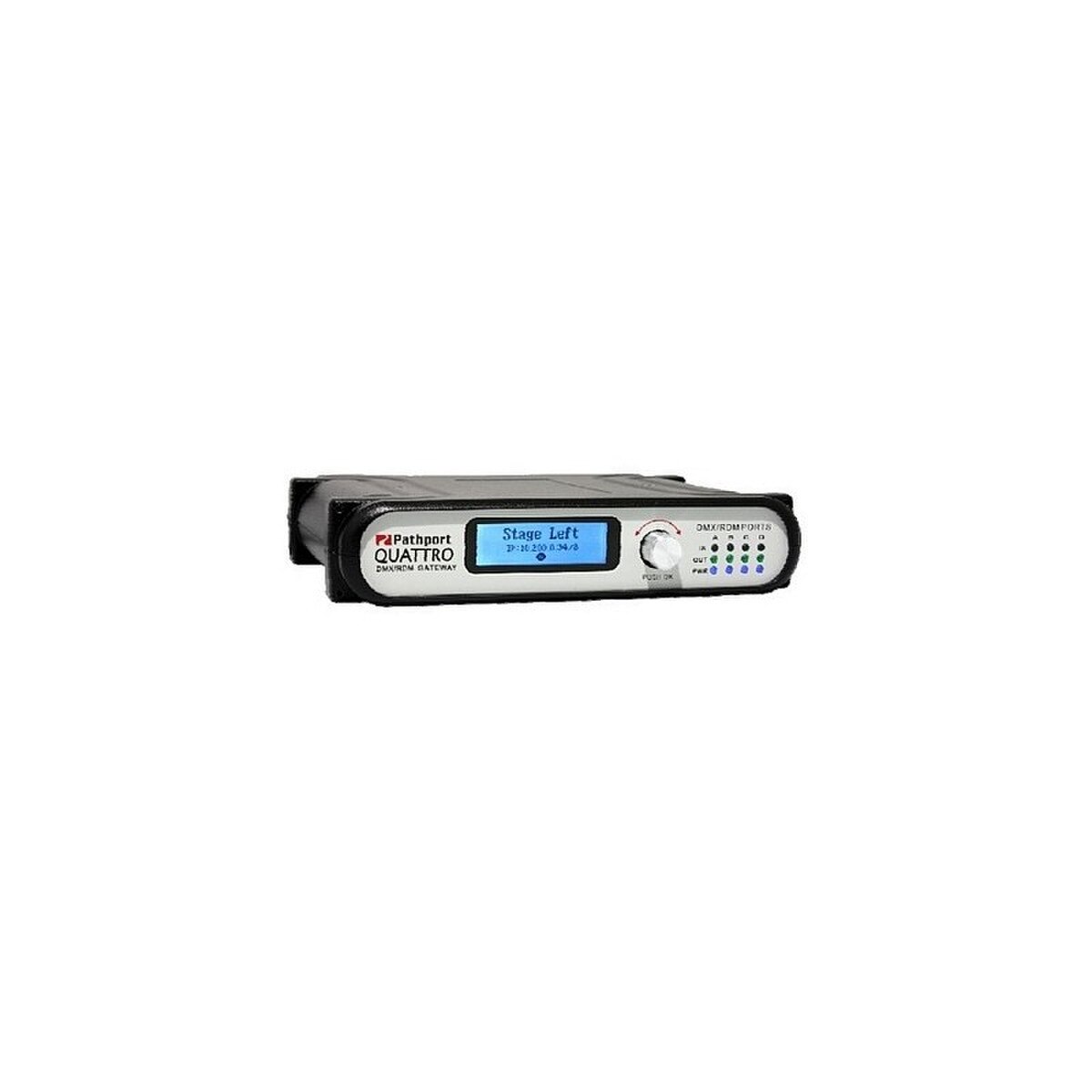

Pathway Quattro 4-Port Node with Rear XLR5F
Details
A compact 4-port Pathport that runs on PoE. Replaces R-Series 2-port nodes. 4-ports for less than twice the price. Same compact size - two units fit side-by-side in 1RU of space. PoE operation makes it an ideal choice for truss mount operation. Uses the same encoder/front panel LCD interface as the Octo - most users won't need a computer to configure it.
Features:
- Four DMX512 ports, individually configurable
- IP, subnet mask, port direction, protocol receive/send, basic patching - and more - all settable from the front panel
- 8-way DMX routing per port, including priority and merge on a channel-by-channel basis, available with use of free Pathport Manager 5 configuration software
- RDM gateway, in conjunction with Pathport Manager 5
- Simple, reliable firmware upgrade process
- DMX output speed and signal loss behavior user-set
- PoE operation (Class 2, 8W maximum), or auxiliary 24VDC input
- Rack ears included
- Truss and wall mount kits available as accessories
- Multiple connector styles available on request, including XLR5, XLR3, terminal block and RJ45 EtherCon
