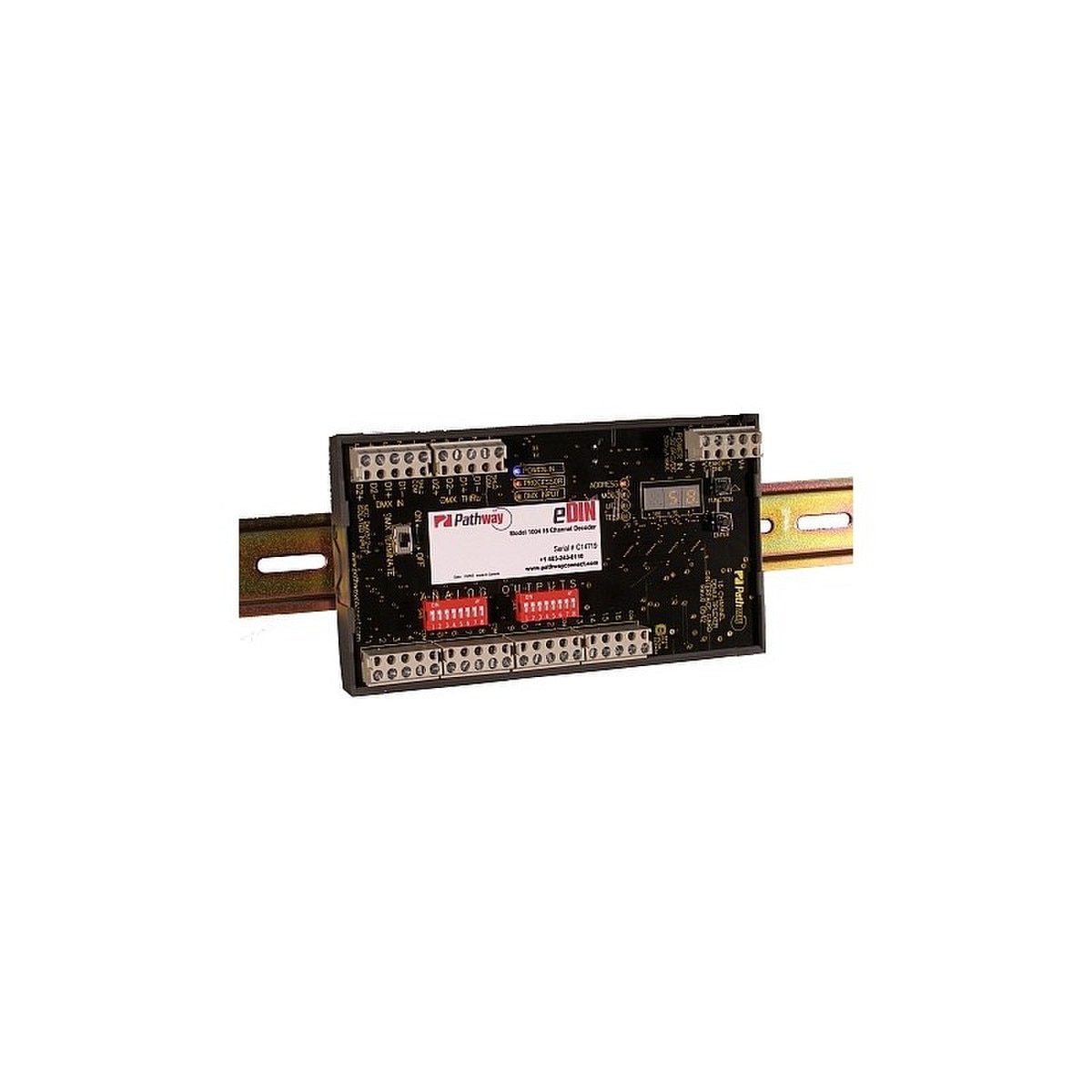

Pathway eDIN 16 Channel Demultiplexer

The Pathway eDIN Demultiplexer converts DMX512 signals to 0-10VDC, or other common DC ranges, to current-sinking control of Mark 7-type fluorescent ballasts, solid state relays or LED drivers. As well as selectable DC output, the eDIN Demultiplexer provides simple, elegant DMX control over dimmable LED ballasts. It also can provide single DMX-channel control over both the ballast and the mains power breaker in Mark 7-type dimmable fluorescent ballast systems. The new rev4 board provides sinking control down to zero percent, along with a new panic contact closure input.

Features:

• Contact Closure "panic" input drives all outputs to full 16 analog outputs
• Selectable 0-10, 0-15, 0-2.5, & 0-5V output
• Selectable current sink output
• 10mA current drive per channel (160mA max total)
• User-set DMX start address for easy daisy-chaining of modules
• RDM discoverable and configurable
• LED display and pushbuttons for configuration
• 2500V DMX input signal opto isolation
• 250V DMX fault protection
• End-of-line termination switch
• Status LEDs for power, DMX input
• Pluggable screw terminals for all connections
• DMX pass-thru connector
• Snap-on DIN rail housing
• DIN rail mounting section included

Specifications:

• Output Rating: 10 VDC nominal, 16 VDC maximum, 10MA current drive per channel
• Power Supply: 9-30V DC, 5W supply required. Use eDIN 1001 power supply or equal
• Isolation: 2500V opto isolation, 250V fault protection
• Size: 3.5" x 6" x 1.25" (90mm x 152mm x 30mm)
• Mounting: 35mm x 7.5mm DIN rail (included)
