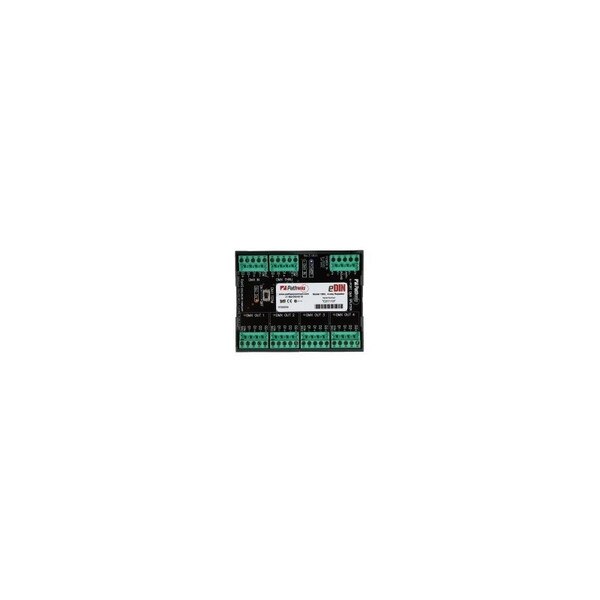

Pathway eDIN 4-Port Opto-Splitter
Details
Pathway eDIN Opto-Splitters feature 1 isolated input and 4 buffered outputs. DIN-rail form factor makes installation fast and easy, whether in new enclosures, existing cabinets or in custom panels.
Features:
- 4 buffered DMX outputs
- DMX512-A compliant
- Pluggable terminal block connections
- 2500V opto isolation
- 250V fault protection on all DMX ports
- Self healing input/output protection (no fuses)
- End-of-line termination switch
- Status LEDs for power, DMX in/out
- DMX pass-thru connector
- Snap-on DIN rail housing
- DIN rail mounting section included
Specifications:
- Power Supply: 9-30 VDC 5W supply required. Use eDIN 1001 power supply or equal
- Isolation: 2500V isolation input to output, 250V fault protection
- Size: 3.5" x 4.5" x 1.5" d (90mm x 113mm x 38mm d)
