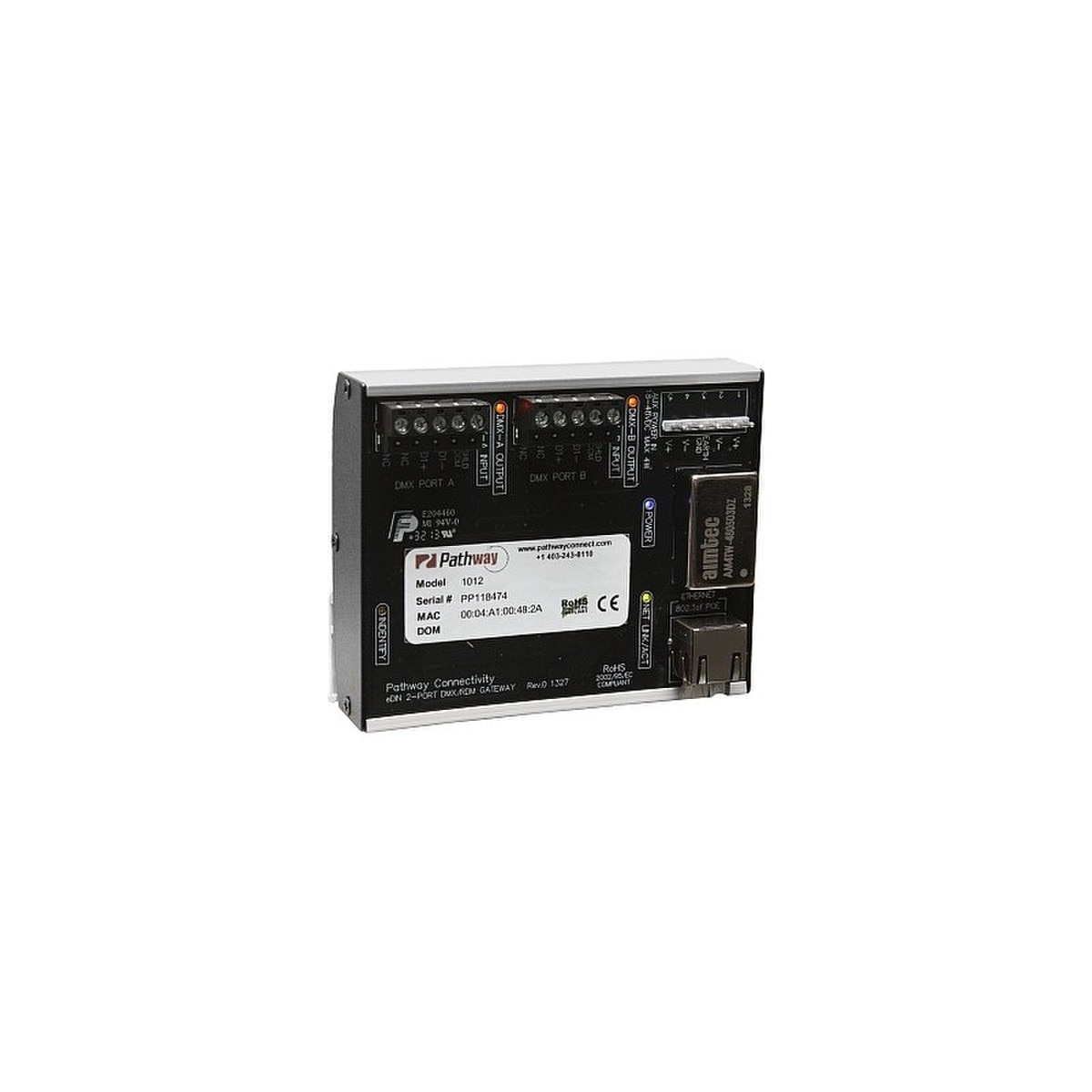

Pathway eDIN Pathport 2-Port Node

The Pathport eDIN lineup has been extended to include two and four port versions of this popular DIN-rail mountable model, with all the hallmark features and flexibility of Pathport. Ideal for feeding data to LED installations or eDIN interface cards.

Features:

• NEW - each node may be ordered with IDC or terminal block connectors!

• DMX ports user configurable as an input or output
• Standard RJ45 jack for network wiring

• 5-Pin terminal block for DMX or IDC connector that's switchable between standard DMX pin-out and the Color Kinetics wiring schemes

• Address up 128 universes
•
Can be hard-configured to 1 of 4 universes or set for soft patching

• Soft patch between all inputs on a universe or channel-by-channel basis, with full merging and prioritization according to need

• LED indicators for network and DMX status

• Runs on power-over-Ethernet or local auxiliary power

• Fully compliant with E1.20 Remote Device Management standard (use Pathport Manager's RDM Manager tool for access)

• Discover up to 128 RDM-enabled devices per port

• Supports all major Ethernet protocols

• E1.31 Streaming ACN (Net3) - 64,000 universes

• ArtNet - 32,768 universes

• Pathport - 128 universes

• Strand Shownet - 64 universes

• ETC Net2 (as output node - models 1011 and 1012 only)
• Cross fade between inputs on loss or gain of signal
• E1.31 streaming ACN input priority and magic channel input selection
• Supports both final draft and ANSI standard streaming ACN
