Pathway eDIN Pathport 4-Port Node
Details

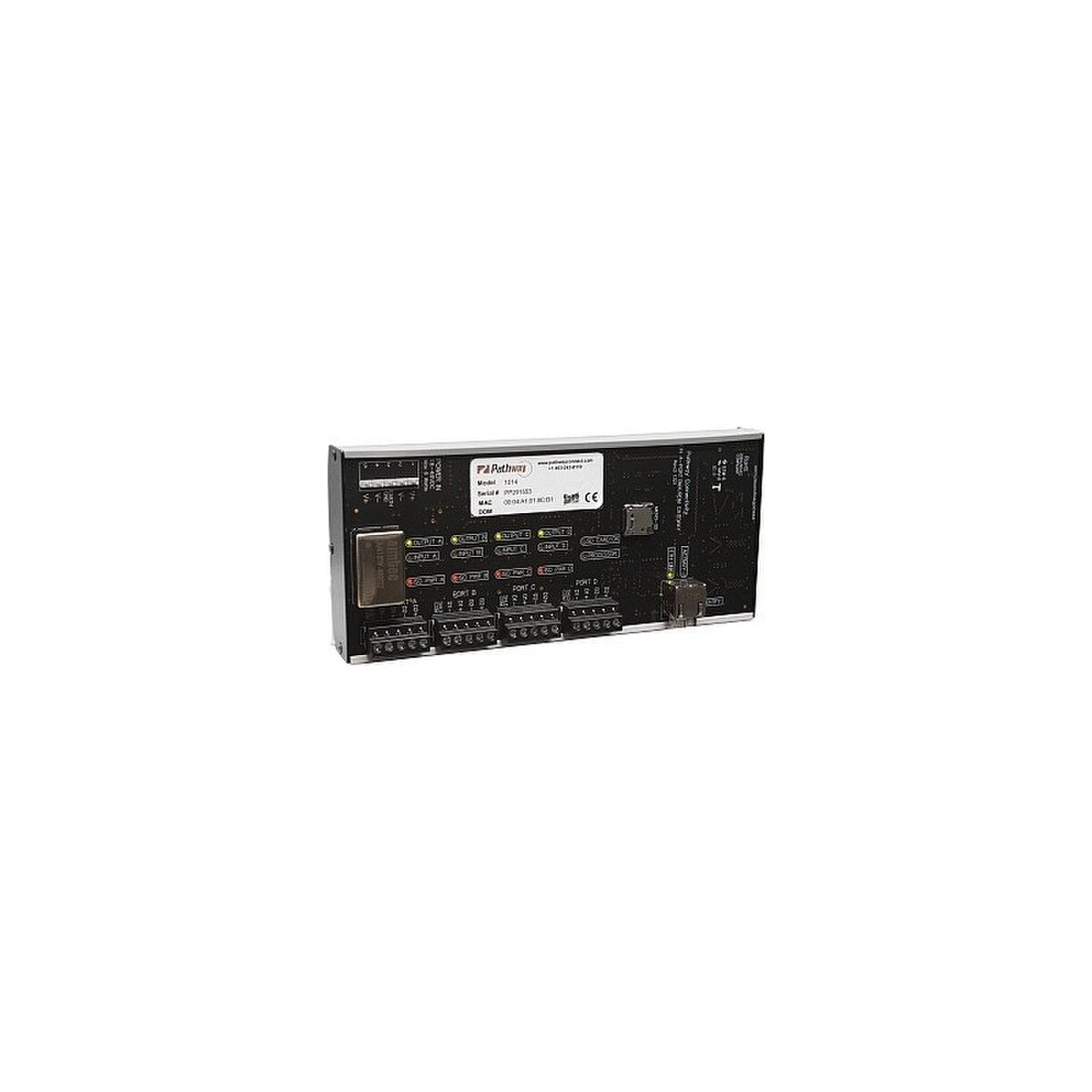

Pathport eDIN 4-Port node is a compact gateway for encoding, routing and decoding DMX512 data over a standard Ethernet network. In addition to DMX, the Pathport eDIN 4-Port supports RDM discovery and configuration data transport. DIN-rail mountable for fast installation in existing cabinets, or also available as part of a complete ETL-listed assembly.
Features:
- 4 DMX512 ports—user configurable as inputs or outputs
- E1.11 DMX512A and E1.20 Remote Device Management (RDM) compliant
- LED indicators for port direction, power, Ethernet link activity and identify
- Operates on 802.3af Power-over-Ethernet or on an 18-48V wide range
- DC input
- Supports the following DMX/Ethernet protocols:
- Art-Net
- E1.31 streaming ACN (sACN)
- Pathport Protocol
- Strand Shownet
- ETC Net2 (output only)
- Fully compatible with all Pathport nodes and eDIN interfaces
- Configuration is set using freely available Pathport Manager
- Soft patch allows mix-and-match of different protocols
- Route DMX according to universe or channel-by-channel
- Multiple sources may be merged and/or prioritized
- Fully customize your DMX output universes
- MicroSD card allows configuration to be kept with interface card
- Terminal block or IDC connector options available for DMX ports
