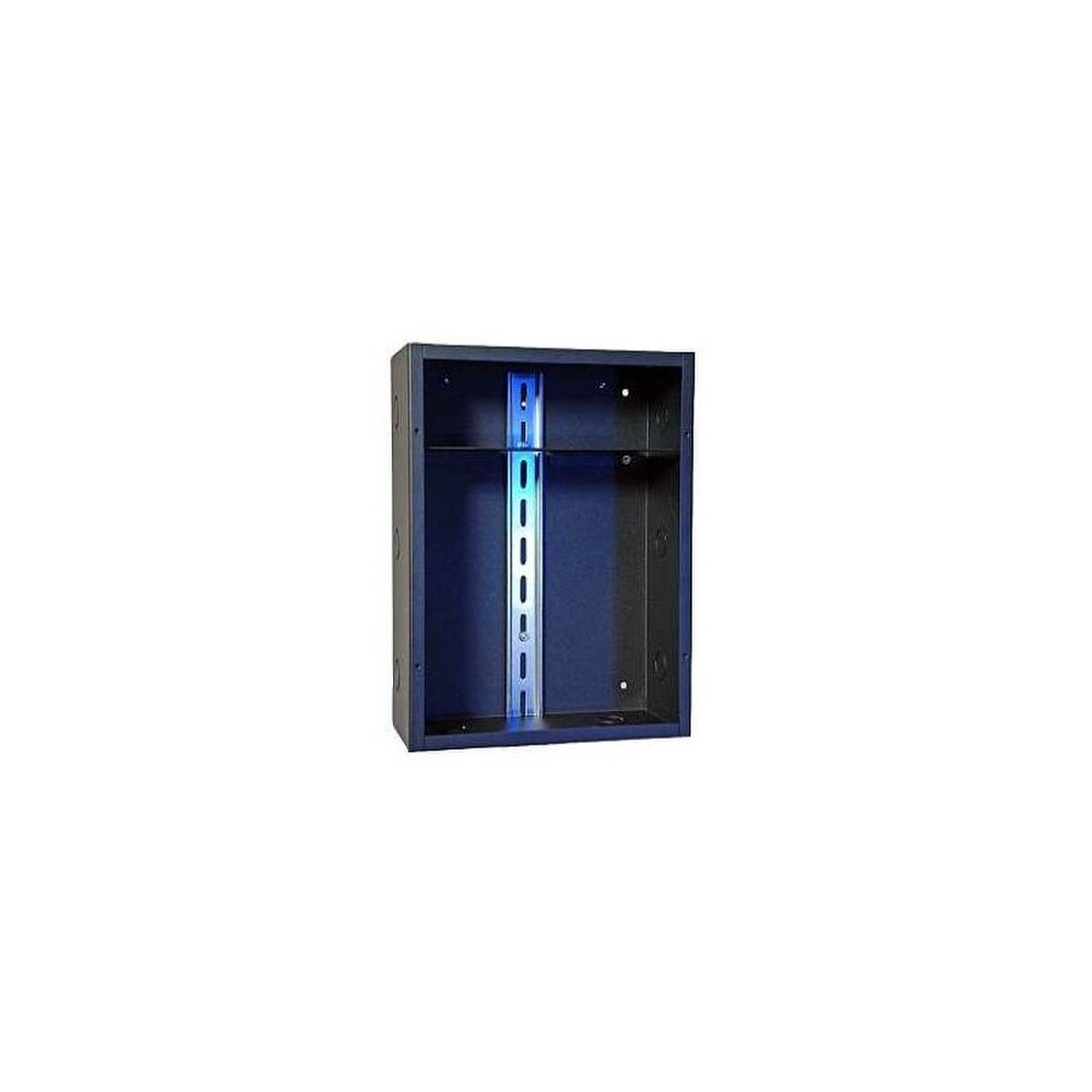

Pathway eDIN Small Enclosure

Pathway eDIN Enclosures are a great way to install your eDIN modules. Available in two sizes, eDIN enclosures can accommodate several modules and a power supply. eDIN enclosures are ETL-certified. When just about any combination of eDIN cards are factory-installed in a Pathway enclosure, the entire assembly is ETL-listed.

Features:

• Contractor friendly, sturdy steel construction
• Conduit knockouts provided on all sides
• Logical arrangement makes wiring neat and easy
• Barriered high-voltage section for power supply (power supply not included)
• Internal DIN rail can be used to mount eDIN and other standard DIN rail modules
• Modules can be pre-installed by Pathway if desired
• Black powder coat finish
• ETL listed

Specifications:

• Size: 10.25" x 13.25" (260mm x 335mm)
• Depth: 4.5" (120mm)
• Rail Space: 9.5" (240mm)
• Mounting: Internal 35mm x 7.5mm DIN rail (included)
• Power Supply: eDIN 1001 or equivalent (not included)
