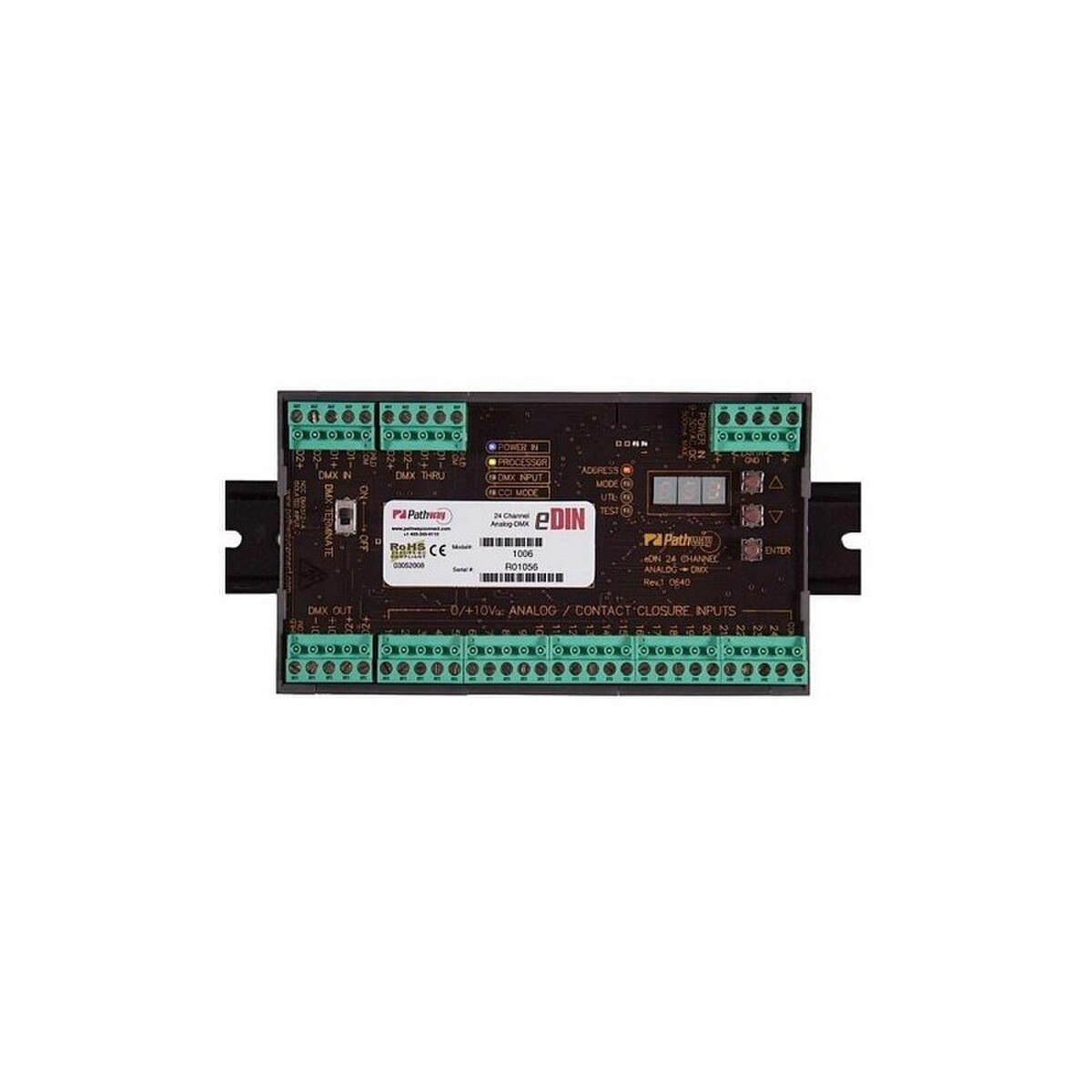

Pathway eDin 24 Channel Analog to DMX Interface

Pathway’s eDIN Analog-to-DMX Interface converts 24 analog signals or contact closures into DMX. An on-board DMX merger can combine the converted signal with other DMX sources, such as consoles or architectural controllers. Twenty-four preset looks can also be recorded into the card and recalled via contact closure.

Features:

• Convert 24 Analog 0-10V inputs into DMX
• Contact closure input model
• Built in DMX merger permits operation in-line with a console
• User-assignable priority (analog over DMX or DMX over analog)
• Selectable DMX start address
• 24 Snapshots with looping capability and "back-up look"
• RDM discoverable and configurable
• Full RDM reporting of analog levels
• Easy to use configuration interface
• Pluggable screw terminals for all connections
• DMX pass-thru connector
• Snap-on DIN rail housing
• DIN rail mounting section included

Applications:

• Analog house light/worklight control input
• Console backup or show saver
• Retrieve input level information from common 0 - 10VDC sensors, via RDM
• Simple switch or button input interface for DMX devices
• Basic playback controller
