Pliant Technologies CB2-900

Features:

• Each CB2 BaseStation supports up to 6 Radio Packs

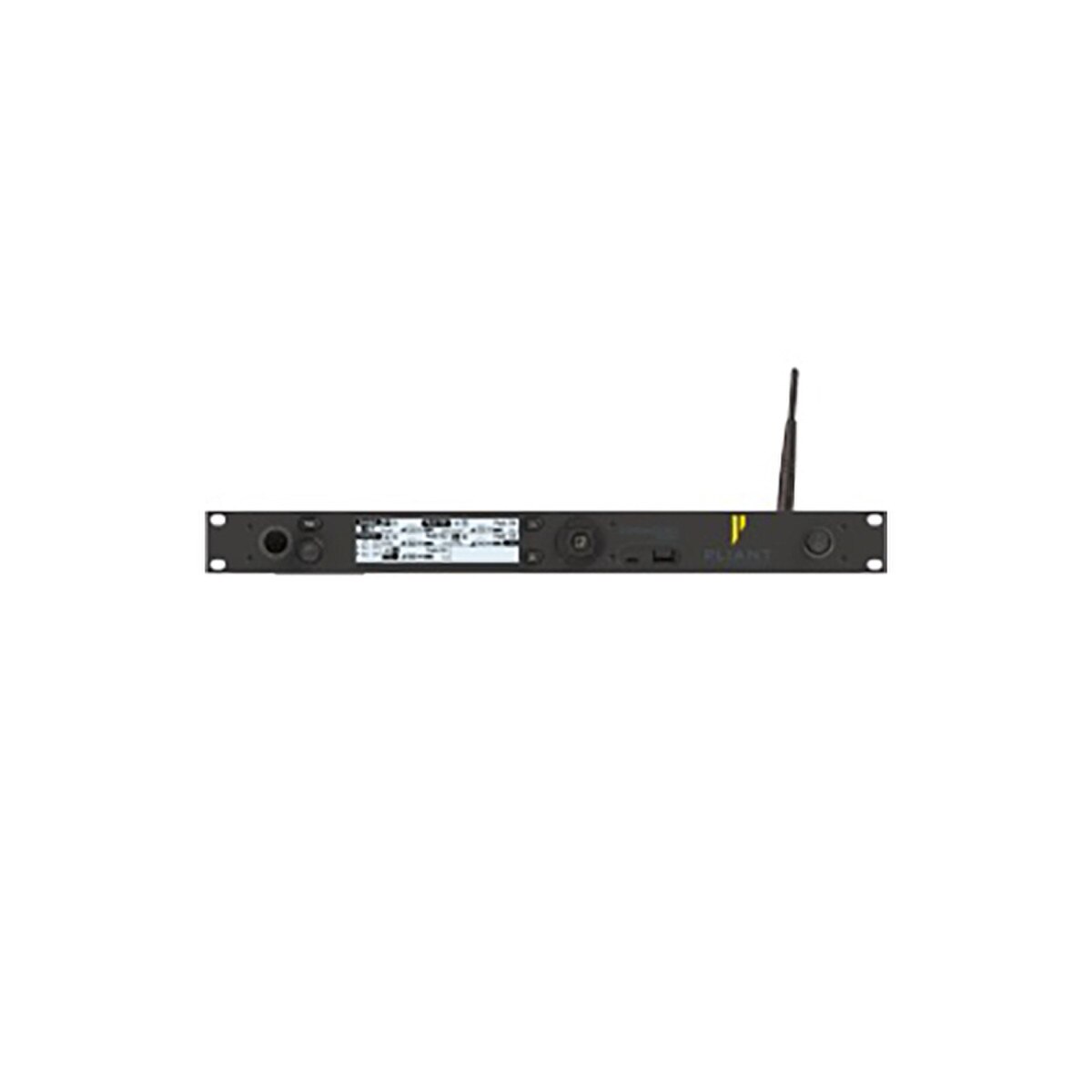

• Easy-to-use interface with large informative backlit display and clearly laid out quick-access controls

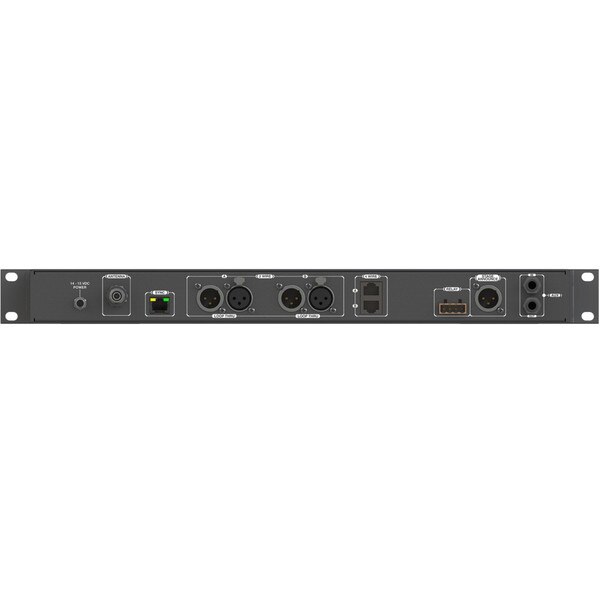

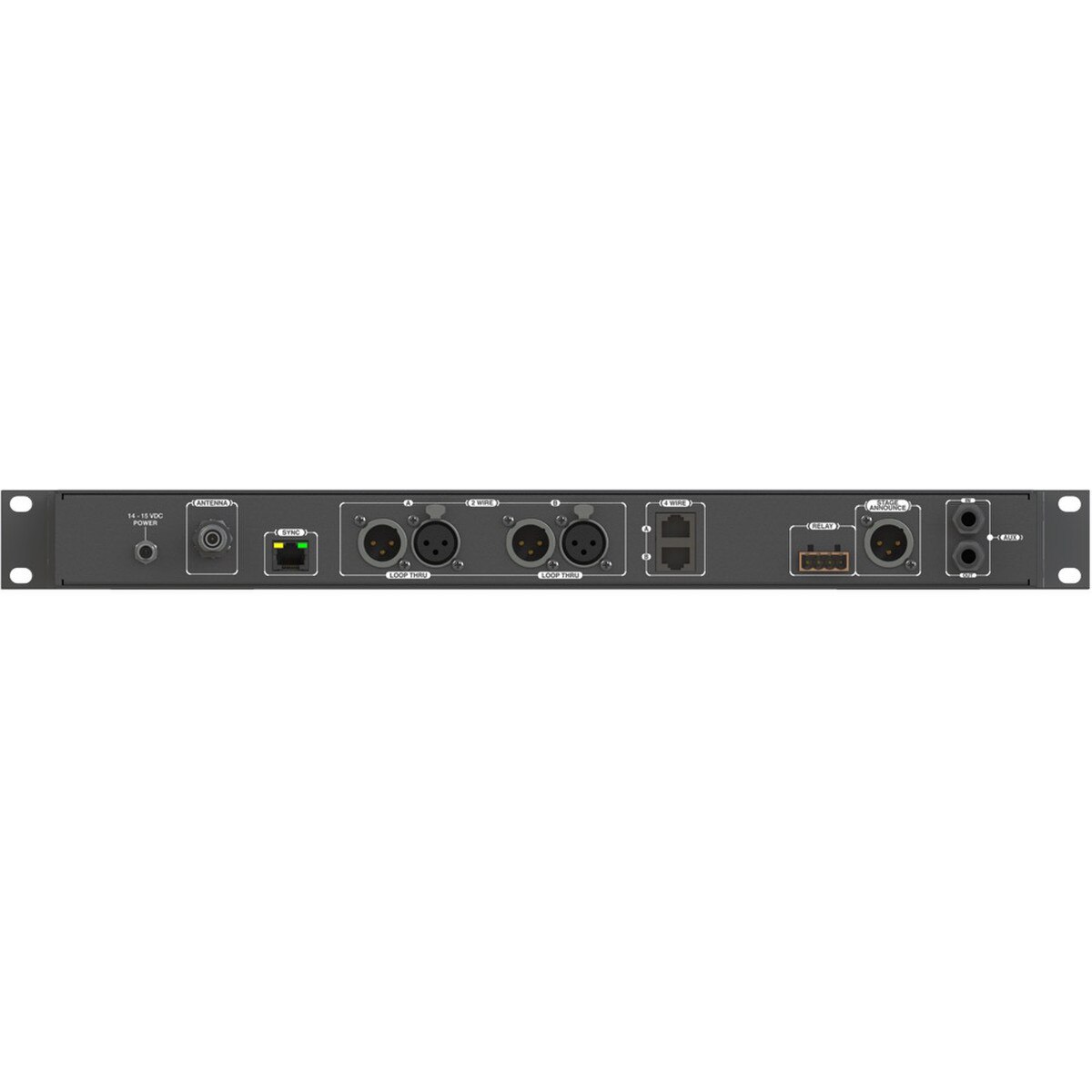

• 2-Wire and 4-Wire intercom connections
• Front panel USB ports for Radio Pack pairing and firmware updates
• Front panel headset monitor station
• Stage announce audio output and relay
• Aux In/Out for program input and intercom audio output
• External 2 dB omni-directional antenna
• Sync input to receive sync from another CB2 BaseStation or CrewCom system. Sync port can link audio between two CB2 BaseStations.

The CB2 BaseStation establishes the wireless connectivity while also providing external connections to common established intercom systems. As a system, together with the Radio Packs, the BaseStation provides up to two communication channels. The CrewCom CB2 900 1RU BaseStation features 2-channels, a 900MHz internal radio, and supports up to six CRP-12-900 Radio Packs. The system also provides external connectivity via two 2-Wire or two 4-Wire ports. A maximum of two CB2 BaseStations can be linked together.  Note: The CB2 BaseStation is ONLY compatible with the CRP-12-900 Radio Pack, is NOT compatible with any CrewCom CRP-22 or CRP-44 Radio Packs.

In the Box:

• CB2 900 BaseStation
• 14 VDC External Power Supply (part number PPS-14V)
• Omni-Directional Antenna
• USB A to Micro B Cable
• Quick Start Guide
• USB Flash Drive that includes product documentation and Firmware Updater Application
• Warranty Extension Registration Card

Specs:

• Intercom Audio Channels: 4
• Active Radio Packs (Normal Mode): 18 (18 active Normal Mode Radio Packs requires use of 3 RTs.)
• Active Radio Packs (High Density Mode): 32
• No. of Paired Radio Packs Supported (per CU): 256
• USB Ports: (1)
• USB Type A: (1) Micro USB
• Front Panel LCD Display: 512×128 resolution
• Stage Announce and GPO Closures: 5 Relays via DA-15
• CrewNet Ports (supports 2 connections): (2) RJ-45 for copper; (1) duplex LC for Single Mode Fiber Sync
• In Ports (supports 1 connection): (1) RJ-45 for copper; (1) duplex LC for Single Mode Fiber
• 2-Wire Intercom Connection: 2 channels via XLR 3F with XLR 3M loop (2 ports)
• 2-Wire Compatibility: Clear-Com, RTS, and AudioCom (Balanced)
• 4-Wire Intercom Connection: 2 ports via RJ-45
• Stage Announce Output: XLR 3M, nominal 12 dBu into 600 ohms, balanced, transformer isolated
• LAN Port: (1) RJ-45
• Power Input/Connector: 100-240V ~ 50-60 Hz, 1.8A
• Weight: 5.9 lbs (2.7 kg)
• Maximum Altitude: 9,842 ft. (3,000 m)
• RoHS Compliant: Yes

Accessories:

• CRP-12-900
• PHS-SBL11-4F
• PHS-SB210-4F
• PHS-SB110-4F
• PPS-14V-02
• PAC-CB2-6RPCHG
• PAC-CB2-6RP
• ANT-EXTCAB-5KIT
