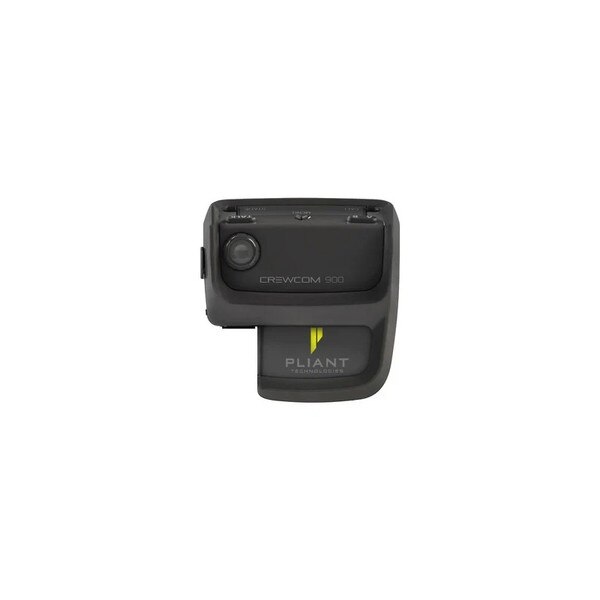

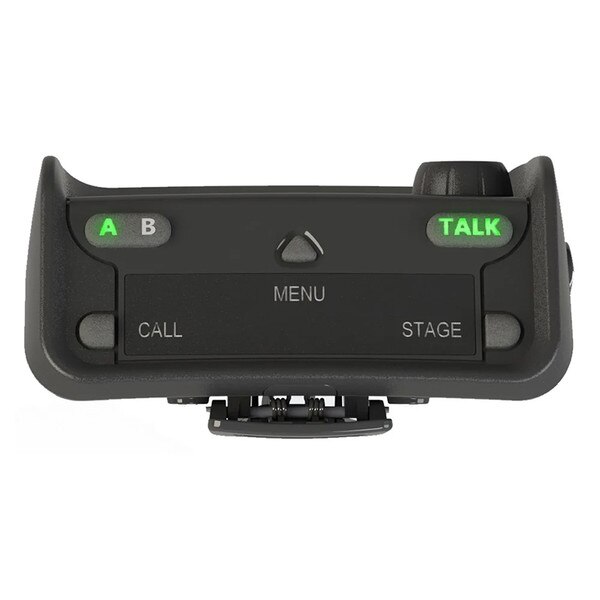

Pliant Technologies CRP-12-900
Details
Designed to work specifically with CrewCom's CB2-900 BaseStation, the CRP-12-900 wireless beltpack employs a frequency range of 150 Hz to 7 kHz to deliver high-quality speech transmission.
Full duplex operation (transmission in two directions simultaneously) allows you to carry on conversations as you would in-person. Plus, it allows users to independently listen and talk on two conferences.
The CRP-12-900 operates in the 900MHz range which works well in non-line-of-site situations. The radio pack's lightweight design, advanced RF technology, and backlit LED channel indicator make the CRP-12-900 an extremely user-friendly option.
(Note: This Radio Pack is ONLY compatible with the CB2-2400 BaseStation, is NOT compatible with any CrewCom CCU-44 or CCU-22
CU.)
Battery Life, AA Batteries: Approximately 4.5 hours
Dimensions: (L x W x H)11.43 cm × 11.61 cm × 5.87 cm (4.50 in. × 4.57 in. × 2.31 in.)
Weight (with Lithium-Polymer battery): 350 g (12.3 oz.)
Material: Polycarbonate substrate with thermoplastic elastomer overmold
Operating Environment: -20° to 50° C (-4° to 122° F); 10% to 90% Humidity. RP Power Supply is 0 to 40° C (32° to 104° F).
Maximum Altitude:2,000 m (6,562 ft.)
RoHS Compliant: Yes
IP Rating: IP-65
Compliance Model Number: RP2500
Full duplex operation (transmission in two directions simultaneously) allows you to carry on conversations as you would in-person. Plus, it allows users to independently listen and talk on two conferences.
The CRP-12-900 operates in the 900MHz range which works well in non-line-of-site situations. The radio pack's lightweight design, advanced RF technology, and backlit LED channel indicator make the CRP-12-900 an extremely user-friendly option.
(Note: This Radio Pack is ONLY compatible with the CB2-2400 BaseStation, is NOT compatible with any CrewCom CCU-44 or CCU-22
CU.)
Includes:
- Radio Pack
- Lithium-Polymer Rechargeable Battery
- Battery Charger / Power Supply
- USB A to Micro B cable
- Quick Start Guide
Features:
- Compact size
- Light weight (13 oz./ 369 g)
- 7 kHz audio for excellent voice quality
- Familiar volume/talk user interface
- Preprogrammed Function Buttons (x2)
- USB connection for pairing, firmware updates and battery charging
- Dual battery (Li-Poly or AA) operation
- Greater than 9 hours continuous operation (Li-Poly)
- Easy-to-use spring-loaded belt clip
Specifications:
- RF Frequency: (MHz)902–928 MHz(915–928 MHz)**
- RF Scheme: FHSS with TDMA
- Effective Radiated Power: 400 mW (+26 dBm)
- Receiver Sensitivity:-100 dBm at 10-5 BER
- Radio Certification: FCCID: HSW-CCT900 and IC: 4492A-CCT900Transmission Range 200 m (approx. 650 ft.) under typical conditions; 600 m (approx. 1950 ft.) line of sight (Note: Functional range depends on many variables, including RF signal absorption, reflection, and external interference.)
- Audio Dynamic Range: Greater than 90 dB
- Audio Frequency Response: 150 Hz–7 kHz
- Channels: 2
- Volume Knobs: 1
- Talk Buttons: 1
- Headset Connector :4-pin male XLR
- Microphone Type: Auto Detect; Dynamic or Electret
- Antenna: (2) 2dBi Dipole
- Battery Life, Rechargeable Lithium-Polymer: Greater than 9 hours
- Charging Power Supply: Micro USB; 6W AC wall adapter
- Charge Time for Lithium-Polymer Battery (with supplied PSU):Under 3 hours
Battery Life, AA Batteries: Approximately 4.5 hours
Dimensions: (L x W x H)11.43 cm × 11.61 cm × 5.87 cm (4.50 in. × 4.57 in. × 2.31 in.)
Weight (with Lithium-Polymer battery): 350 g (12.3 oz.)
Material: Polycarbonate substrate with thermoplastic elastomer overmold
Operating Environment: -20° to 50° C (-4° to 122° F); 10% to 90% Humidity. RP Power Supply is 0 to 40° C (32° to 104° F).
Maximum Altitude:2,000 m (6,562 ft.)
RoHS Compliant: Yes
IP Rating: IP-65
Compliance Model Number: RP2500
