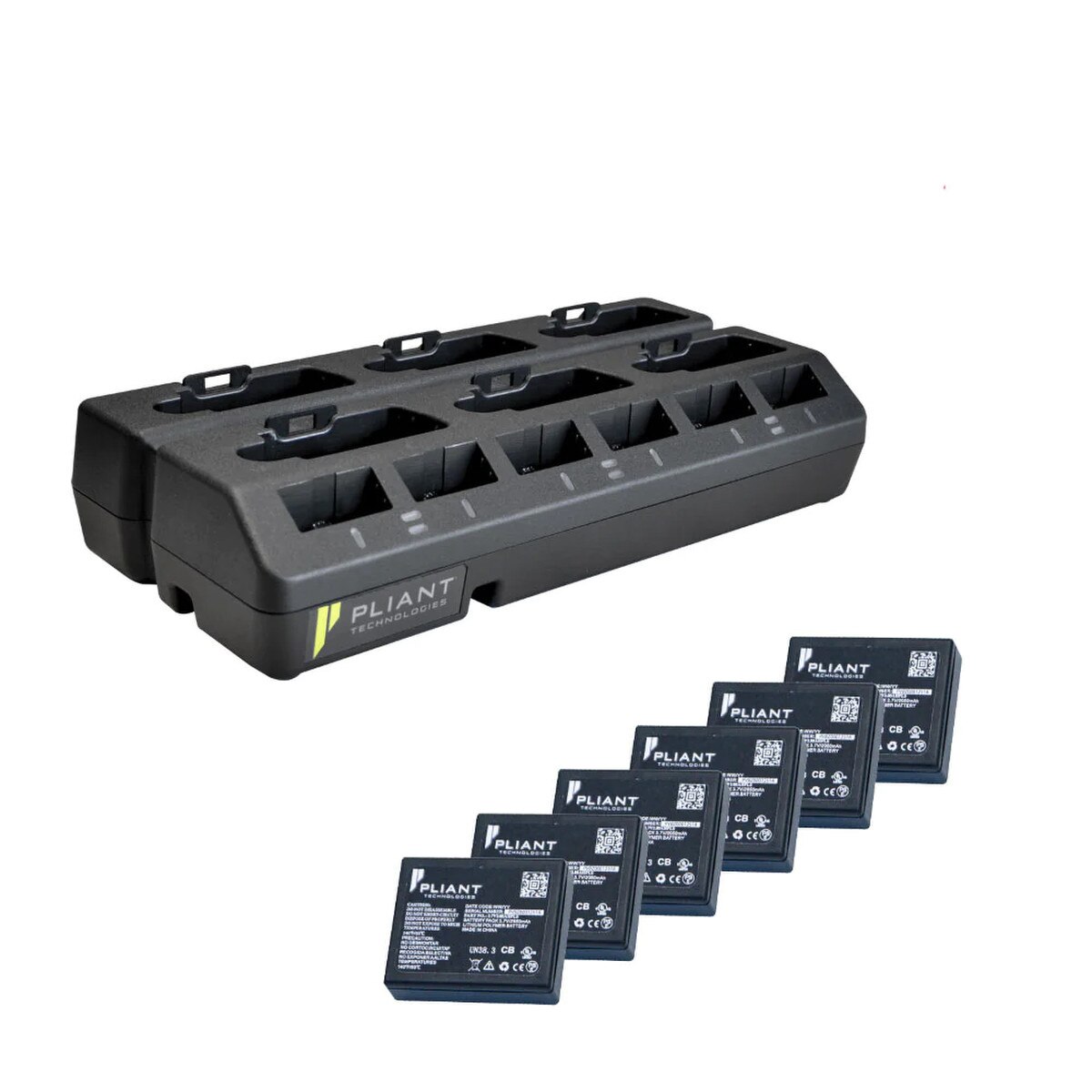

Pliant Technologies PBT-RPC-66PK - 6-Bay Drop-Inch Charger with Battery 6-Pack

This PBT-RPC-66PK 6+6 Drop-In Radio Pack and Battery Charger is a customized charging station for CrewCom radio packs and Pliant li-poly [PBT-LIP-01] batteries.


Features:

• Charge up to six CrewCom Radio Packs and six batteries simultaneously
• Recharge batteries from empty in less than 4 hours
• LED indicators provide real-time charge status
• Radio Pack charging bays compatible with Pliant FleXLR adapter
• Charger bottom designed for cable management
• Region-specific power cable (included)
• Non-Reflective, textured matte finish
• Optional mounting bracket available (not included)
• Full One-Year Parts and Labor Warranty

Specifications:

• Input:
• Voltage Range: 90-264 VAC
• Frequency Range: 47-63 Hz
• Input Current: 1.3 A max
• Standby Power: 1.6 W max
• Input Fuse: N/A

Output:

• Voltage: 0-4.2 V 0-5.35 V
• Current: 0-1 A 0-1.5 A
• Power: 4.2 W Maximum 8 W Maximum
• Voltage Tolerance: +/- 1% +/- 1%
• Current Tolerance: +/- 5% N/A (controlled by RP)
• Leakage Current: <1 mA <1 mA
• Ripple & Noise (3): <120 mV pk-pk <120 mV pk-pk
• Protection: Over current, Over temperature, Reverse polarity

Environmental:

• Cooling: Convection cooled
• Operating Temperature: Supply: -30°C to 70°C (-22°F to 158°F);
• Battery Charging: 0°C to 45°C (32°F to 113°F)
• Non-Operating Temperature: -40°C to 70°C (-40°F to 158°F)
• Altitude: -382 m to 2000 m (-1,253 ft. to 6,562 ft.)

Item Includes:

• 1x PBT-RPC-66 6+6 Drop-In Radio Pack and Battery Charger
• 1x Power Supply
• 1x PC-PWR-XX (Region Specific) AC Power Cord
• 1x Operating Guide
• 1x Warranty Extension Registration Card

Warranty:

• Full One-Year Parts and Labor
