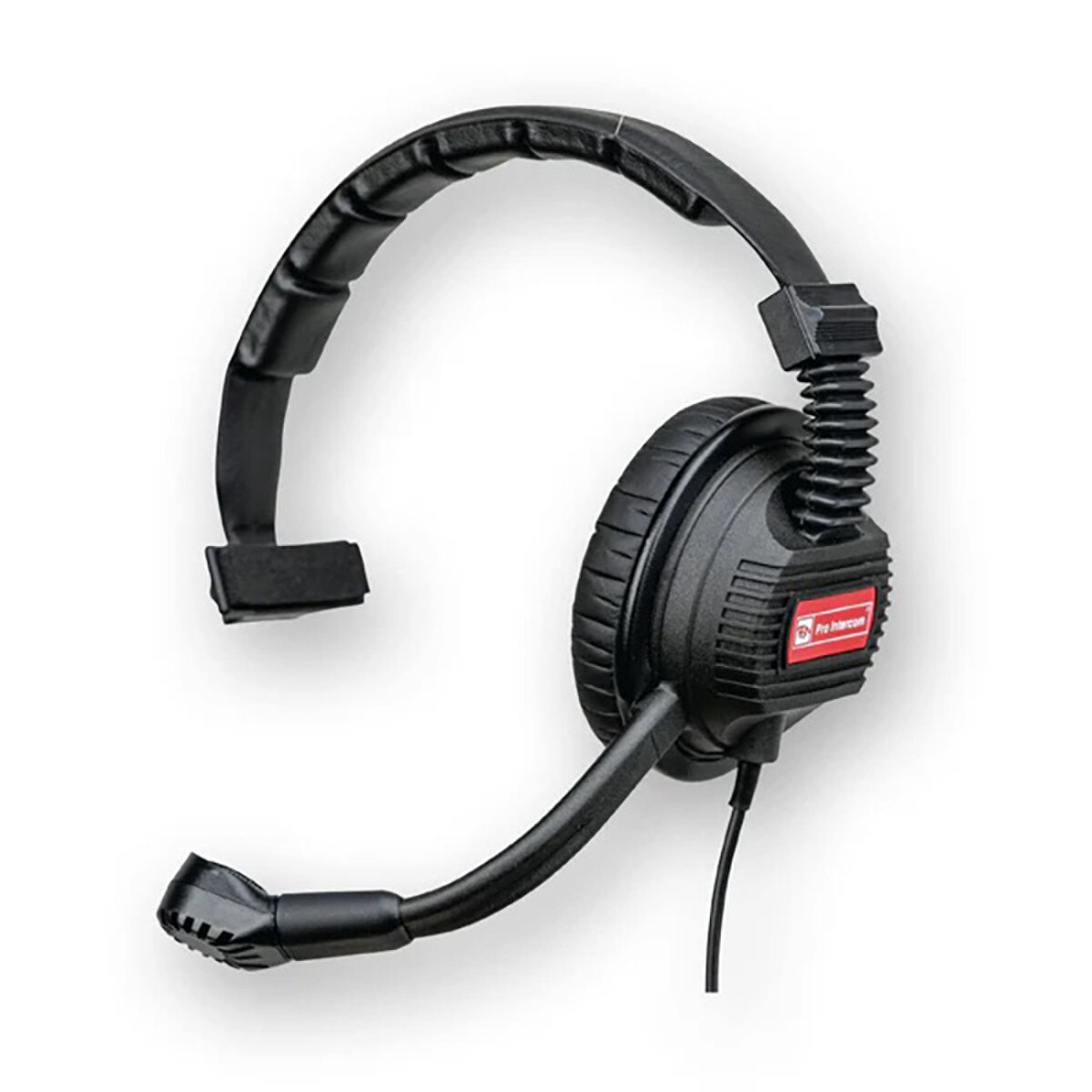

Pro Intercom 400Ω Earspeaker - 200Ω Dynamic Mic. Headset
Details
Features:
- Fixed Flexible mic boom
- Single-ear model
Performance:
Exceptionally high quality transducers provide wide smooth frequency response, reducing the onset of ‘ear fatigue’ for those who must spend many hours wearing headsets. Deep, comfortable ear cushions have excellent external noise exclusion characteristics, and are washable with ordinary dish washing detergent. At 7.35 oz. the SMH210, and at 8.75oz the DMH220, are much lighter than their appearances suggest. The noise-canceling microphone is mounted on a flexible, steel reinforced boom which can be easily twisted into a comfortable position. The flexible headband is adjustable. The normal transducer configuration for use with Pro Intercom and compatible headset intercom systems are 400Ω earspeakers and a 200Ω dynamic microphone. Electret microphones and lower impedance earspeakers for other applications are also avail able, and combinations of these transducers make up the various models. For use with Pro Intercom and most head set communications systems the SMH210 and DMH220 are fitted with a 4-pin fe male XLR-type plug. For other applications many different plugs are avail able.
Durability:
Be cause these head sets have only one moving part, and the microphone boom is flexible rather than hinged, a remark able degree of durability is achieved. The light-weight cable consists of a copper shield around steel reinforced conductors, and is virtually unbreakable under normal circumstances. The assembly screws are hidden to prevent tampering. These head sets are easily field repairable. Pro Intercom maintains a full inventory of replacement parts at reasonable prices and provides fast turn around on repairs.
Value:
Low initial cost (compared to other professional communications headsets of equivalent quality), combines with long working life and low cost of repairs to offer outstanding value.
Technical specifications: (Subject to change with out notice)
- Dynamic Microphone: Uni-Directional 200Ω @1kHz
- Freq. response: 40~15kHz
- Electret Microphone: Noise cancelling 2.2kΩ
- Freq. response: 40~18kHz
- Earspeakers: 400Ω @ 1kHz Freq. response: 40~14.4kHz
- Sensitivity: 94dB Spl @ 1mW
- Distortion: Less than 0.5%
- Cable length: 59 in. (1.5 m.) Steel reinforced
- Approx. weights: SMH210 7.35 oz, DMH220 8.75 oz.
