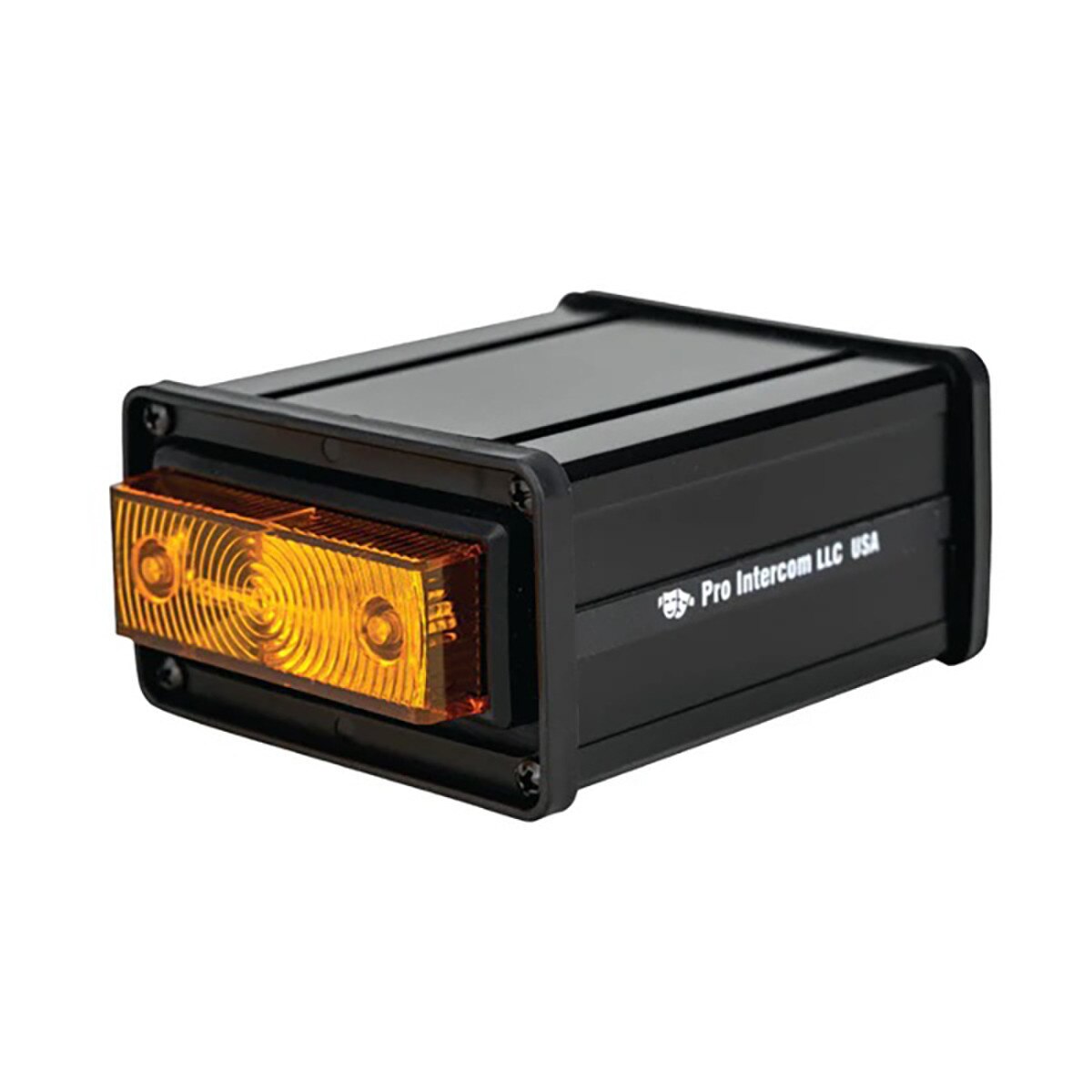

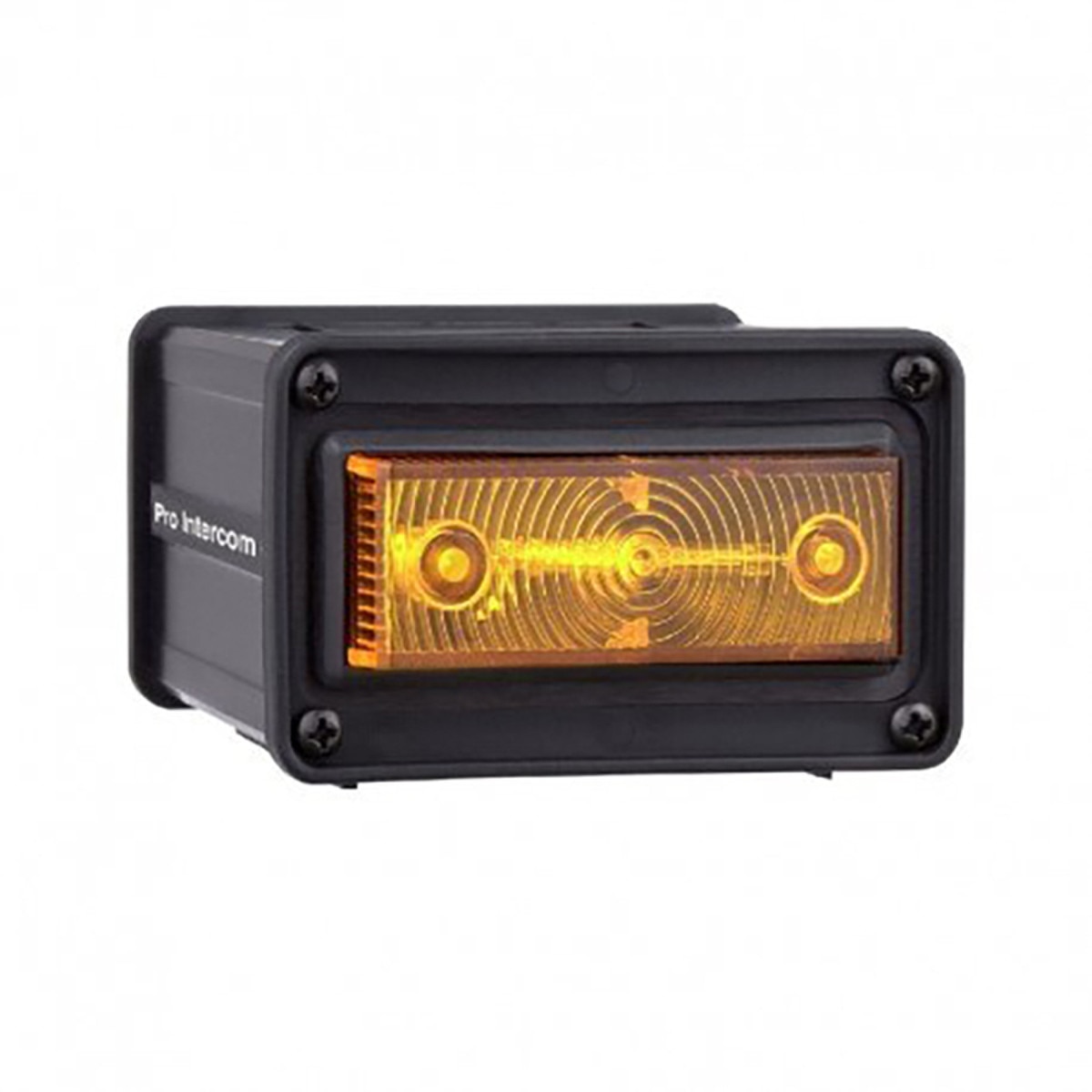

Pro Intercom Blazon Xenon Front-Mount 180° Visibility Rectangular Strobe
Details
Features:
- Front-mounted rectangular signal lamp
- Limits flash visibility to 180 degrees
- Bright xenon lamp powered by network
Performance:
The Blazon 180 in corporates a front mounted rectangular xenon lamp to limit the visibility of the flashes to 180º. Blazon 180 is triggered by the same voltage which lights the normal signal lamps in the intercom system. When ever any signal lamp but ton on any station in the same circuit is pressed, the Blazon 180 will be activated. The xenon lamp is permanently connected. Circuitry is provided to sustain the Blazon 180 for 4 seconds after being triggered. The xenon lamp has a flash rate of 2Hz, providing 8 flashes per cycle.
The Blazon 180 is connected to the head set intercom system in the same manner as a belt pack. It has two 3-pin XLR connectors on the rear panel. By convention (to differentiate from microphone inputs) the female connector is designated as input. The male connector is provided for looping on wards to the next station in the system. Reversing these connections will not affect operation.
Blazon 180 is powered by the intercom power supply and requires no batteries or other external power source. In its ready mode it draws only 21.1mA; with the strobe active, 120mA. When calculating power supply requirements, you may consider the Blazon 180 as the approximate equivalent of 3 or 4 belt packs.
Durability:
The ribbed, extruded aluminum case; glass-filled nylon end bezels; internal support system for the PC board, and; best quality XLR-type connectors, all contribute to the Blazon 180’s ability to with stand rough usage.
Value:
The comparatively low price of the Blazon 180 is made possible by the minimized assembly cost resulting from simplicity of construction.
Compatibility:
Blazon 180 is compatible with Clear-Com® and other lesser known (unbalanced 200Ω) party-line headset intercom systems.
Technical specifications: (Subject to change without notice)
- Supply voltage: 24 ~ 30 VDC nominal
- Switch-on voltage: 8 Volts minimum
- Switch-off voltage: 5 Volts maximum
- Switch-on time: 75 milliseconds
- Switch-off time: 4 seconds
- Flash rate: 2Hz / Flash power: 0.75 joules
- Input impedance: 1 Meg Ω
- Power consumption: Ready - 21.1mA With strobe - 68 mA
- Size: 3.70x4.30x5.80 in. (93.98x109.22x147.32 mm)
- Weight 20oz. (0.567Kg)
