Pro Intercom Handset - Red with Cradle

Features:

• Handset with push-to-talk switch
• Wall mount cradle
• Available in red and black

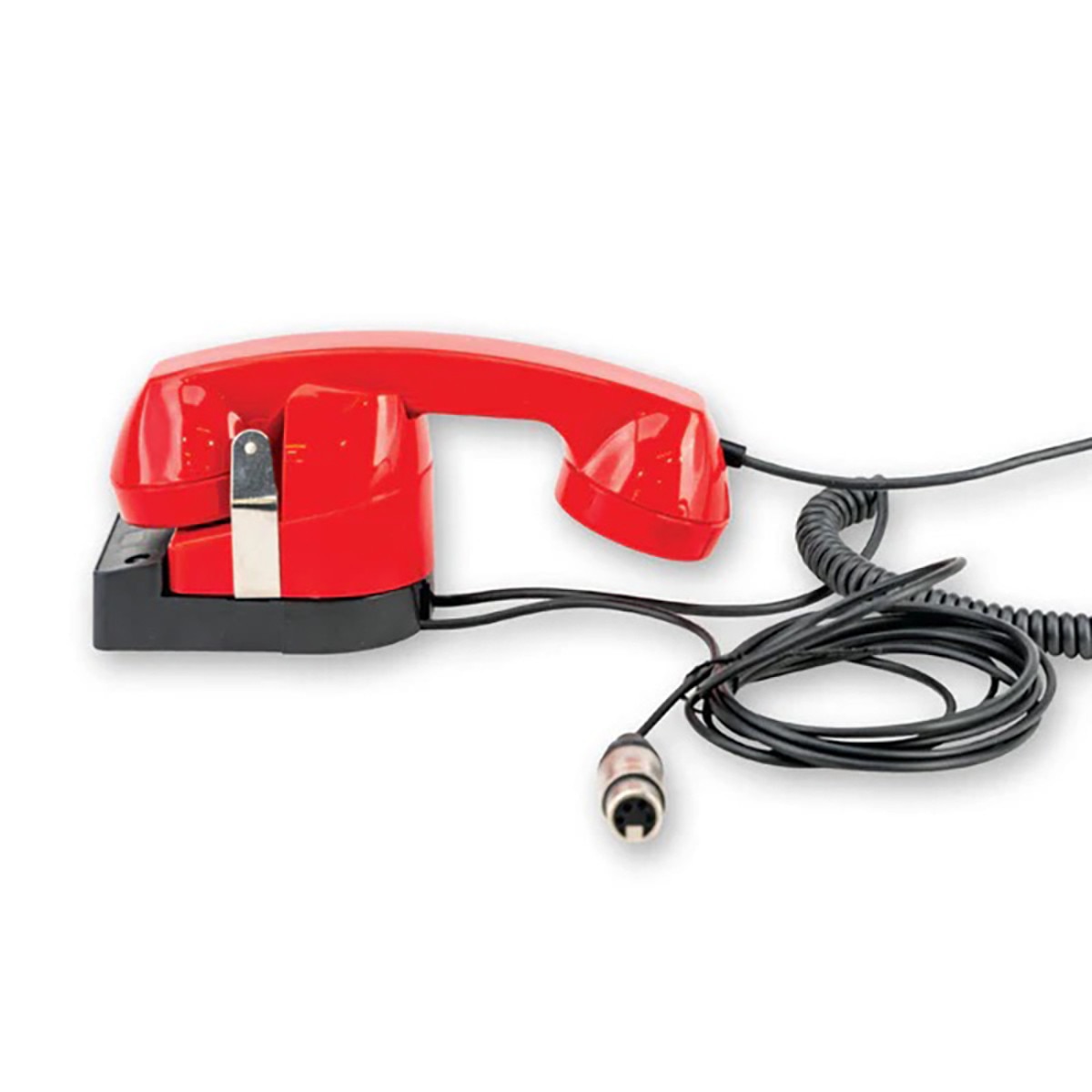

The HH10AR consists of the handset with push-to-talk switch, equipped with a US-made coil cord and 4-pin XLR connector, and a wall mount cradle with retaining spring-clip, as shown in the photo above.

Performance:

These heavy duty handsets are equipped with dynamic transducers suitable for intercom use. To prevent feedback and permit high levels before feedback, the interior of the handset is partially filled with a dense mastic material, blocking internal acoustic coupling between the microphone and the earspeaker. A high quality shielded coil cord is then fitted with a genuine Neutrik® connector.

Durability:

These handsets are molded from commercial telephone quality compounds No other handset offered for intercom use provides greater resistance to physical damage. The cradle includes a spring-clip, which prevents the handset from being accidentally, dislodged. The push-to-talk switch in the handset and the hook switch in the HH10B cradle are rated for millions of cycles.

Value:

Pro Intercom offers these high quality handsets at prices comparable to regular imported plastic handsets.

Technical specifications: (Subject to change without notice)

• Impedance: 150Ω @1kHz
• Freq. Response: 200∼3200Hz
• Sensitivity: nominal 116dB @ 1kHz
• Microphone: (Dynamic)
• Impedance: 150Ω @1kHz Freq. Response: 300∼4.5kHz
• Sensitivity: nominal 51dB @ 1kHz
• Weight: Excluding connector & cradle - Approx 12.5 oz

Pro Intercom HH10 Cutsheet.pdf
