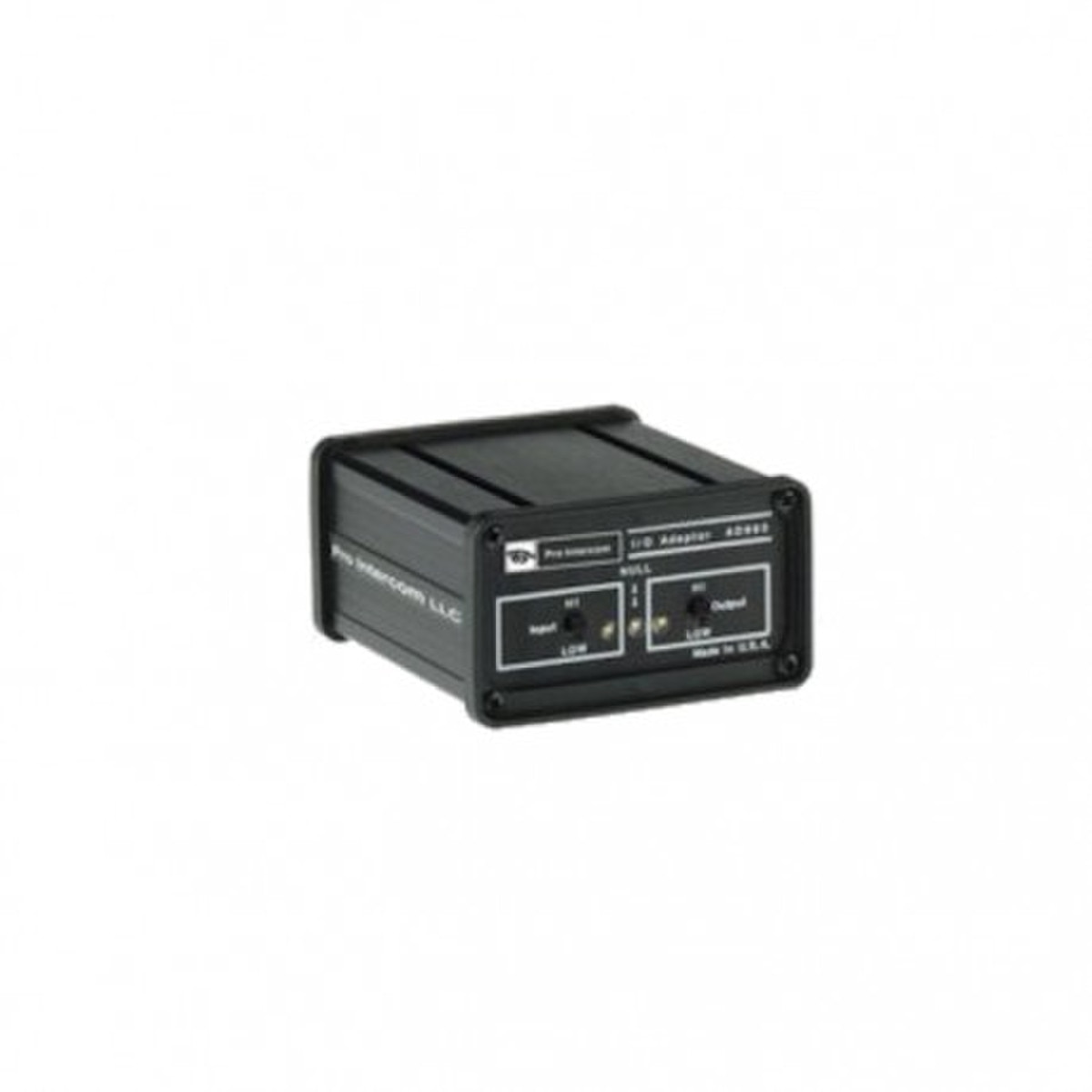

Pro Intercom Input/Output 2- 4 Wire Adapter

The AD903 has many functions for getting various levels of audio into an intercom circuit, or getting the intercom audio “traffic’ out to an amplifier or recorder. Most popular use of the AD903, with our C3M_105 cable, is to connect any Pro Intercom or ClearCom® power supply to a ListenTALK LK-1 transceiver. That transceiver then becomes the base for a group of LK-1’s which are now your wireless stations.

It is also useful as a 2-to-4 wire adapter for connecting 4-wire communications into and out of a standard intercom circuit.
Both the input and the output are transformer isolated from whatever devices are connected. The wide range of level adjustments will accommodate almost any audio signal.

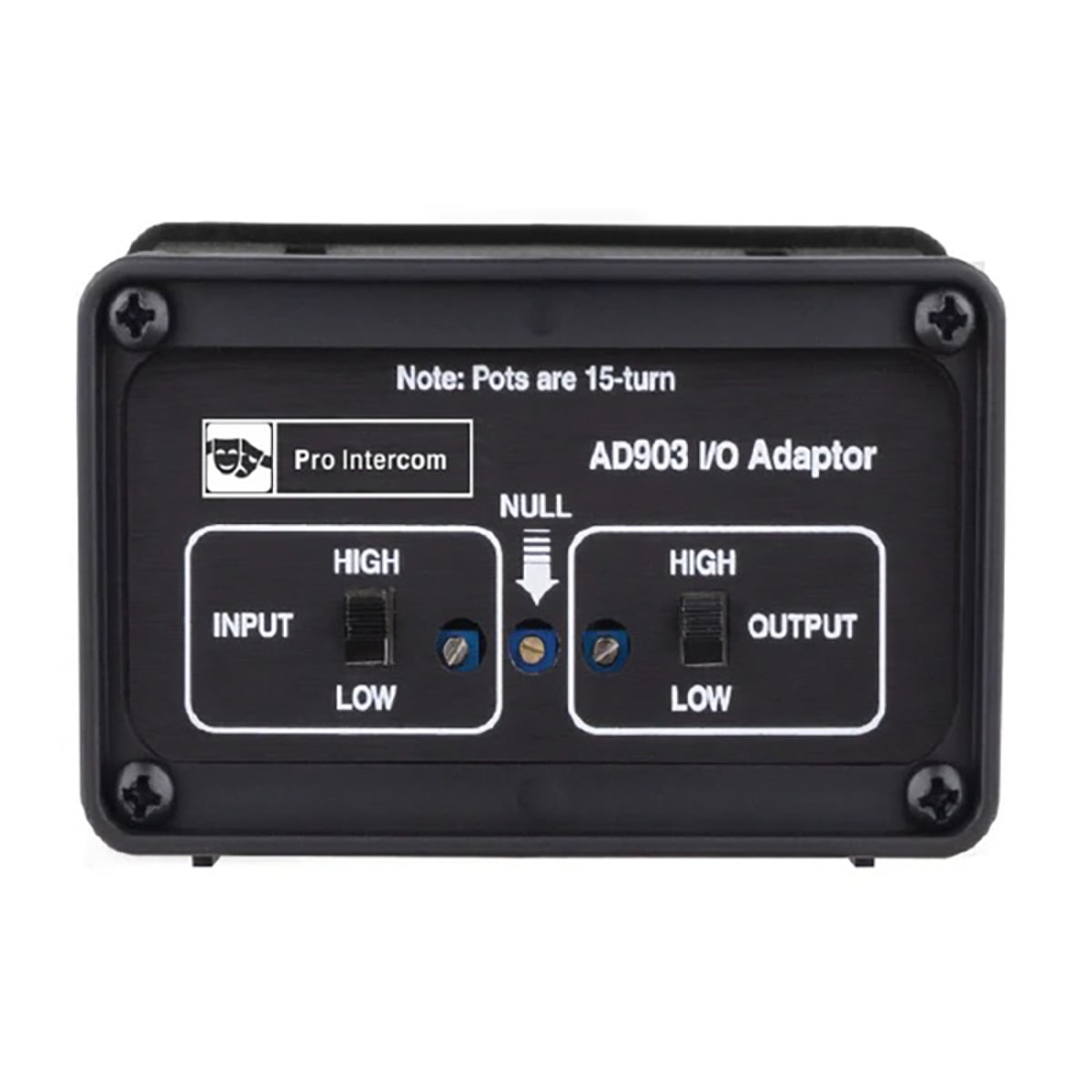

The ‘Null” control allows you to minimize or even eliminate any “cross-talk’ between the input and output.
The input transformer is a studio grade device and will not degrade any audio that you feed it. Access to the input and output are via a rear panel 4-pin XLR. Pins 1 and 2 are input and pins 3 and 4 are output. The AD903 connects to the intercom circuit just as a beltpack does, through a rear panel 3-pin XLR. The AD903 is also commonly used for connecting to a video camera CCU where a built-in intercom is provided that is not compatible with Pro Intercom or any of the other 200 Ohm unbalanced intercom systems. The AD903 is powered by the intercom system and requires no batteries or separate power supply.
