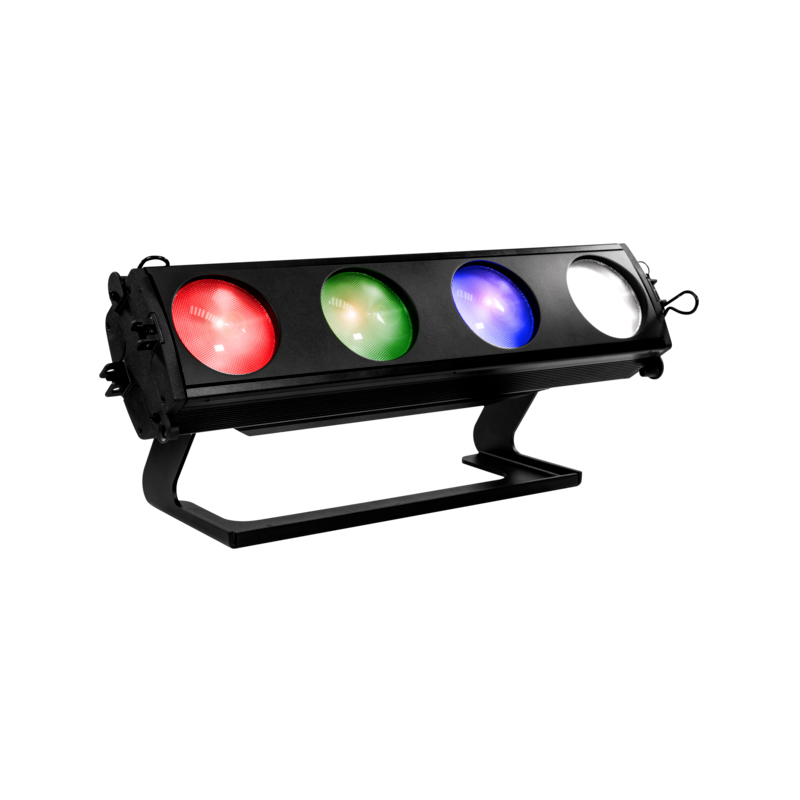

ProLights ArenaCob 4 Cell LED Blinder RGBW IP65

(0)No Reviews yet
$1,707.29
SKU: ProLights PIARENACOB4FC

Details

ARENACOB4FC is a full color LED replacement for a traditional 4 cell DWE blinder. Each of the individually controllable 75W RGBW cells delivers a consistent, powerful punch that has been designed to read in even the largest environments.

Features:
Four powerful RGBW LED Cells with sizing and spacing matching traditional linear blinders.
Individual cell control for effects, and amber shift for tungsten emulation.
IP65 housing for the most demanding environments with virtually limitless “building block” rigging system.

Specifications:
LIGHT SOURCE

  • Source: 4x75W RGBW LEDs
  • Luminous Flux: (24°) 5393 lm, (40°) 6260lm
  • Lux: (24°) 2413lux @3m Full
  • Lux: (40°) 891lux @3m Full
  • Source Life Expectancy: >50.000 h

OPTICS

  • Beam Angle: (inc) 24° - (opt) 40°
  • Field Angle: 46°
  • Pixel pitch: 150mm / 5.91''
  • Lens Diameter: 100mm / 3.94''
  • Lens Type: Dichroic parabolic reflector in combination with HD fresnel lens
  • Additional Optics: 40°(opt), 32° without magnetic lens
  • Other: Magnetic replacement of front lens

COLOR SYSTEM

  • Color Mixing: RGBW/FC
  • CTC: CTC control through independent DMX channel
  • White Presets: 2000~8000K
  • Color Wheel: Virtual color wheel with presets

DYNAMIC EFFECTS

  • Pixel Patterns: Preprogrammed dynamic and static patterns
  • FX Generator: Adjustable foreground/background color, index, speed, direction
  • Static Color Mode: Selection of static color
  • Manual Color Mode: Manual adjustment of color
  • Auto Mode: Built-in programs with execution speed adjustment
  • Special Features: Halo DWE dimming and amber-shift simulation

BODY

  • Hardware On-board: On board mechanics for modular assembly of multiple fixtures
  • Body: Sturdy die-cast aluminium body conceived for long-time durability
  • Body Color: Black

CONTROL

  • Protocols: DMX512, RDM
  • DMX Channels: HALO 1/4ch - STD 4/6/15ch - EXT16/21/27ch
  • Pixel Control: Pixel2Pixel control
  • RDM: RDM ready for fixture remote monitor and settings
  • Display: Black OLED touch display
  • Firmware Upgrade: Yes, via USB-DMX interface (UPBOX1) not included
  • Master/Slave: for synchronized operation of more units linked in a chain

ELECTRONICS

  • Dimmer: Linear 0~100% electronic dimmer
  • Dimmer Curves: 4 Different dimming curves available
  • Strobe/Shutter: 1-28 Hz, electronic
  • Battery Backup: Battery backup for user operation without connecting to the main power
  • Operating Temperature: -20° ~ +45°
  • Flicker: Flicker free operation

ELECTRICAL

  • Power Supply: 100-240V – 50/60Hz
  • Power Consumption (at 230V): 227W
  • Power Consumption (at 120V): 230W
  • Output (at 230V): 16 units on a single power line
  • Output (at 120V): 8 units on a single power line

PHYSICAL

  • Cooling: Natural cooling of the peculiar chassis and to absence of fans
  • Suspension And Fixing: Hanging bracket suitable for safe hanging and positioning
  • Signal Connection: IP DMX 5p IN/OUT, IP ARTNET Neutrik IN/OUT
  • Power Connection: IN/OUT Neutrik Truecon
  • IP: 65 for outdoor events
  • Dimensions (WxHxD): 619x167x264 mm/24.37"x6.57"x10.39"
  • Weight: 8kg/17.64lbs
