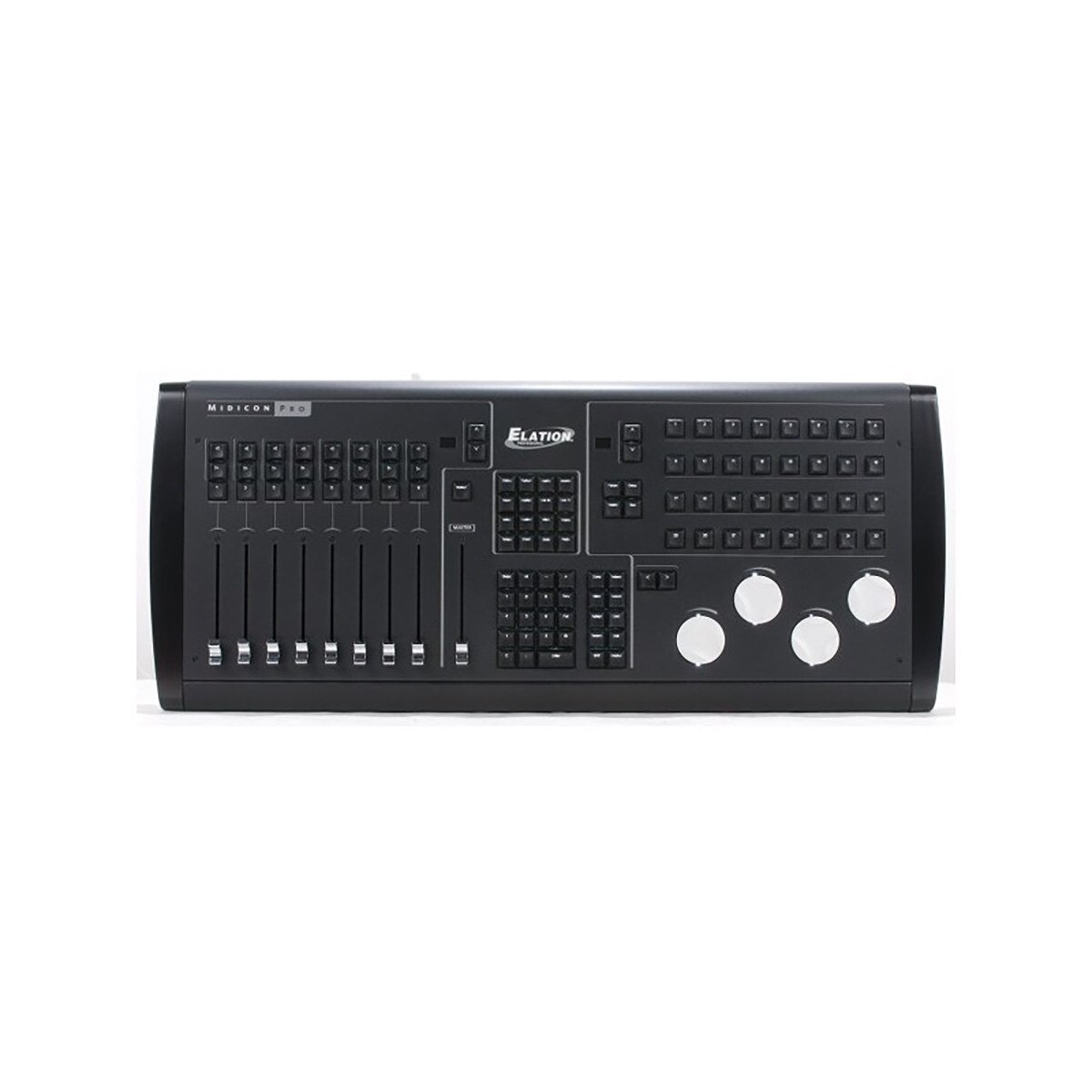

Elation MIDICON PRO

MidiCon Pro is a Midi controller designed to be used with any midi-compatible lighting control software.

Features:

• Playback Section with (8) Touch Sensitive, Motorized Playback Faders, 3 backlit buttons above each fader and page select with 00 to 99 page display
• (1) Touch Sensitive Motorized Master Fader with Backlit Blackout Button
• (20) Buttons, Backlit Keypad Section with Standard Lighting Control Style Keypad
• (16) Buttons, Backlit Function Key Section Above Keypad
• (10) Buttons, Backlit Function Key Section Next to Keypad
• Button Matrix Section with (32) Backlit Buttons and (4) Context Buttons
• (4) Rotary Encoder Jog Wheels with Custom Weighted Aluminum Wheels
• Smooth Low Friction Encoders with Push-In Function
• (2) Shift Buttons to Change Context of Wheels
• Uses MIDI Over USB for all Communication with Host Software
• All Buttons are Custom Engraved and Backlit for Use with Emulation Pro Software
• Adjustable Backlighting Level

Specifications:

Size/Weight:

• Length: 31.0” (134.9mm)
• Width: 13.0” (125mm)
• Vertical Height: 3.5” (40.9mm)
• Weight: 17 lbs (7.7kg)
