ProLights Astra Hybrid330IP 330W IP65 Hybrid Moving Head with Zoom and CMY

330W Hybrid Moving head, IP65 with 3° - 50° zoom and CMY

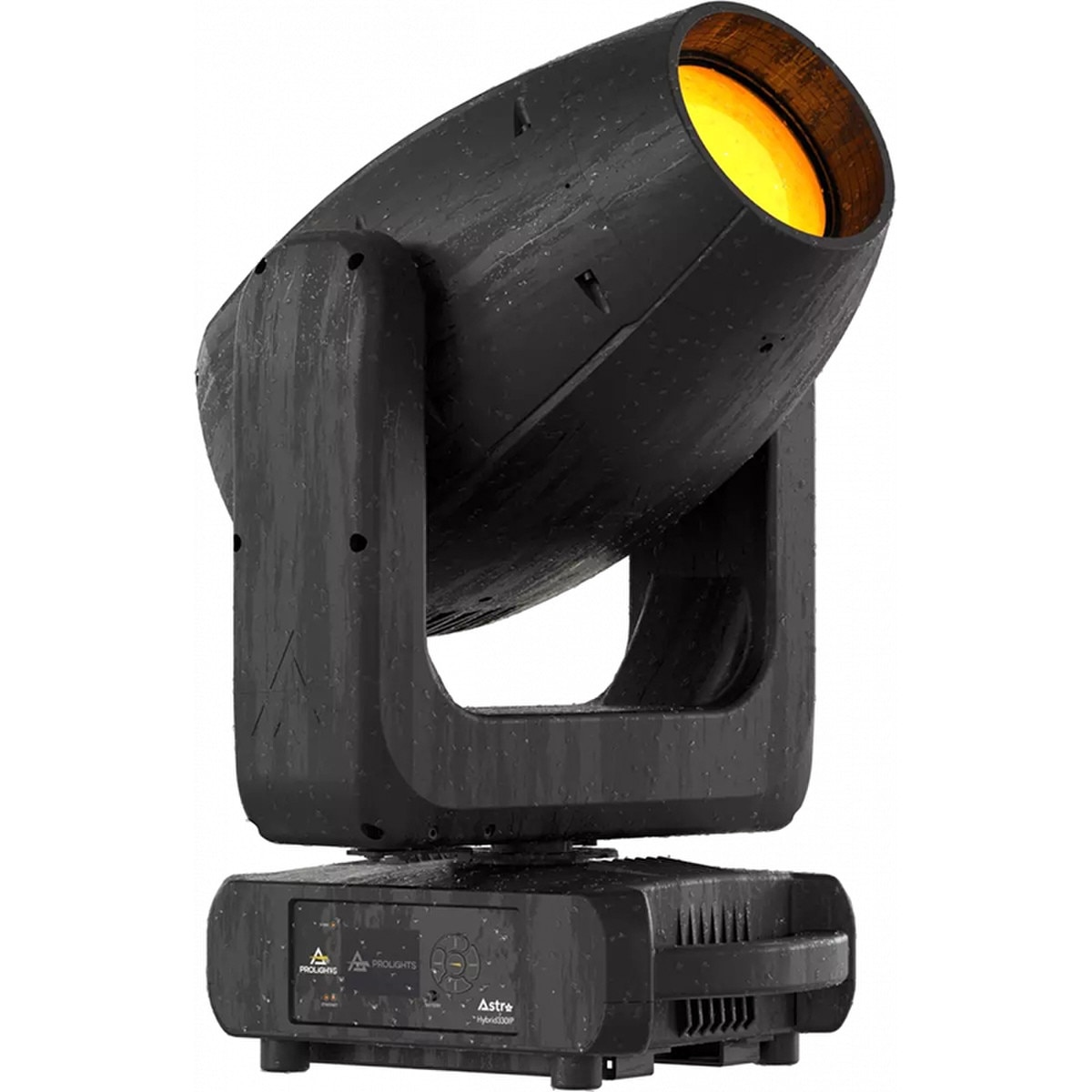

The Astra Hybrid330IP is a versatile, compact moving light, suitable for both indoor and outdoor settings, thanks to its IP65 rating.

Equipped with a 330W LED, this lightweight unit weighs only 25 kg. It offers a comprehensive range of features and visual effects, making it ideal for stages of various sizes. Its advanced optical system, featuring a 140 mm front lens, provides a zoom range from 3° to 50°, enabling both intense beam and spotlight functionalities.

Key features of the Astra Hybrid330IP include linear CMY color mixing, three color wheels, an animation wheel, dual overlapping prisms, a frost effect, and two gobo wheels.

Main Features:

• IP65 hybrid moving light with 330W LED source
• Linear zoom ranging from 3° to 50°
• 25 kg

Specifications:

Light Source:

• Source: 330W high-power white LED
• CCT: 7.000
• Luminous flux: (3°) 8'493 lm - (50°) 15'272
• Lux: (3°) 114'701 lx - (50°) 1'882lx @5 m full
• Source life expectancy: > 30.000 h

Optics:

• Zoom: 3° - 50° motorized linear zoom
• Lens diameter: 140mm / 5.51''
• Lens type: HD anti-reflection lenses with achromatic coating
• Focus: motorized

Color System:

• Colour mixing: CMY colour system on 3 gradually fading colour wheels
• CCT: on wheel 2.400 K and 3.200 K
• Colour wheel: 9 dichroic filters on 3 independent colour wheels
• Colour wheel: High CRI colour filters

Dynamic Effects:

• Control Resolution: 16-bit dimmer
• Animation wheel: animation wheel with CW and CCW rotation
• Rotating gobos: 8 rotating gobos + open, interchangeable, indexing
• Gobo size: outer: 20 mm - image: 16 mm - thickness: up to 3 mm
• Fixed gobos: 11 fixed gobos + open
• FX generator: 2 prisms overlap for spectacular aerial effects
• Circular prism: 8f with bi-directional rotation, indexing
• Linear prism: 6f with bi-directional rotation, indexing
• Frost: linear 0 - 100% frost filter

Body:

• Hardware on-board: sockets for quick-Lock Omega bracket (clamp not included)
• Pan angle: 540°
• Tilt angle: 270°
• Pan/Tilt resolution: bit 8 / 16-bit
• Feedback: automatic repositioning after accidental movement
• Body: weatherproof IP65 construction with die-cast magnesium alloy
• Body colour: RAL 9004

Control:

• Protocols: DMX512, RDM, Art-Net, sACN, W-DMX
• DMX channels: 29channel
• Wireless Control: included, LumenRadio Timo Fx DMX/RDM compatible with both CRMX (Lumen Radio) and W-DMX (Wireless DMX)
• RDM: RDM for remote monitoring and settings
• Display: LCD high resolution colour display with autoflip
• Firmware upgrade: yes, via USB - DMX interface (UPBOXPRO/UPBOX2) not included or via USB pen drive
• Other: Ethernet pass through in case of PSU or Master PCB failure

Electronics:

• Dimmer: linear 0 ~ 100% mechanical dimmer
  Dimmer curves: 4 selectable dimming modes available
  Strobe / shutter: 1 - 30 Hz, electronic
  Display battery: self-charging battery backup
  Operating temperature: -20° C / +45° C (-4° F / +113° F)
  LED Control: flicker free frequency with adjustable PWM
  Selectable PWM: 600 ~ 50.000 Hz

Electrical:

• Mains power supply: 100-240V - 50/60Hz (max absolutes range: 90-264V - 50/60Hz)
• Max power consumption: 517W
• Standby power: 85W
• Output (at 230V): 4 units on a single power line
• Power factor: > 0,98
• Inrush current: 30A @115VAC /＜50A @230VAC

Physical:

• IP rating: 65 (*)
• Cooling: combination of heat pipe cooling system and low noise fan
• Suspension and fixing: any position with quick-lock omega brackets
• Pan / tilt lock: for transportation and maintenance

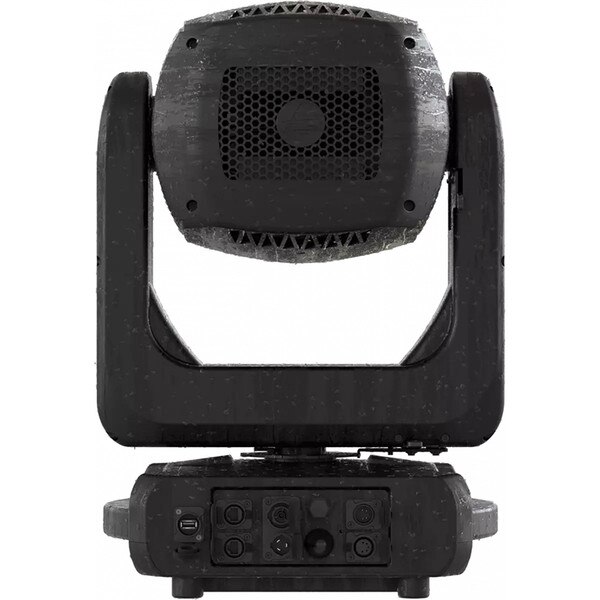

• Signal connection: IP65 Seetronic XLR 5p IN/OUT connectors
• Data connection: IP65 Art-Net RJ45 IN/OUT
• Power connection: Seetronic powerCON TRUE IP65 IN/OUT
• Dimensions (WxHxD): 393x684x266mm / 15.47''x26.93''x10.47''
• Weight: 25kg / 55.12lbs
• NOTE: Suitable for permanent outdoor use, provided installation and maintenance cycles by qualified technicians are carried.

Certifications / Approvals:

• Certifications / Approvals: CE, RCM, FCC, cTUVus

Box Contents:

• 1 x ASTRAHYB330IP
• 2 x OSIPPLUS
• 1 x 1,5 meters power cable (BARE END - SEETRONIC IP65 power connector)
• User manual
