ProLights Astra PAR7ZIP IP65 RGB - Warm White/FC PAR with Pixel Control
Details
7x40W IP65 RGB+WW zoom LED PAR with pixel control
Astra Par7ZIP is a bright IP65 rated LED zoom PAR featuring a 7x40W RGB + WarmWhite LED source delivering phenomenal output and great flexibility for both indoor and outdoor application.
Its Spektra calibrated LED source delivers a high-quality white reproduction with high CRI and TLCI scores as well an extremely precise colour tuning.
Astra Par7ZIP is truly focusable through the motorized zoom system ranging from 4.5° to 53°, being a truly versatile workhorse for any application requiring an advanced control of the light and weatherproof.
The on board CRMX transceiver card allow also a simplified wiring and remote wireless control of the unit.
Astra Par7ZIP is single pixel controllable, with multiple on-board FX, and allows access to a precise and advanced white and colour control, all through DMX, CRMX+W-DMX and RDM.
Specifications:
Light Source:
- Source: 7x40W RGB + Warm White LED
- Luminous flux: preliminary data: (4,5°) 1'513 lm - (53°) 2'604 @full
- Lux: preliminary data: (4,5°) 12'541 lx - (53°) 304lx @5 m full
- CRI: preliminary data: 94,8 @ 3'200K; 92,9 @ 5'600K
- R9: preliminary data: 97,6 @ 3'200K; 79,8 @ 5'600K
- Source life expectancy: > 50.000 h
Optics:
- Zoom: 4,5° - 53° motorized linear zoom
- Lens type: honeycomb gapless plano-convex optics
Color System:
- Colour mixing: RGBW / FC
- CCT: CCT control, + / - green correction, tungsten emulation
- White presets: 2.800 K ~ 10.000K
- Colour wheel: gel filters included
- Macros: several pre-built pixel macros with adjustable speed
Dynamic Effects:
- Control Resolution: 16-bit dimmer
- Pixel patterns: pre-programmed dynamic and static patterns
- FX generator: adjustable foreground/background colour, index, speed, direction
- Special features: linear crossfade channel from any white to any colour; virtual CTO on colours
Body:
- Body: weatherproof IP65 construction
- Body colour: RAL 9004
- Other: Front mount holder for accessories as Barndoor or filterframe
Control:
- Protocols: DMX512, RDM, CRMX
- DMX channels: 1 / 2 / 6 / 12 / 14 / 21 / 33channel
- Pixel control: OFF, ring and pixel2pixel selectable options
- Wireless Control: included, LumenRadio Timo Fx DMX/RDM compatible with both CRMX (Lumen Radio) and W-DMX (Wireless DMX)
- RDM: RDM for remote monitoring and settings
- Display: LCD high resolution colour display
- Firmware upgrade: yes, via USB - DMX interface (UPBOXPRO/UPBOX2) not included
Electronics:
- Dimmer: linear 0 ~ 100% electronic dimmer
- Dimmer curves: 4 selectable dimming modes available
- Strobe / shutter: 1 - 30 Hz, electronic
- Display battery: self-charging battery backup
- Operating temperature: -20° C / +45° C (-4° F / +113° F)
- LED Control: flicker free operation
- Selectable PWM: 600 ~ 50.000 Hz
Electrical:
- Mains power supply: 100-240V - 50/60Hz
- Max power consumption: 263W
- Standby power: 18W
- Output (at 230V): 8 units on a single power line
- Power factor: > 0,93
- Inrush current: ＜30A @115VAC /＜50A @230VAC
Physical:
- IP rating: 65 for outdoor installations
- Cooling: active, silent operation
- Suspension and fixing: double hanging bracket suitable for safe hanging and for floor positioning

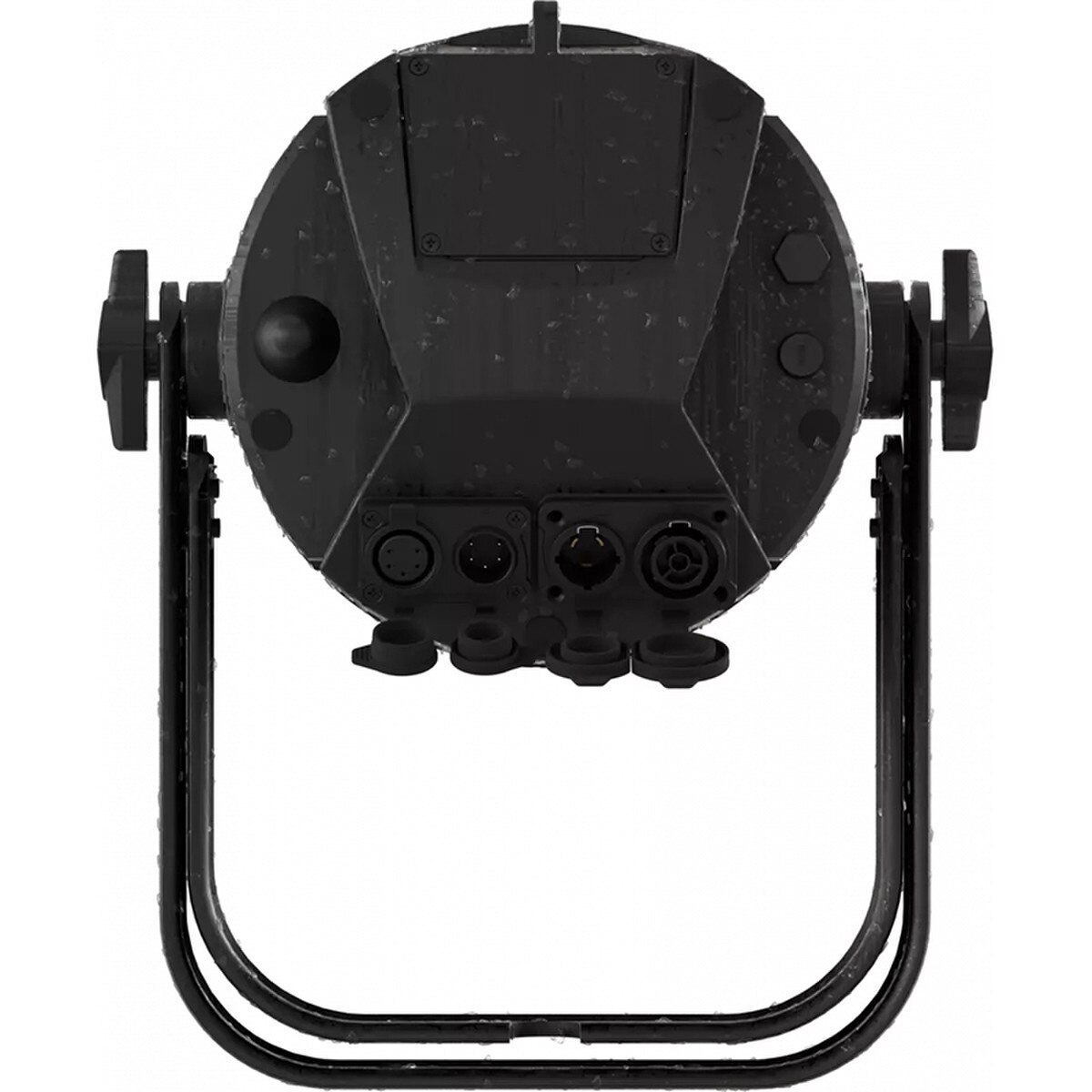

- Signal connection: Seetronic XLR 5p IN/OUT connectors
- Power connection: Seetronic powerCON TRUE IP65 IN/OUT
- Dimensions (WxHxD): 291x347x300mm / 11.46''x13.66''x11.81''
- Weight: ()9,3kg / 0lbs
- NOTE: Suitable for permanent outdoor use, provided installation and maintenance cycles by qualified technicians are carried.
Certifications / Approvals:
- Certifications / Approvals: CE, UKCA, RCM, cTUVus, FCC
Box Contents:
- 1 x ASTRAPAR7ZIP
- 1 x 1,5 meters power cable (BARE END - SEETRONIC POWERCON TRUE1 IP65)
