ProLights Astra Wash19PixIP IP65 19x40W RGBW-FC LED Moving Wash Light

IP65 moving wash light with 19x40W RGBW LED and 4°-54° zoom

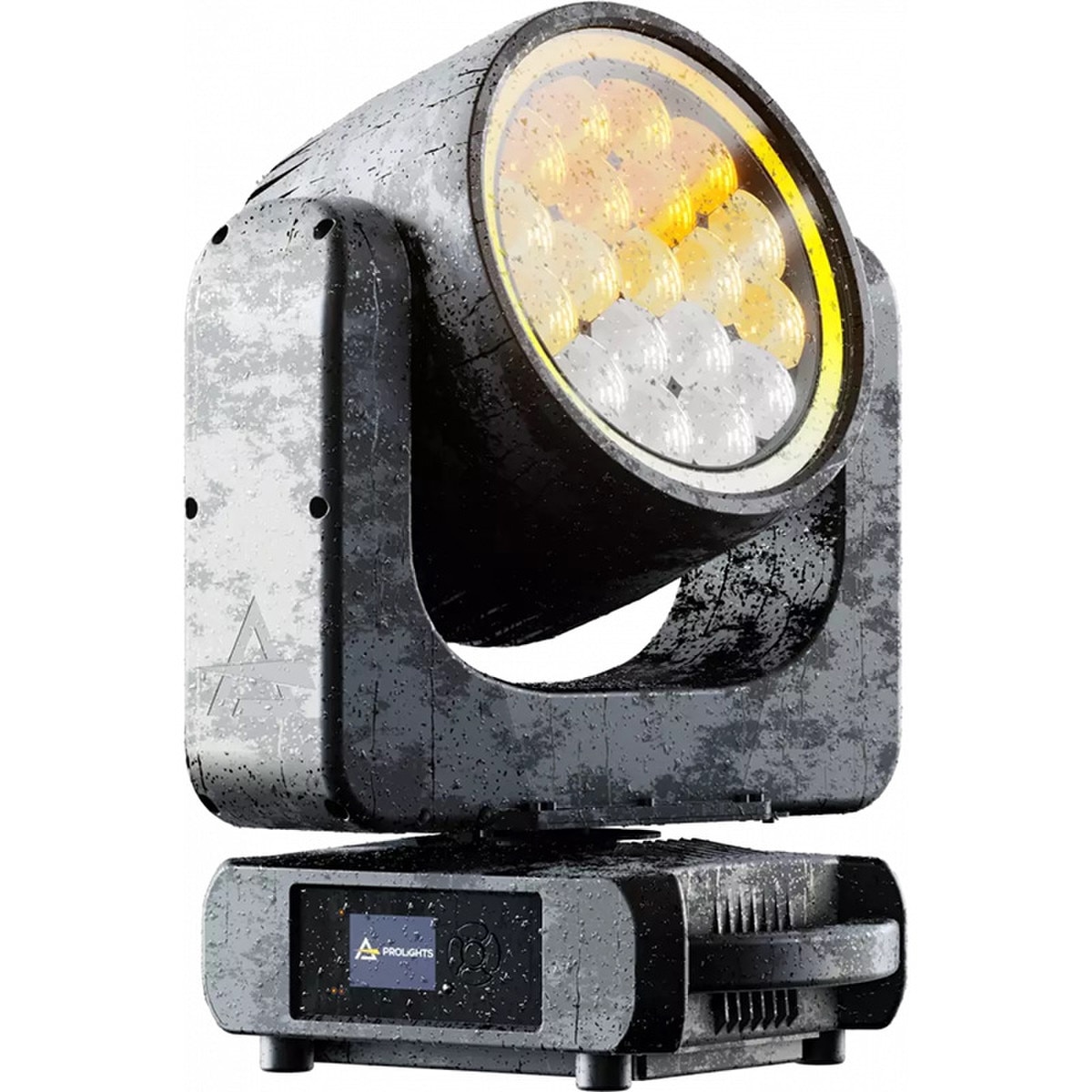

The Astra Wash19PixIP is an IP65 LED moving wash light designed to be a workhorse for any large, outdoor stage or installation, offering a robust and sealed mechanical assembly but keeping the same features and performance as its indoor version.

This moving wash light has a 19x40W Osram RGBW LED light source and an extremely-high-efficiency optical system capable of zooming from 4° to 54°, making this luminaire very versatile for any application, as aerial FX or wash light.

The Astra Wash19PixIP is single pixel controllable, with multiple on-board FX and has precise and advanced white and colour control, all through DMX/RDM, CRMX+W-DMX, Art-Net and sACN.

Main Features:

• IP65 with a compact form factor and fast movements
• Zoom from 4° to 54° with a high-optical efficiency
• Pixel control, precise white CCT, multiple FXs and colour features

Specifications:

Light Source:

• Source: 19x40W RGBW Osram Ostar LEDs
• Luminous flux: (4°) 5'505 lm - (54°) 10'143 @full
• Lux: (4°) 45'146 lx - (54°) 1174lx @5 m full
• Other: outer RGB pixel ring with frost film
• Source life expectancy: > 50.000 h

Optics:

• Zoom: 4° - 54° motorized linear zoom
• Lens type: honeycomb gapless plano-convex optics
• Additional optics: optics: diffuser on outer pixel ring

Color System:

• Colour mixing: RGBW / FC
• CCT: CCT control, + / - green correction, tungsten emulation
• White presets: 2.800 K ~ 10.000K
• Colour wheel: virtual colour wheel with macros
• Macros: several pre-built pixel macros with adjustable speed

Dynamic Effects:

• Control Resolution: 16-bit dimmer, colours
• Pixel patterns: pre-programmed dynamic and static patterns
• FX generator: adjustable foreground/background colour, index, speed, direction
• Special features: outer RGB, pixel ring with several built in FX macros and linear crossfade channel from any white to any colour; virtual CTO on colours

Body:

• Hardware on-board: sockets for quick-Lock Omega bracket (clamp not included)
• Pan angle: 540°
• Tilt angle: 233°
• Feedback: automatic repositioning after accidental movement
• Body: weatherproof IP65 construction
• Body colour: RAL 9004

Control:

• Protocols: DMX512, RDM, Art-Net, Klingnet, sACN, W-DMX
• DMX channels: main personality 29 / 32 / 53channel
• Pixel control: OFF, ring and pixel2pixel
• Wireless Control: included, LumenRadio Timo Fx DMX/RDM compatible with both CRMX (Lumen Radio) and W-DMX (Wireless DMX)
• RDM: RDM for remote monitoring and settings
• Display: LCD high resolution colour display with autoflip
• Firmware upgrade: yes, via USB - DMX interface (UPBOXPRO/UPBOX2) not included

Electronics:

• Dimmer: linear 0 ~ 100% electronic dimmer
• Dimmer curves: 4 selectable dimming modes available
• Strobe / shutter: 1 - 30 Hz, electronic
• Display battery: self-charging battery backup
• Operating temperature: -20° ~ +45°
• LED Control: flicker free operation
• Selectable PWM: 600 ~ 50.000 Hz

Electrical:

• Mains power supply: 100-240V - 50/60Hz
• Max power consumption: 750W
• Standby power: 52W
• Output (at 230V): 3 units on a single power line
• Power factor: > 0,95
• Inrush current: ＜30A @115VAC /＜50A @230VAC

Physical:

• IP rating: 65 (*)
• Cooling: forced air with fan
• Suspension and fixing: any position with quick-lock omega brackets
• Pan / tilt lock: for transportation and maintenance

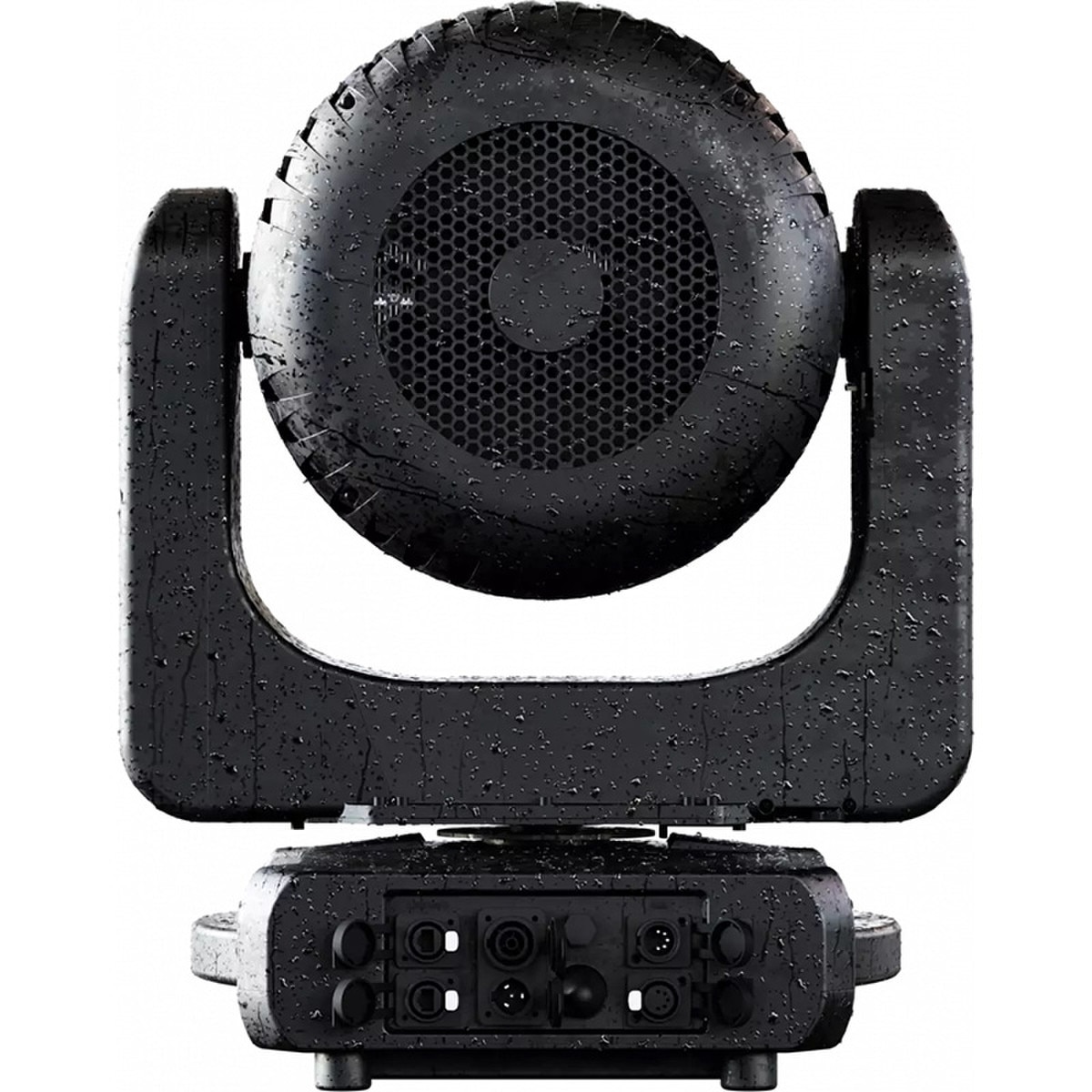

• Signal connection: Seetronic XLR 5p IN/OUT connectors
• Data connection: Seetronic Art-Net RJ45 IN/OUT
• Power connection: Seetronic powerCON TRUE IP65 IN/OUT
• Dimensions (WxHxD): 457x578x266mm / 17.99''x22.76''x10.47''
• Weight: 26,4kg / 58.2lbs
• NOTE: Suitable for permanent outdoor use, provided installation and maintenance cycles by qualified technicians are carried.

Certifications / Approvals:

• Certifications / Approvals: CE, UKCA, RCM

Box Contents:

• 1 x ASTRAWASH19PIXIP
• 1 x Antenna
• 1 x 1,5 meters power cable (BARE END - SEETRONIC IP65 power connector)
• 2 x OSIP
• User Manual
