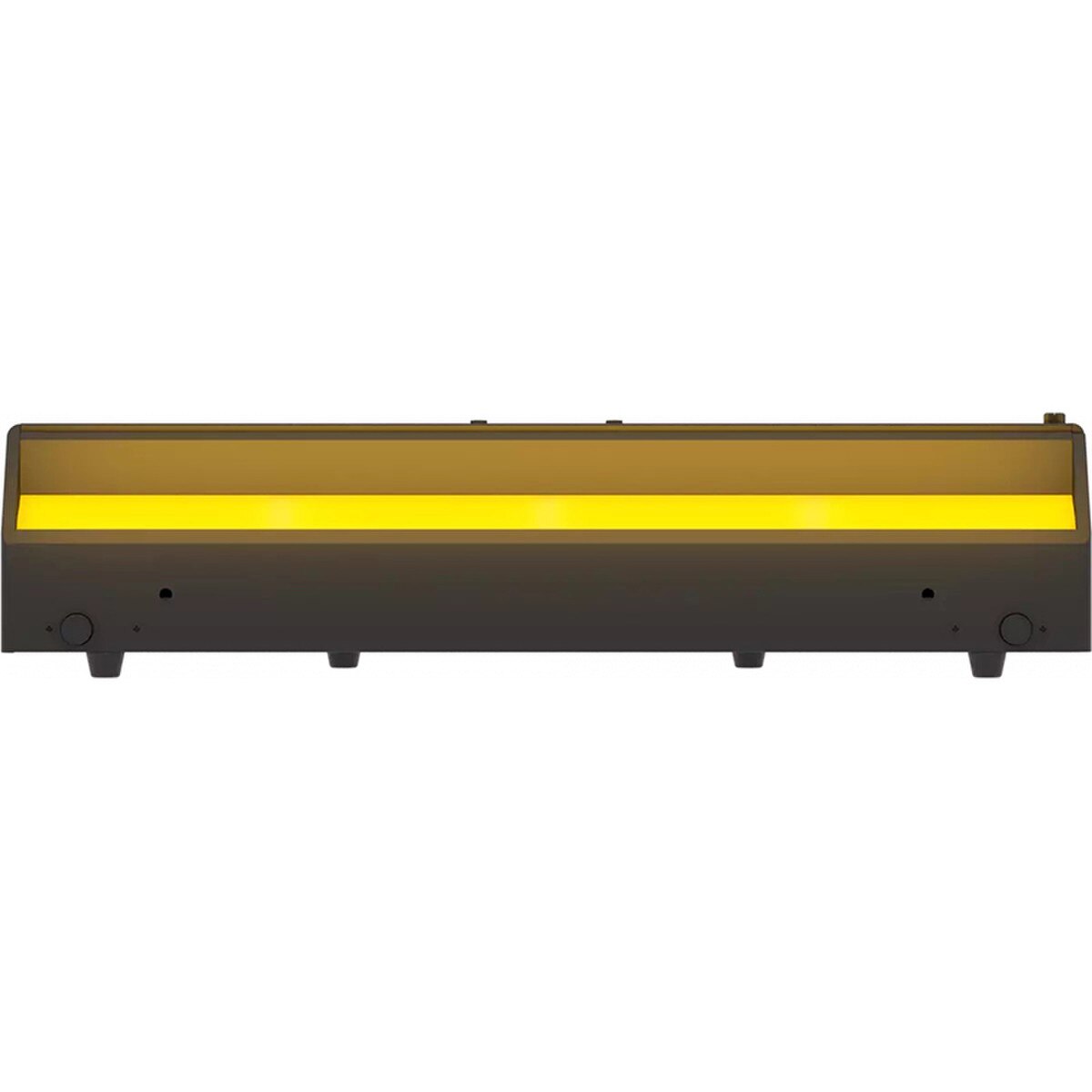

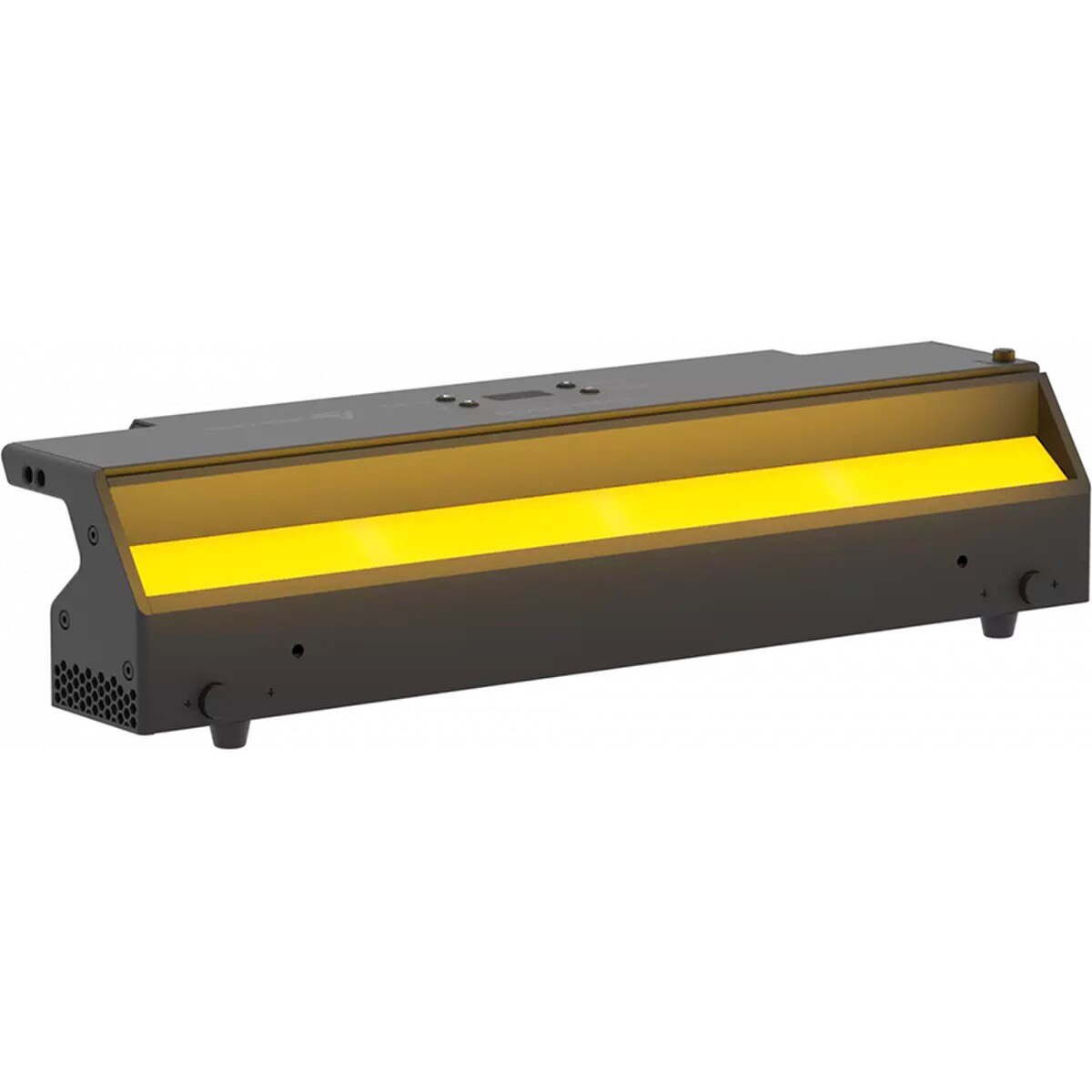

ProLights EclCyclorama 050

170W linear soft CYC and flood light with RGB+Warm White colour mixing

EclCyclorama 050 is a soft-edge, linear cyclorama and floodlight, designed in a surprisingly low profile form factor to meet applications at both front and end of the stage, offering an unprecedent level of brightness in its category. The fixture is equipped with a custom and calibrated RGB + Warm White LED source, which is capable to deliver a linear and high quality white reproduction of the entire spectrum with high CRI, TLCI and TM30 performances. The Optical system has been designed to offer a very wide asymetric beam angle, and capable of a superior lumen efficiency, making the EclCyclorama range a very flexible solution, suitable for both application where fixture are connected each other or separated by a considerable distance, without worrying of dark-edge or uniformity gaps. The fixture is extremely user friendly and offers a multitude of control possibilities being DMX, RDM, Artnet, sACN and Wireless DMX.

Main Features:

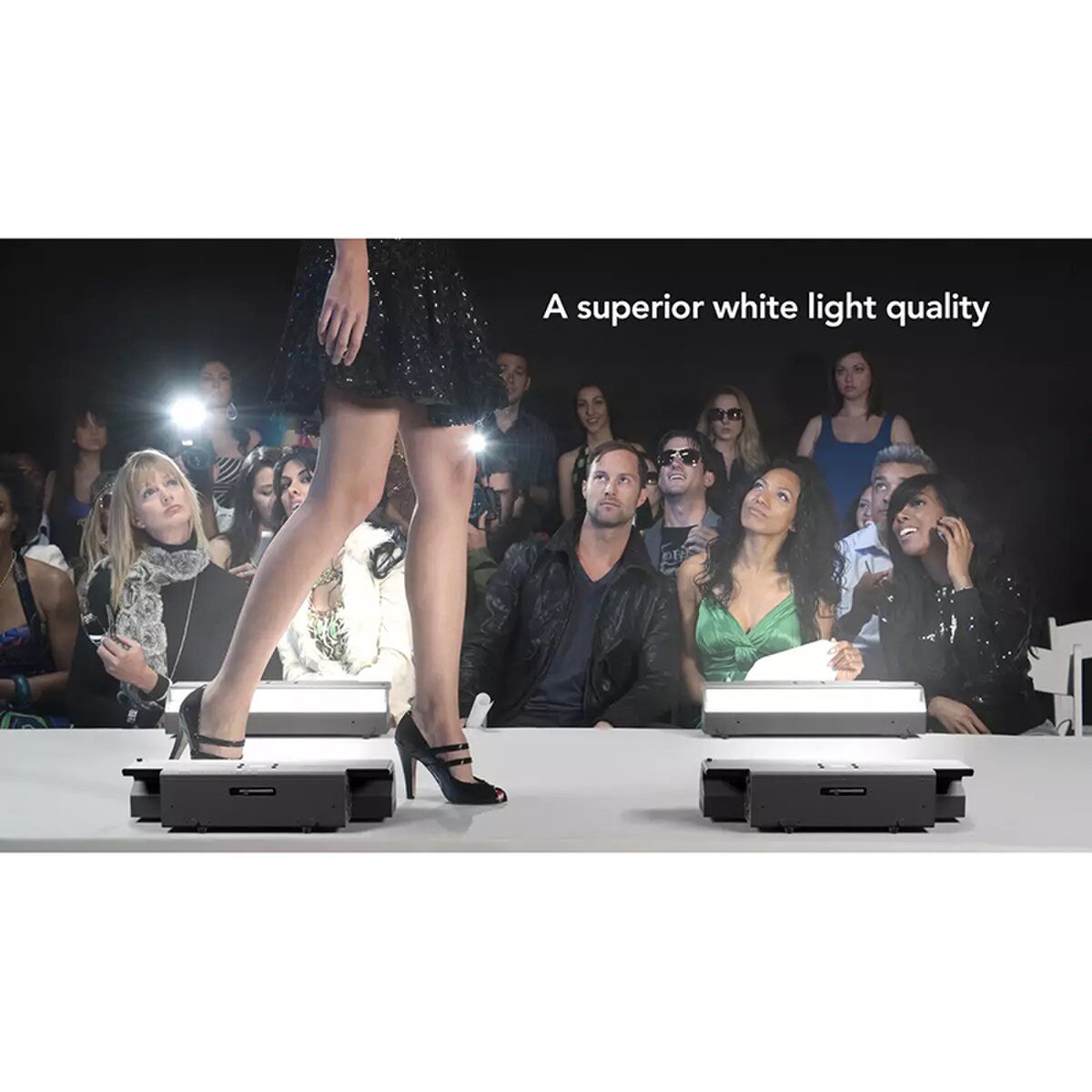

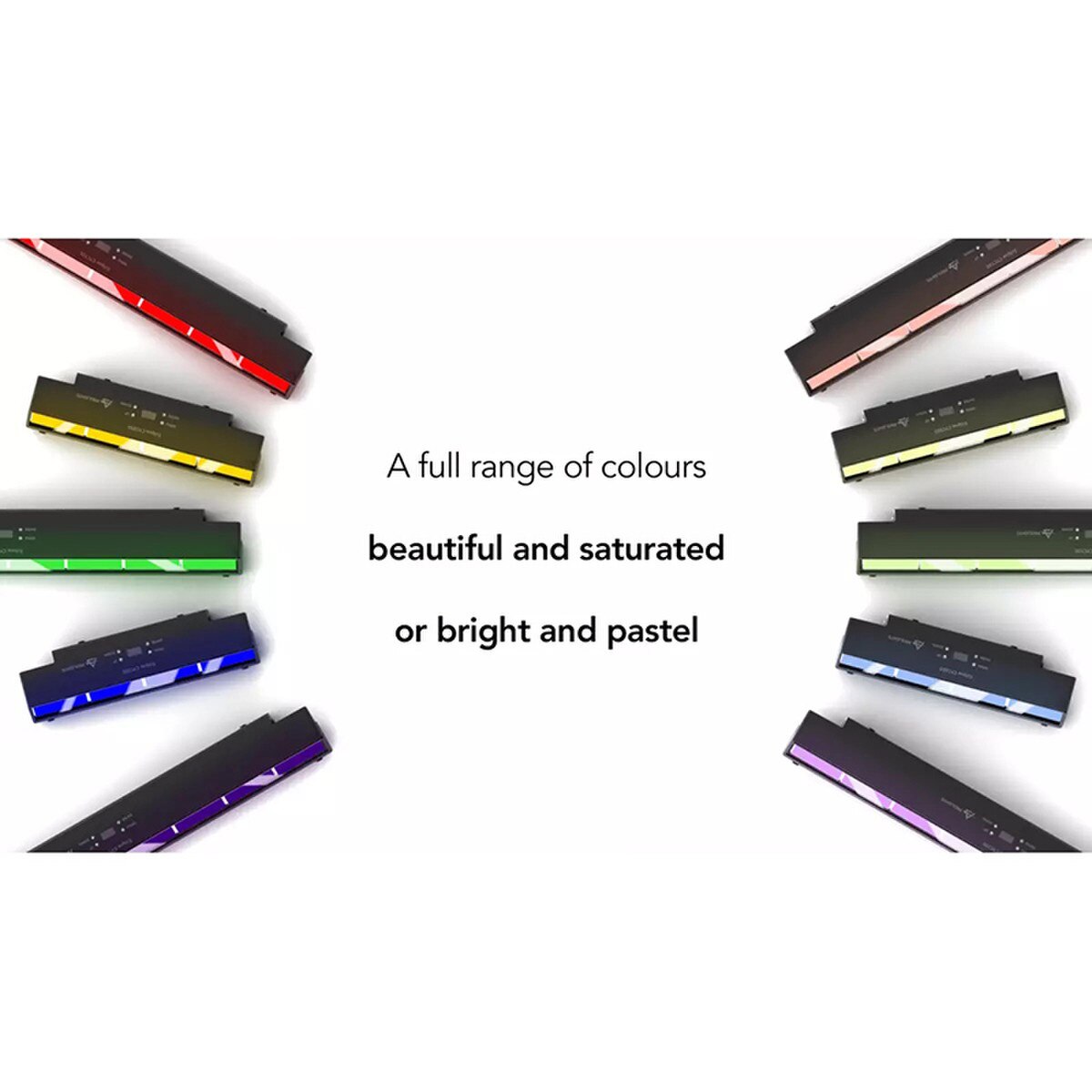

• RGB + Warm White colour systems allows high quality of whites (CRI 93 @3.200 K) and bright colours.

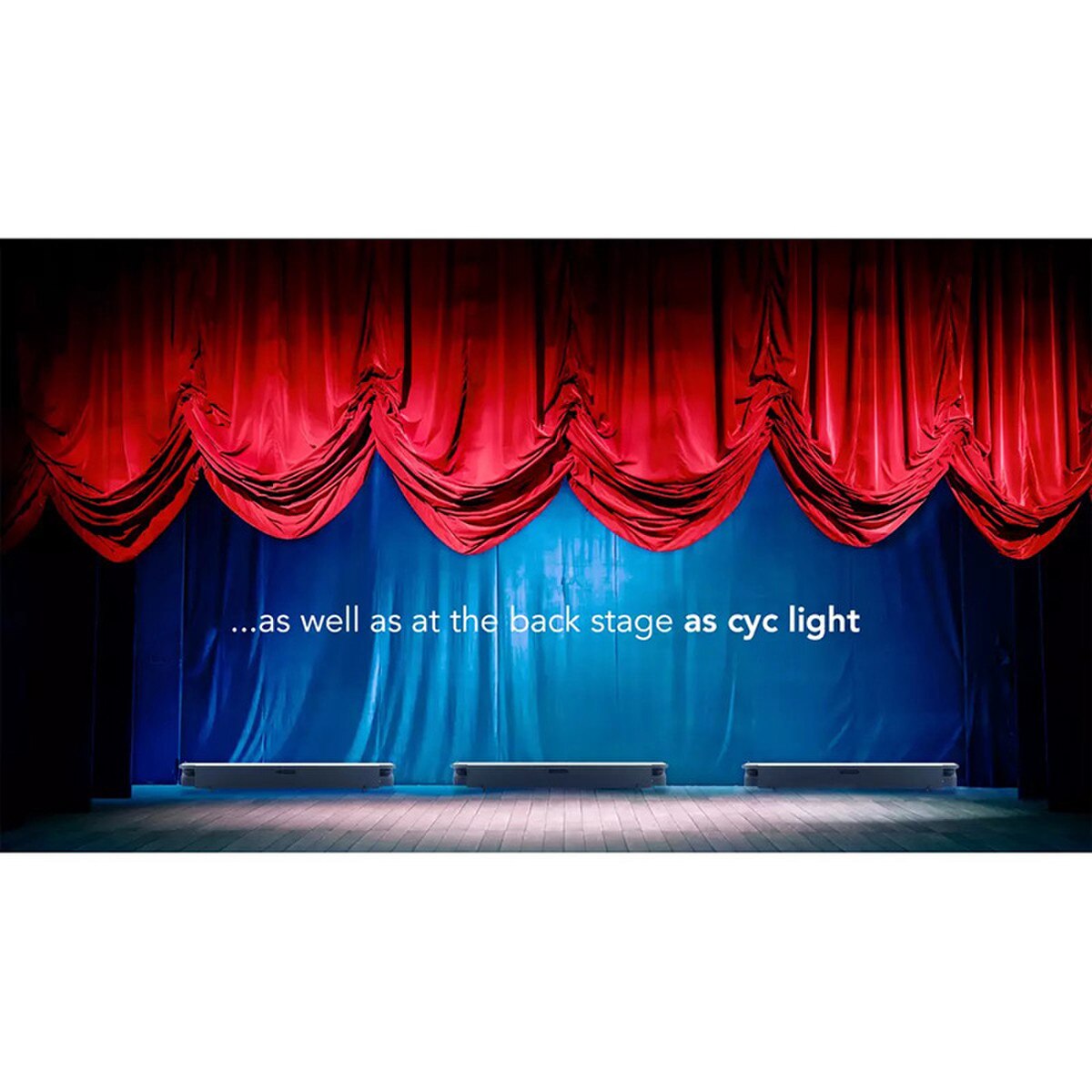

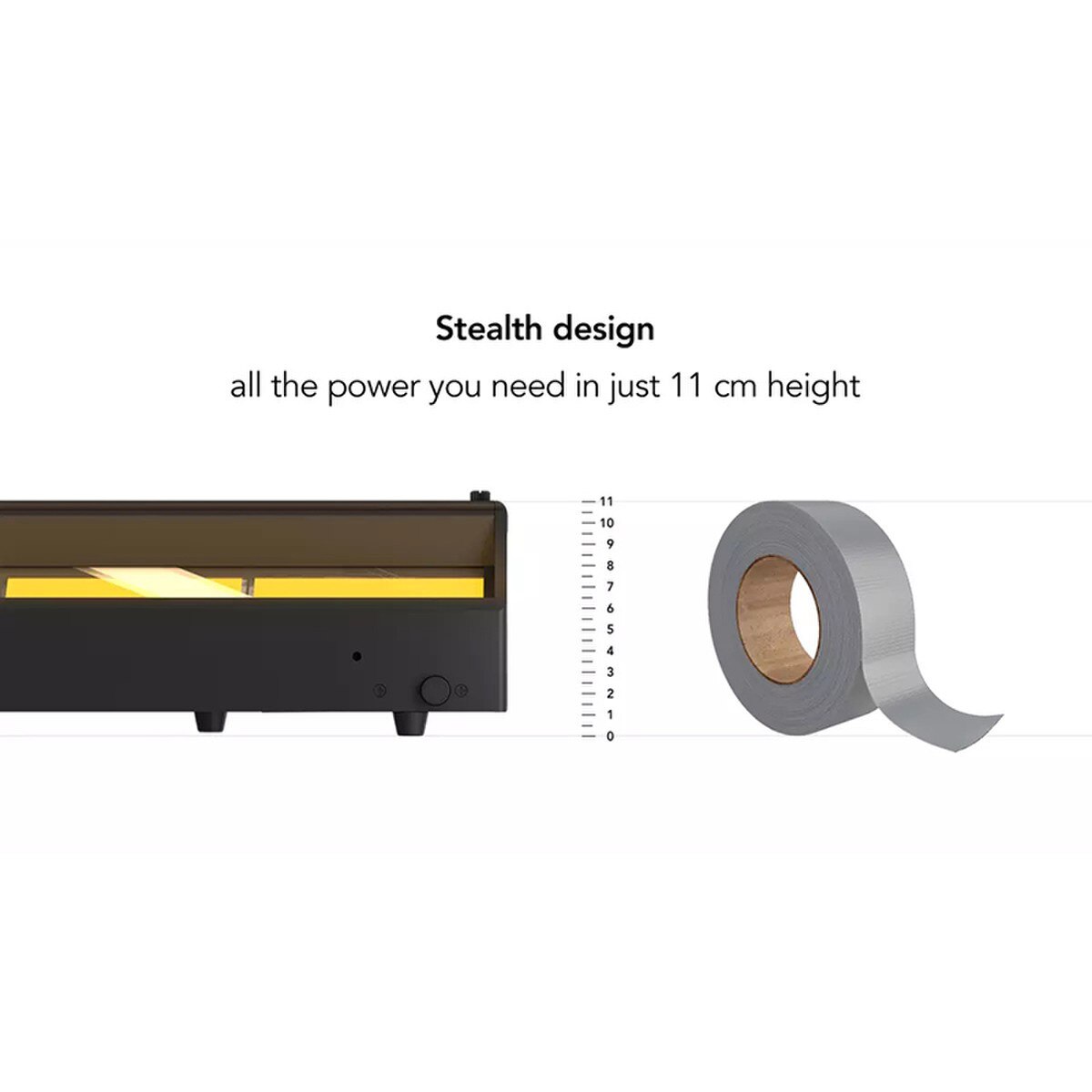

• Slim design, with only 12 cm height for easy implementation in the front or at the back of the stage.

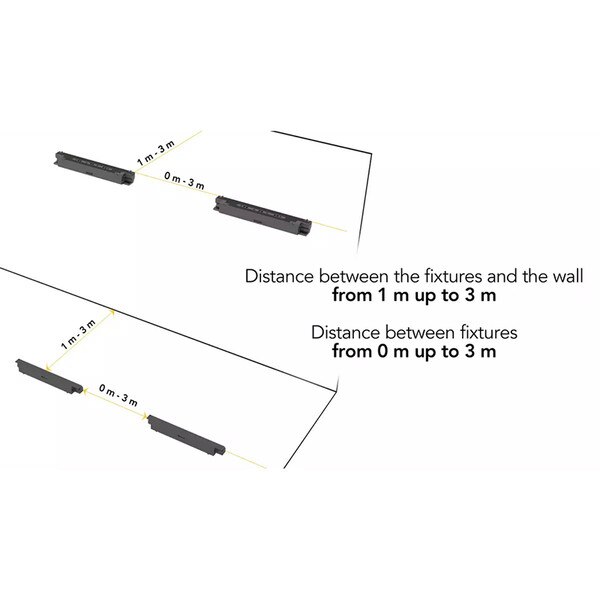

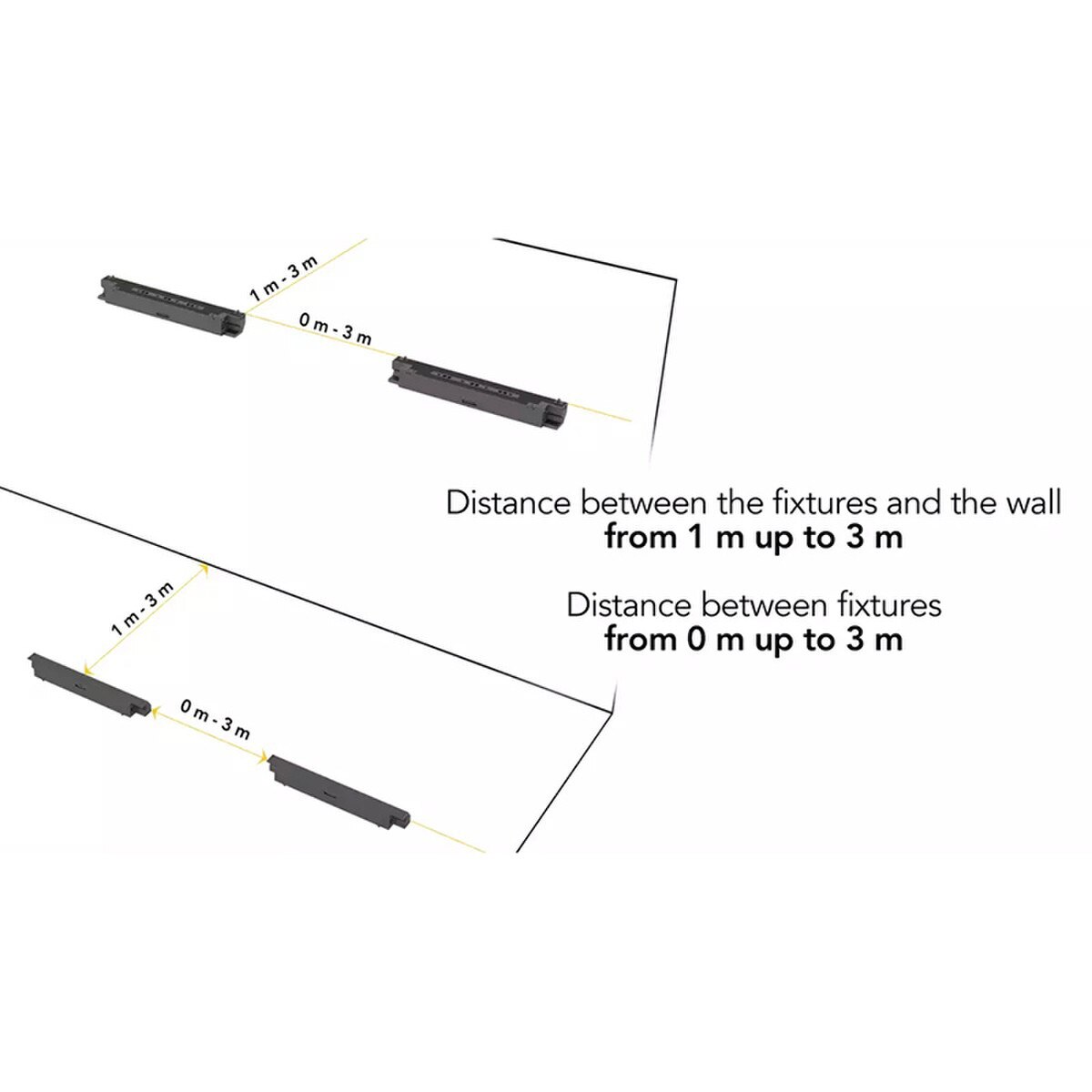

• Wide Asymmetric beam angle to allow flexible installation at modular distances between fixtures

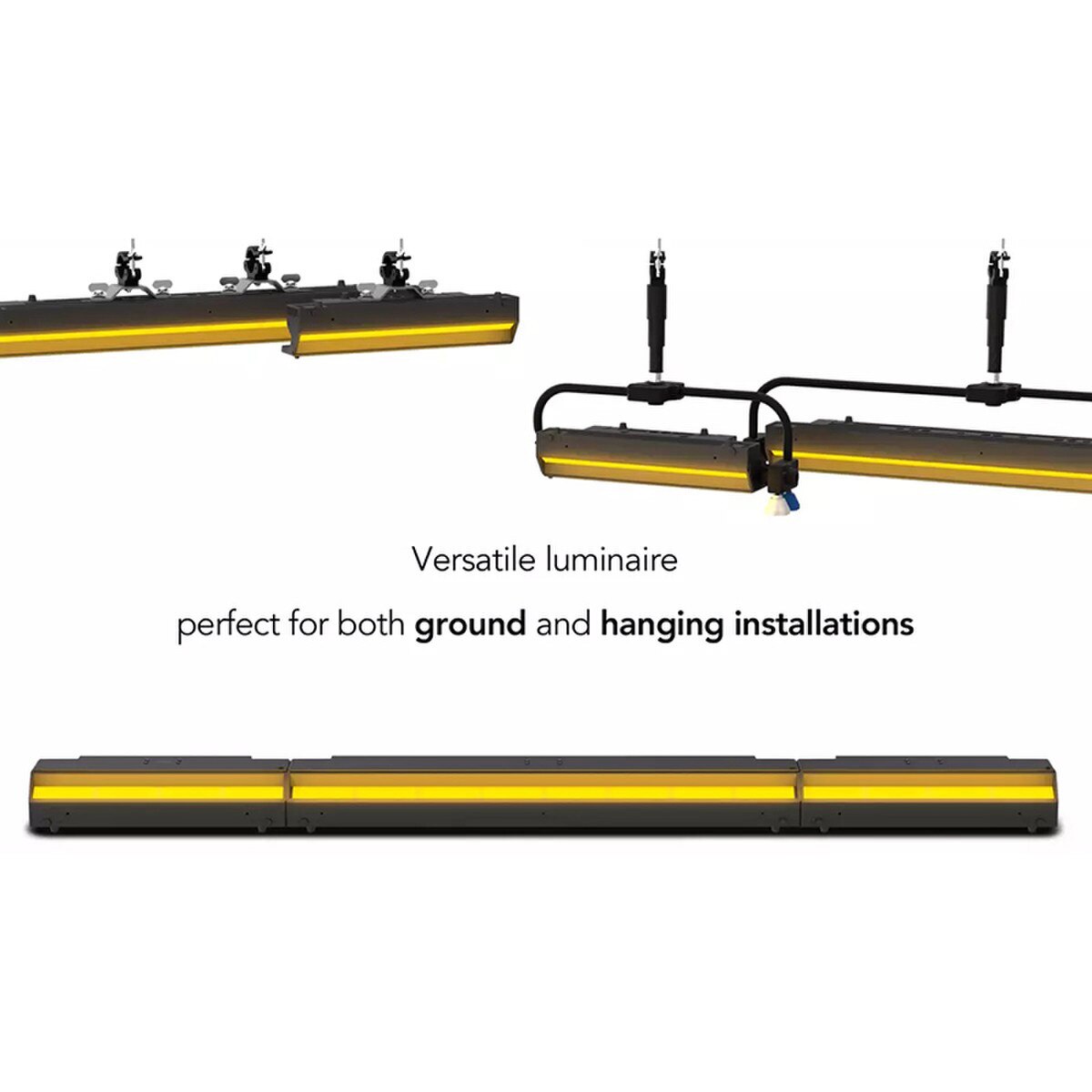

• Hardware designed with tilt angle adjustment, beam control and flexible hanging and ground stacking applications.

Technical Specifications:

Light Source:

• Source: 170W RGB + Warm White
• Luminous flux: (with 40°x80° filter on board) 13'896 @full
• Lux: @1 m to wall and 1,5 m height @ full (with standard filter) 625 lx - (with 40° filter) 1'530 lx - (with 10°x60° filter) 1'590 lx - (with 30°x60° filter) 1'690lx
• CRI: 93 @3.200 K; 91 @5.600 K
• R9: 91 @3.200 K; 95 @5.600 K
• TLCI: 87 @5.600 K
• TM30 Rf: 88,8 @5.600 K
• TM30 Rg: 107,4 @5.600 K
• Source life expectancy: > 50.000 h

Optics:

• Beam angle: (VxH) 40°x80°

Colour System:

• Colour mixing: RGB + Warm White
• CCT: CCT control, + / - green correction, tungsten emulation
• White presets: 2.800 K - 10.000K
• Colour wheel: virtual colour wheel with macros

Dynamic Effects:

• Control Resolution: 16-bit dimmer, colours
• Special features: linear crossfade channel from any white to any colour; virtual CTO on colours

Body:

• Hardware on-board: sockets for quick-Lock Omega bracket (clamp not included)
• Body: sturdy die-cast aluminum body
• Body colour: black
• Other: +/- 8° angle adjusting

Control:

• Protocols: DMX512, RDM, Art-Net, sACN, W-DMX
• Wireless Control: included, wireless solution receiver
• RDM: RDM for remote monitoring and settings

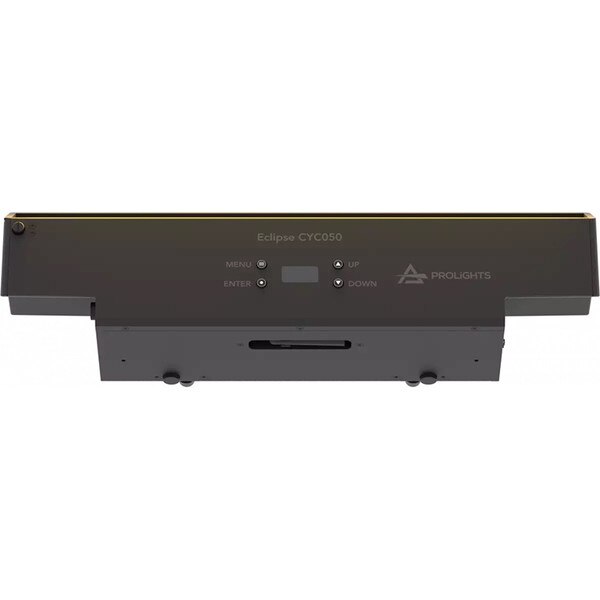

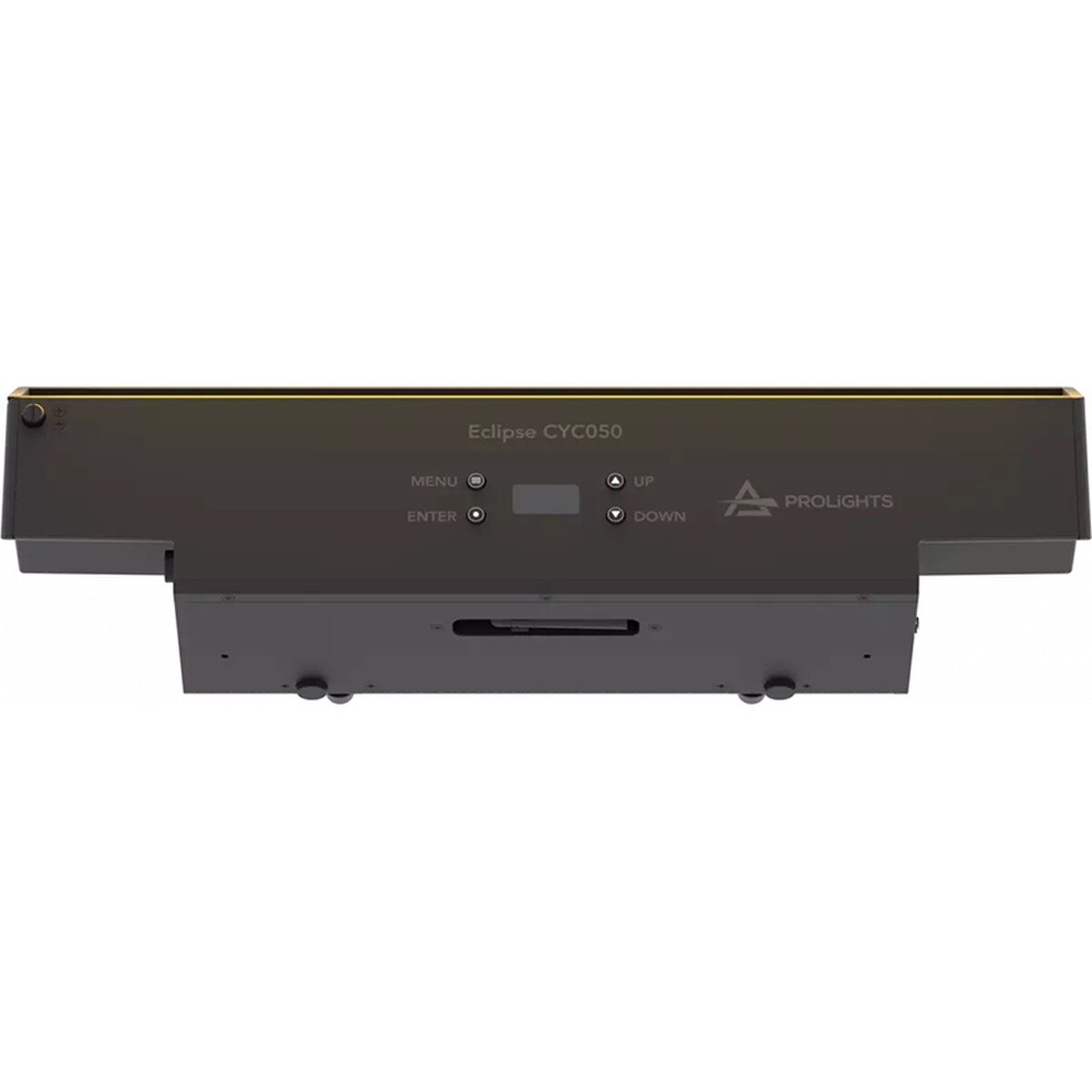

• Display: Graphic User Interface
• Firmware upgrade: yes, via USB - DMX interface (UPBOXPRO/UPBOX1) not included

Electronics:

• Dimmer curves: selectable dimming modes available
• Strobe / shutter: 1-30 Hz, electronic
• Operating temperature: -10° ~ +45°
• LED Control: flicker free frequency with adjustable PWM
• Selectable PWM: 600 ~ 25.000 Hz

Electrical:

• Mains power supply: 100-240V - 50/60Hz
• Max power consumption: 180W
• Standby power: 110V (60Hz): 6W; 230V (50Hz): 6,4W
• Power factor: >0,94

Physical:

• IP rating: IP20
• Cooling: heat sink without fan
• Suspension and fixing: any position with quick-lock omega brackets

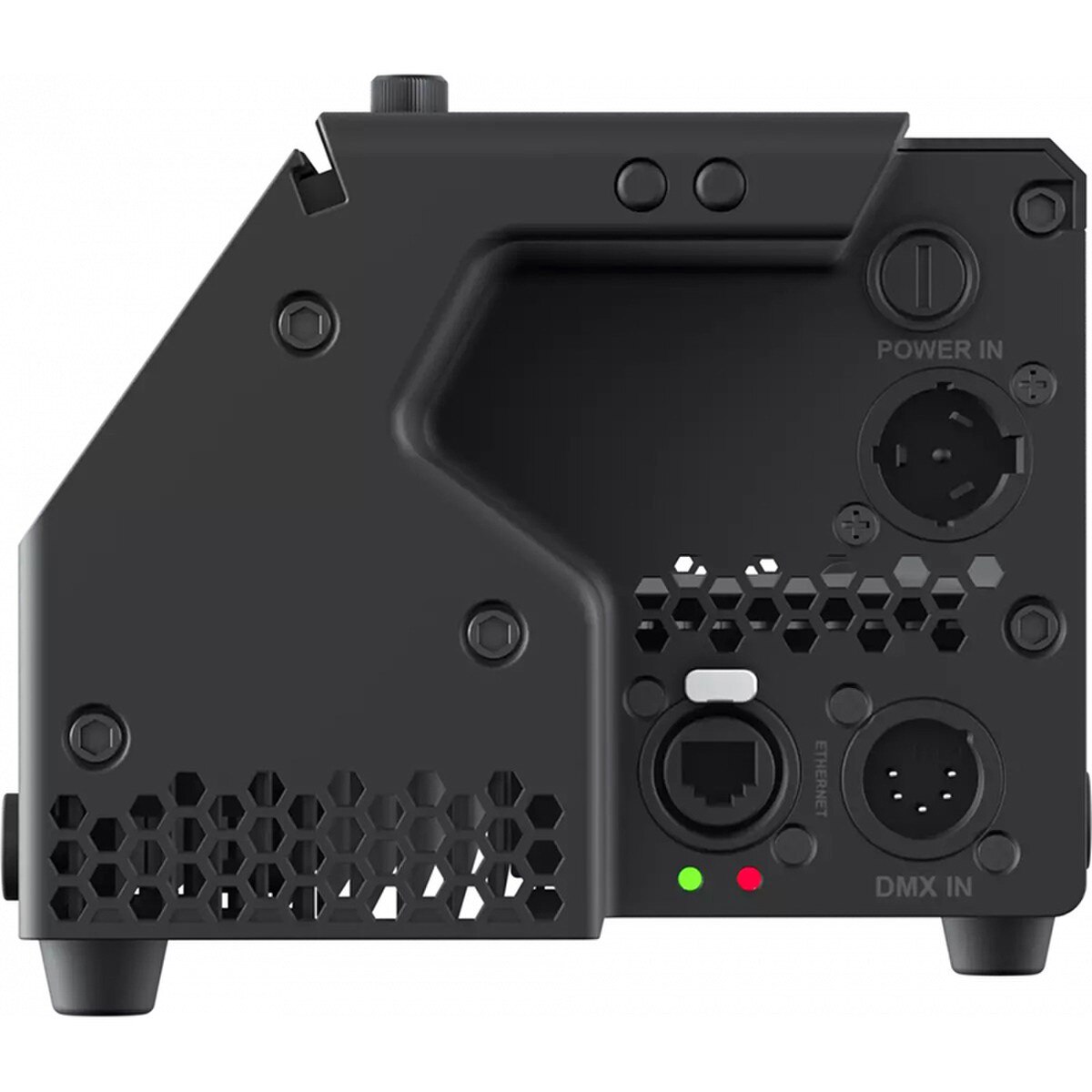

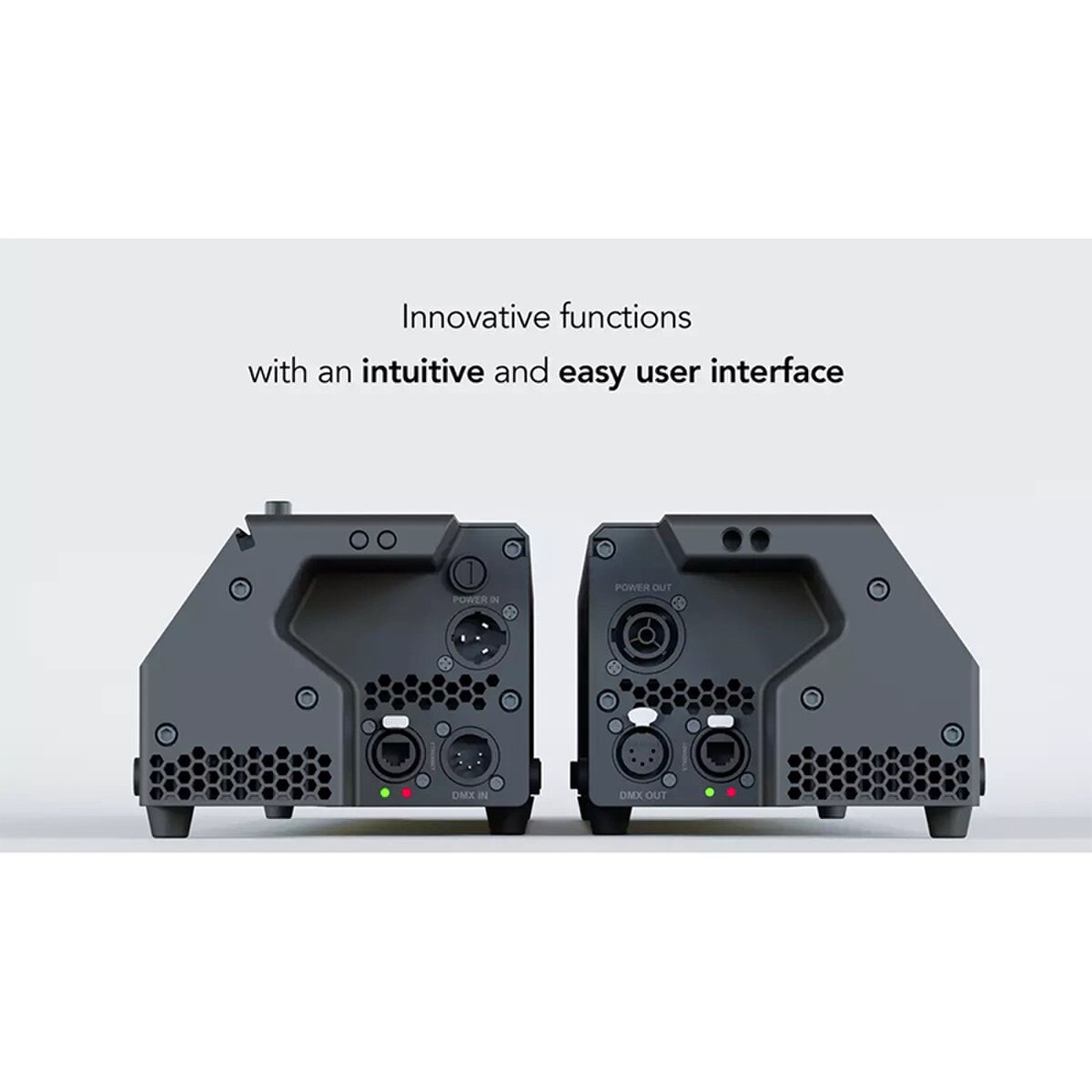

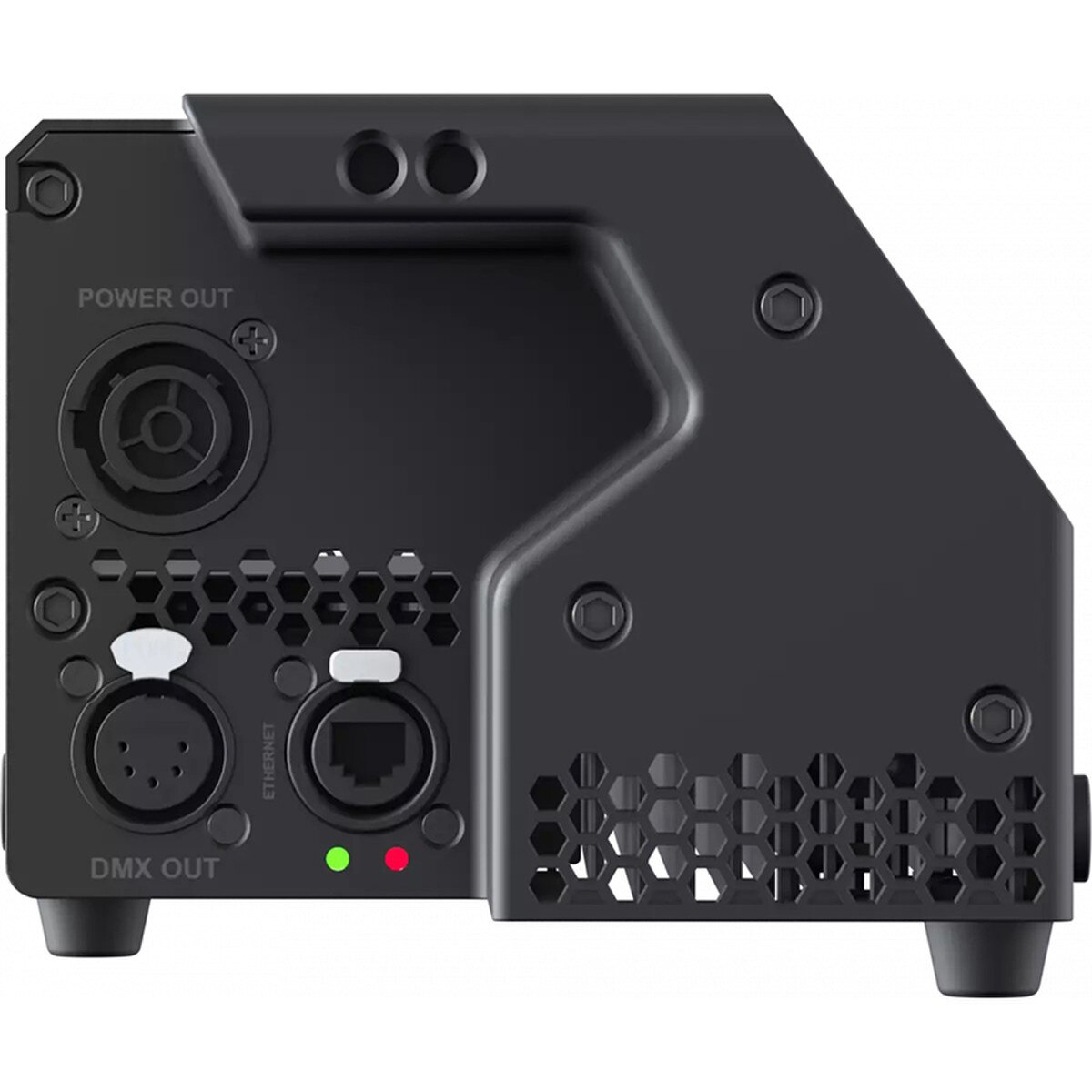

• Signal connection: Amphenol XLR 5p IN/OUT connectors
• Data connection: RJ45 IN/OUT
• Power connection: Seetronic powerCON waterproof IN/OUT connectors
• Dimensions (WxHxD): 500x119x148mm / 19.69''x4.69''x5.83''
• Weight: 5kg / 11.02lbs

Certifications / Approvals:

• Certifications / Approvals: CE, UKCA, RCM, cTUVus, FCC

Box Contents:

• 1 x ECLCYC050
• 1 x OS25
• 1 x 1,5 meters 3G1,5mmq power cable (BARE END - SEETRONIC POWERCON TRUE1 IP65 power connector)
• User Manual
