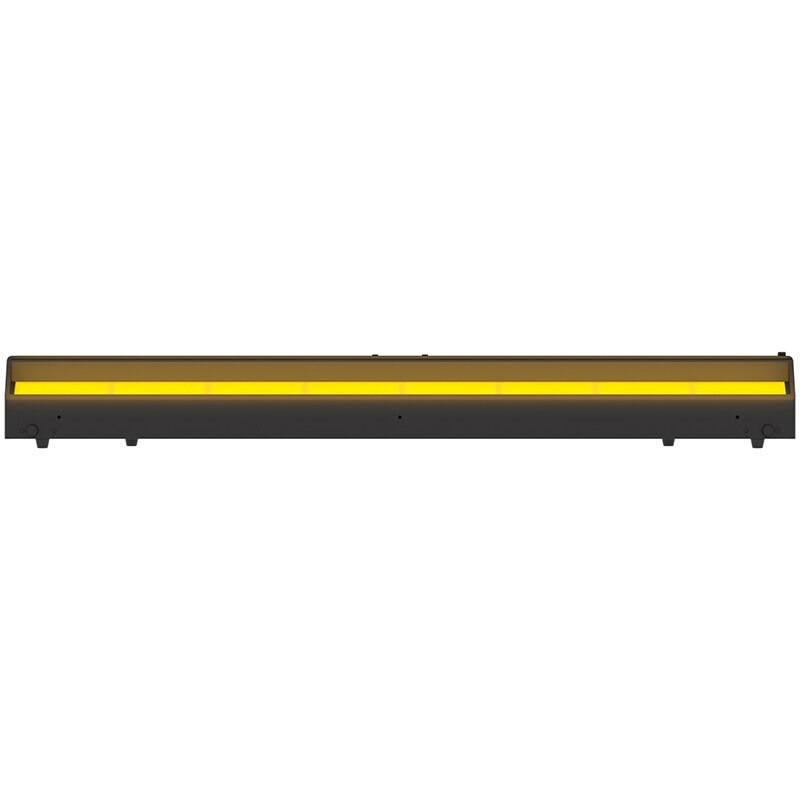

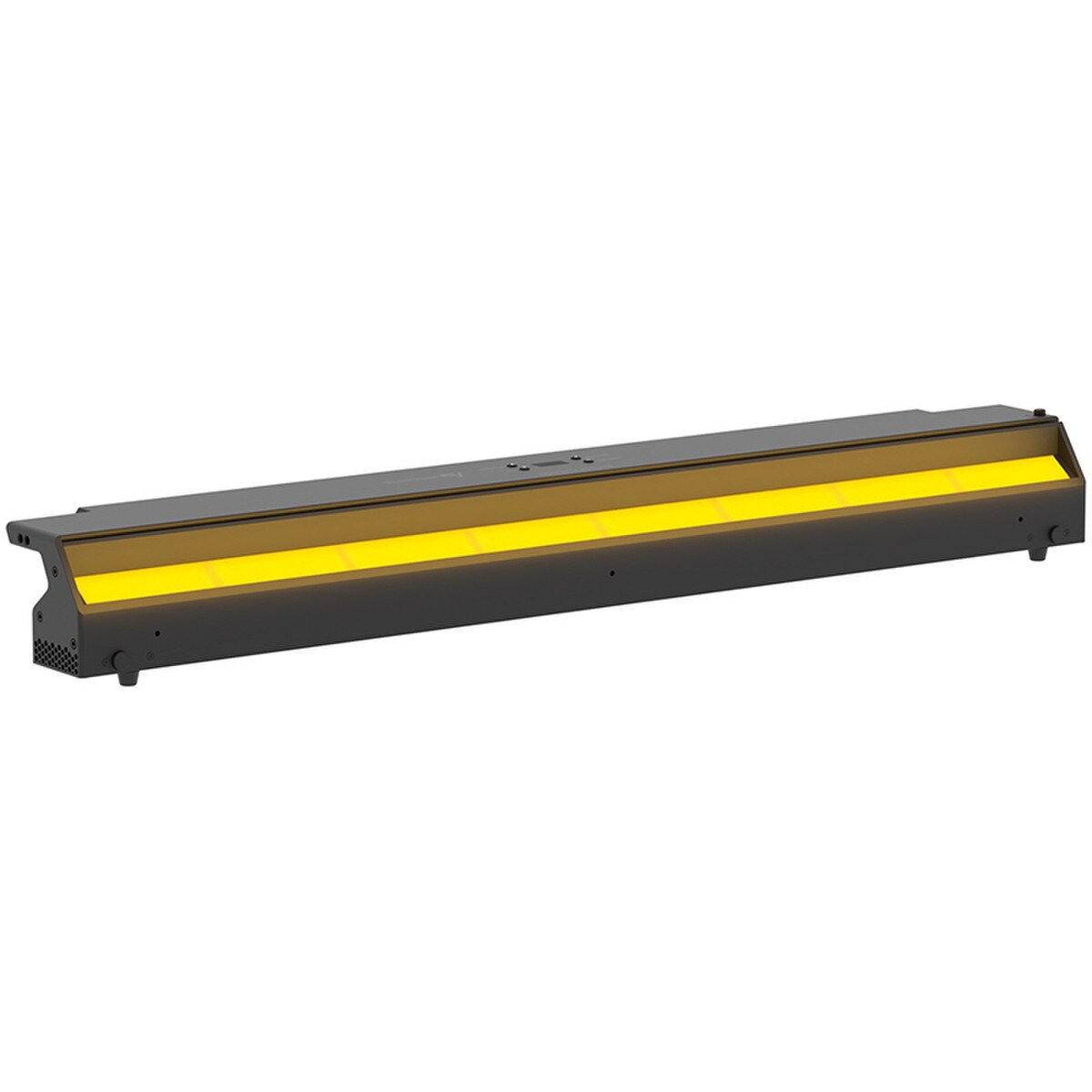

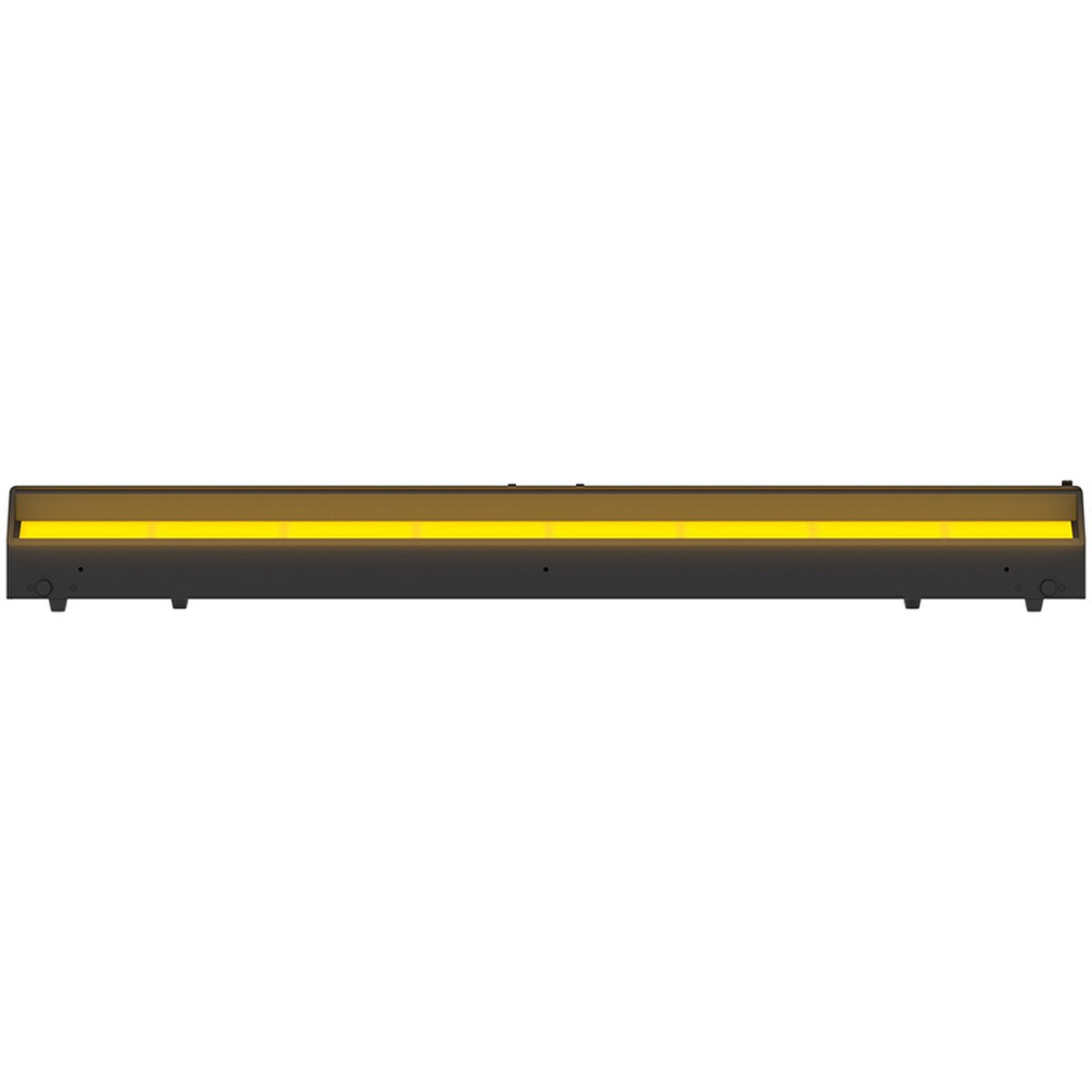

ProLights EclCyclorama 100

330W linear soft CYC and flood light with RGB+Warm White colour mixing

EclCyclorama 100 is a soft-edge, linear cyclorama and floodlight, designed in a surprisingly low profile form factor to meet applications at both front and end of the stage, offering an unprecedent level of brightness in its category. The fixture is equipped with a custom and calibrated RGB + Warm White LED source, which is capable to deliver a linear and high quality white reproduction of the entire spectrum with high CRI, TLCI and TM30 performances. The optical system has been designed to offer a very wide asymetric beam angle, and capable of a superior lumen efficiency, making the EclCyclorama range a very flexible solution, suitable for both application where fixture are connected each other or separated by a considerable distance, without worrying of dark-edge or uniformity gaps. The fixture is extremely user friendly and offers a multitude of control possibilities being DMX, RDM, Artnet, sACN and Wireless DMX.

Main features:

• RGB + Warm White colour systems allows high quality of whites (CRI 93 @3.200 K) and bright colours.
• Slim design, with only 12 cm height for easy implementation in the front or at the back of the stage.
• Wide Asymmetric beam angle to allow flexible installation at modular distances between fixtures
• Hardware designed with tilt angle adjustment, beam control and flexible hanging and ground stacking applications.

Technical specifications:

Light Source:

• Source: 330W RGB + Warm White
• Luminous flux: (with 40°x80° filter on board) 22'649 @full
• Lux: @1 m to wall and 1,5 m height @full (with standard filter 40°x80°) 1'240 lx - (with 40° filter) 2'610 lx - (with 10°x60° filter) 3'110 lx - (with 30°x60° filter) 2'880lx
• CRI: 93 @3.200 K; 92,6 @5.600 K
• R9: 88 @3.200 K; 93,7 @5.600 K
• TLCI: 91 @5.600 K
• TM30 Rf: 90,9 @5.600 K
• TM30 Rg: 106 @5.600 K
• Source life expectancy: > 50.000 h

Optics:

• Beam angle: (VxH) 40°x80°

Colour System:

• Colour mixing: RGB + Warm White
• CCT: CCT control, + / - green correction, tungsten emulation
• White presets: 2.800 K - 10.000K
• Colour wheel: virtual colour wheel with macros

Dynamic Effects:

• Control Resolution: 16-bit dimmer, colours
• Special features: linear crossfade channel from any white to any colour; virtual CTO on colours

Body:

• Hardware on-board: sockets for quick-Lock Omega bracket (clamp not included)
• Body: sturdy die-cast aluminium body
• Body colour: black
• Other: +/- 8° angle adjusting

Control:

• Protocols: DMX512, RDM, Art-Net, sACN, W-DMX
• Wireless Control: included, wireless solution receiver
• RDM: RDM for remote monitoring and settings

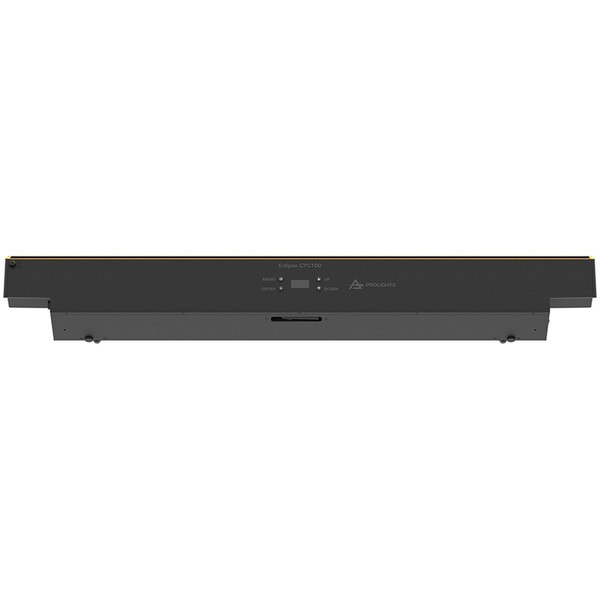

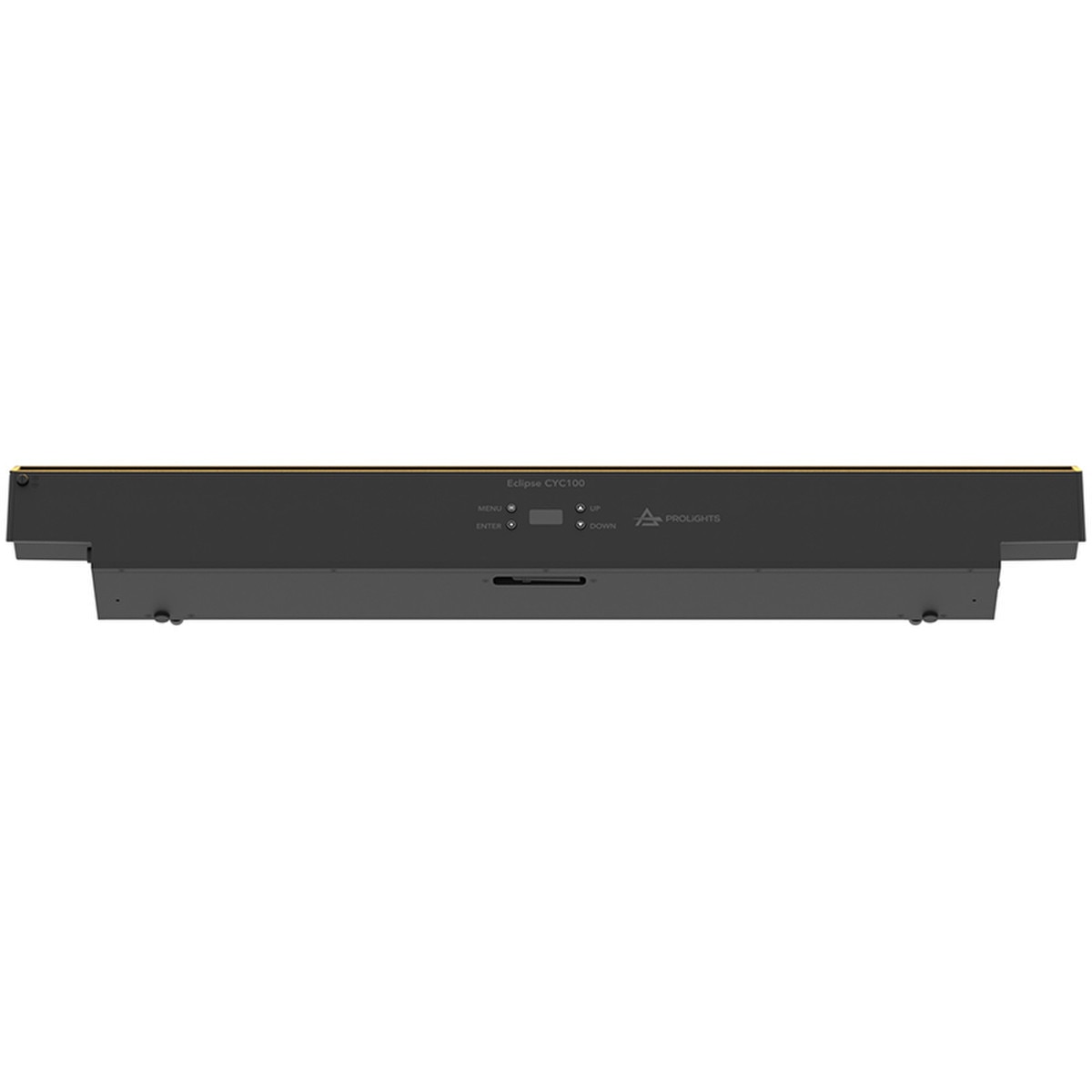

• Display: Graphic User Interface
• Firmware upgrade: yes, via USB - DMX interface (UPBOXPRO/UPBOX1) not included

Electronics:

• Dimmer curves: selectable dimming modes available
• Strobe / shutter: 1 - 30 Hz, electronic
• Operating temperature: -10° ~ +45°
• LED Control: flicker free frequency with adjustable PWM
• Selectable PWM: 600 ~ 25.000 Hz

Electrical:

• Mains power supply: 100-240V - 50/60Hz
• Max power consumption: 400W
• Standby power: 110V (60Hz): 9,4W; 230V (50Hz): 9,6W
• Power factor: >0,94

Physical:

• IP rating: IP20
• Cooling: heat sink without fan
• Suspension and fixing: any position with quick-lock omega brackets

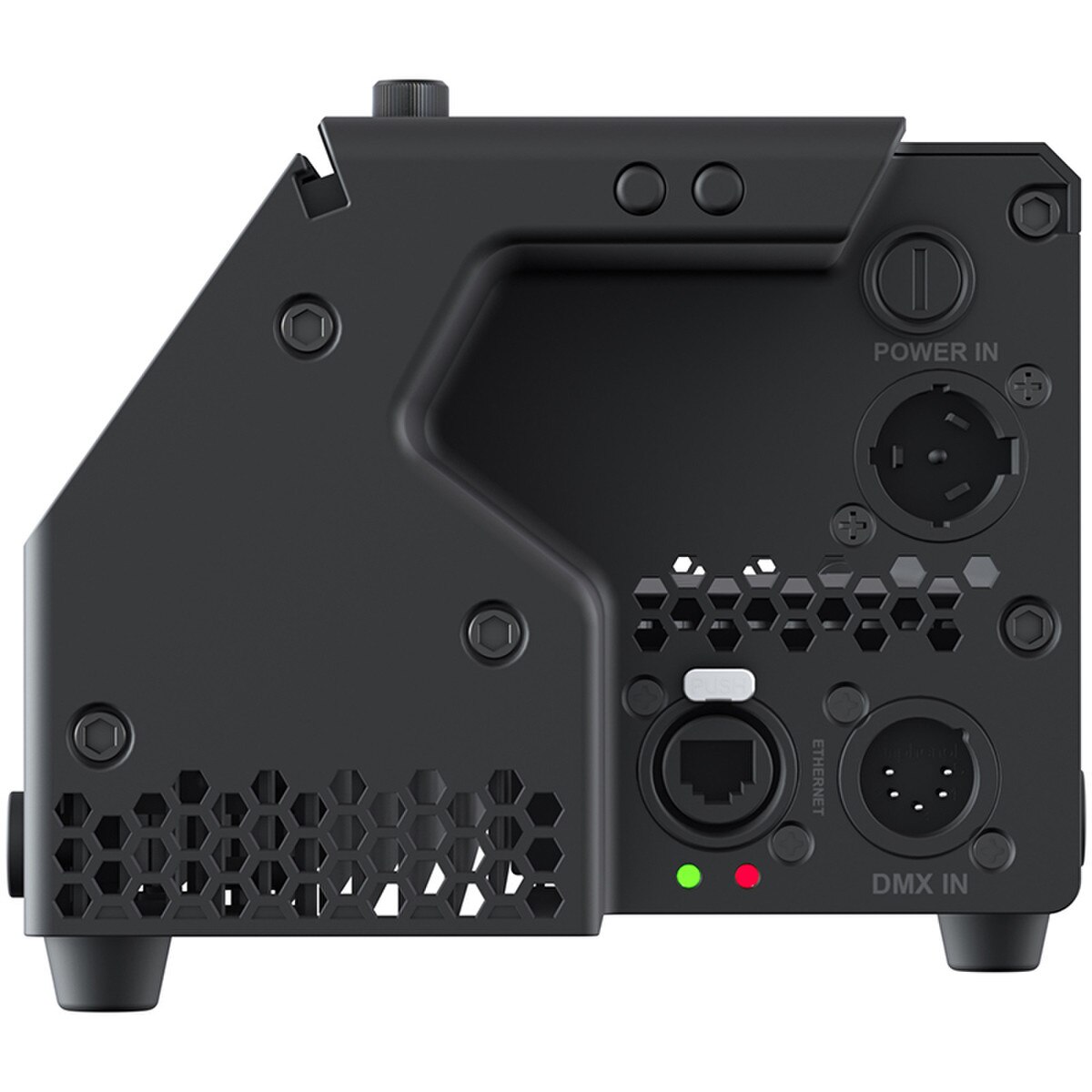

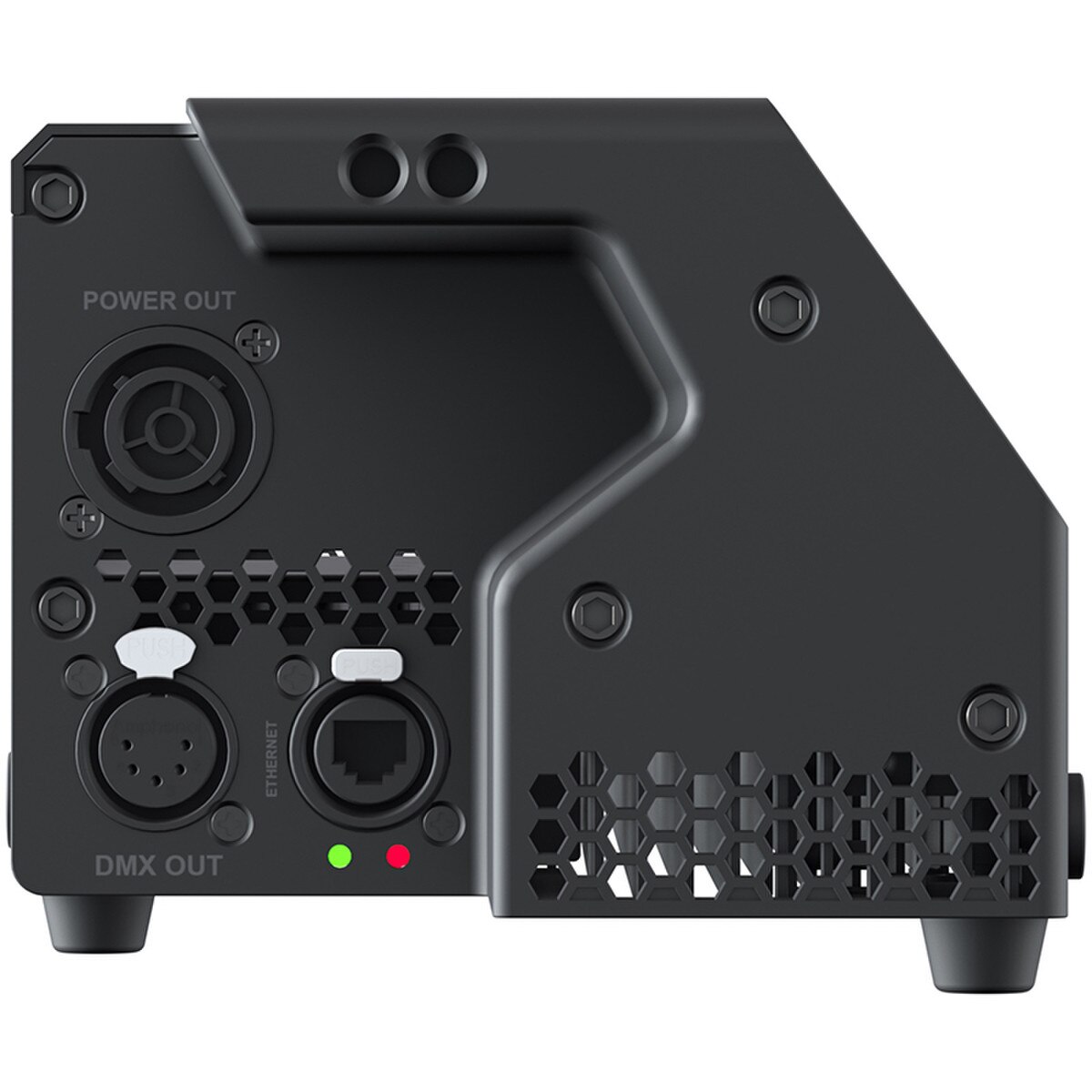

• Signal connection: Amphenol XLR 5p IN/OUT connectors
• Data connection: RJ45 IN/OUT
• Power connection: Seetronic powerCON waterproof IN/OUT connectors
• Dimensions (WxHxD): 1000x119x148mm / 39.37''x4.69''x5.83''
• Weight: 9,6kg / 21.16lbs

Certifications / Approvals:

• Certifications / Approvals: CE, UKCA, RCM, cTUVus, FCC

Box Contents:

• 1 x ECLCYC100
• 2 x OS25
• 1 x 1,5 meters 3G1,5mmq power cable (BARE END - SEETRONIC POWERCON TRUE1 IP65 power connector)
• User Manual
