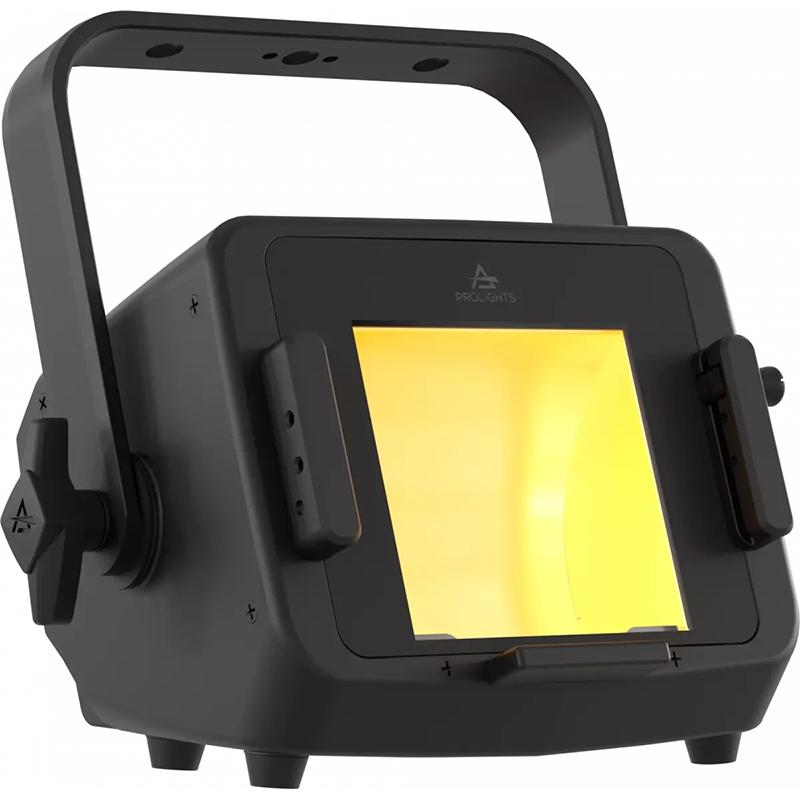

ProLights EclExpo Flood150FC 150W RGB+WW Asymmetric LED Floodlight

150W Full Colour RGB+WarmWhite asymmetric LED floodlight

The EclExpo Flood150 is a compact, bright, and versatile floodlight that is designed to be a substitute for traditional CDM, HMI, and tungsten small floods in tradeshows, theaters, or as a work light. Just like its classic predecessors, but with a custom LED source, this unit features a linear light source combined with a reflector, which ensures a wide coverage of 100° (Horizontal) x 60° (Vertical) of indirect light emission.

The EclExpo Flood150 is available in two source variants:

• FC, which utilizes RGB+WarmWhite calibrated LED with high Color Rendering.
• VW, which uses a bi-color Vari White LED source with a CCT range of 2,700K-6,500K.

This unit is incredibly user-friendly, offering immediate stand-alone access through the knobs or through wired DMX/RDM or Wireless CRM (optional). Timeless Elegance meets Green Innovation: The EclExpo Flood150 - Where Classic Beauty Embraces Modern Technology

Main Features:

• 150W calibrated RGB+WarmWhite source, with high CRI and TM30
• Asymmetric beam angle of 100° (horizontal) x 60° (vertical)
• Xlr5p in/through for DMX/RDM control and communication, optional W-DMX + CRMX, Stand-Alone mode through two rotatory knobs

Specifications:

Light Source:

• Source: 150W RGB + Warm White LED
• Luminous flux: 5'342 @full
• Lux: 65lx @5 m full
• CRI: preliminary 92,8 @5'600K
• R9: preliminary 94,7 @5'600K
• TLCI: preliminary 92 @5'600K
• TM30 Rf: preliminary 91,3 @5'600K
• TM30 Rg: preliminary 106 @5'600K
• Source life expectancy: > 20.000 h

Optics:

• Optics: asymmetrical beam reflector in pure aluminum 99,6%
• Beam angle: (H) 100° x (V) 60°
• Additional optics: 5° smooth filter on-board

Color System:

• Colour mixing: RGB + Warm White
• CCT: CCT control, + / - green correction, tungsten emulation
• White presets: 2.800 K - 10.000K
• Color wheel: built-in white presets

Dynamic Effects:

• Control Resolution: 16-bit dimmer
• Static mode: selection of static dimmer, colors and color temperature
• Manual mode: manual adjustment of intensity, CT, colour correction from knob
• Auto mode: built-in programs with execution speed adjustment

Body:

• Body: sturdy die-cast magnesium body
• Body color: RAL 9004
• Other: see available accessories

Control:

• Protocols: DMX512, RDM, CRMX
• Stand Alone: 2 rotatory knobs
• DMX channels: 1/2/5/9/10/12/18channel
• Wireless Control: optional, LumenRadio Timo Fx DMX/RDM compatible with both CRMX (Lumen Radio) and W-DMX (Wireless DMX)
• RDM: RDM for remote monitoring and settings
• Display: Graphic User Interface
• Firmware upgrade: yes, via USB - DMX interface (UPBOXPRO/UPBOX1) not included
• Master/Slave: for synchronized operation of more units linked in a chain

Electronics:

• Dimmer: linear 0 ~ 100% electronic dimmer
• Dimmer curves: 4 selectable dimming modes available
• Strobe / shutter: 1 - 30 Hz, electronic
• Operating temperature: -10° ~ +45°
• Selectable PWM: 600 ~ 40.000 Hz

Electrical:

• Mains power supply: 100-240V - 50/60Hz
• Max power consumption: 175W
• Output (at 230V): 7 units on a single power line
• Power factor: > 0,94

Physical:

• IP rating: 20
• Cooling: active, silent operation
• Suspension and fixing: bracket for hanging and positioning
• Signal connection: Amphenol XLR 5p IN/OUT connectors
• Power connection: Seetronic powerCON TRUE IP65 IN/OUT
• Dimensions (WxHxD): 283x273x176mm / 11.14''x10.75''x6.93''
• Weight: 3,2kg / 7.05lbs

Certifications / Approvals:

• Certifications / Approvals: CE, UKCA, RCM, cTUVus, FCC

Box Contents:

• 1 x ECLEXPOFL150FC
• 1 x 1,5 meters power cable (BARE END - SEETRONIC POWERCON TRUE1 IP65)
• 1 x User Manual
