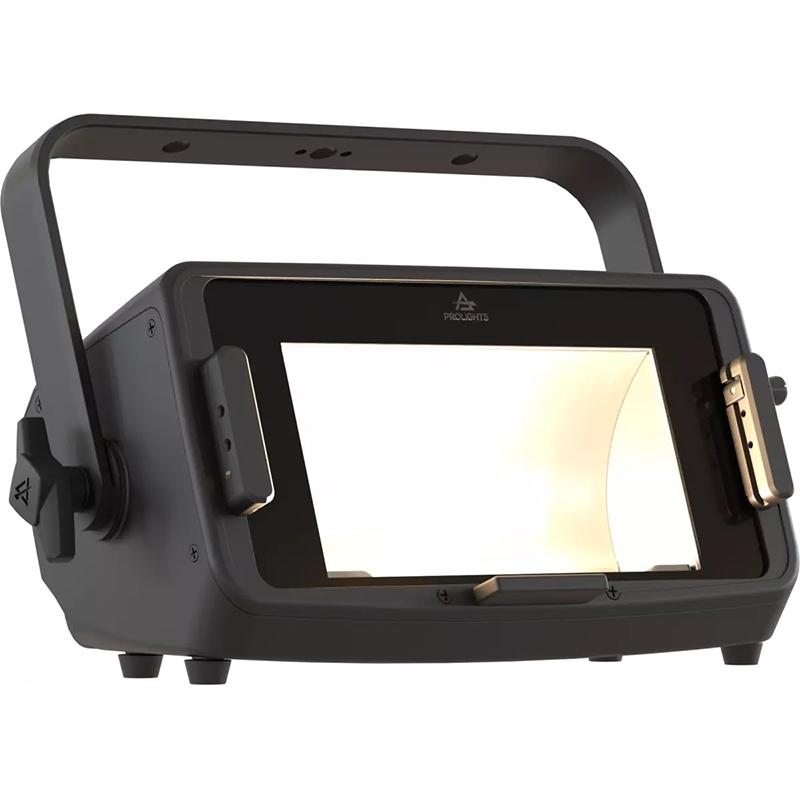

ProLights EclExpo Flood300VW 300W Bi-Color Variable White Asymmetric LED Floodlight

300W asymmetric LED floodlight, with Variable White CCT 2,700K - 6,500K

The EclExpo Flood300VW is a variable white LED Floodlight, designed for exhibitions and showrooms, as a high-quality LED replacement of traditional tungsten, CDM or HMI asymmetric luminaires.

The EclExpo Flood300VW has a 300W LED source, with variable white ranging from 2,700K to 6,500K, and an outstanding lumen output with high-scoring CRI levels (>95), TM-30, R9. Combined with a reflector, it has a wide asymmetric beam angle of 100° (Horizontal) x 60° (Vertical) of indirect light emission.

This unit is incredibly user-friendly, using remote control via DMX and RDM (optional W-DMX + CRMX), or intuitive stand-alone operation through an on-board display and two rotatory knobs CCT and dimmer settings.

Its unique design and performance set a new standard for exhibition floodlights.

Main Features:

• 300W Variable White LED source, from 2,700K to 6,500K
• Asymmetric beam angle of 100° (horizontal) x 60° (vertical)
• Xlr5p in/through for DMX/RDM control and communication, optional W-DMX + CRMX, Stand-Alone mode through two rotatory knobs

Specifications:

Light Source:

• Source: 300W Variable White LED
• CCT: 2.700 K - 6.500
• Luminous flux: @2.700K 7'690 lm; @6.500K 10'877 lm; @full 13'044
• Lux: @2.700K 72 lx; @6.500K 101 lx; @full 121lx @5 m
• CRI: 97,7 @2.700 K; 95,6 @6.500 K; 94,9 @full
• R9: 84,9 @2.700 K; 86,7 @6.500 K; 82,8 @full
• TLCI: 97 @2.700 K; 97 @6.500 K; 97 @full
• TM30 Rf: > 95 @2.700 K; > 91 @6.500 K; > 92 @full
• TM30 Rg: < 102 @2.700 K; < 102 @6.500 K; < 104 @full
• Source life expectancy: > 20.000 h

Optics:

• Optics: asymmetrical beam reflector in pure aluminum 99,6%
• Beam angle: (H) 100° x (V) 60°

Color System:

• Colour mixing: tunable white
• CCT: CCT control through dedicated DMX channel
• White presets: 2.700 K - 6.500K
• Colour wheel: built-in white presets

Dynamic Effects:

• Control Resolution: 16-bit dimmer
• Static mode: selection of static dimmer and color temperature
• Manual mode: manual adjustment of intensity and CT from knob
• Auto mode: built-in programs with execution speed adjustment

Body:

• Body: sturdy die-cast magnesium body
• Body colour: RAL 9004
• Other: see available accessories

Control:

• Protocols: DMX512, RDM, CRMX
• Stand Alone: 2 rotatory knobs
• DMX channels: 1 / 2 / 3 / 5 / 11channel
• Wireless Control: optional, LumenRadio Timo Fx DMX/RDM compatible with both CRMX (Lumen Radio) and W-DMX (Wireless DMX)
• RDM: RDM for remote monitoring and settings
• Display: Graphic User Interface
• Firmware upgrade: yes, via USB - DMX interface (UPBOXPRO/UPBOX1) not included
• Master/Slave: for synchronized operation of more units linked in a chain

Electronics:

• Dimmer: linear 0 ~ 100% electronic dimmer
• Dimmer curves: 4 selectable dimming modes available
• Strobe / shutter: 1 - 30 Hz, electronic
• Operating temperature: -10° ~ +45°
• Selectable PWM: 600 ~ 25.000 Hz

Electrical:

• Mains power supply: 100-240V - 50/60Hz
• Max power consumption: 340W
• Output (at 230V): 8 units on a single power line
• Power factor: > 0,97

Physical:

• IP rating: 20
• Cooling: active, silent operation
• Suspension and fixing: bracket for hanging and positioning
• Signal connection: Amphenol XLR 5p IN/OUT connectors
• Power connection: Seetronic powerCON TRUE IP65 IN/OUT
• Dimensions (WxHxD): 391x247x210mm / 15.39''x9.72''x8.27''
• Weight: 5,1kg / 11.24lbs

Certifications / Approvals:

• Certifications / Approvals: CE, UKCA, RCM, cTUVus, FCC

Box Contents:

• 1 x ECLEXPOFL300VW
• 1 x 1,5 meters power cable (BARE END - SEETRONIC POWERCON TRUE1 IP65)
• User Manual
