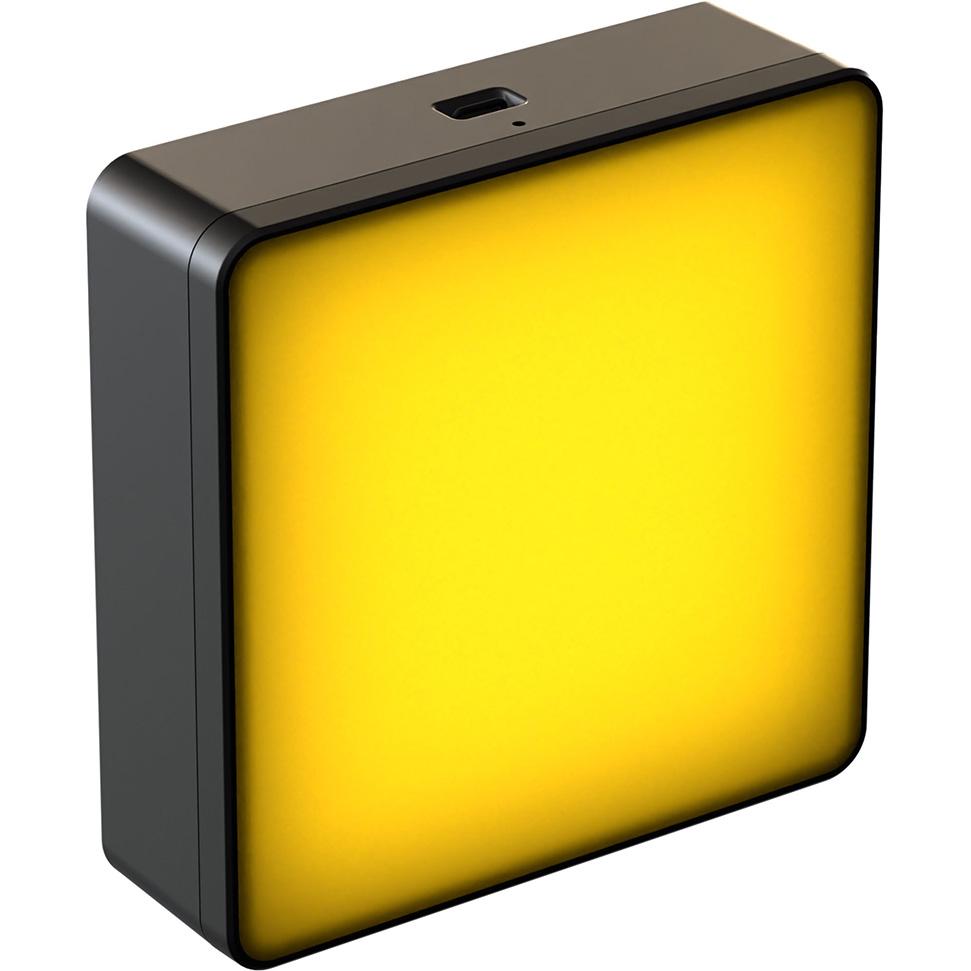

ProLights EclNanoPanel TWC - 30W RGB + Warm White LED

Compact-sized soft light, with wireless control (CRMX and W-DMX) and battery-powered

The EclNanoPanel TWC is the smallest member of the successful EclPanel range, containing all the outstanding features of the larger format soft lights in a compact-sized, battery-operated luminaire with a surprisingly powerful 1,800-lumen output.

This compact fixture has the same color technology as the other soft lights, producing rich colors, high-quality white tones, color gel matching, and onboard pixel cinema effects.

The EclNanoPanel TWC has three precision encoders with multiple stand-alone control modes: CCT with +/- green shift, CCT presets, HSI for total control of hue, saturation, and intensity, RAW RGBW mode, XY and FX mode, allowing to scroll through the built-in cinema effects engine.

Each of the four sections has individual or simultaneous control, allowing to play customizable, cinematic effects through its FX engine or from a console.

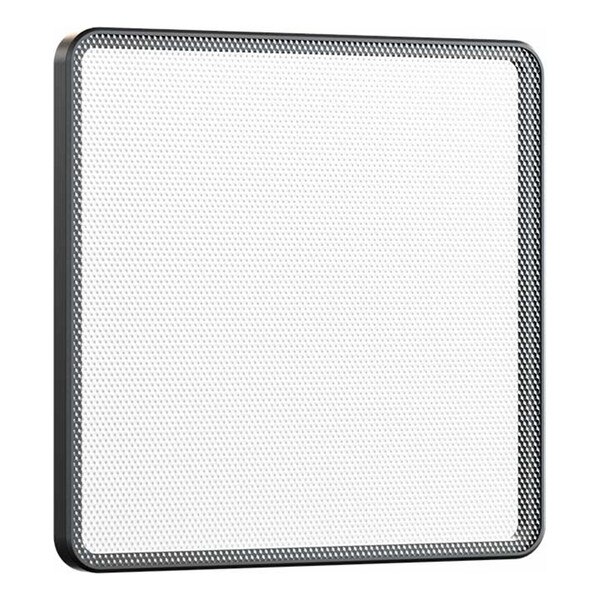

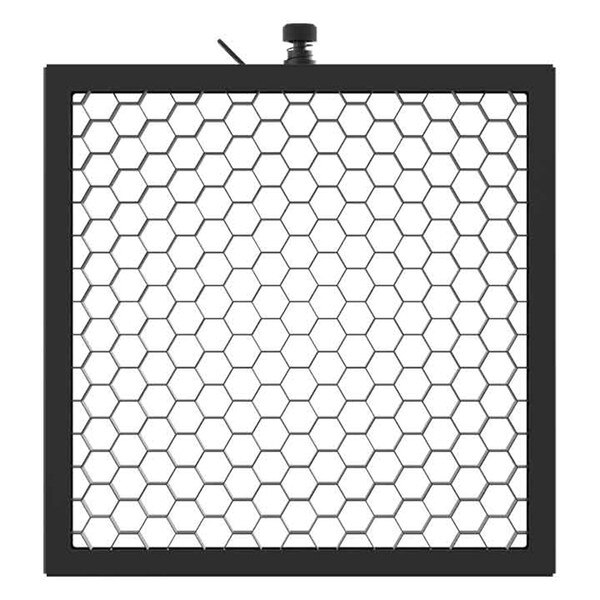

Magnetized beam-shaping optical accessories are available, including egg crates, barn doors, diffusers, and threads for easy mounting on stands or camera rigs.

The fixture is controlled from its user interface or via the built-in Wireless DMX/RDM transceiver (CRMX and W-DMX).

Light Source:

• Source: 30W RGB + Warm White
• Luminous flux: 1'829lm @3.200 K with LD filter
• Lux: 690lx @1 m
• CRI: 94,6 @3.200 K; 94,9 @5.600 K
• R9: 97,1 @3.200 K; 96 @5.600 K
• TLCI: 92 @5.600 K
• TM30 Rf: 97,7 @3.200 K; 89,3 @5.600 K
• TM30 Rg: 102,5 @3.200 K; 102,3 @5.600 K
• Source life expectancy: > 50.000 h

Optics:

• Beam angle: 105°
• Field angle: 159°

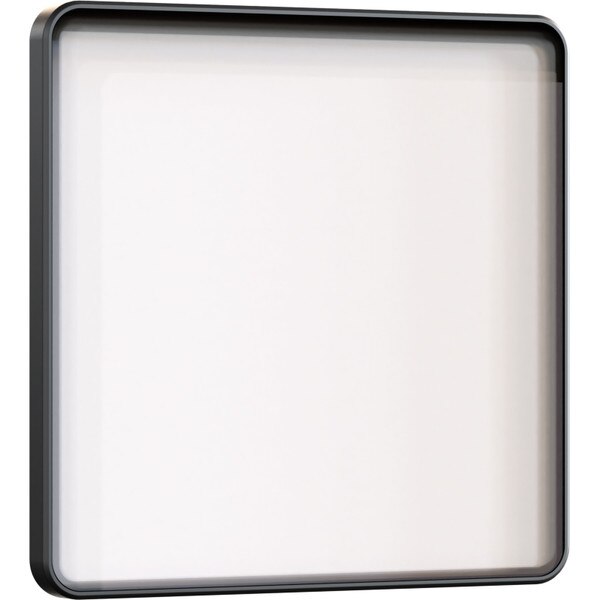

• Lens type: magnetic light density diffusion panel (interchangeable)
• Additional optics: see available accessories

Color System:

• Color control: XY, CCT, RGBW, Gel, HSI, Source Emulation, color macros, CTO on colors
• Color mixing: RGB + Warm White
• CCT: CCT control range from 2.200K to 15.000K, + / - green correction, tungsten emulation
• White presets: 2,800 K - 10,000K
• Colour wheel: virtual color wheel with macros
• Macros: several pre-built pixel macros with adjustable speed

Dynamic Effects:

• Control Resolution: 16-bit dimmer, colors
• Pixel patterns: pre-programmed pixel macros and cinema lighting effects patterns
• FX generator: 4 controllable sections
• Static mode: selection of static color
• Manual mode: manual adjustment of intensity, CT, color correction from knob
• Auto mode: built-in programs with execution speed adjustment
• Special features: linear crossfade channel from any white to any color; virtual CTO on colors

Body:

• Body: sturdy polycarbonate body
• Body color: black

Control:

• Protocols: CRMX+W-DMX, DMX512, RDM

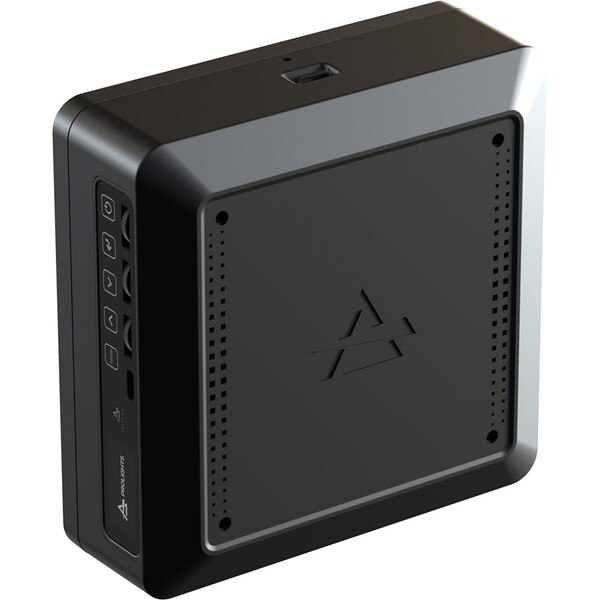

• Stand Alone: selectable mode through 3 rotatory knobs
• Wireless Control: included, LumenRadio Timo Fx DMX/RDM compatible with both CRMX (Lumen Radio) and W-DMX (Wireless DMX)
• RDM: RDM for remote monitoring and settings
• Display: Graphic User Interface
• Firmware upgrade: yes, via USB - DMX interface (UPBOX1+ENPTWCYCABLE) not included
• IR: infrared sensor controlled by remote (included in the pack, not included in a single unit)
• Master/Slave: for synchronized operation of more units linked in a chain

Electronics:

• Dimmer: linear 0 ~ 100% electronic dimmer
• Dimmer curves: 4 selectable dimming modes available
• Strobe / shutter: 1 - 30 Hz, electronic
• Operating temperature: 0° ~ +45°
• LED Control: flicker-free frequency with adjustable PWM
• Selectable PWM: 600 ~ 36.000 Hz

Electrical:

• Max power consumption: 32 W
• Mains power supply: DC 12V
• Power factor: >0,97

Battery:

• Battery: 11.1V lithium
• Estimated battery life: (selectable) 2 h - 6 h - 8 h - 12 h - 18h
• Re-charge connection: USB type C
• Re-charge time: 2,5h/max
• Battery status: shown on display

Physical:

• IP rating: 20
• Cooling: passive cooling and fan-free

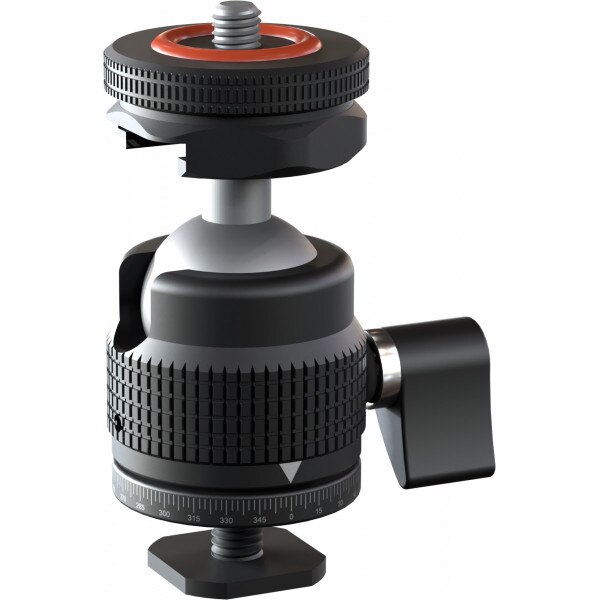

• Suspension and fixing: M5 and 1/4'' threaded insert for easy installation

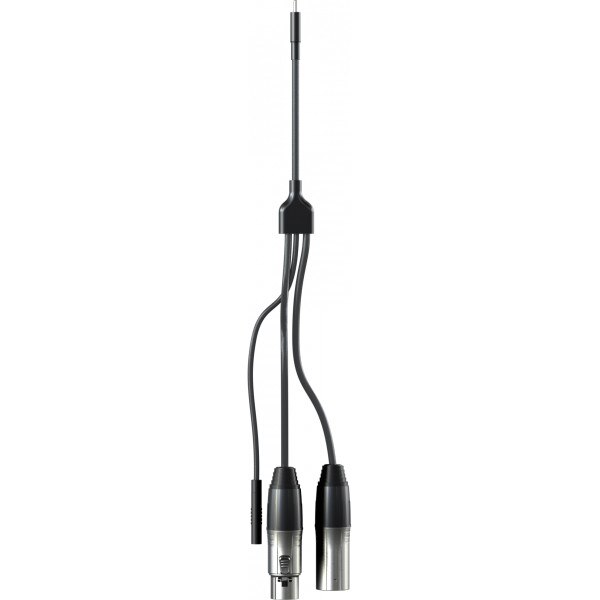

• Adaptors: USB type C to XLR connectors
• Low Voltage DC connector: USB type C
• Dimensions (WxHxD): 150x150x69.5mm / 5.91''x5.91''x2.74''
• Weight: 1,2kg / 2.65lbs

Certifications / Approvals:

• Certifications / Approvals: CE, UKCA, RCM, cTUVus, FCC

Box Contents:

• 1 x ECLNANOPANELTWC

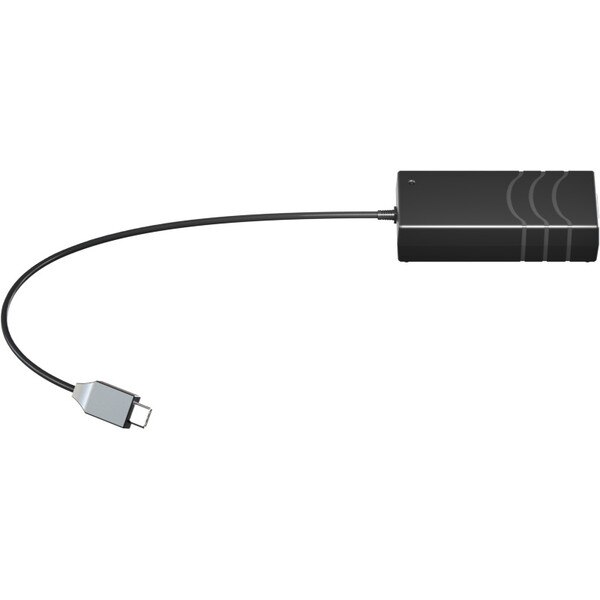

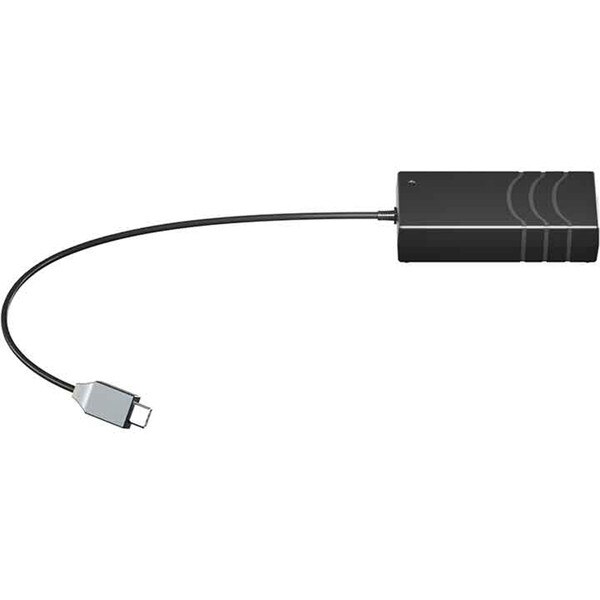

• 1 x battery charger
• User Manual
