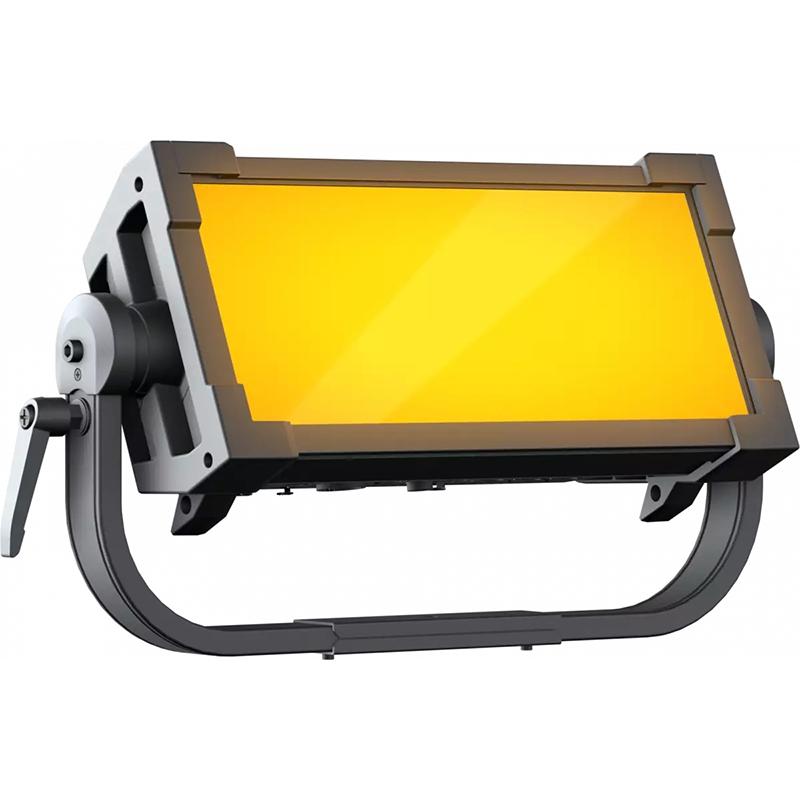

ProLights EclPanel TWCMini2x1 115S RGB + Warm White LED

115W Tunable White and colourful LED soft light with pixels and lighting effects

The EclPanel TWCMini2x1 is an ultra-compact LED soft light that provides a beautiful, wide source of soft and precise colours.

In addition to this, the EclPanel TWCMini2x1 comes with a full range of white presets, from daylight to tungsten tones, and produces a tremendous output whilst keeping high CRI, TLCI and TM-30 values.

The EclPanel TWCMini2x1 has 3 precision rotatory knobs, with multiple stand-alone control modes: CCT with +/- green shift, CCT presets, HSI for total control of hue, saturation and intensity, RAW RGBW mode, XY and FX mode, allowing to scroll through the built-in cinema effects engine.

Each of the 2 sections is controlled individually or simultaneously, allowing to play on-board customizable, cinematic effects through its built-in engine or from a console.

The EclPanel TWCMini2x1 has several colour control modes: RGBW, RGB, CMY, HSI, XY, RAW Direct, CCT Linear and CCT Presets with +/- green shift, source emulation and industry-standard colour gels.

Despite its lightweight, it has an on-board driver, a built-in power supply, Wireless DMX (CRMX+W-DMX), network connectivity (Art-Net, sACN, Kling-Net) and low voltage inputs (24-36V and 48Vdc).

Main Features:

• 115W RGB + Warm White LED source
• CRI >94; R9 >88,8; TLCI >92
• 2 section pixel control and built-in lighting effects for cinema applications, colour gel matching
• Silent operation with multiple fan modes
• Wireless DMX (CRMX+W-DMX), Ethernet connectivity, low voltage inputs (24-36V, 48Vdc)

Light Source:

• Source: 115W RGB + Warm White LED
• Luminous flux: 7'642 @3.200 K with LD filter
• Lux: 220lx @5 m full
• CRI: 93 @3.200 K; 94 @5.600 K
• R9: 90 @3.200 K; 92 @5.600 K
• TLCI: 91 @5.600 K
• TM30 Rf: 91 @3.200 K; 90 @5.600 K
• TM30 Rg: 105 @3.200 K; 104 @5.600 K
• Source life expectancy: > 50.000 h

Optics:

• Beam angle: 98°
• Field angle: 153°

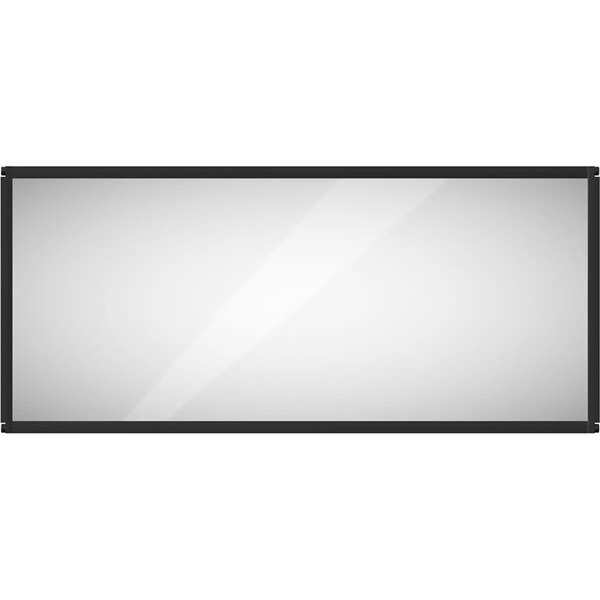

• Lens type: medium density diffusion panel (interchangeable)

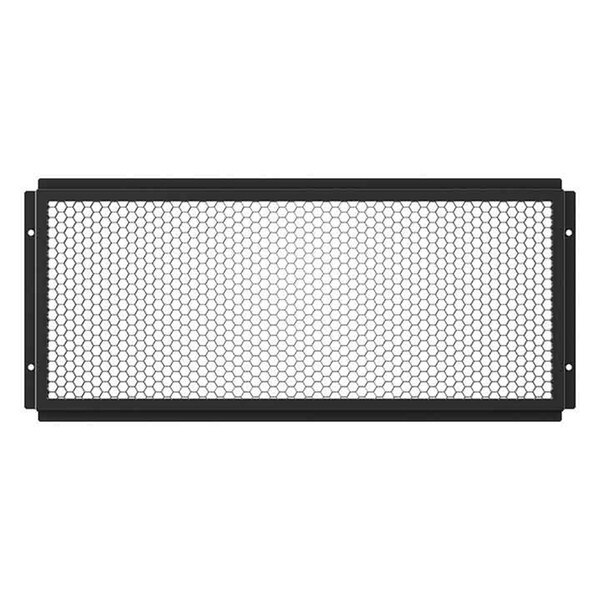

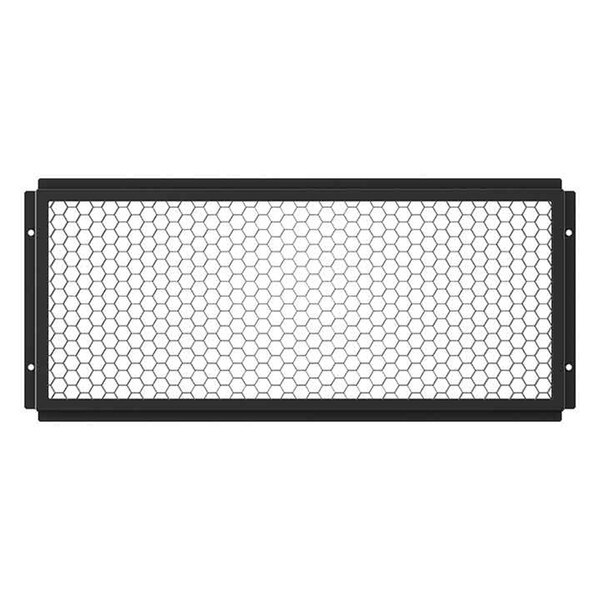

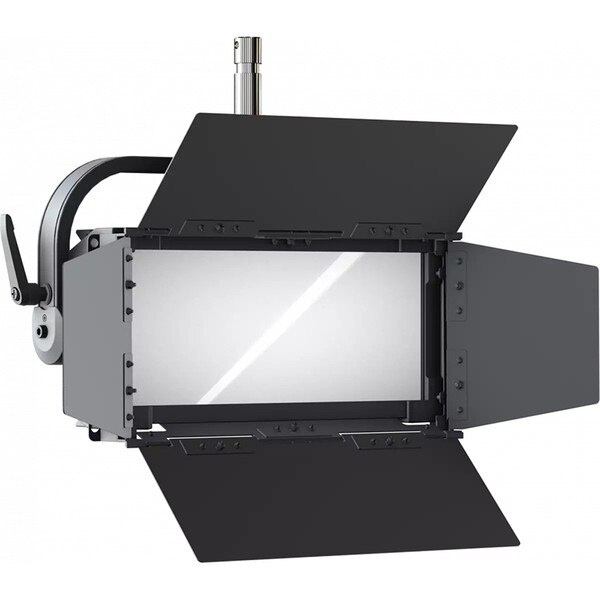

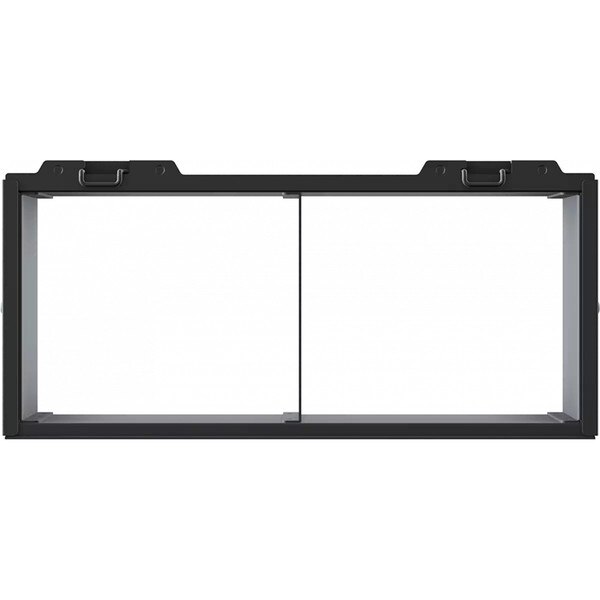

• Additional optics: see available accessories

Color System:

• Colour control: XY, CCT, RGBW, Gel, HSI, Source Emulation, colour macros, CTO on colours
• Colour mixing: RGB + Warm White
• CCT: CCT control range from 2.200K to 15.000K, + / - green correction, tungsten emulation
• White presets: 2.800 K - 10.000K with 28 K resolution
• Colour wheel: virtual colour wheel with macros
• Macros: Gels library on-board

Dynamic Effects:

• Control Resolution: 16-bit dimmer, colours
• Pixel patterns: pre-programmed pixel macros and cinema lighting effects patterns
• Special features: linear crossfade channel from any white to any colour; virtual CTO on colours

Body:

• Body: sturdy die-cast aluminium body
• Body colour: black

Control:

• Protocols: DMX512, RDM, Art-Net, sACN, W-DMX
• Stand Alone: selectable mode through 3 rotatory knobs
• Pixel control: 2 linear section control
• Wireless Control: integrated, CRMX + WDMX TRX
• RDM: RDM for remote monitoring and settings
• Display: Graphic User Interface
• Firmware upgrade: yes, via USB - DMX interface (UPBOXPRO/UPBOX1) not included

Electronics:

• Dimmer: linear 0 ~ 100% electronic dimmer
• Dimmer curves: 4 selectable dimming modes available
• Strobe / shutter: 1 - 30 Hz, electronic
• Operating temperature: -10° ~ +45°
• LED Control: flicker free frequency with adjustable PWM
• Selectable PWM: 600 ~ 40.000 Hz

Electrical:

• Mains power supply: 100-240V - 50/60Hz
• Low Voltage DC mains: 48Vdc and 24-36V
• Max power consumption: 130W
• Output (at 230V): 19 units on a single power line
• Power factor: >0,93
• Inrush current: 110VAC/8.1A, 230VAC/23.8A

Physical:

• IP rating: 20
• Cooling: active, silent operation

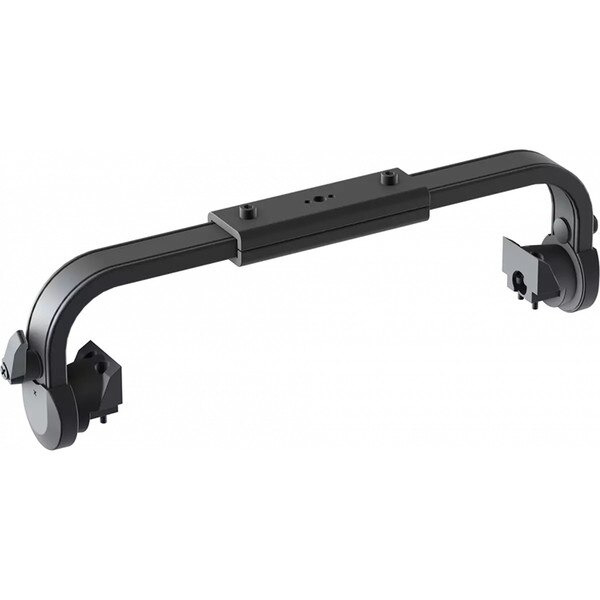

• Suspension and fixing: bracket for hanging and positioning
• Signal connection: Amphenol XLR 5p IN/OUT connectors
• Power connection: Neutrik powerCON TRUE1 IN/OUT connectors
• Low Voltage DC connector: XLR 4p
• Dimensions (WxHxD): 529x276x144mm / 20.83''x10.87''x5.67''
• Dimensions with PO system (WxHxD): 547x396x144mm / 21.54''x15.59''x5.67''
• Weight: 6kg / 13.23lbs
• Weight with PO system: 8,6kg / 18.96lbs

Certifications / Approvals:

• Certifications / Approvals: CE, UKCA, RCM, cTUVus, FCC

Box Contents:

• 1 x ECLPANELTWCM2X1
• 1 x 1,5 meters power cable (BARE END - NEUTRIK POWERCON TRUE1 IP65)
• 1 x ECLFRSPG
• User Manual
