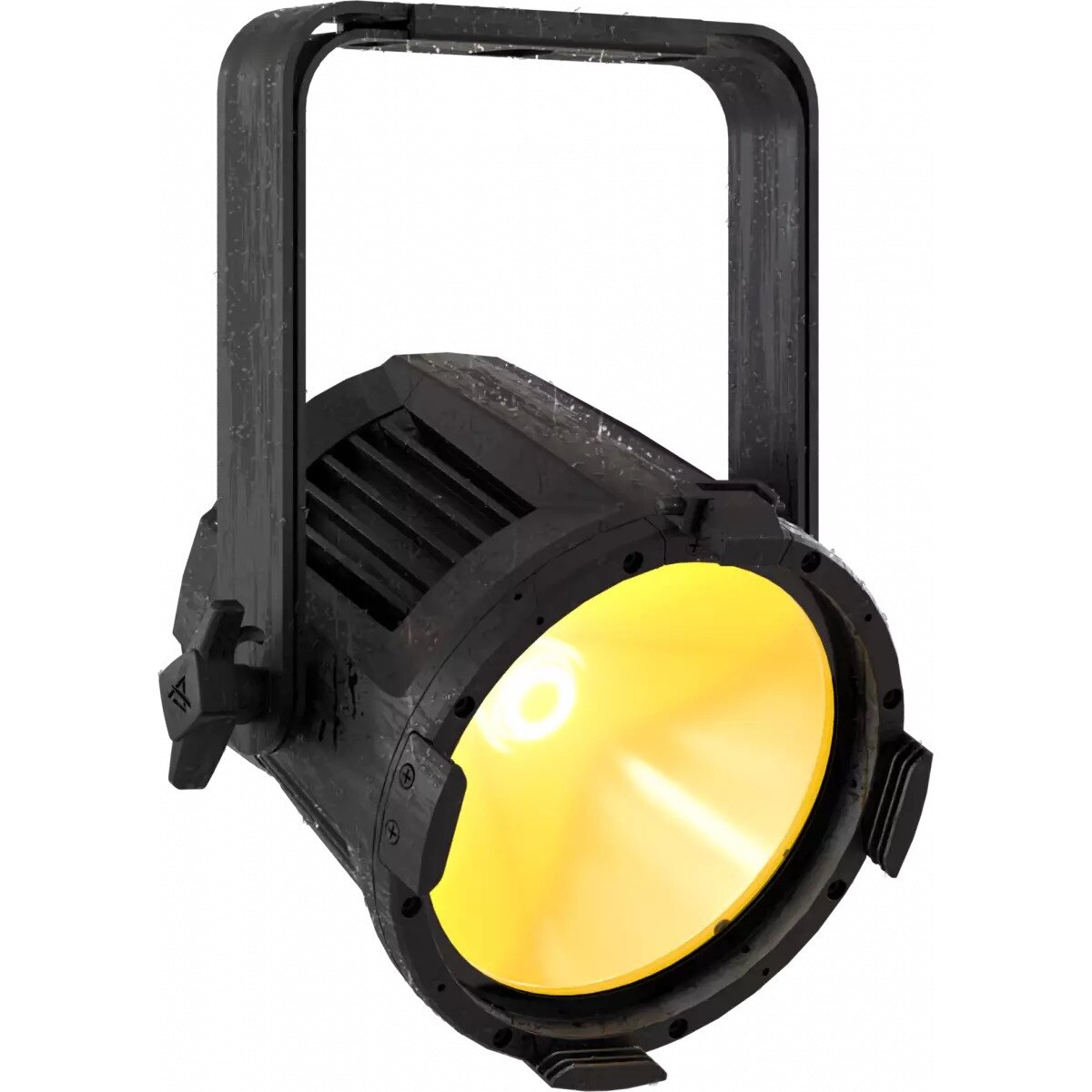

ProLights EclPar IPMFC IP65 100W RGB - Warm White/FC LED PAR

(0)No Reviews yet

Details

Details

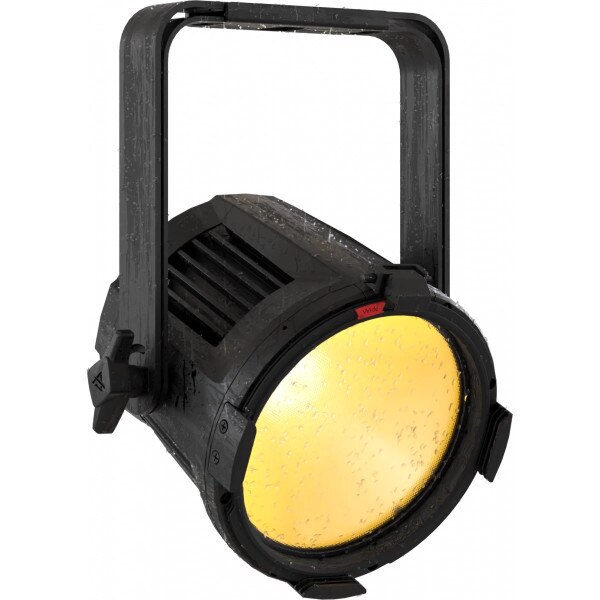

100W IP65 RGB+WW single source LED PAR

EclPar IPMFC is a flexible IP rated single source LED spotlight, featuring an 100W RGB+WarmWhite light source with high efficiency and advanced colour control.

Its Spektra calibrated LED source delivers a high-quality white reproduction with high CRI and TM30 with an advanced control over colours, ensuring consistency across fixtures.

The unit is compact and completely fan free, making the EclPar IPMFC a workhorse for any outdoor and dusty environment, corporate events or studios where silent operations are required.

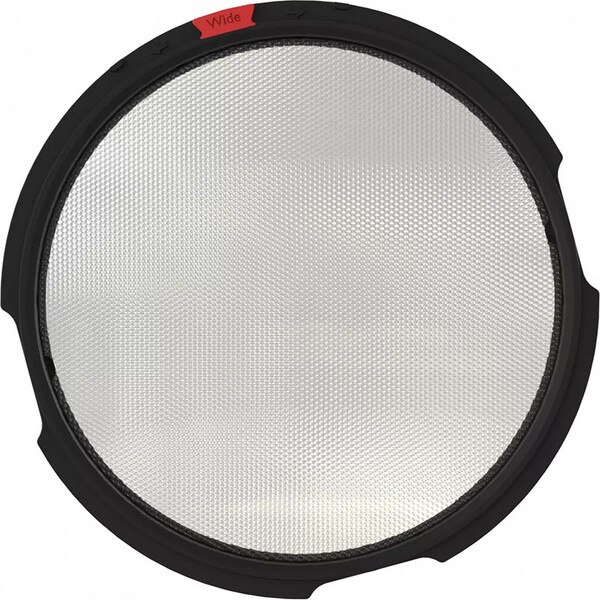

The flexible optical system allow a wide selection of lenses from narrow 15° (on board), flood 30°, and ultra wide 60°, which can be quickly mounted in front of the luminaire or inside the front tempered glass for lasting exterior installation.

Main Features:

100W Spektra calibrated RGB + Warm White LED delivering high CRI, TLCI, TM30 values
Flex lens system: 15° on-board - 30° and 60° optional
IP65 for exterior application, fan free

Technical Specifications:

Light Source:

Source: 100W RGB+WW LED array
Luminous flux: (15°) 3'324 lm; (30°) 3'348 lm; (60°) 3'462 @full
Lux: (15°) 1'772 lx; (30°) 332 lx; (60°) 155lx @5 m full
CRI: 93,7 @3'200K; 91,1 @5'600K
R9: 89 @3'200K; 88 @5'600K
TLCI: 77 @3'200K; 86 @5'600K
TM30 Rf: 90 @3'200K; 89 @5'600K
TM30 Rg: 109 @3'200K; 108 @5'600K
Source life expectancy: > 50.000 h

Optics:

Beam angle: (on-board) 15° - (opt) 30°, 60°
Field angle: (on-board) 26°
Lens diameter: 172mm / 6.77''
Lens type: parabolic reflector in combination with HD fresnel lens
Additional optics: (opt) 30°, 60°
Other: possible to mount lens both on the internal side and on the external side

Colour System:

Colour mixing: RGB + Warm White
CCT: CCT control, + / - green correction, tungsten emulation
White presets: 2.700 K ~ 10.000K
Macros: Gels library on-board

Dynamic Effects:

Static mode: selection of static dimmer, colors and color temperature
Manual mode: manual adjustment of colour
Auto mode: built-in programs with execution speed adjustment
Special features: linear crossfade channel from any white to any colour; virtual CTO on colours

Body:

Body: sturdy die-cast aluminium body
Body colour: black

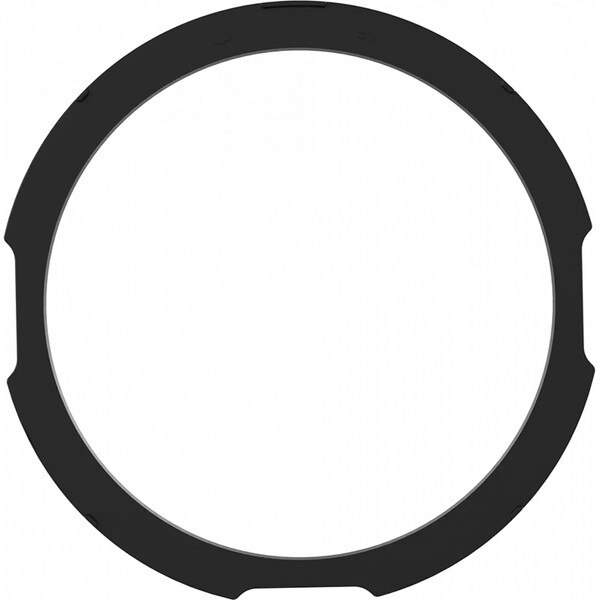

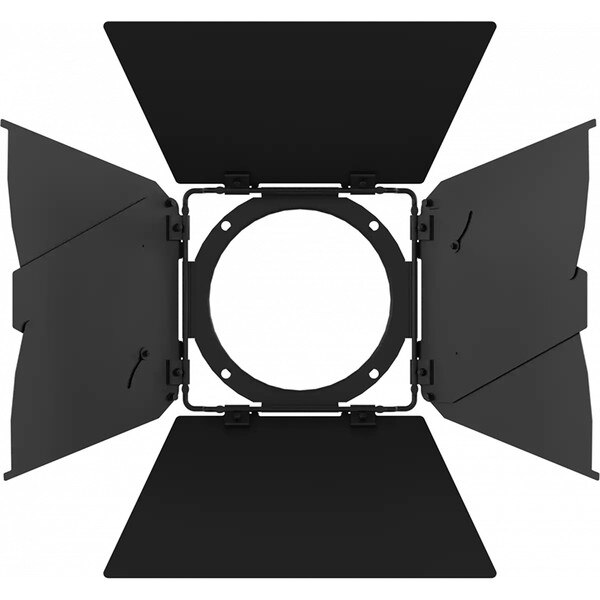

Other: Front mount holder for accessories as barn door, filter frame

Control:

Protocols: DMX512, RDM, CRMX
DMX channels: 1 / 2 / 5 / 9 / 10 / 12 / 18channel

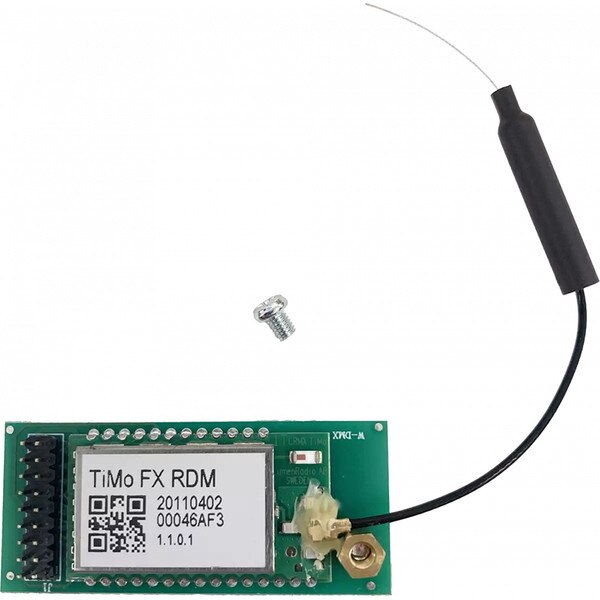

Wireless Control: optional, LumenRadio Timo Fx DMX/RDM compatible with both CRMX (Lumen Radio) and W-DMX (Wireless DMX)
RDM: RDM for remote monitoring and settings
Display: Graphic User Interface
Firmware upgrade: yes, via USB - DMX interface (UPBOXPRO/UPBOX1) not included
Master/Slave: for synchronised operation of more units linked in a chain

Electronics:

Dimmer: linear 0 ~ 100% electronic dimmer
Dimmer curves: 4 selectable dimming modes available
Strobe / shutter: 1 - 30 Hz, electronic
Operating temperature: -20° C / +45° C (-4° F / +113° F)
LED Control: flicker free operation
Selectable PWM: 600 ~ 40.000 Hz

Electrical:

Mains power supply: 100-240V - 50/60Hz
Max power consumption: 120W
Output (at 230V): 12 units on a single power line
Power factor: > 0,94

Physical:

IP rating: 65 for temporary outdoor application, not for fixed installations

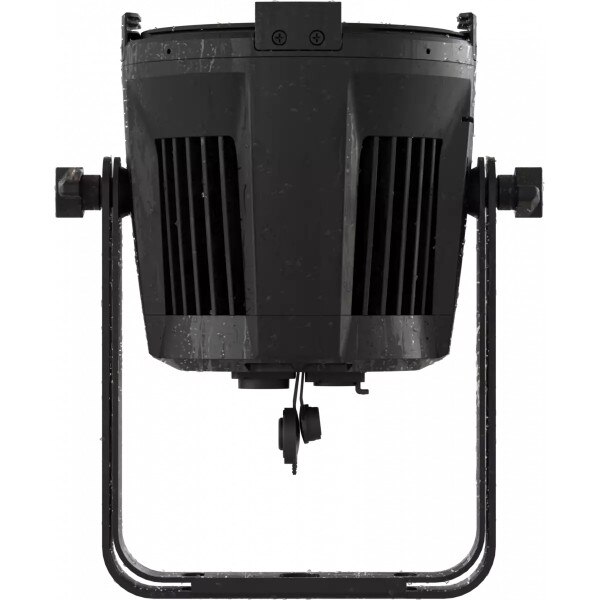

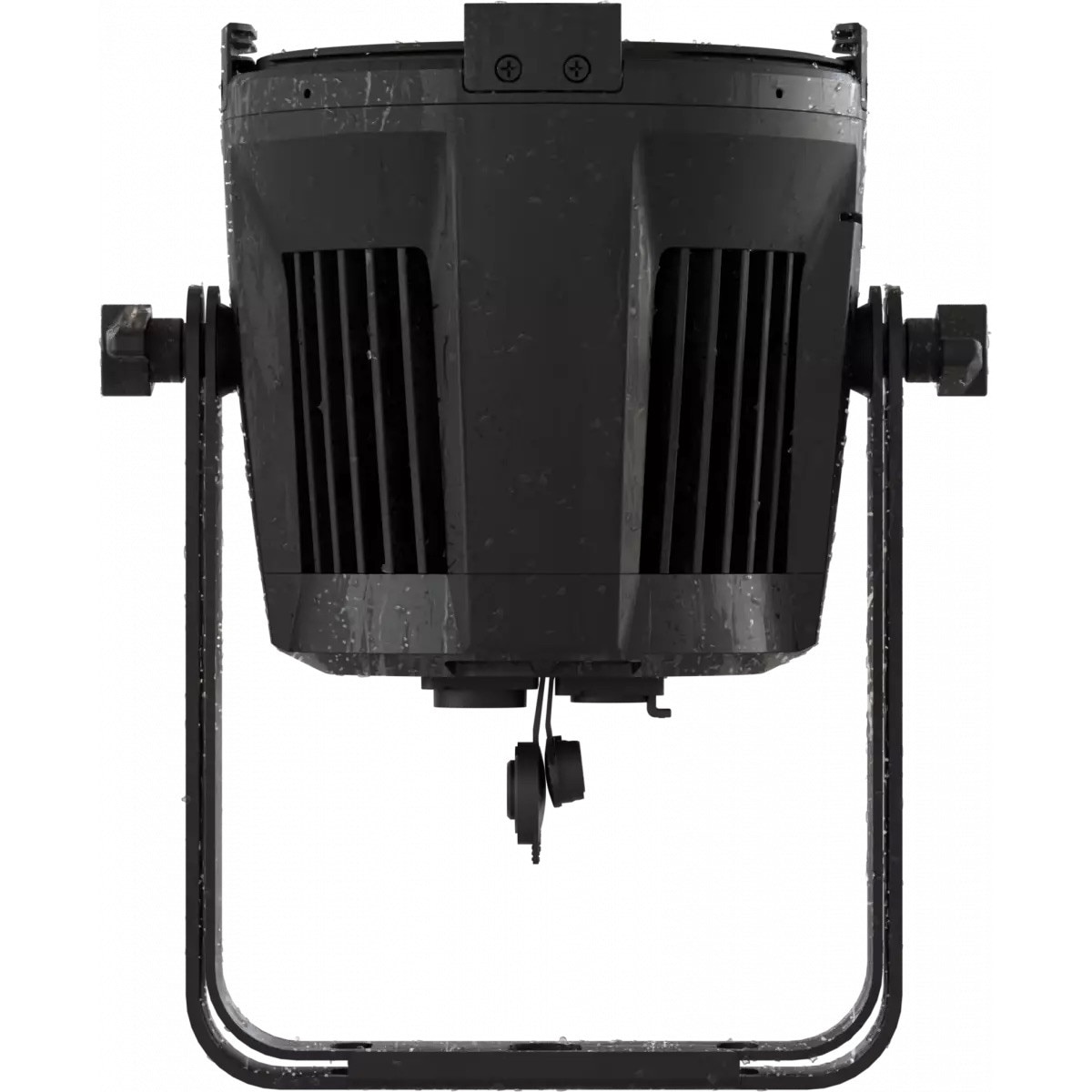

Cooling: passive cooling and fan-free

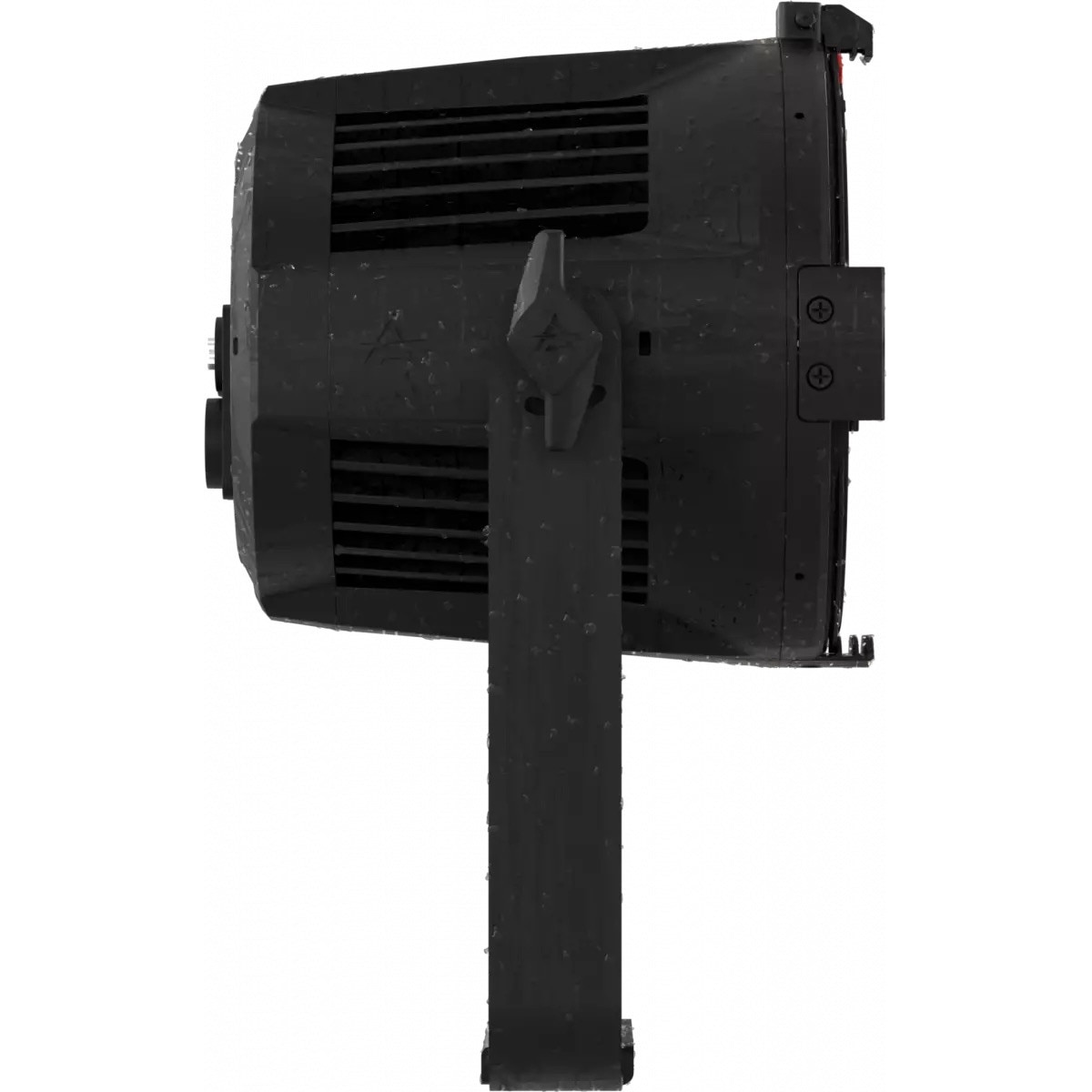

Suspension and fixing: double hanging bracket suitable for safe hanging and for floor positioning

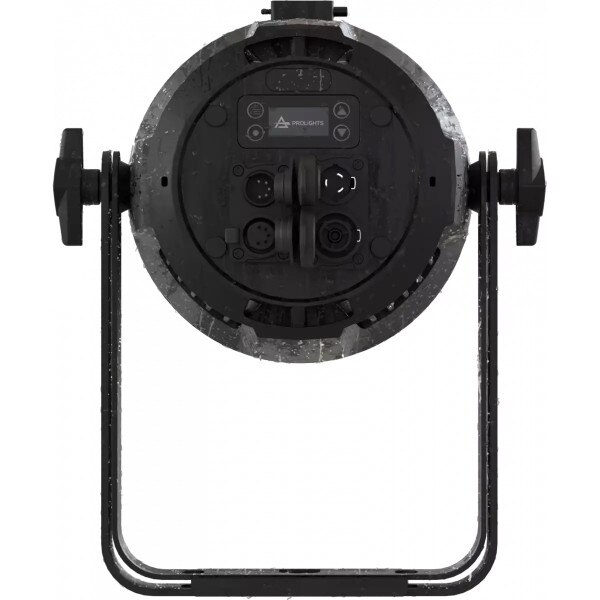

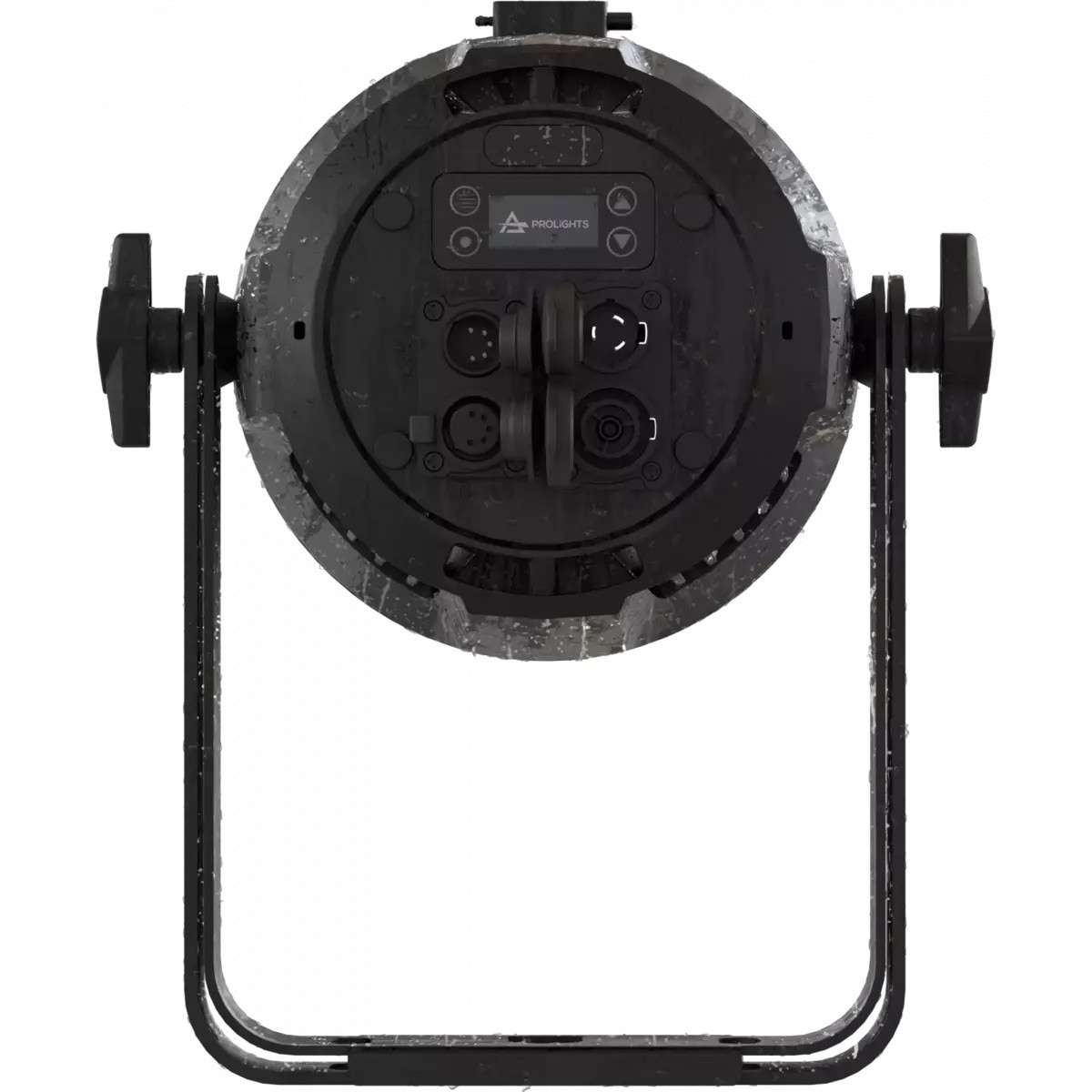

Signal connection: Seetronic XLR 5p IN/OUT connectors
Power connection: Seetronic powerCON TRUE IP65 IN/OUT
Dimensions (WxHxD): 262x327x213mm / 10.31''x12.87''x8.39''
Weight: 4,1kg / 9.04lbs
NOTE: Suitable for permanent outdoor use, provided installation and maintenance cycles by qualified technicians are carried.

Certifications / Approvals:

Certifications / Approvals: CE, UKCA, RCM, cTUVus, FCC

Box Contents:

1 x ECLPARIPMFC

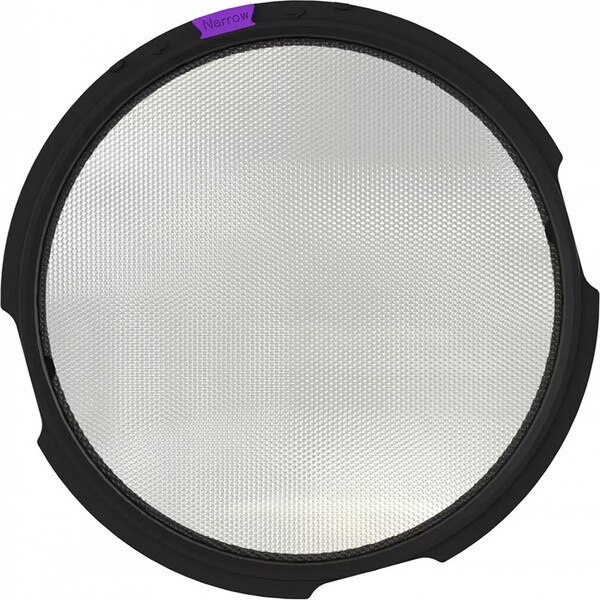

1 x EPIPMLENS15

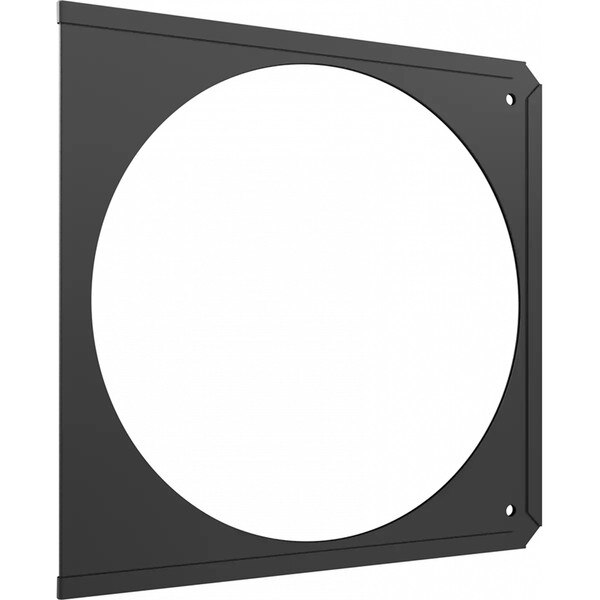

1 x ECLPARTPG
1 x 1,5 meters 3G1,5mmq power cable (BARE END - SEETRONIC POWERCON TRUE1 IP65 power connector)
1 x User Manual

ProLights ECLPARIPMFCBK Datasheet.pdf
