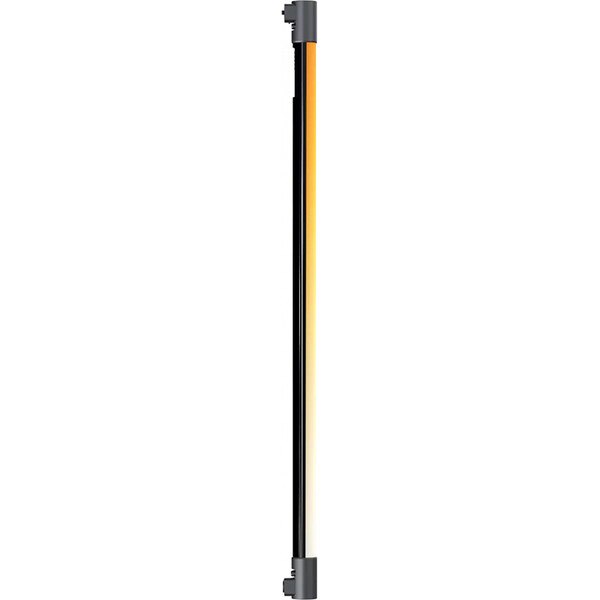

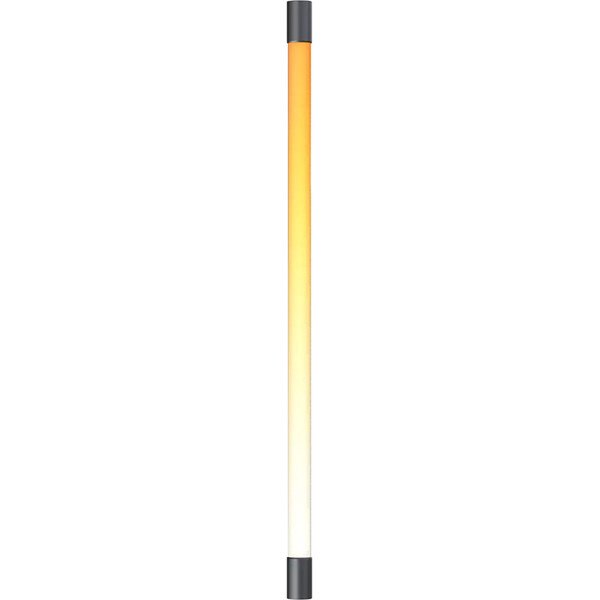

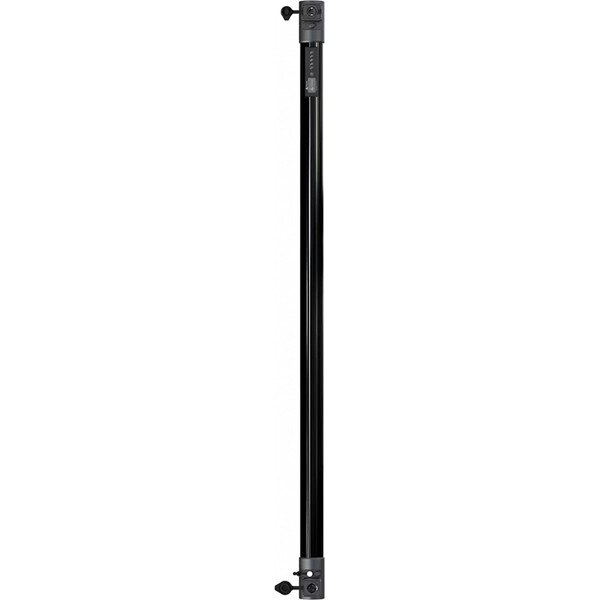

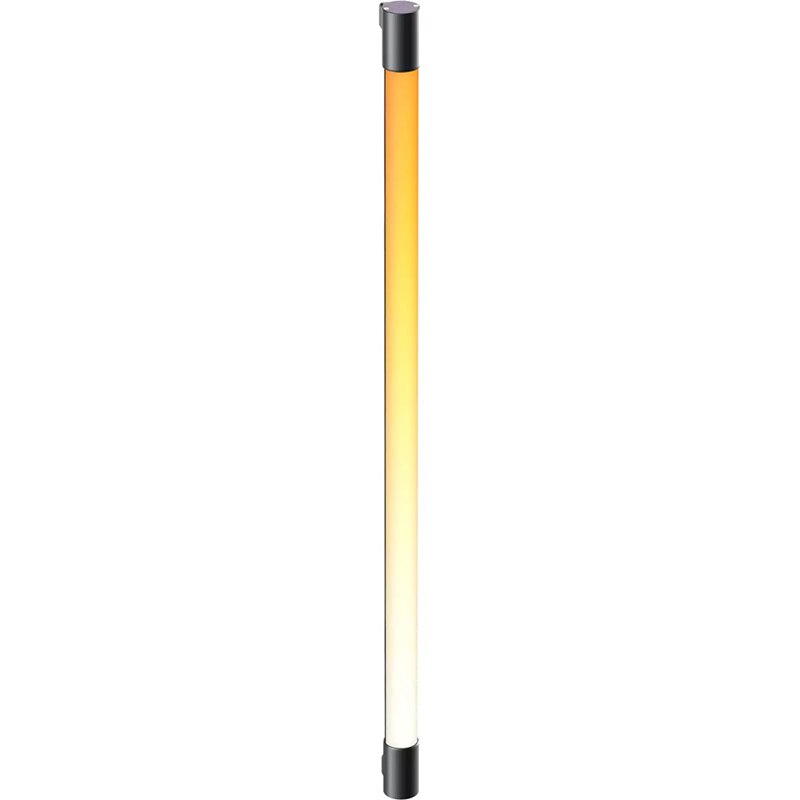

ProLights EclSoft Tube100

100 cm, battery-powered soft tube for Film & TV, IP65, with an RGB + Warm White LED source, wireless or wired

The EclSoft Tube100 is a multipurpose, IP65 wireless linear pixel tube designed for Film & TV, indoor and outdoor environments. The EclSoft Tube100 has a 48W RGB + Warm White LED source with 16 independently-controlled sections. Similar the other fixtures in the soft light range, it has an RGBW mode, RGB, CMY, HSI, XY, RAW Direct, CCT Linear and CCT Presets with +/- green shift, source emulation and industry-standard colour gels. This fixture has high-quality tunable white with ultra-high CRI, as well as on-board cinema effects and pixel effects. This fixture is also “Spektra™ Calibrated”, sharing the same colour calibration standard as some other luminaires. The EclSoft Tube100 can be used wirelessly with its on-board battery and Wireless DMX control (CRMX + W-DMX). There is also a wired connection for mains power and an ethernet port for Art-Net or s/ACN.

Main Features:

• Hybrid fixture, Wireless DMX (CRMX+W-DMX) / ethernet control, battery/mains power
• Pixel control, on-board cinema pixel engine, RGB + Warm White LED source with high CRI (up to 93) and TLCI
• IP65 for outdoor applications

Technical Specifications:

Light Source:

• Source: 48W RGB + Warm White
• Luminous flux: 2'386 @full
• Lux: 71lx @3 m
• Lux: 161lx @2 m
• CRI: 93
• R9: 92
• TLCI: 91
• TM30 Rf: 91
• TM30 Rg: 105
• Source life expectancy: > 50.000 h

Optics:

• Beam angle: 128°
• Field angle: 199°
• Lens type: frosted acrylic tube

Color System:

• Colour control: XY, CCT, RGBW, Gel, HSI, Source Emulation, Colour Macros, CTO on colours
• Colour mixing: RGB + Warm White
• CCT: CCT control, + / - green correction, tungsten emulation
• White presets: 2.800 K - 10.000K with 28 K resolution
• Colour wheel: virtual colour wheel with macros
• Macros: several pre-built pixel macros with adjustable speed

Dynamic Effects:

• Control Resolution: 16-bit dimmer, colors
• Pixel patterns: pre-programmed pixel macros and cinema lighting effects patterns
• FX generator: 16 sections with adjustable foreground/background colour, index, speed, direction
• Static mode: selection of static color
• Manual mode: manual adjustment of color
• Auto mode: built-in programs with execution speed adjustment
• Special features: linear crossfade channel from any white to any color; virtual CTO on colors

Body:

• Body: sturdy polycarbonate and die casting aluminum
• Body color: black on the back and white wash on the front

Control:

• Protocols: Art-Net, Kling-Net, sACN, CRMX+W-DMX
• DMX channels: main personality 1 / 2 / 13 / 14 / 18 / 19 / 20 / 23 / 33 / 43channel
• Wireless Control: included, LumenRadio Timo Fx DMX/RDM compatible with both CRMX (Lumen Radio) and W
• DMX (Wireless DMX)
• RDM: RDM for remote monitoring and settings
• Display: Graphic User Interface
• Firmware upgrade: yes, via USB - DMX interface (UPBOX1+EST100UPBOXI) not included
• IR: infrared sensor controlled by remote (included in the pack, not included in single unit)
• Master/Slave: for synchronized operation of more units linked in a chain

Electronics:

• Dimmer: linear 0 ~ 100% electronic dimmer
• Dimmer curves: 4 selectable dimming modes available
• Strobe / shutter: 1 - 30 Hz, electronic
• Operating temperature: 0° ~ +45°
• LED Control: flicker free frequency with adjustable PWM
• Selectable PWM: 3.000 / 6.000 /12.000 / 24.000 Hz

Electrical:

• Max power consumption: 34 W
• Mains power supply: 100-240V - 50/60Hz
• Low Voltage DC mains: 24V
• Power factor: >0,96

Battery:

• Battery: 24V lithium
• Estimated battery life: Selectable 3h / 6h / 8h / 12h / 16h / 18h
• Re-charge connection: DC with jack and AC with standard powercon connector
• Re-charge time: 5h/max
• Battery status: shown on display
• Other: Battery recharge in AC and DC, operation in main power with possibility to disable battery recharge through software and charging operation in flightcase through external charger

Physical:

• IP rating: IP65 for temporary outdoor application, not for fixed installations
• Cooling: passive cooling and fan-free
• Suspension and fixing: M5 threaded insert for eye bolt, floor stand and clamp for wall installation

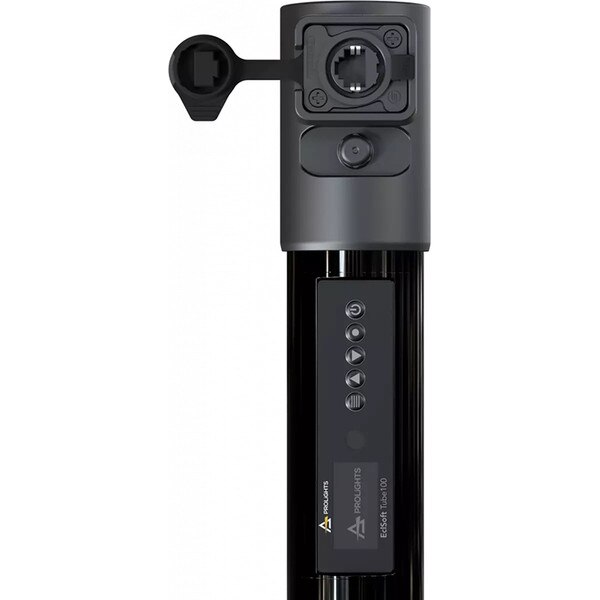

• Data connection: Seetronic RJ45 IP65 IN

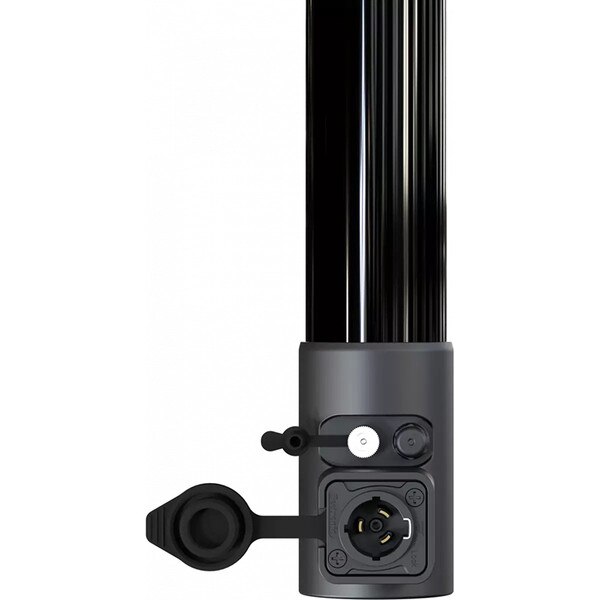

• Power connection: DC connector for battery recharge and Seetronic powerCON TRUE IP65 IN
• Dimensions (WxHxD): 1163x50x50mm / 45.79''x1.97''x1.97''
• Weight: 2,4kg / 5.29lbs

Certifications / Approvals:

• Certifications / Approvals: CE, UKCA, RCM, cTUVus, FCC

Box Contents:

• 1 x ECLSOFTTUBE100
• 1 x 1,5 meters power cable (BARE END - SEETRONIC IP65 power connector)
• User Manual
