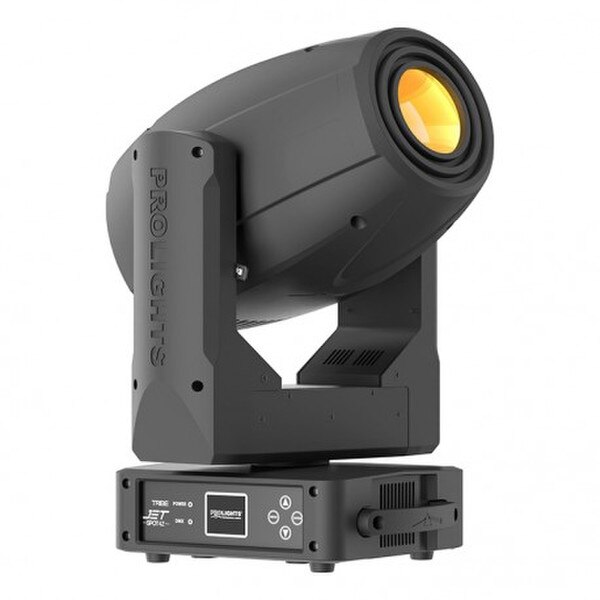

ProLights JETSPOT4Z – 180W LED - Moving Spot - 8°- 40° Zoom - 5 Pin In/Out

Jet Spot4Z is a 180 W 6.800 K LED spotlight designed to replace a 700 W discharge fixture in theatres, concert halls and a host of other venues. The compact size allows for the use of this luminaire in venues with low ceilings without resorting to zoom. Its custom optical system delivers a consistent output with a flat-field and crisp gobo projection right through the massive 8° to 40° zoom range.


Features:

• Full CMY colour mixing system combined with a colour wheel.
• Rotating and static gobo wheels, plus prism, iris and linear frost.
• HD dimming

Light Source:

• Source: 180W high-power white LED
• CCT: 6.800K
• CRI: 68
• Luminous flux: 7'518lm
• Lux: (8°) 25'200 lx - (40°) 3'250lx @3 m
• Lux: (8°) 2'268 lx - (40°) 292lx @10 m
• Source life expectancy: 50.000 h
• Other:

Optics:

• Zoom: 8 - 40° motorised linear zoom
• Lens type: high-quality glass lens optics
• Focus: motorised

Colour System:

• Colour mixing: CMY colour system on 3 gradually fading colour wheels
• CTC: on wheel 2.500 K and 3.200 K + CTB
• Colour wheel: 6 dichroic filters on 3 independent colour wheels

Dynamic Effects:

• Rotating gobos: 7 rotating gobos + open, interchangeable, indexing
• Gobo size: outer: 24,2 mm - image: 20 mm - thickness: 1,1 mm
• Fixed gobos: 8 fixed gobos + open
• Circular prism: 3f with bi-directional rotation, indexing
• Frost: linear 0 - 100% frost filter
• Iris: 5 - 100% motorised iris
• Auto mode: built-in programs with execution speed adjustment

Body:

• Pan angle: 540°
• Tilt angle: 270°
• Pan/Tilt resolution: bit 8 / 16 bit
• Feedback: automatic repositioning after accidental movement
• Body: aluminium structure with hi-resistance polycarbonate cover
• Body colour: black

Control:

• Protocols: DMX512, RDM
• DMX channels: 23 / 25 / 27channel
• RDM: RDM ready for fixture remote monitor and settings
• Display: black TFT high resolution display
• Firmware upgrade: yes, via USB - DMX interface (UPBOX1) not included
• Master/Slave: for synchronized operation of more units linked in a chain

Electronics:

• Dimmer: linear 0 ~ 100% electronic dimmer
• Strobe / shutter: 1 - 30 Hz, electronic
• Battery backup: battery backup for user operation without connecting to the main power
• Operating temperature: -10° ~ +45°
• Flicker: flicker free operation

Electrical:

• Power supply: 100-240 V – 50/60 Hz
• Power consumption (at 230 V): 250W
• Power consumption (at 120 V): 252W
• Output (at 230 V): 14 units on a single power line
• Output (at 120 V): 8 units on a single power line

Physical:

• Cooling: forced air with low noise fan
• Sospension and fixing: any position with quick-lock omega brackets
• Pan / tilt lock: pan / tilt locking for transportation and maintenance
• Signal connection: Amphenol XLR 3p + 5p IN/OUT connectors
• Power connection: Neutrik powerCON IN/OUT connectors
• IP rating: 20
• Dimensions (WxHxD): 332x544x230mm / 13.07''x21.42''x9.06''
• Weight: 18,6kg / 41.01lbs
