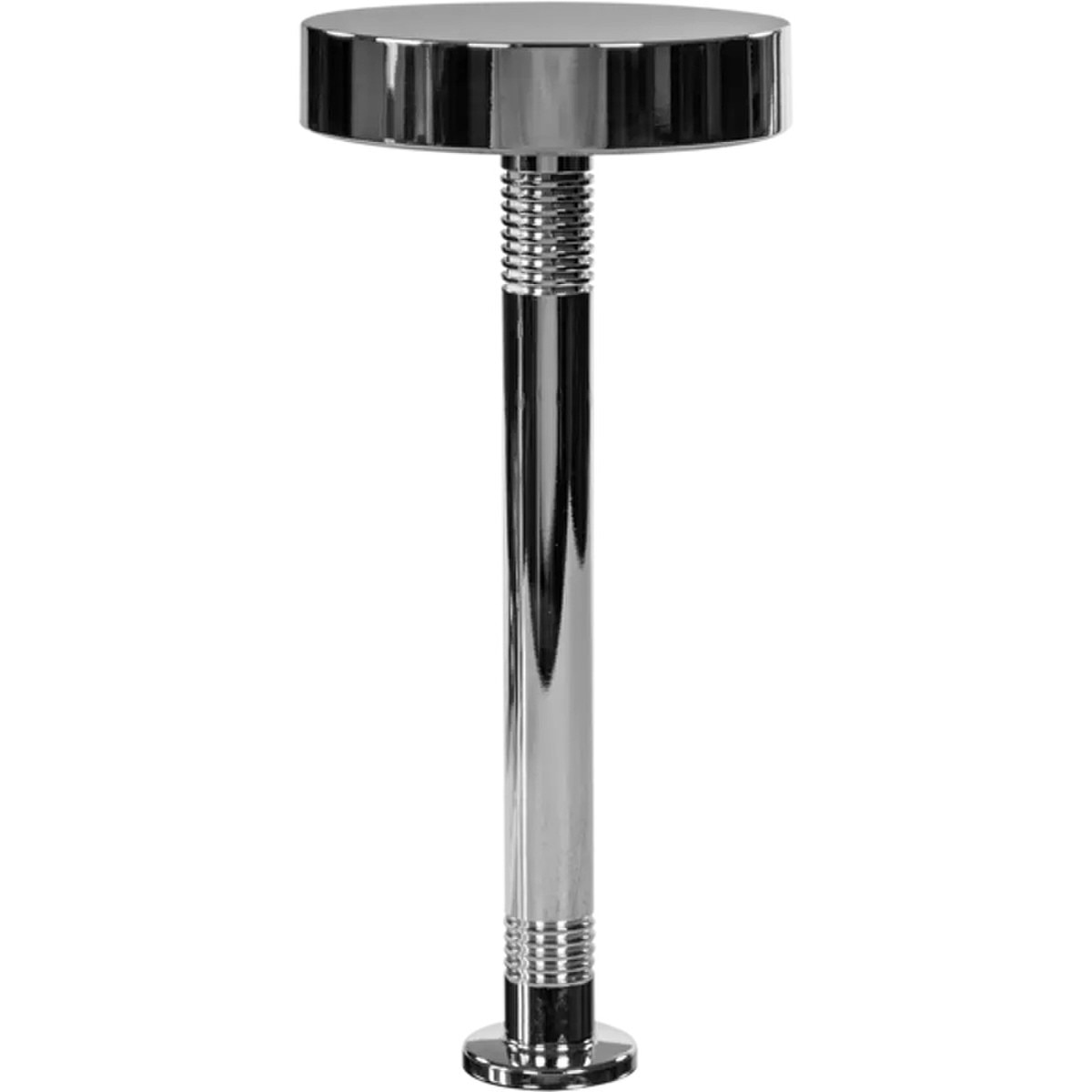

ProLights Tabled C Full Color Event Battery Table Lamp

Revolutionary full colour event battery table lamp

Tabled C is an ingenious product which offers beautiful table lighting for events whilst keeping the atmosphere of the room. Based on a stunning aesthetic design, it is not only a stylish centerpiece but fast to deploy and easy to use. With local control and wireless DMX, it can either act as a standalone table light or be part of a spectacular event lighting package.

Main Features:

• Battery powered and wireless DMX control for fast deployment and accurate control

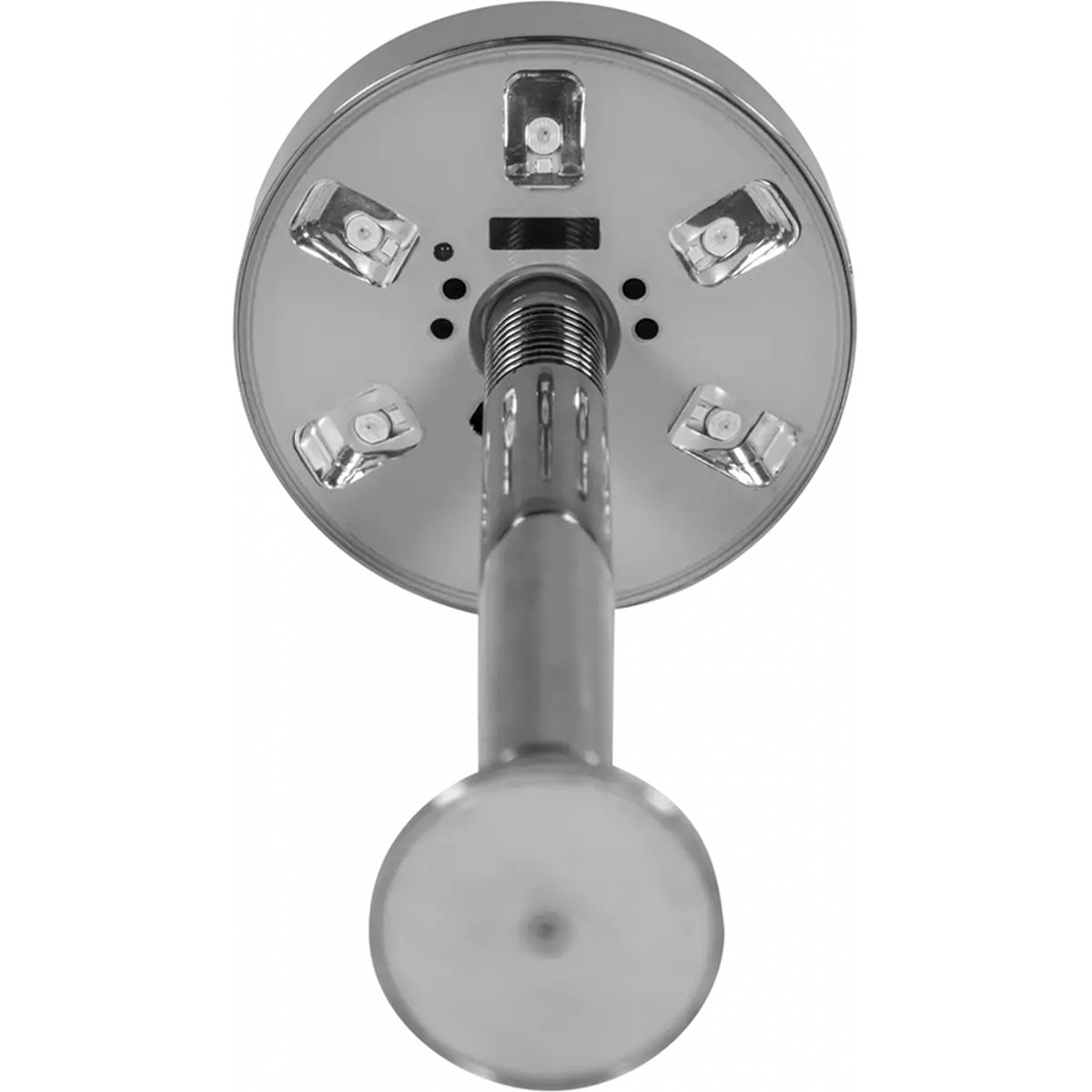

• RGBW LED source with 360° coverage for standard catering round tables of 1,8 m

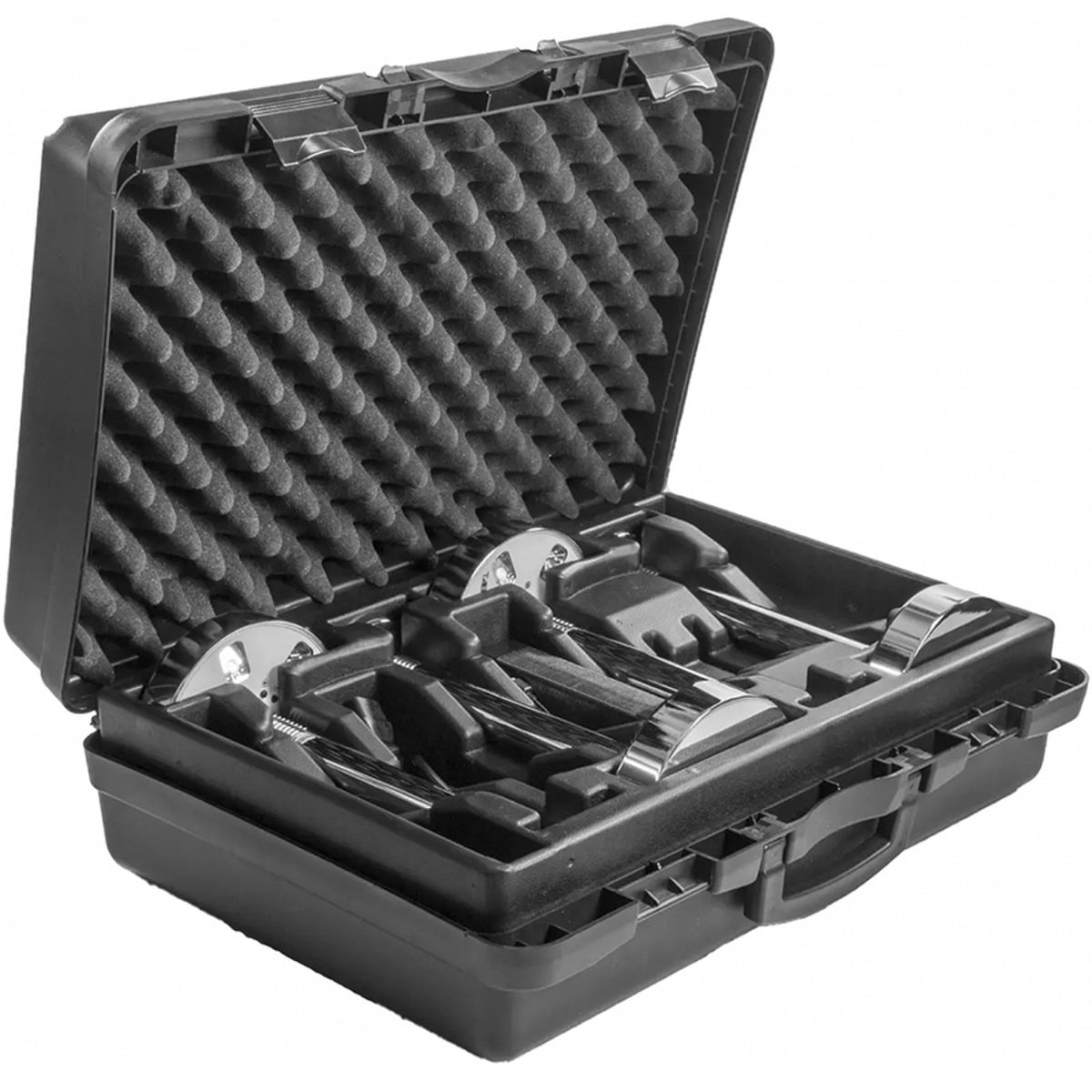

• Available in a TABLEDPACK featuring 4 lights with accessories in an ABS case

Specifications:

Light Source:

• Source: 6x3 W + 6x1W RGB + Neutral White
• CCT: NW 4.000
• CRI: 80
• Source life expectancy: > 50.000 h

Optics:

• Beam angle: 360° designed to light up standard 160/180 cm ceremony tables

Dynamic Effects:

• Static mode: selection of static colour
• Manual mode: manual adjustment of colour

Body:

• Hardware on-board: magnetic base
• Body: sturdy die-cast aluminum body
• Body colour: mirror and white finishing
• Other: 1 x TABLEDDSK22W and 1x1 recharger included inside single unit box

Control:

• Protocols: W-DMX
• DMX channels: 4 / 7 / 10 / 12channel
• Wireless Control: included, wireless solution receiver
• Display: Graphic User Interface
• Firmware upgrade: yes, via USB - DMX interface (UPBOXPRO/UPBOX1) not included
• IR: infrared sensor controlled by remote (included in the pack, not included in single unit)

Electronics:

• Dimmer: linear 0 ~ 100% electronic dimmer
• Dimmer curves: 4 selectable dimming modes available
• Strobe / shutter: 1 - 30 Hz, electronic
• Operating temperature: 0° ~ +45°

Electrical:

• Mains power supply: DC 24 V - 1 A
• Max power consumption: 8,8W

Battery:

• Battery: 2,20 Ah - 14,8V lithium
• Estimated battery life in colour change mode up to: 14,5h
• Estimated battery life in single colour mode up to: R: 19 h - G: 17,5 h - B: 17,5 h - W: 17,5h
• Estimated battery life in full-mode up to: 9h
• Re-charge connection: power cable fast-charge in pelican case
• Re-charge time: 4h/max
• Battery status: shown on display

Physical:

• IP rating: 30
• Suspension and fixing: magnetic base to attach on every metal surface
• Data connection: W-DMX receiver
• Dimensions (WxHxD): 140x307x220mm / 5.51''x12.09''x8.66''
• Weight: 1,18kg / 2.6lbs

Certifications / Approvals:

• Certifications / Approvals: CE, UKCA, RCM
