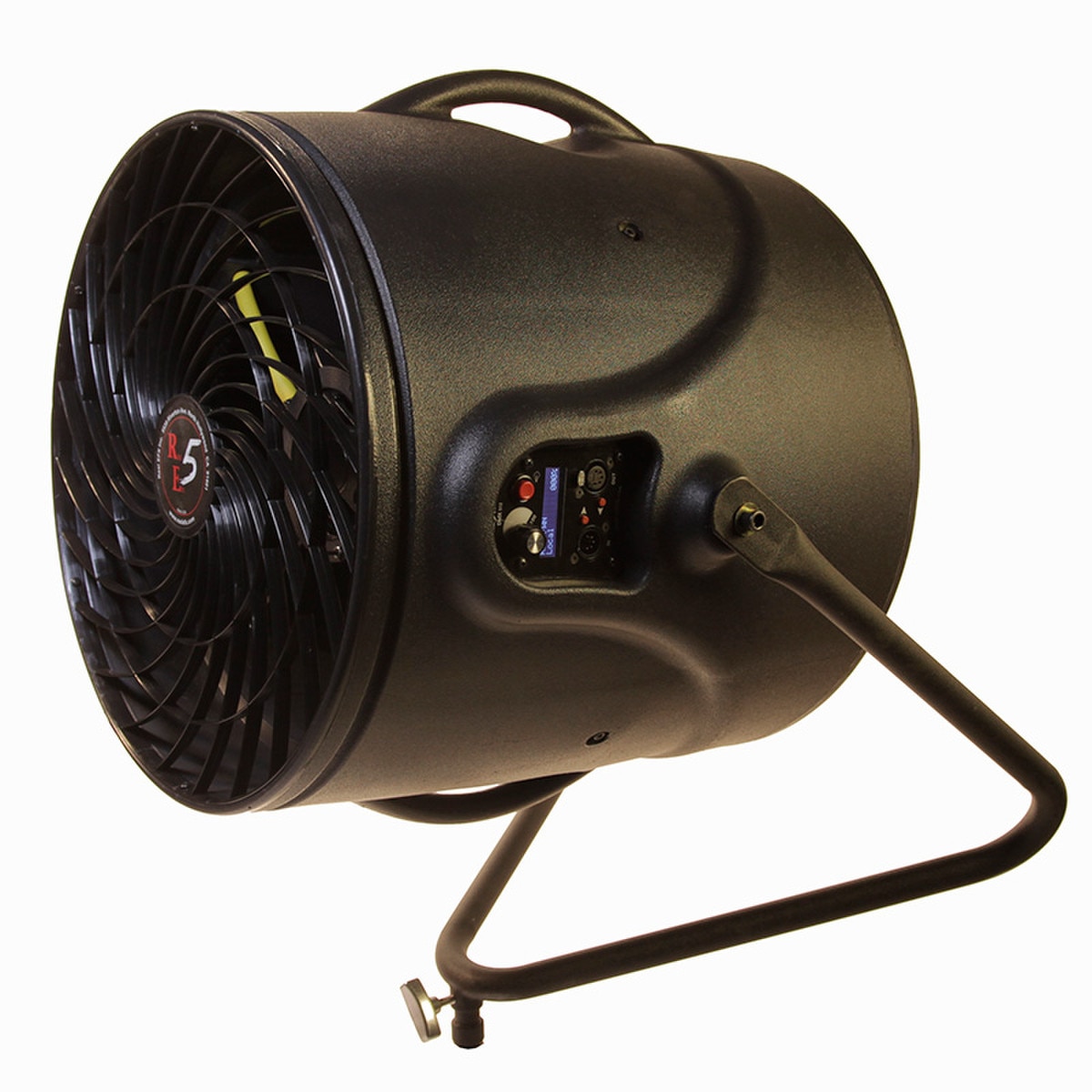

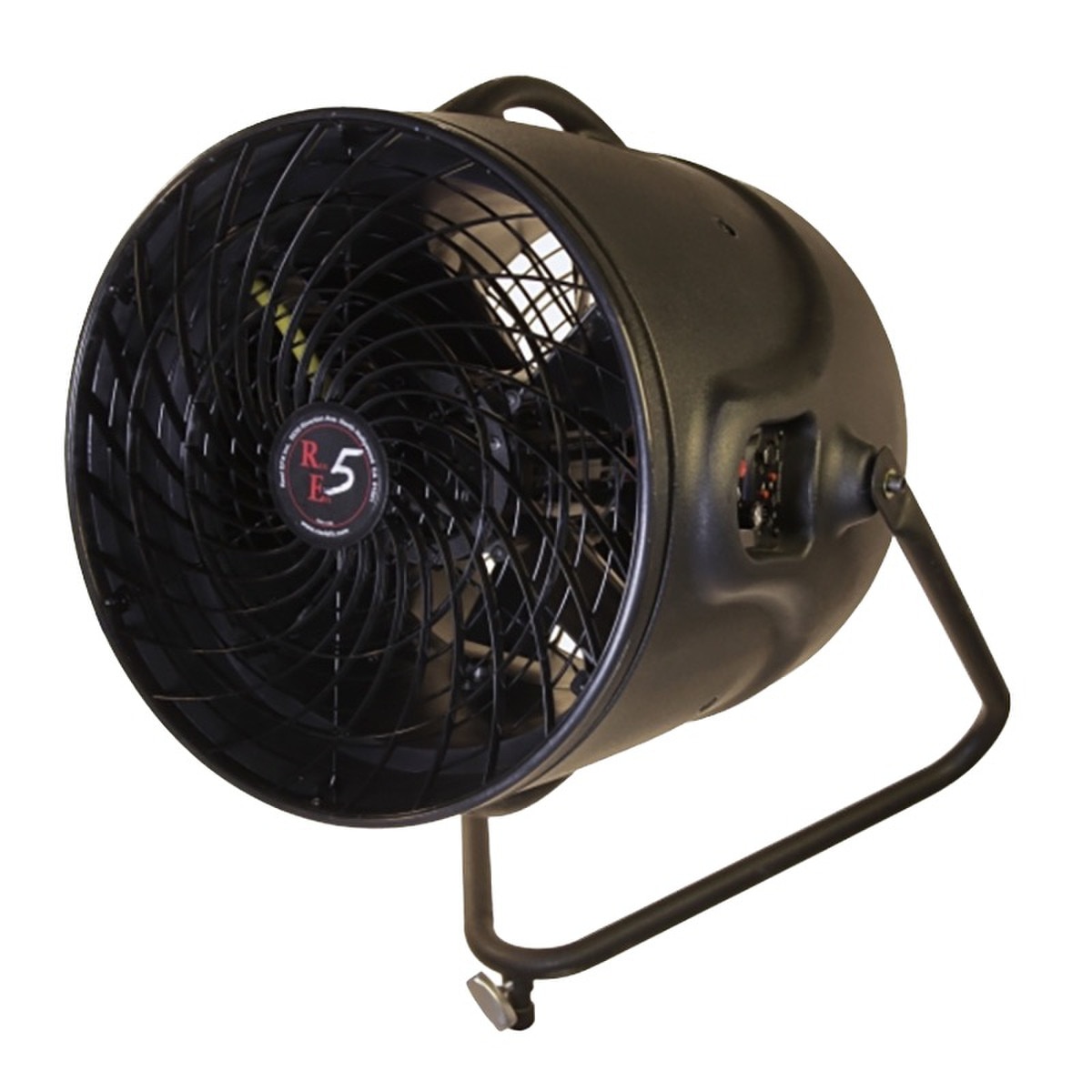

Reel EFX RE VI Fan - with DMX Speed Control
Details
The RE 5 is designed specifically for professional studio, stage, location, and theme park applications where maximum wind at the lowest possible noise level is required. Advanced aerodynamics, a 2 horsepower motor, and a sophisticated solid state drive combine to create wind in excess of 33 mph at 1 meter. Combined with a rotary molded housing, composite blade assembly and integrated DMX interface makes the RE5 the quietest, lightest, most powerful, and versatile special effects fan available.
Features:
- Universal Voltage input 100-240 VAC
- Active power factor correction (0.99 pf @max load)
- Silent smart-switching eliminates drive noise at low rpm
- Faster-responding control system
- 70% more wind power output than the RE 3
- Active brake stops blades at 'zero speed' command
- Eco-friendly RoHs-compliant construction
Specifications:
- Input ratings: Voltage: 100-240V
- Current: 21-7A
- Phase: Single
- Max power: 2100 Watts
- Frequency: 50/60Hz
- Motor: 2 HP Baldor Premium Efficient 3-Phase
- Full speed: 1700 rpm, 33 mph @ 1 yard
- Speed Control: Solid-state variable-frequency drive with active silent smart-switching & active power-factor correction
- DMX Control: USITT-compliant DMX 512 w/5-pin XLR

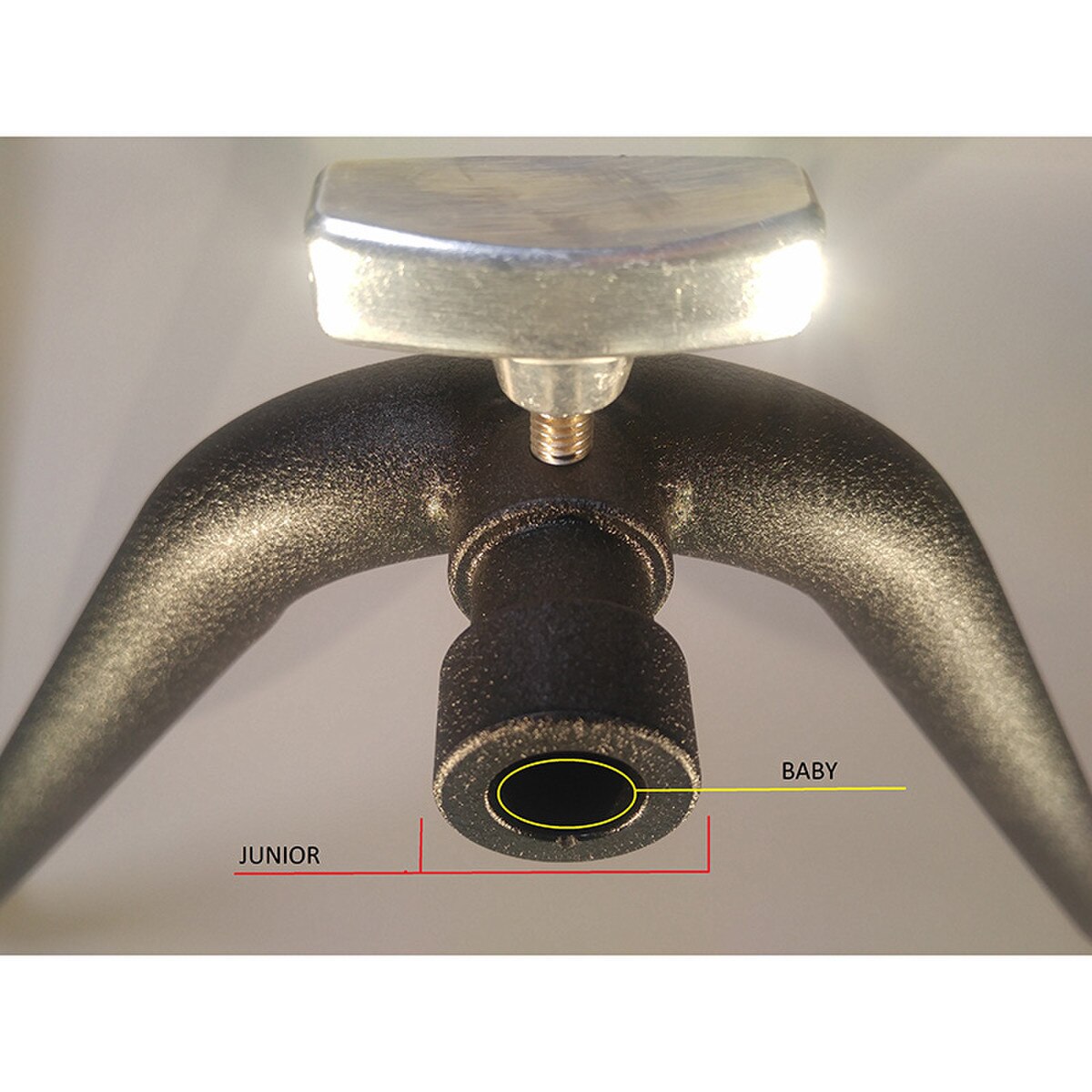

- Mounting: steel floor stand with spud mount
- Blades: 9 blades, 16" diameter
- Dimensions: body size 22" x 24", roto-molded high-impact plastic
- Weight: 54 lbs

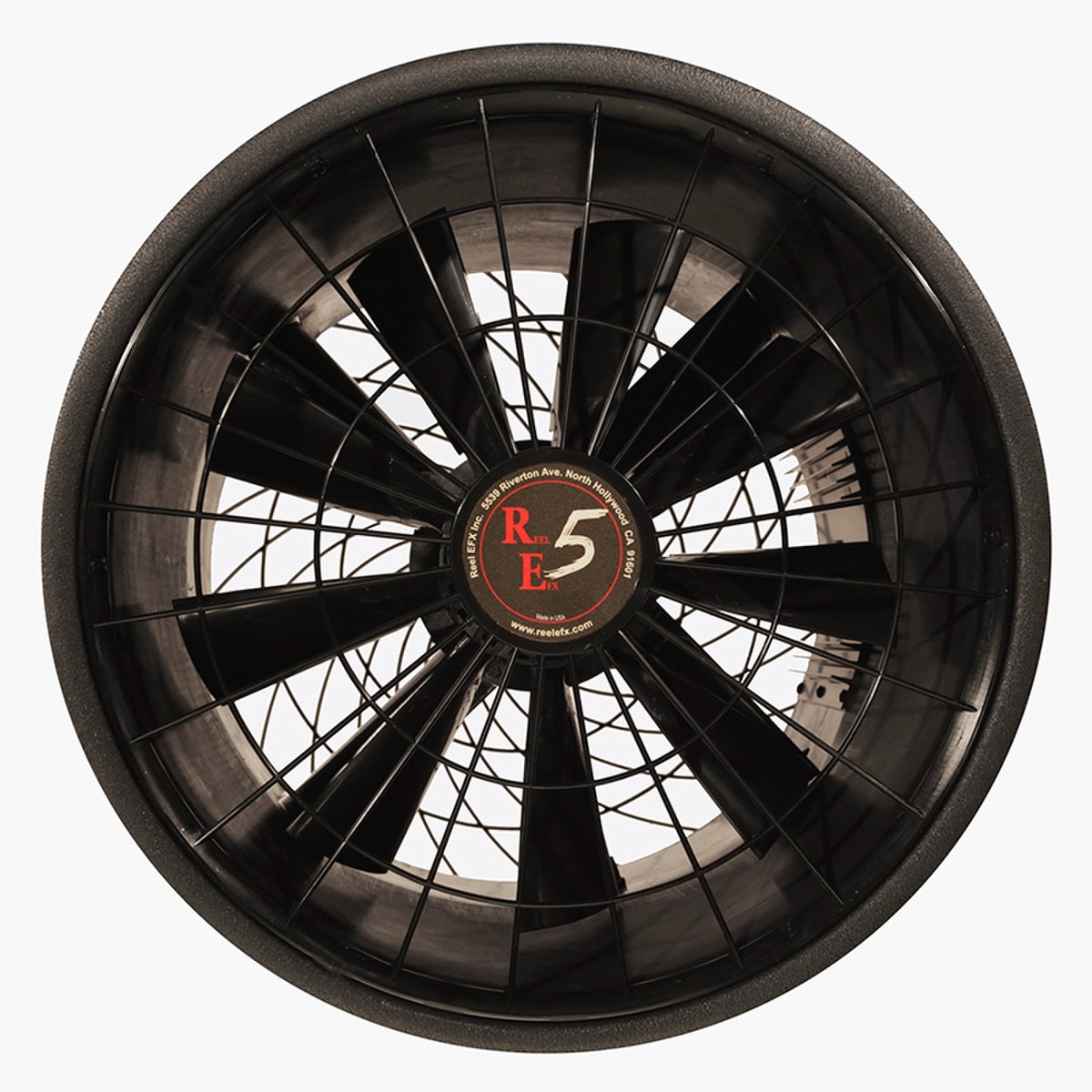

- Grill: front & rear flow-enhancing, impact-resistant nylon grills
- Warranty: one year parts & labor
