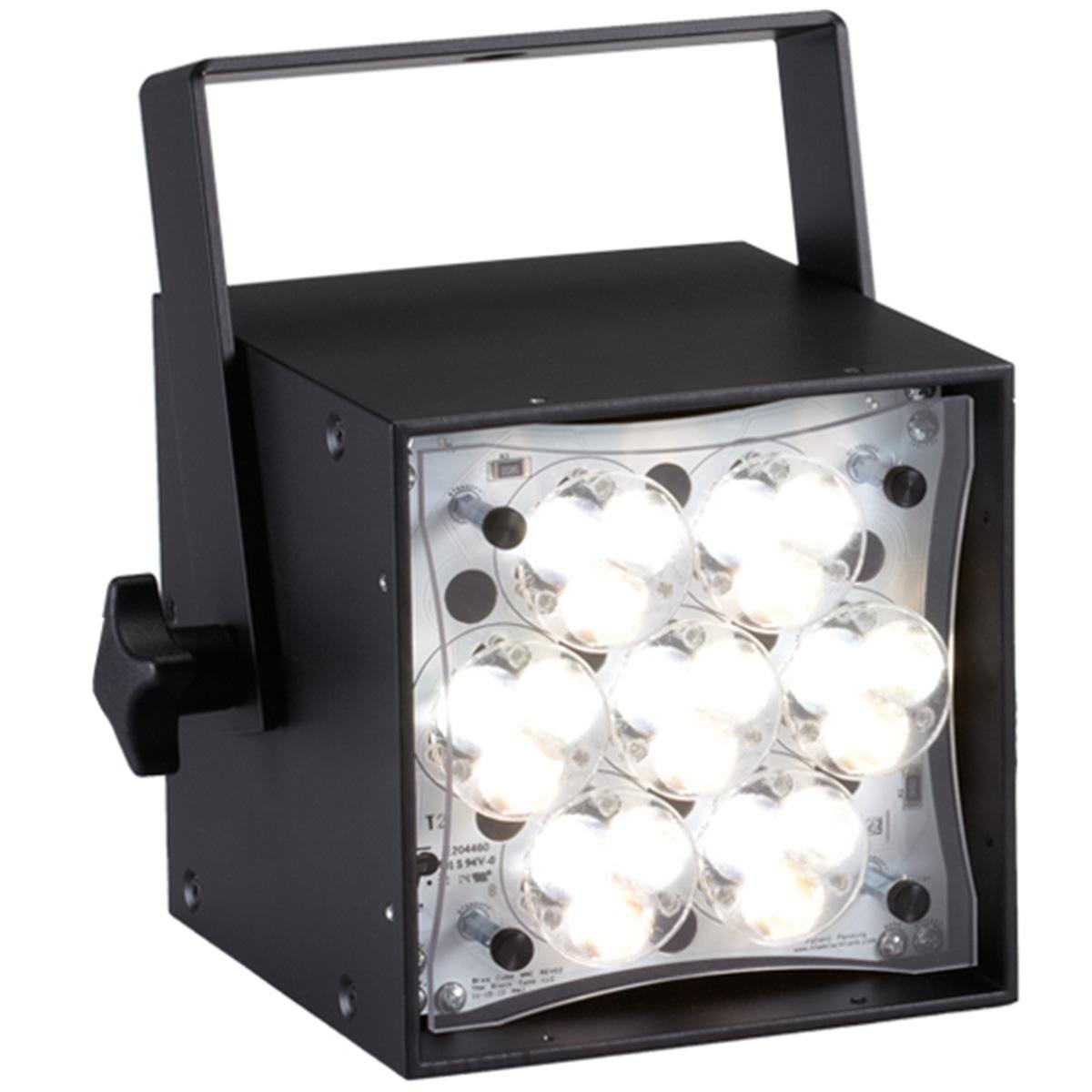

Rosco Braq Cube WNC with Power Cord - Black
Details
Size matters and Braq Cubes deliver where others can't! Using 21 high-quality Cree XML 4W emitters, the Braq Cube® WNC outputs more than 7000 lumens and can adjust from 2800K to 6500K. A unique mix of warm, neutral and cool LEDs ensure excellent rendering across all color temperatures. Small enough to be built into scenery or soffits, and lightweight enough to mount as a track light, the Braq Cube® WNC is perfect for use in broadcast & photography studios and film & TV sets, as well as retail stores, museums and other architectural installations that require a bright, gorgeous white light with excellent color rendering.
Features:
- Bright 7000 lumen output
- Variable color temperature from 2800K to 6500K
- Optional "Filament Mode" mimics the delayed blackout glow of an incandescent lamp
- Low, 100W power consumption allows over 20 fixtures to be powered on a single 20A circuit
- No expensive power supply units or ballast required. Directly connect to 90-240 VAC mains power.
- Comes with a complete lens set including: 20° spot, 40° medium, and 60° wide flood
Power Cord configurations include:
- 8' AWG16 cord with Neutrik Powercon and 3-prong Edison ends
- No cord
Optional Power Cord accessories include:
- 8' AWG16 cord with Neutrik Powercon and 3-prong Edison ends, in-line switch
- 8' AWG16 cord with Neutrik Male/Female ends (Powercon Pass-Thru)
- Flicker free DMX dimming (0 ~ 100%) and control

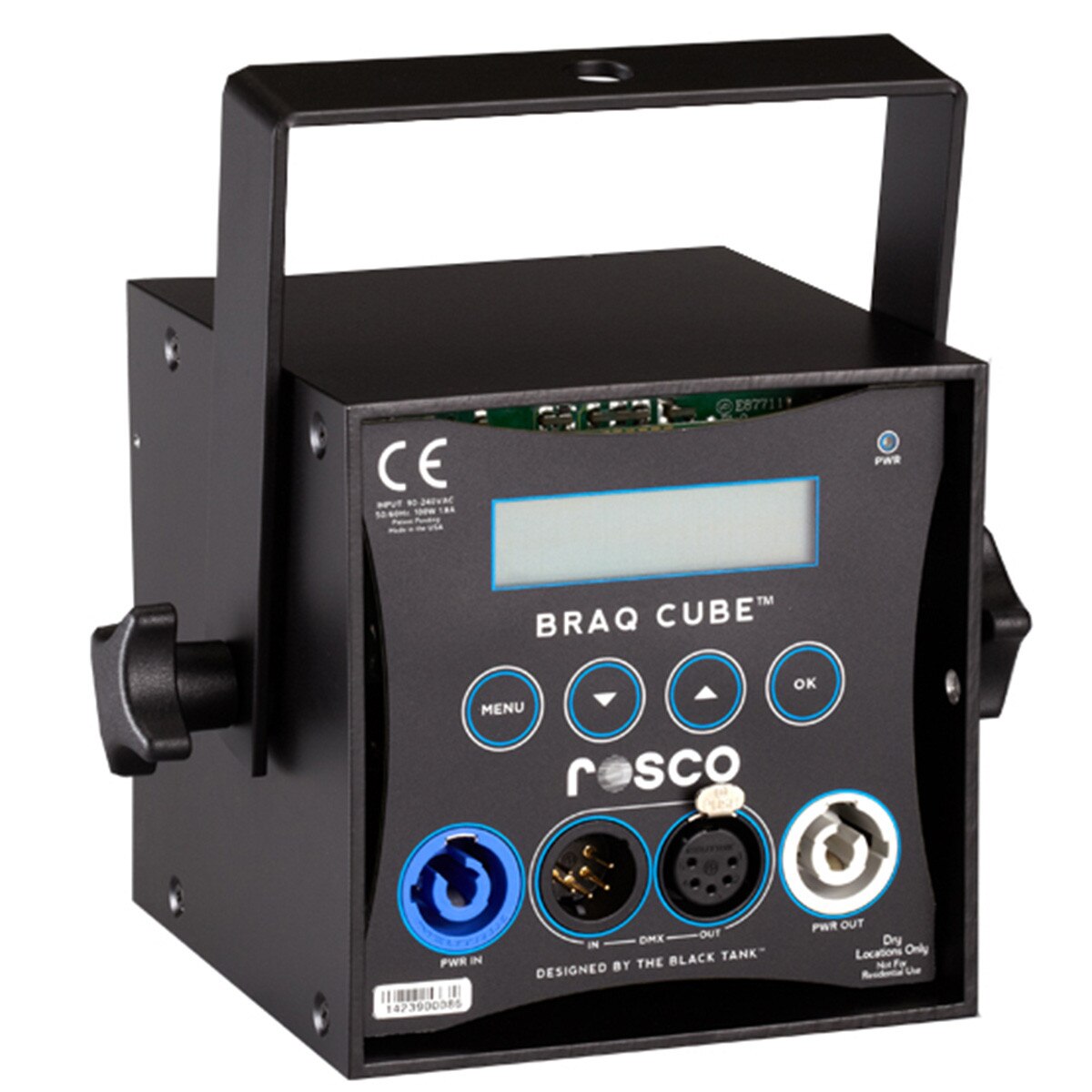

- Intuitive full text LCD panel for manual operation
- Compact design suitable for mounting in small spaces or architectural installations.
- Track Light mounting adapters available for many common track brands or with our fully integrated DMX Data Track.
- Auto temperature sensing with fault detection and protection
- ETL/CE listed
Specifications:
- LED: 21 x 4W Cree XM-L LEDs
- Output: 7100 Lumens (no lens)
Lumen Maintenance:
- 100,000 hours L50 at 25°C
- 50,000 hours L50 at 45°C
- Color Temperature: 2800K - 6500K
Operation:
- DMX: 8 or 16 bit DMX512
- Manual: Full Text LCD user interface sets color output
- Input Voltage: 90 - 240 VAC 50/60Hz
- Power/AC Input: Neutrik Powercon input and pass-thru
- Data: 5-pin XLR Male, 5-pin XLR Female - DMX
- Power Consumption: 100 Watts at maximum output
- Operating Temperature: -13° to 113° F (-20° to 45° C)
- Humidity: 0 - 95% non condensing
- Dimensions: 5" x 5" x 5.3" (127 x 127 x 135mm)
- Weight: 3.5 lbs (1.6 kg)
- Housing: Powder coated aluminum extrusion (1/8 in wall)
Approvals and Listings:
- FCC Class A Radiated and Conducted
- ETL / UL Standards 1573 and 8750
- cETL / CSA C22.2#166-M1983
- CE
- RoHS Compliant
- IP20 Rated
- Dry locations only
