Rosco DMG DASH Octa Kit

(0)No Reviews yet
$3,500.00
SKU: Rosco 29822500K007

Details

DMG DASH is the smallest member of Rosco’s DMG Lighting range featuring the patented six-chip MIX® LED technology. Its compact design provides filmmakers with high quality light output and precise color control from a durable, handheld light fixture.


The DMG DASH Octa Kit contains eight DMG DASH W/ CRMX lights, plus eight of each standard beam-shaping and mounting accessory. Everything in the kit ships inside a heavy-duty charging case that can recharge all eight DMG DASH fixtures at the same time in under 3 hours.

Features:

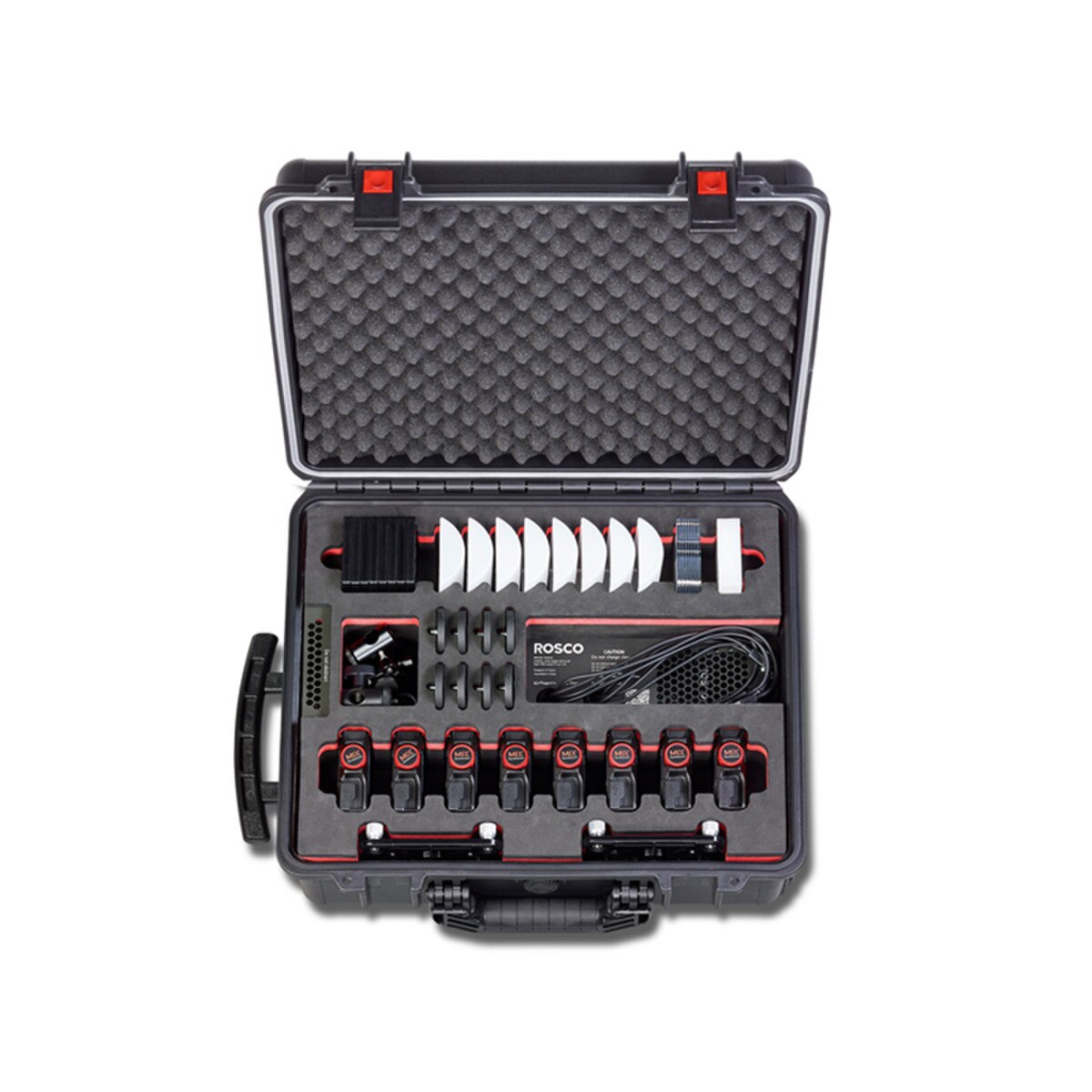

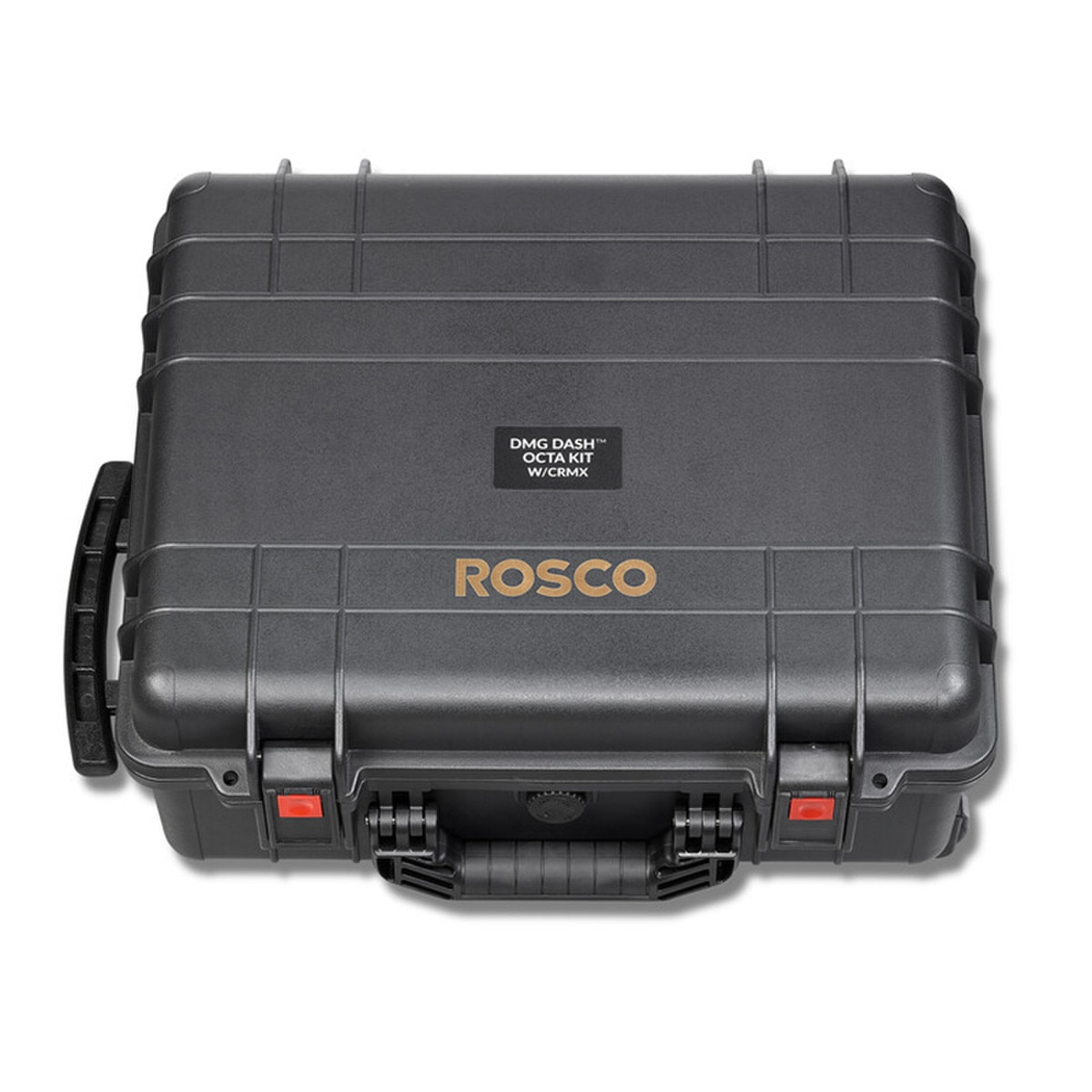

Durable Charging Case:

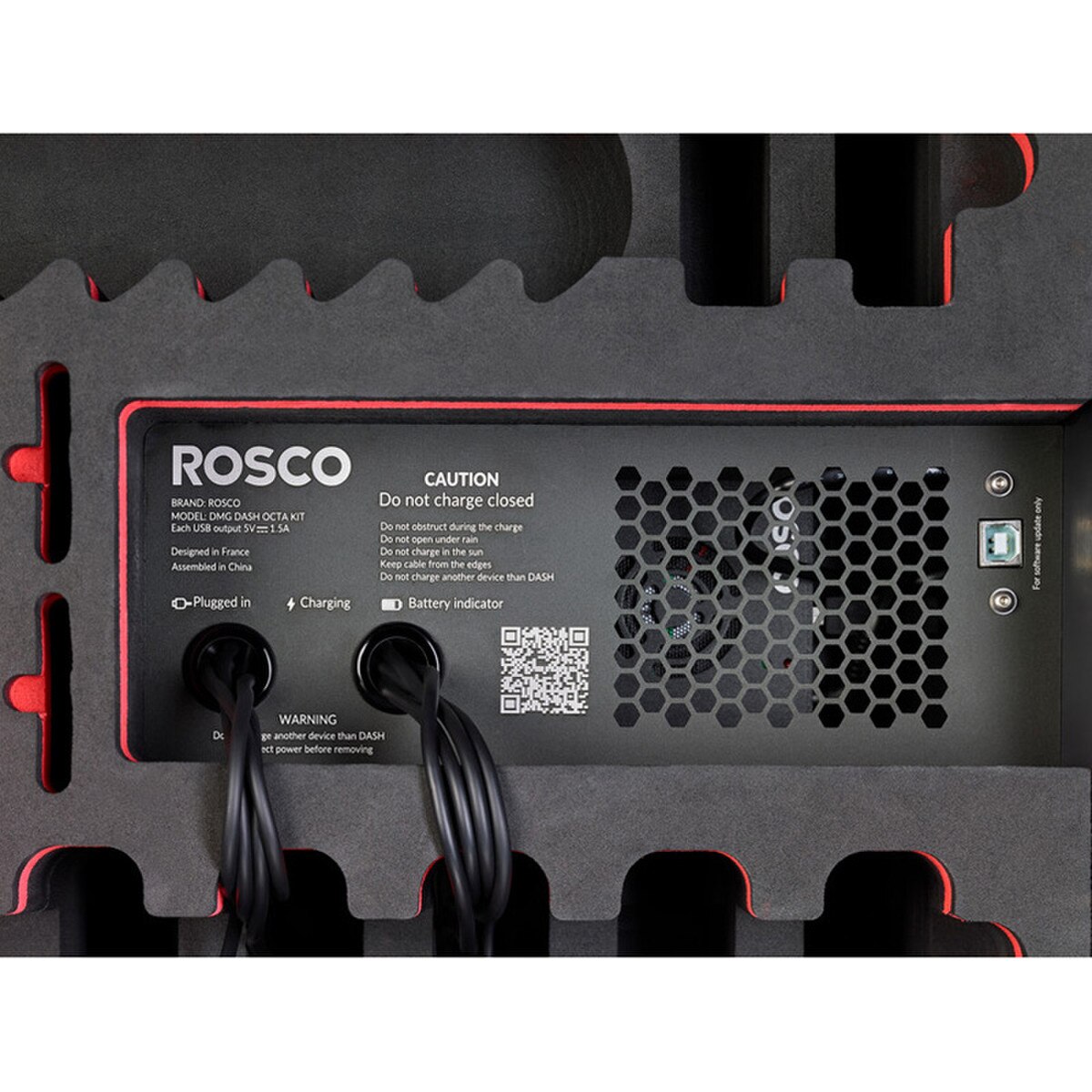

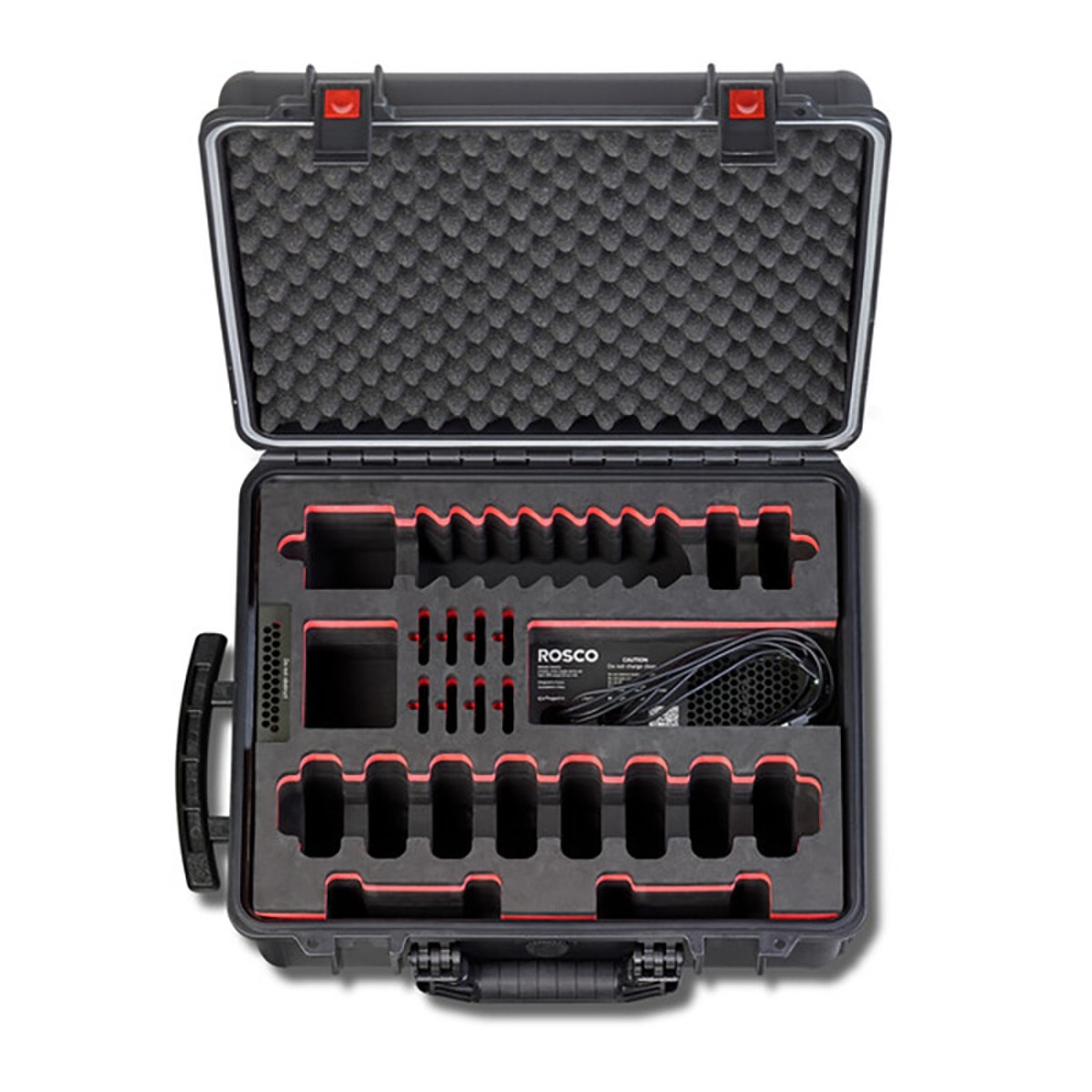

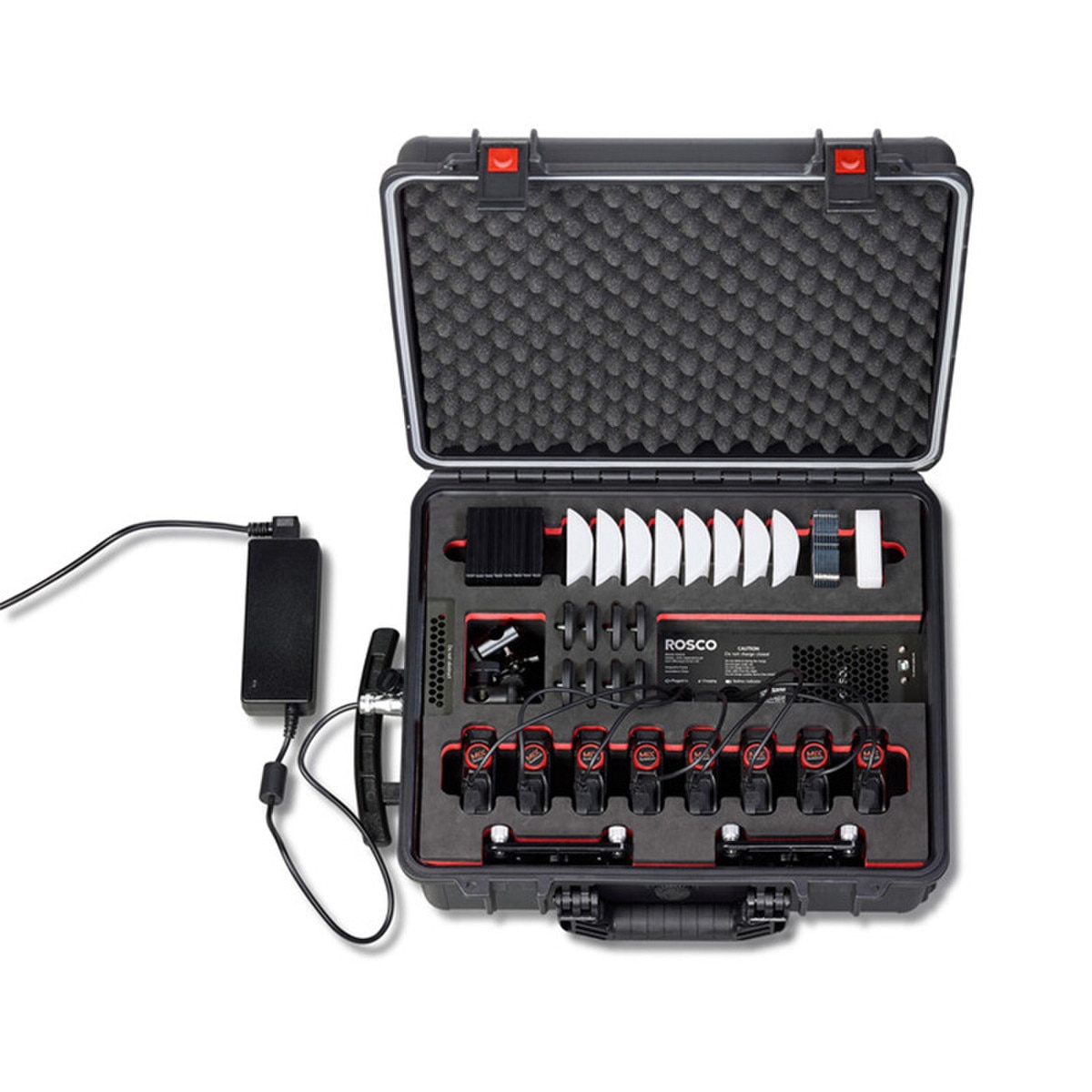

The DMG DASH Octa Kit features a hard-shell rolling case to keep your gear protected. An eight-unit USB charging hub is integrated inside the Octa Case, enabling it to charge up to eight DMG DASH units at one time. The case also features slots to house all of its beam-shaping and mounting accessories for easy, at-a-glance viewing of the kit’s contents.

Superior Color-Mixing:

Each DMG DASH inside the Octa Kit features Rosco’s patented, six-chip MIX® Technology – enabling it to produce the same color-quality and True Rosco Color™ gel matches that other DMG Lights do! This proprietary blend of Red, Green, Blue, Lime, Amber, and White emitters enables DMG DASH to produce a wider gamut of colors than comparable RGBW/RGBA pocket LED lights.

Fully Accessorized:

Every Octa Kit is loaded with eight of everything, including Flat Diffusers, Dome Diffusers, Eggcrates, Gel Holders, Light Stand Mounts, Magnetic Mounts, and Charging Cables. It also includes two DMG DASH LINK4 accessories that can connect four fixtures together to create a single, larger light source.

Multiple Control Options:

DMG DASH can be controlled by its onboard user interface, or via the free myMIX® app. The Octa Kit includes eight DMG DASH units with CRMX from LumenRadio that offers wireless DMX control via W-DMX & CRMX protocols.

Pocket-Sized But Powerful:

Don’t let its small size fool you, the battery-operated DMG DASH can produce up to 500 lumens of output – all from a fixture that fits in the palm of your hand.

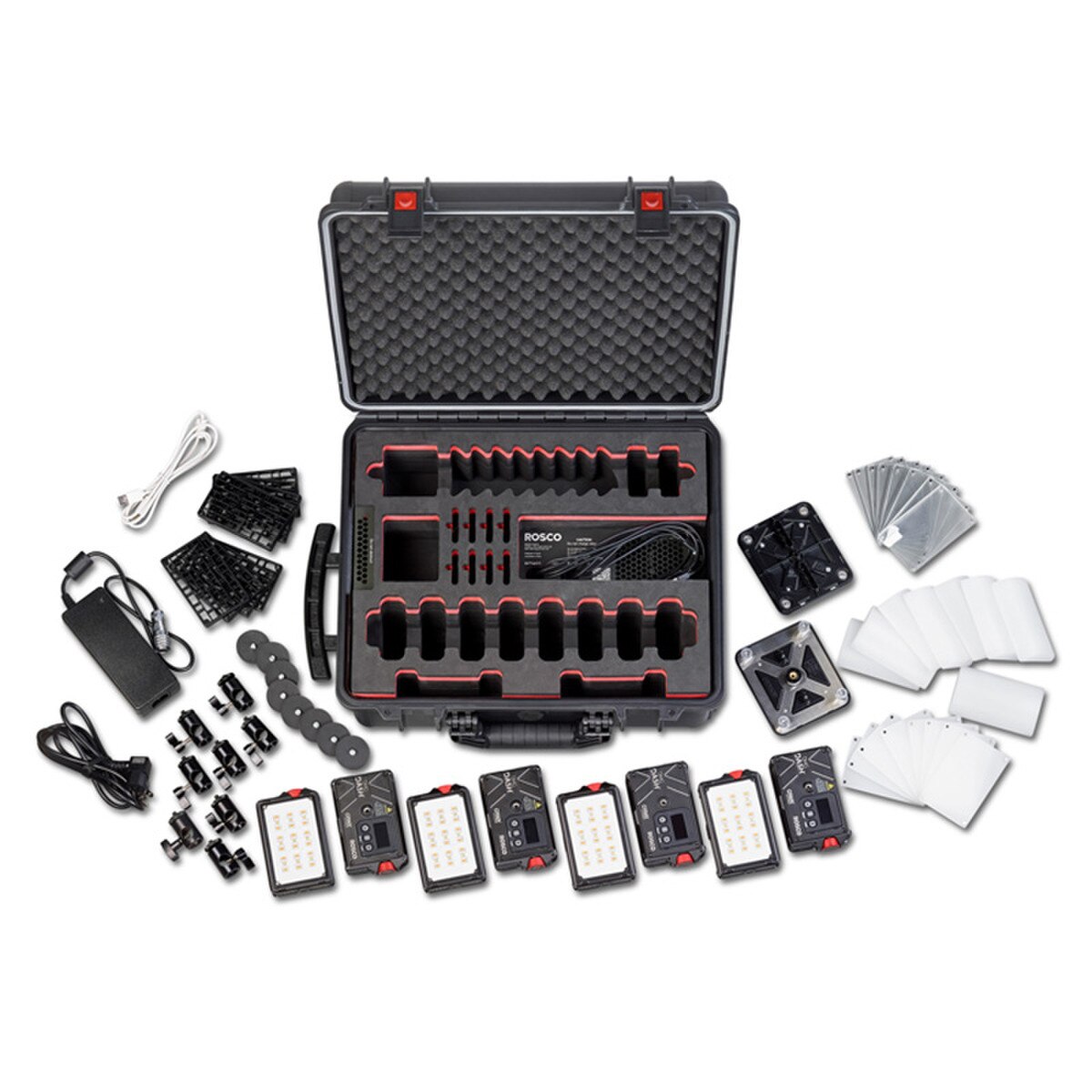

What's In The Kit:

  • 1 – Rolling, Hard-Shelled Charging Case With Power Portal
  • 8 – DMG DASH With CRMX Fixtures
  • 8 – Flat Diffusers
  • 8 – Dome Diffusers
  • 8 – Eggcrates
  • 8 – Gel Holders
  • 8 – Magnetic Mounts
  • 8 – Light Stand Mounts
  • 2 – DMG DASH LINK4 Mounting Adapters
  • 8 – USB-A – USB-C Charging Cables
  • 1 – AC Power Cord
  • 1 – USB-A – USB-B Firmware Update Cable

In order to control the DMG Dash fixtures inside the Octa Kit, you may use the myMIX app, which is available for iOS® and Android™ devices.

DMG DASH Fixture Specifications:

  • Lux @ 1m (3.3 ft.): 250 Lux @ 6500K
  • Lux @ 1m (3.3 ft.) – Boost Mode: 320 Lux @ 6500K
  • Maximum Power: 14W
  • Battery Runtime: Three Hours at 100% Intensity (Less In Boost Mode)
  • LED Colors: Red, Green, Blue, Lime, Amber, White (4000K)
  • Light Modes: WHITE / GEL (with True Rosco Color Gel Matches) / COLOR – HSI & XY (With Rec 709 & Rec 2020 overlays) / EFFECTS / SOURCE MATCH
  • Color Temperature: 1700K – 10,000K
  • Color Rendering: CRI Average: >95 TLCI Average: >90
  • Flicker-Free: Up To 1,000 FPS
  • On-Board Control: Local UI: 1.3″ OLED Graphical Display – 128px x 64px
  • Wireless Control: Wireless Control: Bluetooth BLE via the myMIX® Mobile App - Available for iOS / Android
    Wireless DMX (CRMX model only): LumenRadio with CRMX and W-DMX control, plus RDM
  • Size: 5″ x 3.1″ x 1.1″ (12.8cm x 8cm x 2.8cm)
  • Weight: 12.8 oz (367g)
  • Body Material: Aluminum Alloy
  • Outdoor Rating: Weather-Resistant – IP65
  • Charging Connector: USB Type-C
  • Firmware Update: Units can be updated individually

Octa Case Specifications:

  • Size: 530mm x 410mm x 230mm / 20.9in x 16.1in x 9.1in
  • Weight(Full): 12.7kg / 28.0lbs
  • Input Voltage: 20 VDC 6 A
  • Charging Amperage: 2.5 Amps



DMG Dash Octa Kit Spec Sheet.pdf
