Rosco DMG DASH Pocket LED Kit

Temporarily out of stock

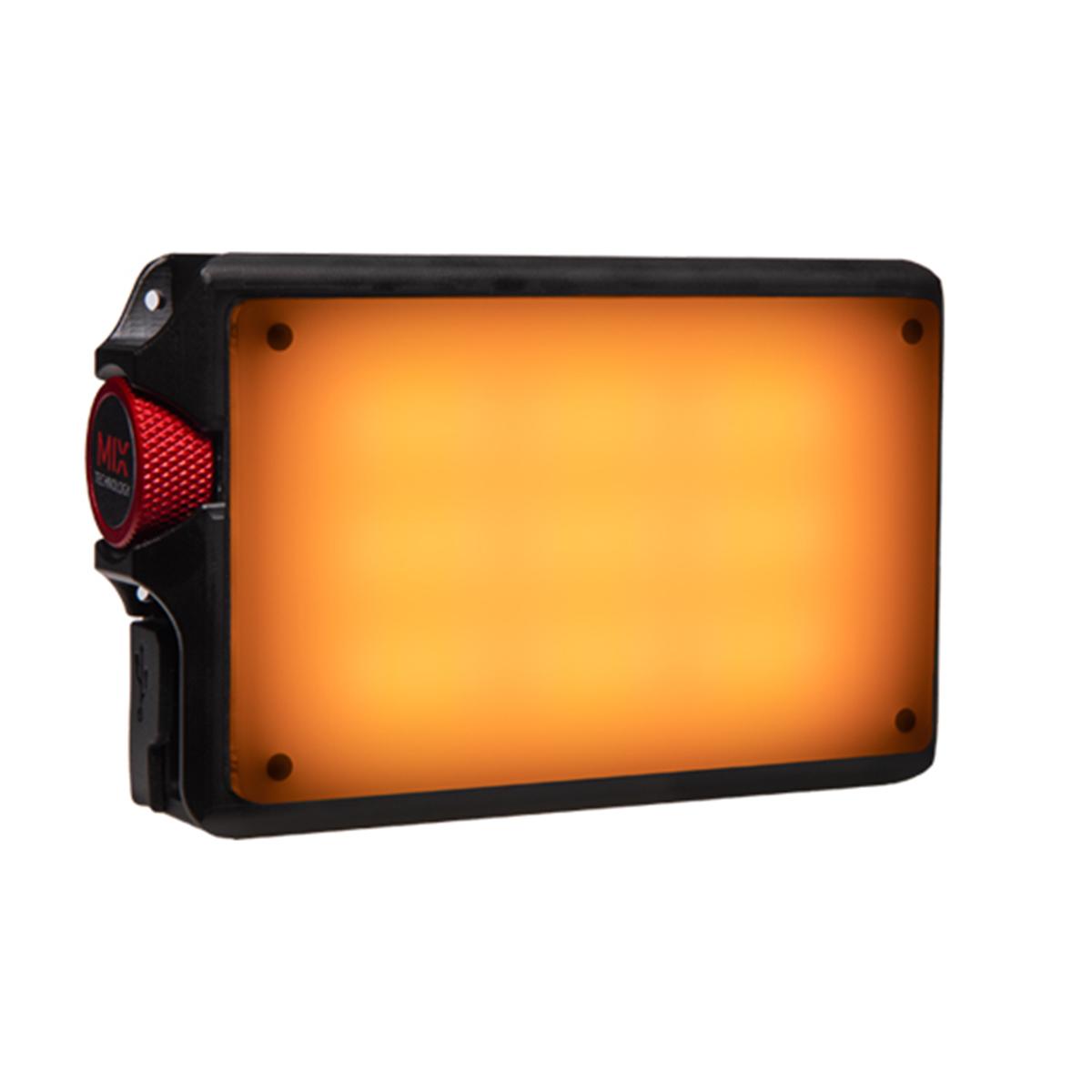

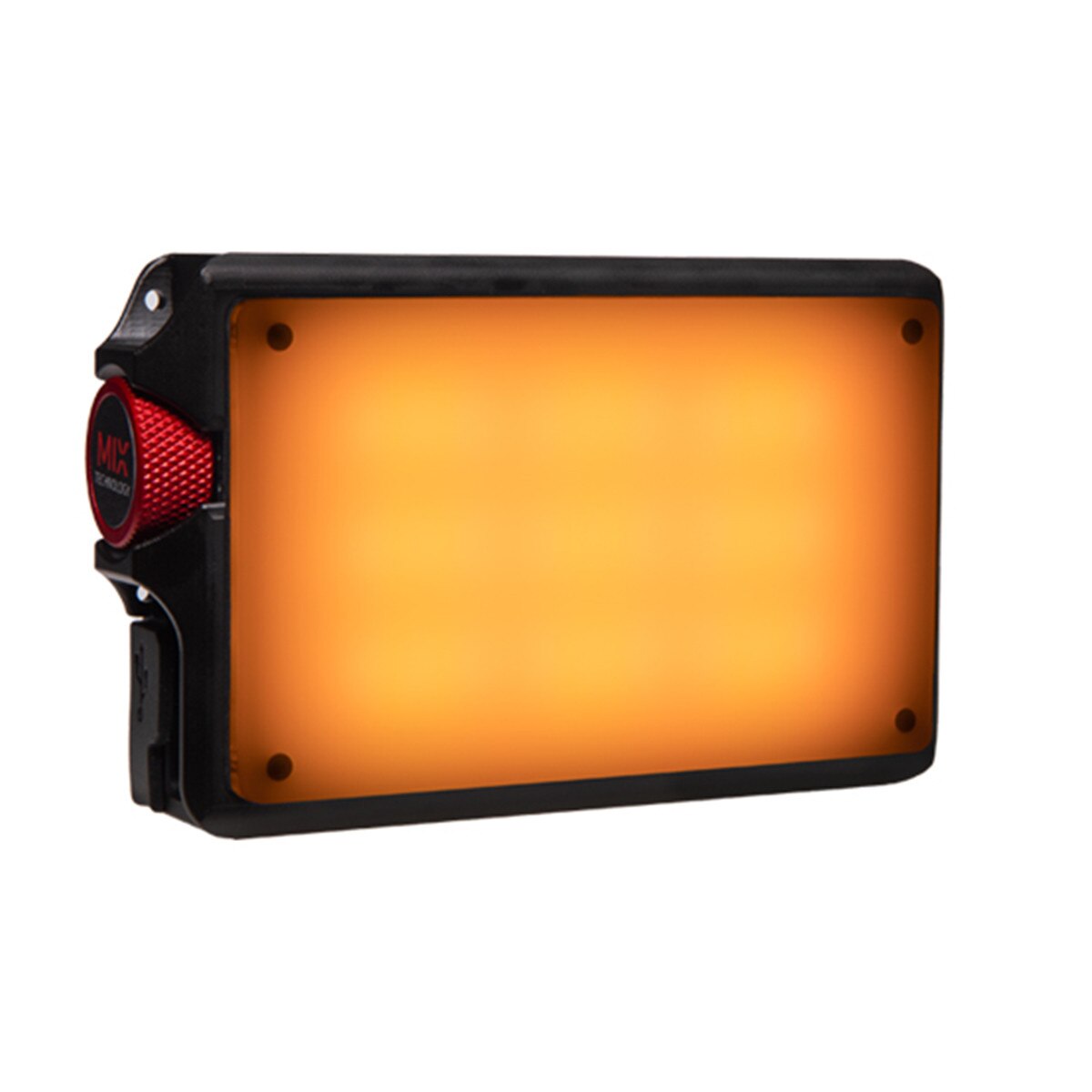

Rosco's DMG DASH is the smallest member of Rosco’s MIX® Family of LED lights. Its compact design provides filmmakers with high quality light output and precise color control from a durable, handheld light fixture. This versatile LED light features powerful output from its durable and weatherproof 5″ x 3.1″ x 1.1″ (12.8cm x 8cm x 2.8cm) aluminum alloy housing. The DMG DASH has the same six-chip MIX LED technology that’s inside all of Rosco’s MIX LED lights to provide a broad color spectrum and superior color mixing. DMG DASH can also create white light with high CRI and TLCI values (1700K – 10,000K), and over 130 True Rosco Color™ gel matches.

Each DMG DASH Pocket LED Kit ships with a complete set of mounting and magnetized beam-shaping accessories - all inside a durable carrying case.

*Also available in a four-unit DMG DASH Quad Kit.

Case Study: A "1 Minute" Introduction to DMG DASH by Tatiana Massano

Features:

Superior Color-Mixing:

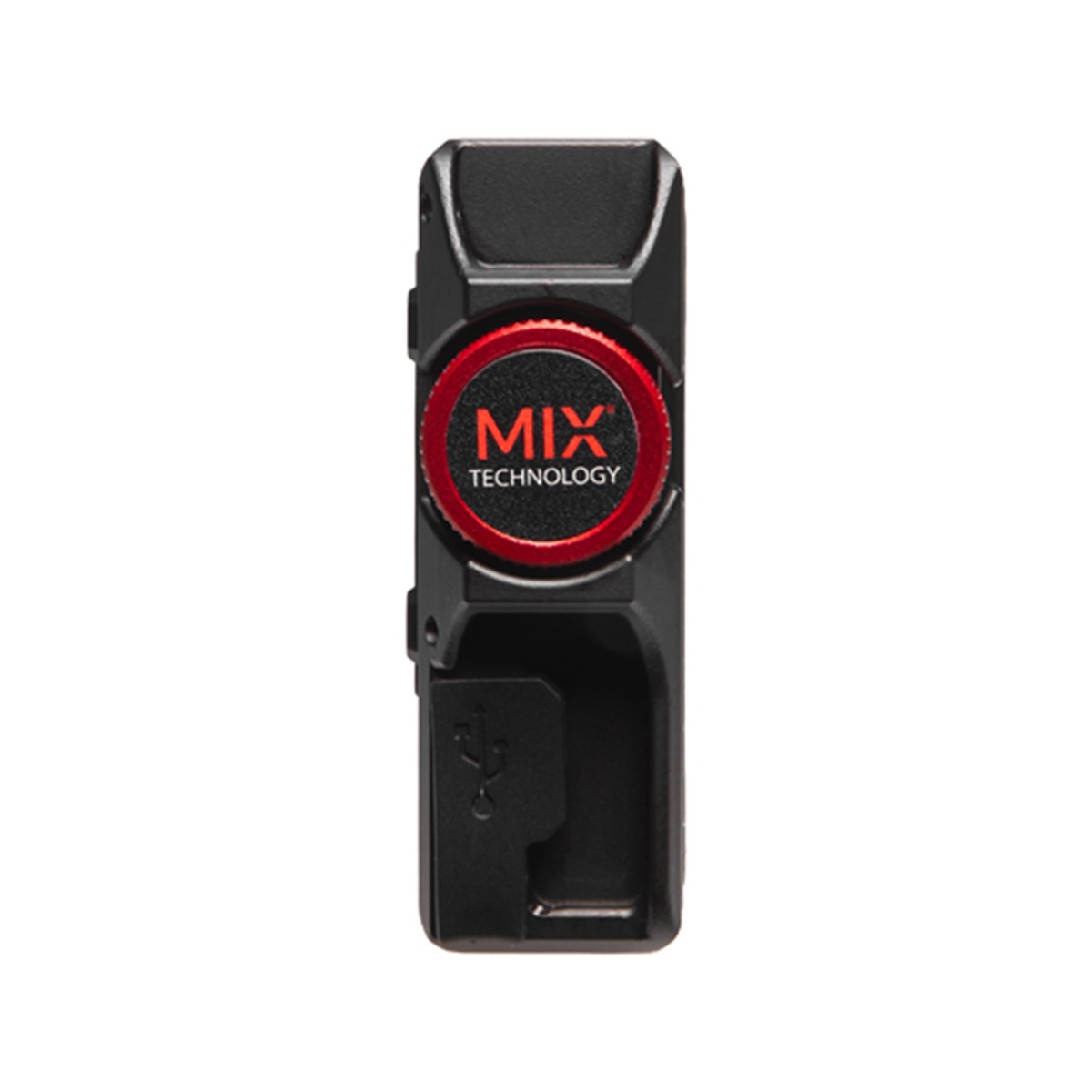

• DMG DASH features Rosco’s patented, six-chip MIX® Technology – enabling it to produce the same color-quality and True Rosco Color™ gel matches that other MIX lights do!

Fully Accessorized:

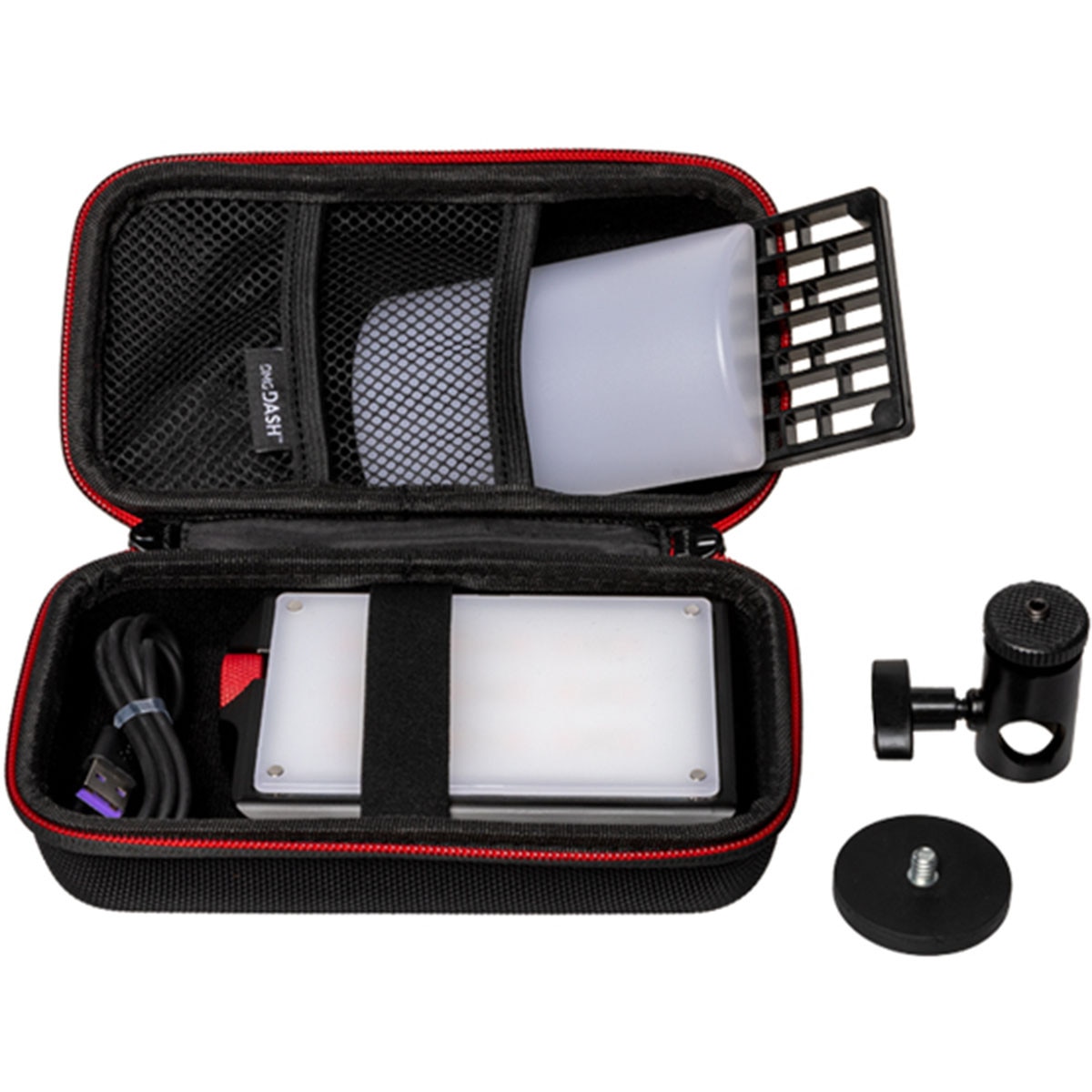

• Each DMG DASH Pocket LED Kit ships with a set of magnetic beam-shaping accessories, including a flat diffuser panel, dome diffuser, eggcrate, and a gel holder for adding any Rosco gel or diffusion material desired. The kit also includes a light stand mount, a powerful magnetic mount, and a USB-C charging cable.

Multiple Control Options:

• DMG DASH is controlled by its onboard user interface, or via the free myMIX® app. A wireless DMX model featuring LumenRadio for control via W-DMX & CRMX is also available.

Pocket-Sized But Powerful:

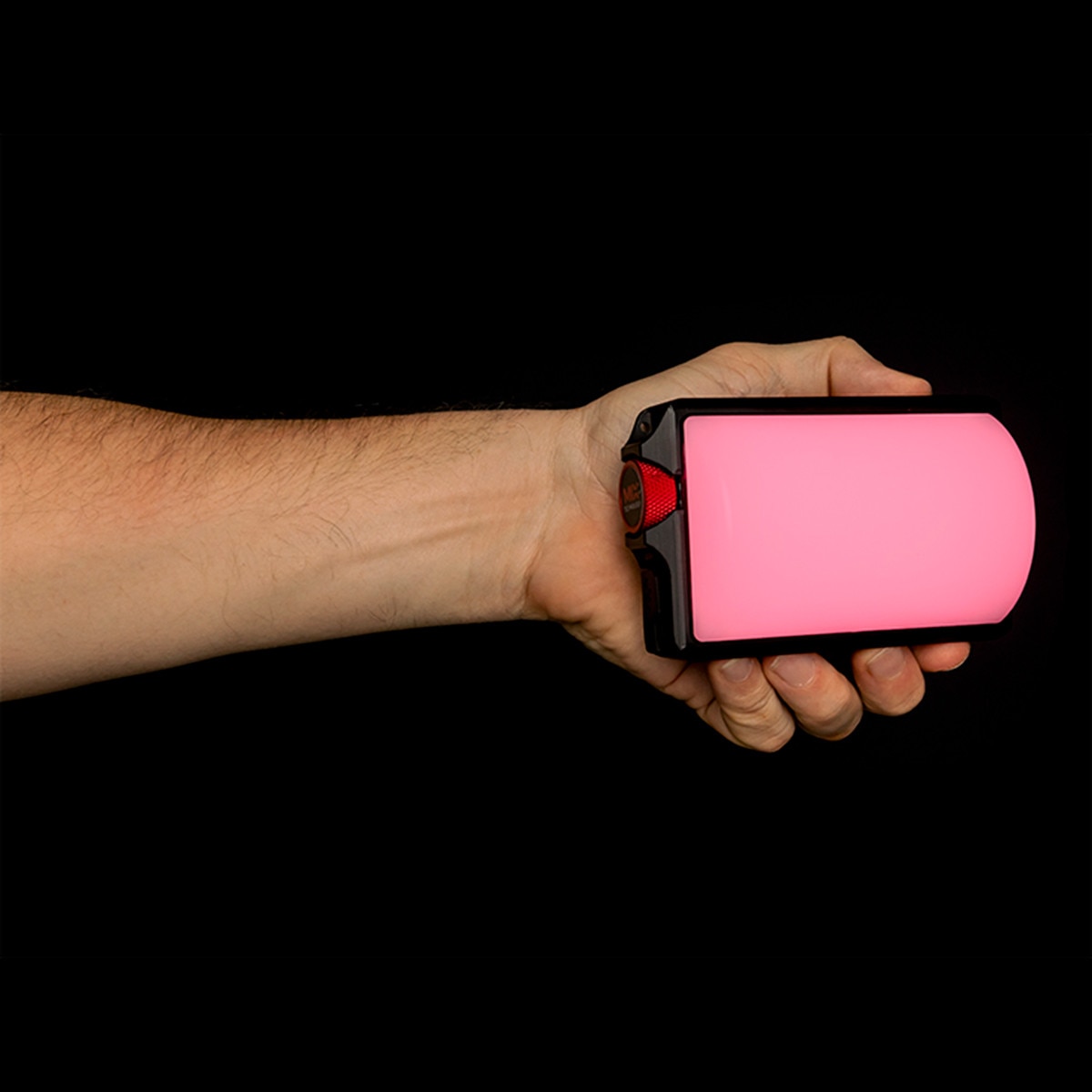

• Don’t let its small size fool you, the battery-operated DMG DASH can produce up to 500 lumens of output – all from a fixture that fits in the palm of your hand.

Link Together - Or Deploy Independently:

• The DMG DASH Quad Kit includes a DMG DASH LINK4 accessory that connects the four lights together. This enables the user to deploy the four DMG DASH units independently or link them together and control them as a group via the myMIX app to create a single, larger light source.

Weatherproof & Durable:

• It takes a thrashin’ and keeps on DASHIN’. DMG DASH is constructed from a lightweight aluminum alloy to provide a shock-resistant and IP65 weatherproof housing.

Note: In order to control DMG DASH Pocket LED Kit, you must use the myMIX app, which is available for iOS® and Android™ devices.

Download the myMIX App:

• iOS: Download The myMIX App For iOS
• Android: Download The myMIX App For Android

Specifications:

• Lux @ 1m (3.3 ft.): 250 Lux @ 6500K
• Lux @ 1m (3.3 ft.) – Boost Mode: 320 Lux @ 6500K
• Maximum Power: 14W
• Battery Runtime: Three Hours at 100% Intensity (Less In Boost Mode)
• LED Colors: Red, Green, Blue, Lime, Amber, White (4000K)
• Light Modes: WHITE / GEL (with True Rosco Color Gel Matches) / COLOR – HSI & XY (With Rec 709 & Rec 2020 overlays) / EFFECTS / SOURCE MATCH
• Color Temperature: 1700K – 10,000K
• Color Rendering: CRI Average: >95 TLCI Average: >90
• Flicker-Free: Up To 1,000 FPS

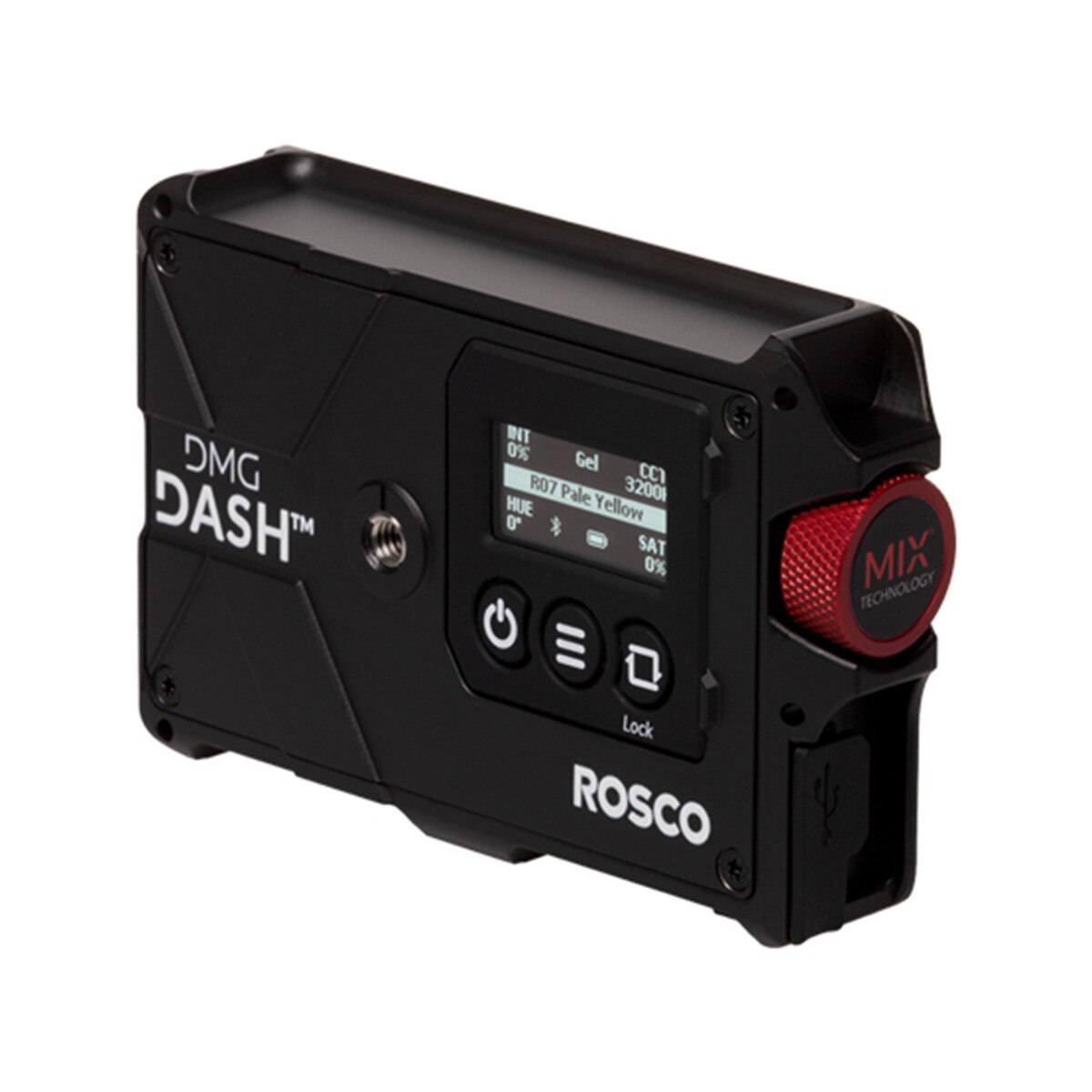

• On-Board Control: Local UI: 1.3″ OLED Graphical Display – 128px x 64px
• Wireless Control: Bluetooth BLE via the myMIX® Mobile App - Available for iOS/Android. Wireless DMX (CRMX model only): LumenRadio with CRMX and W-DMX control, plus RDM
• Size: 5″ x 3.1″ x 1.1″ (12.8cm x 8cm x 2.8cm)
• Weight: 12.8 oz (367g)
• Body Material: Aluminum Alloy
• Outdoor Rating: Weather-Resistant – IP65
• Charging Connector: USB Type-C

DMG DASH User Manual.pdf
DMG DASH Data Sheet.pdf
DMG DMX Profiles.pdf
DMG DASH - What's In The Kit.pdf
DMG Dash Quick Start Guide.pdf
DMG DASH CE Declaration of Conformity.pdf
Rosco DMG DASH Notification March 2022.pdf
DMG Dash Technical Drawing.pdf
DMG DASH Change Log for Standard & CRMX.pdf
